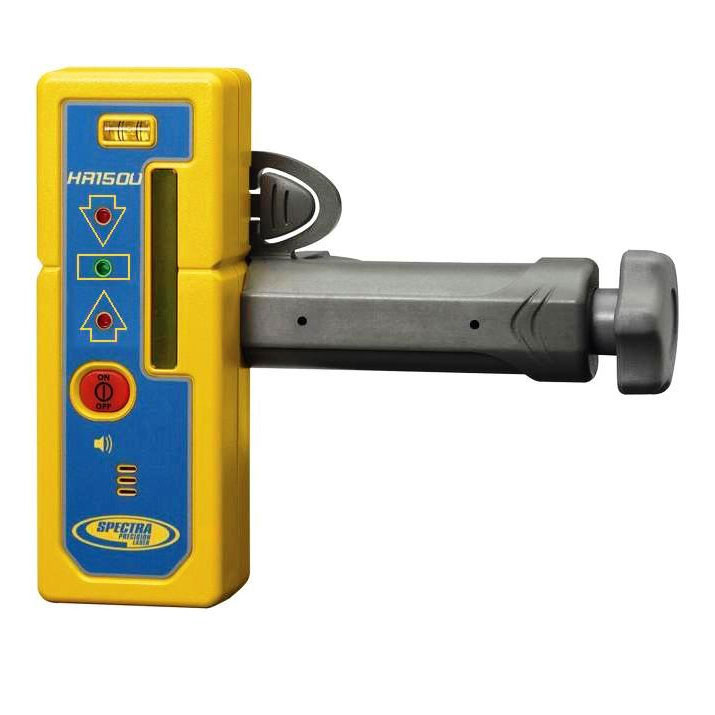

Spectra Precision HR150U Laser Receiver / Detector with C61 Rod Clamp

Overview

The Spectra Precision HR150U Laser Receiver with C61 Rod Clamp delivers reliable laser detection for everyday construction and grading projects. This compact detector works seamlessly with continuous-wave rotating laser systems, providing clear visual and audible indicators when you're on-grade. The integrated C61 rod clamp eliminates the need for separate mounting hardware, allowing your crew to attach the receiver directly to standard grade rods in seconds. Whether you're establishing foundation elevations, setting formwork, or verifying drainage slopes, the HR150U provides the accuracy and durability professionals demand at a price point that makes sense for contractors of all sizes. The large LCD display remains visible in bright sunlight, while the rugged housing withstands the drops, dust, and moisture encountered on active jobsites. With simple two-button operation and instant power-on functionality, even crew members new to laser systems can achieve accurate elevation measurements without extensive training.

Key Specifications

• Detection Range: Up to 260 feet (80 meters) diameter working range with compatible rotating lasers
• Accuracy: ±1/16 inch (±2mm) detection accuracy for precise grade work
• Display: Large backlit LCD with on-grade indication and battery status
• Detection Window: 5-inch (127mm) vertical detection height for faster signal acquisition
• Alerts: Dual audio and visual indicators—beeper with adjustable volume plus LED lights
• Operating Time: Up to 60 hours continuous use on two AA alkaline batteries
• Rod Compatibility: C61 clamp fits grade rods from 1.1 to 1.6 inches (28-41mm) diameter or width
• Durability: IP65 dust and water resistance rating for all-weather reliability
• Weight: 0.85 pounds (385g) with batteries and clamp—won't fatigue rod operators
• Temperature Range: -4°F to 122°F (-20°C to 50°C) operating range

What's in the Kit

• HR150U Laser Receiver with factory calibration
• C61 Rod Clamp with quick-release mechanism
• Two AA alkaline batteries (pre-installed)
• Protective carrying case with belt loop
• Quick start guide and warranty registration card

Job Applications

• Foundation and Footing Layout: Verify excavation depths and establish consistent foundation elevations across the building footprint, ensuring level concrete pours that meet engineered specifications and prevent costly structural corrections.
• Site Grading and Excavation: Guide earthmoving equipment operators to finished grade elevations with real-time feedback, reducing over-excavation waste and minimizing the need for fill material while achieving proper drainage slopes.
• Concrete Slab Preparation: Set formwork at precise heights and verify subgrade elevations before concrete placement, preventing low spots that cause ponding and ensuring uniform slab thickness for structural integrity.
• Drainage and Utility Trenching: Maintain accurate pipe slopes for gravity-fed sewer, storm drain, and irrigation systems—critical for proper flow rates and system performance throughout the service life.
• Landscaping and Hardscaping: Establish consistent elevations for paver patios, retaining wall courses, and finished lawn grades, delivering professional results that direct water away from structures and eliminate standing water.
• Interior Floor Leveling: Check subfloor elevations and screed depths for self-leveling compounds or mortar beds, ensuring level finished floors for tile, hardwood, or other flooring materials with tight tolerance requirements.

Compatible Accessories

• Spectra GL412N/GL422N Grade Lasers: Single and dual-slope rotating lasers with horizontal and vertical leveling capabilities
• Spectra Precision Grade Rods: Telescoping fiberglass and aluminum rods in metric and imperial graduations
• RC601 Laser Remote Control: Wireless remote for adjusting laser slope and elevation without leaving the rod
• HR320 Machine Receiver: Upgrade receiver for excavator and dozer mounting with extended range
• Replacement C61 Rod Clamps: Spare clamps for multi-receiver setups or replacement after wear
• Alkaline AA Battery Packs: Bulk battery purchases for high-volume users and extended field deployment

Related Guides

• Complete Laser Level Buying Guide: Rotary vs. Line Lasers
• How to Set Up and Calibrate Laser Receivers for Accurate Grading
• Foundation Layout Best Practices with Rotating Lasers
• Calculating and Setting Drainage Slopes for Site Work

FAQ

Will the HR150U work with my existing rotating laser system?

The HR150U is compatible with continuous-wave (pulse-compatible models may have limited functionality) rotating lasers from Spectra Precision, Trimble, Topcon, Leica, and most other major manufacturers. It works with both single-grade and dual-slope lasers operating on standard laser frequencies. Check your laser's specifications to confirm it outputs a continuous beam rather than pulse-only operation.

How do I know when the receiver is exactly on grade?

The HR150U uses a three-indicator system: when you're on-grade, the center LED illuminates and the receiver emits a steady tone. If you're above the laser plane, the top LED lights with a faster beeping. Below grade shows the bottom LED with a slower beep pattern. The LCD display also shows directional arrows, making it easy to determine which way to move the rod.

Can I use rechargeable batteries instead of alkaline?

Yes, the HR150U works with standard AA NiMH rechargeable batteries, though runtime will be somewhat reduced compared to alkaline cells (typically 40-45 hours vs. 60 hours). Ensure rechargeable batteries are fully charged before fieldwork. The receiver's battery indicator alerts you when power is running low, giving you time to swap batteries before losing functionality.

What's the difference between the HR150U and more expensive receivers?

The HR150U is designed for standard rod work at typical construction distances (up to 260-foot diameter). Premium receivers like the HR320 or HR350 offer extended range (up to 2,600 feet), machine-mounting capabilities, wireless remote display, and digital readouts showing exact elevation differences in inches or millimeters. For routine grading, foundation work, and site layout, the HR150U provides all the functionality most contractors need at significant cost savings.
