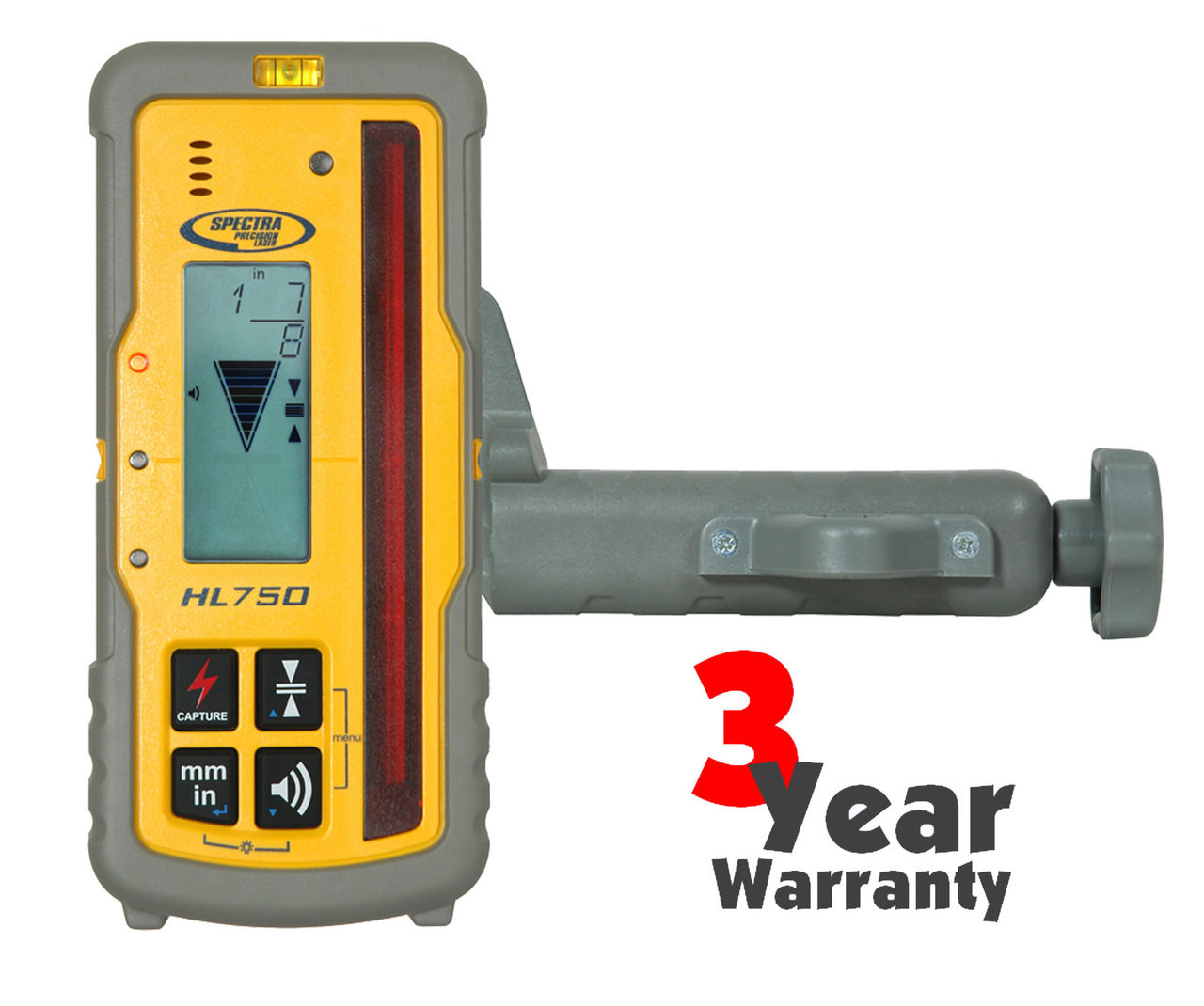

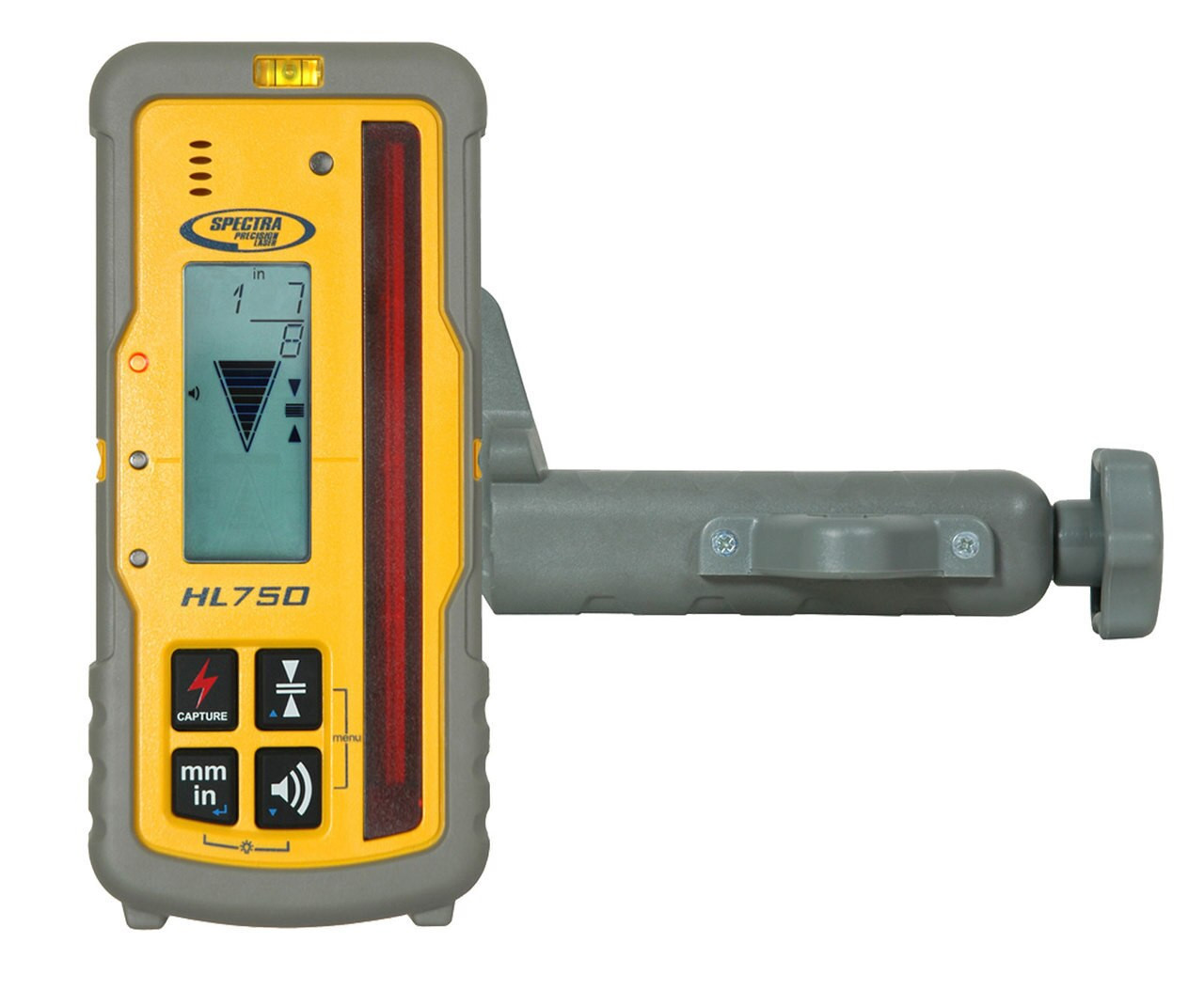

Spectra Precision HL750U Laserometer Laser Receiver and Rod Clamp for Red or Green Beam Rotary Lasers

Spectra Precision HL750U Universal Laser Receiver

The Spectra Precision HL750U is a professional-grade universal laser receiver designed for grading contractors, excavation crews, site supervisors, and surveyors who demand reliable, accurate grade detection across a wide range of rotating laser transmitters. Whether you're running a red beam or a green beam system, the HL750U locks on fast and delivers a clear digital elevation readout so your operators stay on grade without guesswork. Its universal compatibility makes it one of the most versatile detectors on the market — the kind of tool that earns its keep on every machine and every jobsite.

Product Overview & Jobsite Applications

Rotating laser systems are the backbone of grade control on civil construction, utility, and site development projects. But when your crew runs multiple laser brands, or when sub-contractors bring their own equipment on-site, receiver compatibility becomes a real operational challenge. The HL750U solves that problem outright. Engineered to detect both red and green laser wavelengths, this receiver pairs with virtually any professional rotating laser transmitter on the market, eliminating the need to stock multiple receivers for different systems.

The large digital display provides a clear numeric grade offset readout, so machine operators and grade checkers can instantly see exactly how far off grade they are — not just which direction. This speeds up earthmoving operations, reduces over-excavation, and keeps your finish grade tight from the first pass. The audible and visual indicators make it easy to use even in high-ambient-light environments or noisy jobsite conditions.

Key Specifications

• Beam Compatibility: Universal — detects both red (630–680 nm) and green (510–530 nm) laser wavelengths
• Detection Range: Up to 2,000 ft (600 m) diameter in optimal conditions
• Accuracy: ±1.5 mm (±1/16 in) on-grade window
• Display: Large LCD digital readout with numeric grade offset
• Indicators: Audible beeper and LED visual indicators (high/on-grade/low)
• Receiver Window Height: 5 in (127 mm) active detection zone
• Power: 2 x AA alkaline batteries
• Battery Life: Up to 100 hours typical use
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• IP Rating: IP66 — dustproof and resistant to heavy water ingress
• Mounting: Standard 5/8-11 thread rod clamp included
• Weight: Approximately 0.45 kg (1 lb) without batteries

Key Features

• Universal Red & Green Beam Detection: Works with virtually any professional rotating laser on the market, regardless of brand or beam color — Spectra, Topcon, Leica, Trimble, and more
• Digital Grade Offset Readout: LCD display shows exact numeric offset from grade, not just a directional arrow — operators know exactly how much to move
• Long Detection Range: Exceptional sensitivity enables reliable detection up to 2,000 ft from the transmitter, suitable for large open sites
• Rugged IP66 Construction: Sealed against dust and heavy water spray — built to survive the abuse of daily grading and excavation work
• Fast Lock-On: Advanced signal processing locks onto the rotating beam quickly even in bright sunlight
• Adjustable On-Grade Window: Selectable deadband settings allow operators to fine-tune sensitivity for different applications and soil conditions
• Loud Audible Alert: Beeper is audible over typical equipment and construction noise
• Long Battery Life: Up to 100 hours on standard AA batteries — fewer interruptions, lower operating cost

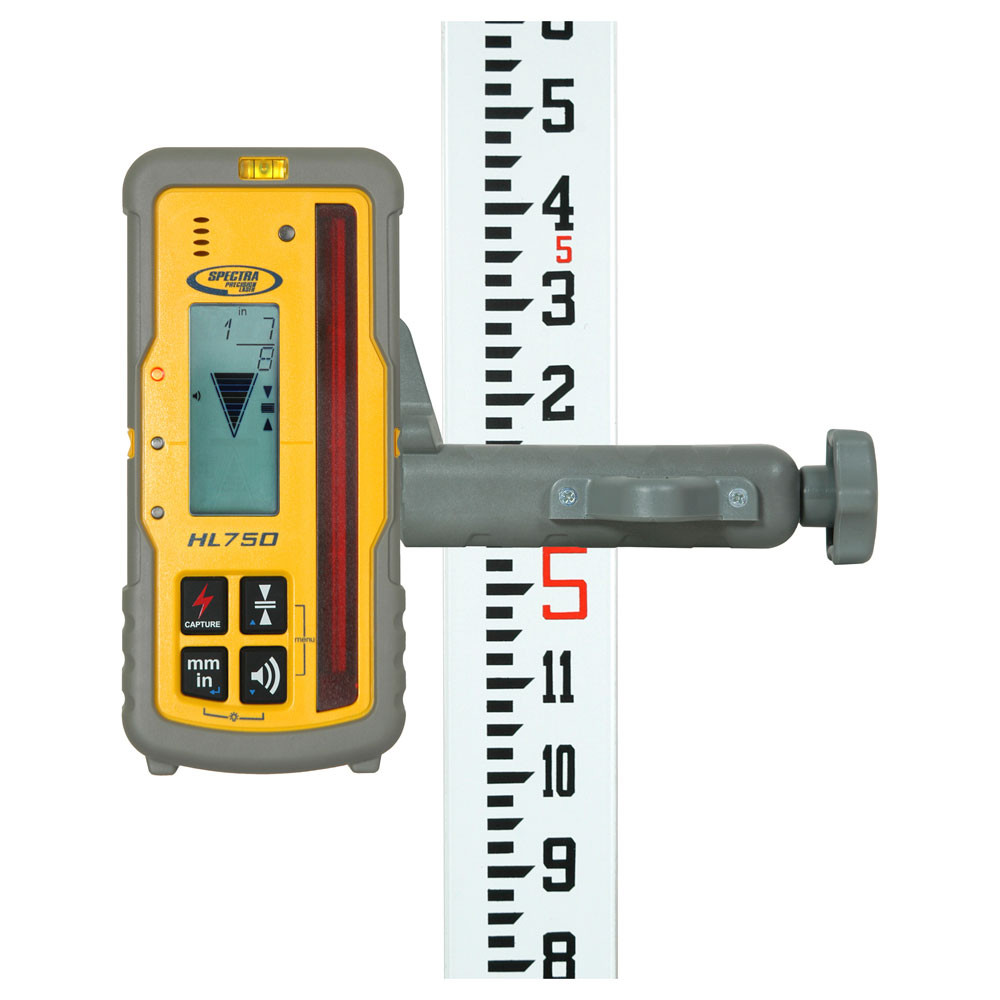

• Standard Rod Clamp Included: Mounts directly to grade rods, machine masts, or sensor brackets right out of the box

Job Applications

Rough Grading & Mass Excavation: Mount the HL750U on a dozer blade mast or motor grader sensor bracket. The digital readout gives the operator a continuous numeric offset from target grade, so the blade can be adjusted with precision on every pass — reducing both over-cut and rework.

Utility Trench Grading: When laying sewer, storm drain, or water main, grade tolerance is everything. The HL750U's ±1.5 mm accuracy and fast response make it ideal for controlling trench bottom elevation with a grade rod before setting pipe, keeping invert grades consistent across long runs.

Concrete Flatwork & Slab Prep: Use the HL750U on a grade rod to verify sub-base elevation before pouring. The digital offset display makes it fast to confirm that screeds and base material are hitting the exact elevation required by the pour plan.

Multi-Contractor Coordination: On large commercial sites where multiple subcontractors are running different laser systems simultaneously, the HL750U's universal compatibility eliminates receiver conflicts. Any crew can borrow or share the receiver regardless of which laser transmitter is in use.

Compatible Accessories

• Spectra Precision Laser Receivers — Full Lineup
• Professional Grade Rods & Staffs
• Machine Mounting Brackets & Sensor Clamps
• Spectra Precision Rotating Laser Transmitters
• Protective Cases & Carrying Solutions

Related Guides

• How to Choose the Right Laser Receiver for Your Application
• Red Beam vs. Green Beam Lasers: What Contractors Need to Know
• Setting Up a Rotating Laser System on the Jobsite
• Grade Control Best Practices for Earthmoving Contractors

Frequently Asked Questions

Will the HL750U work with my existing laser transmitter brand?

Yes — the HL750U is a true universal receiver designed to detect both red and green laser beams from virtually any professional rotating laser transmitter, including models from Spectra Precision, Topcon, Leica, Trimble, Bosch, and others. As long as your transmitter emits a standard red (630–680 nm) or green (510–530 nm) rotating beam, the HL750U will detect it.

What does the digital readout actually show?

Unlike basic receivers that only indicate high, on-grade, or low with lights and beeps, the HL750U's LCD display shows a numeric offset — for example, how many millimeters or inches you are above or below the target grade. This allows machine operators and rod men to make precise adjustments rather than just knowing they're off in one direction.

How far from the laser can the HL750U be used?

The HL750U is rated for detection ranges up to 2,000 ft (600 m) in diameter under optimal conditions — meaning up to 1,000 ft from the transmitter in any direction. Performance may vary with atmospheric conditions, sunlight angle, and transmitter output power, but this range is suitable for most production grading and civil construction sites.

Is the HL750U suitable for machine control, or just hand-held rod work?

The HL750U is well-suited for both applications. It includes a standard rod clamp for grade rod use and can also be mounted on machine sensor masts for dozer, motor grader, or excavator grade control applications. For fully automated machine control integration, a dedicated machine control system may be required, but the HL750U functions effectively as an operator-read display for manual grade control on equipment.
