Leica LMR360R Wireless Laser Machine Display Receiver (NiMH) LMD360R Remote Display

Precision Grade Control Without the Cable Constraints

The Leica LMR360R with LMD360R Remote Display is a professional-grade wireless laser machine receiver system engineered for contractors who demand accuracy and reliability on every cut and fill. Designed to mount directly to graders, dozers, and excavators, the LMR360R delivers real-time grade guidance to the operator via the LMD360R in-cab display—eliminating the wiring runs and cable management headaches that slow down traditional setups. Whether you're finish-grading a parking lot or rough-cutting a road bed, this system keeps your blade on grade from the first pass to the last.

System Overview & Jobsite Applications

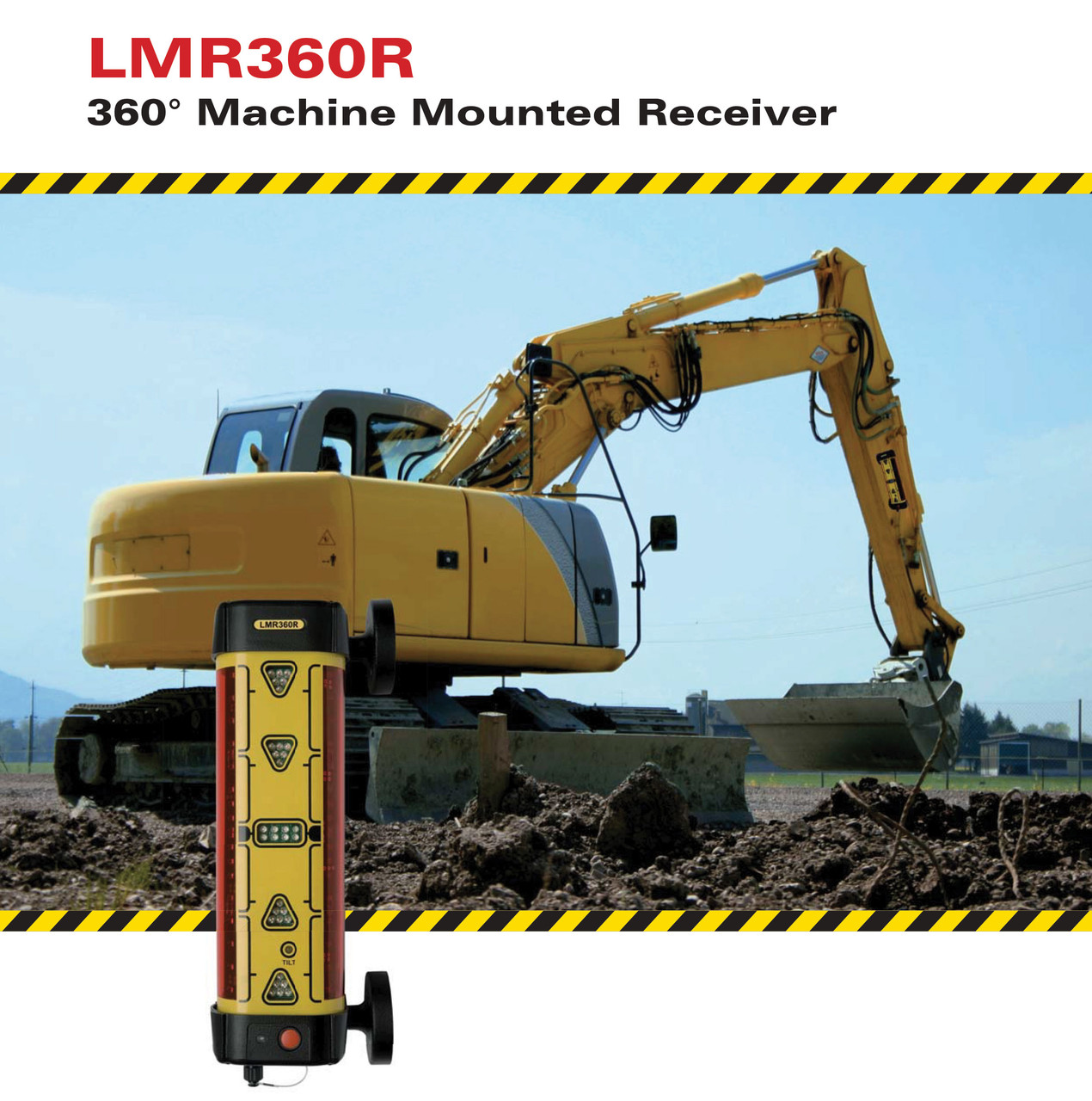

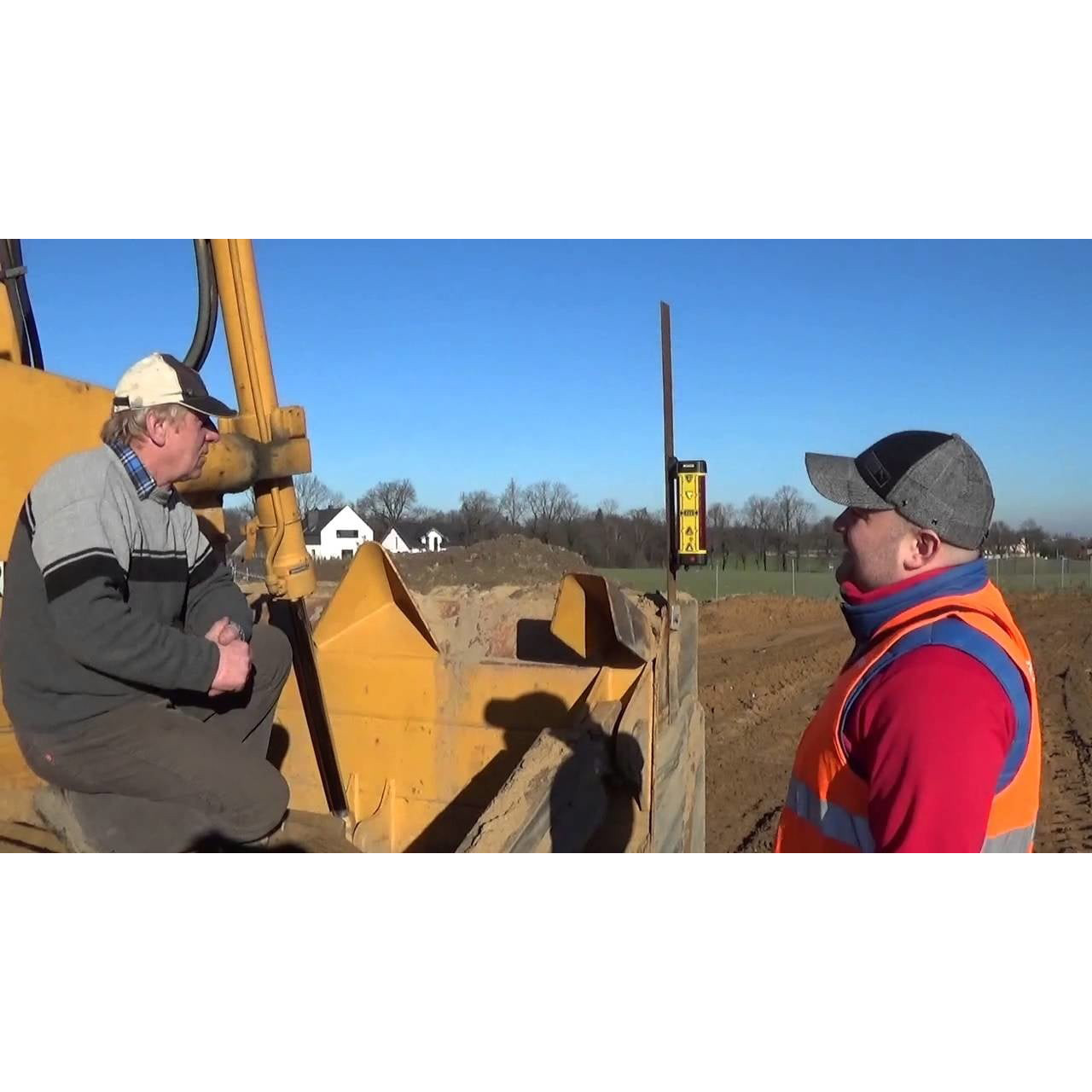

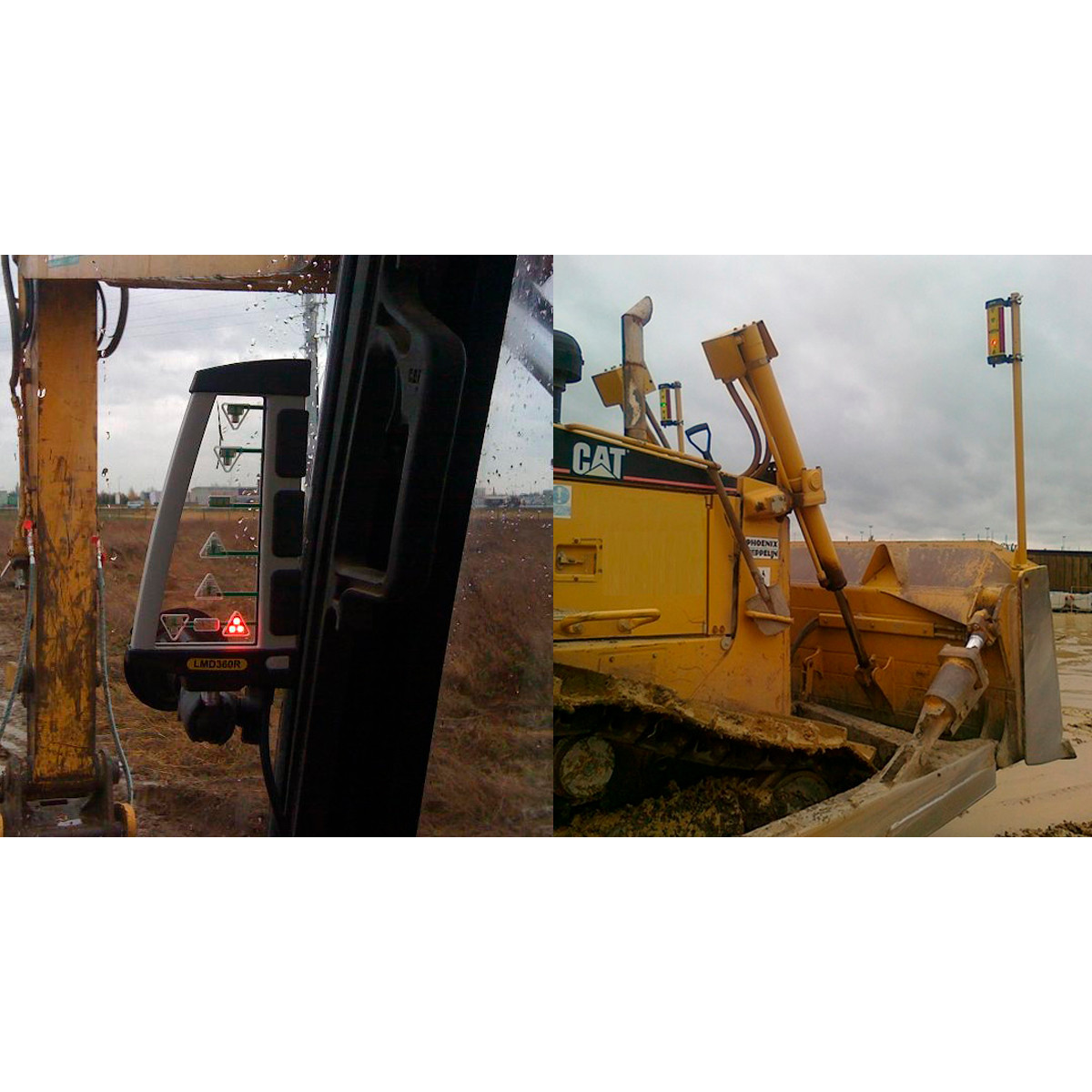

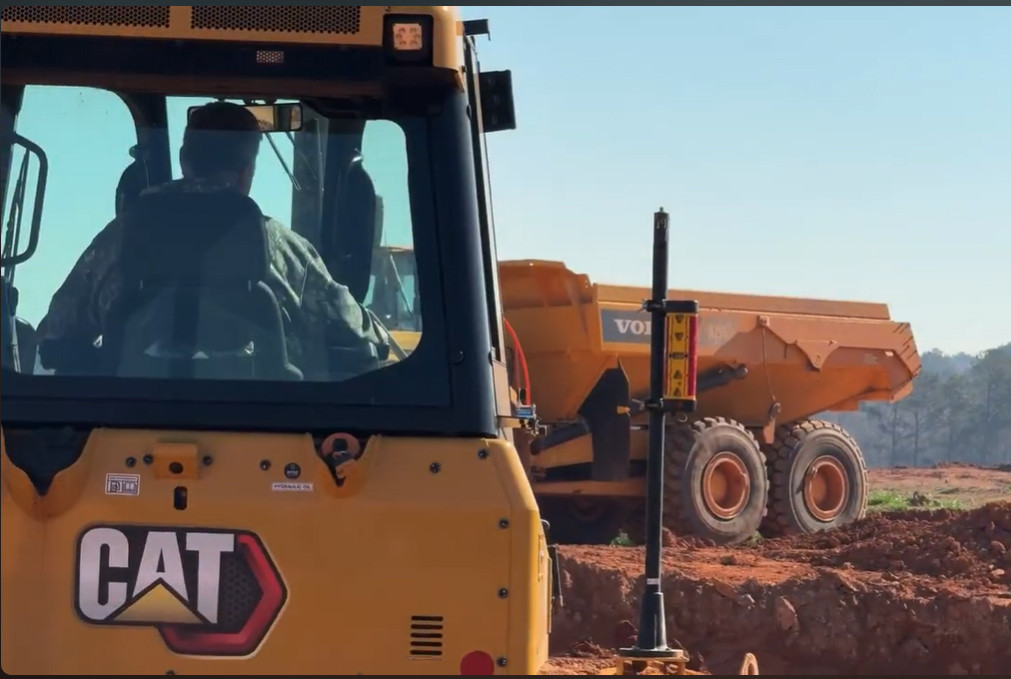

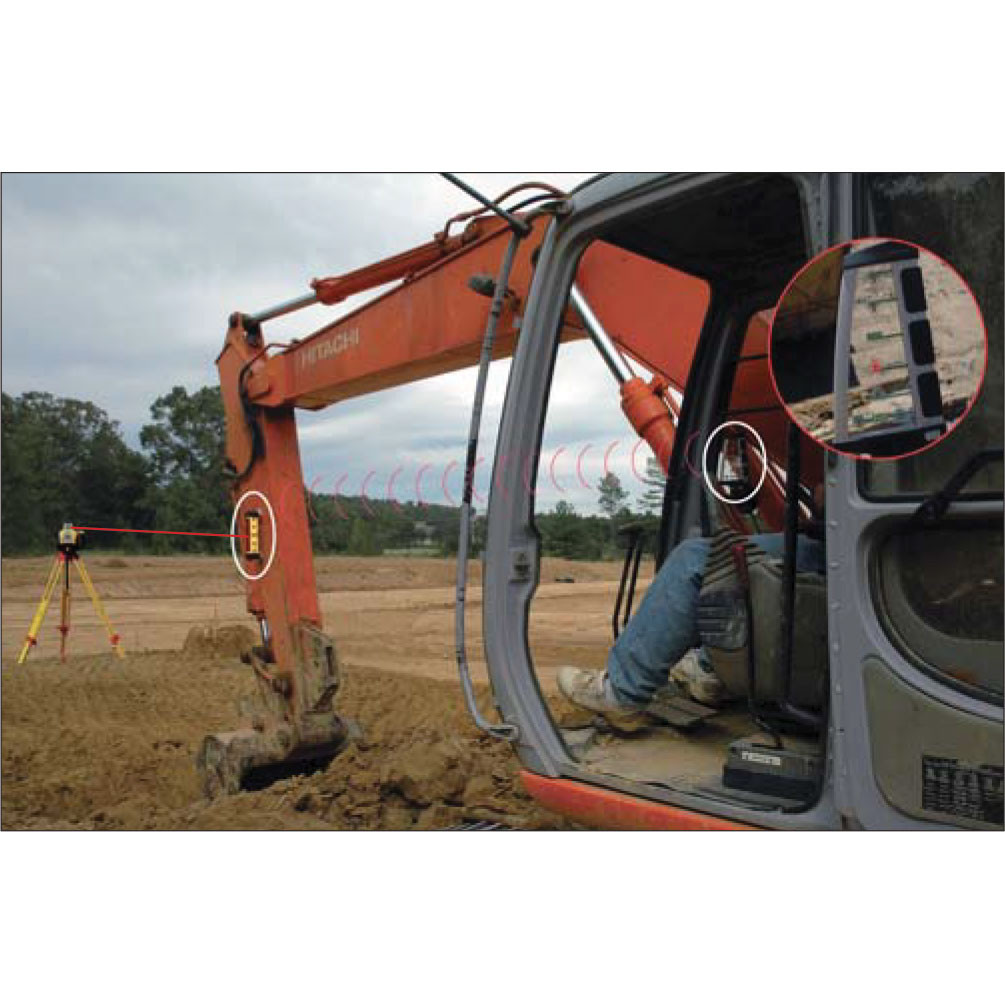

The LMR360R operates as a complete wireless machine control solution. The receiver mounts to the blade or mast of the machine and captures the rotating laser plane from any compatible rotating laser. The LMD360R display unit installs inside the cab, communicating wirelessly with the receiver so the operator sees clear, real-time elevation guidance without stepping off the machine. The 360-degree sensor coverage means grade reference is maintained regardless of blade angle or machine orientation—critical during windrow work, cul-de-sac grading, and pond or detention basin shaping where the machine continuously changes direction.

Key Specifications

• Model: LMR360R (Receiver) + LMD360R (Remote Display)
• Part Number: 6009893
• Reception Range: Up to 300 m (985 ft) radius from laser
• Sensor Coverage: 360° full circumference reception
• Display Communication: Wireless (no cable between receiver and display)
• Display Type: LMD360R in-cab remote display with LED grade indicators
• Accuracy: ±1.5 mm (dependent on laser used)
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• IP Rating: Dust and water resistant for harsh jobsite environments
• Power: Rechargeable battery with jobsite-length runtime
• Mounting: Industry-standard mast mount compatible

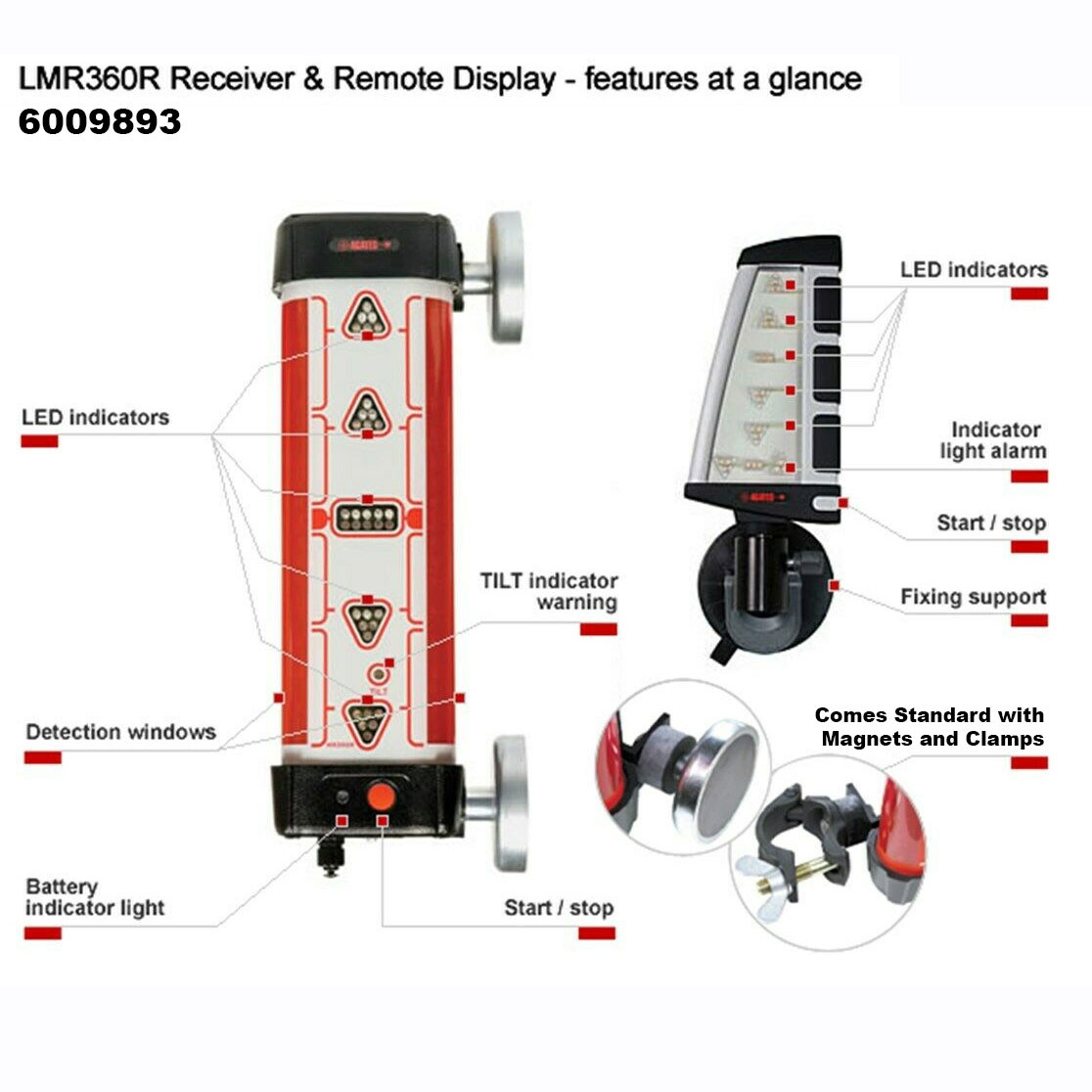

Key Features & What's in the Kit

• Wireless receiver-to-display link — No cables between blade-mounted receiver and in-cab display; clean install on any machine

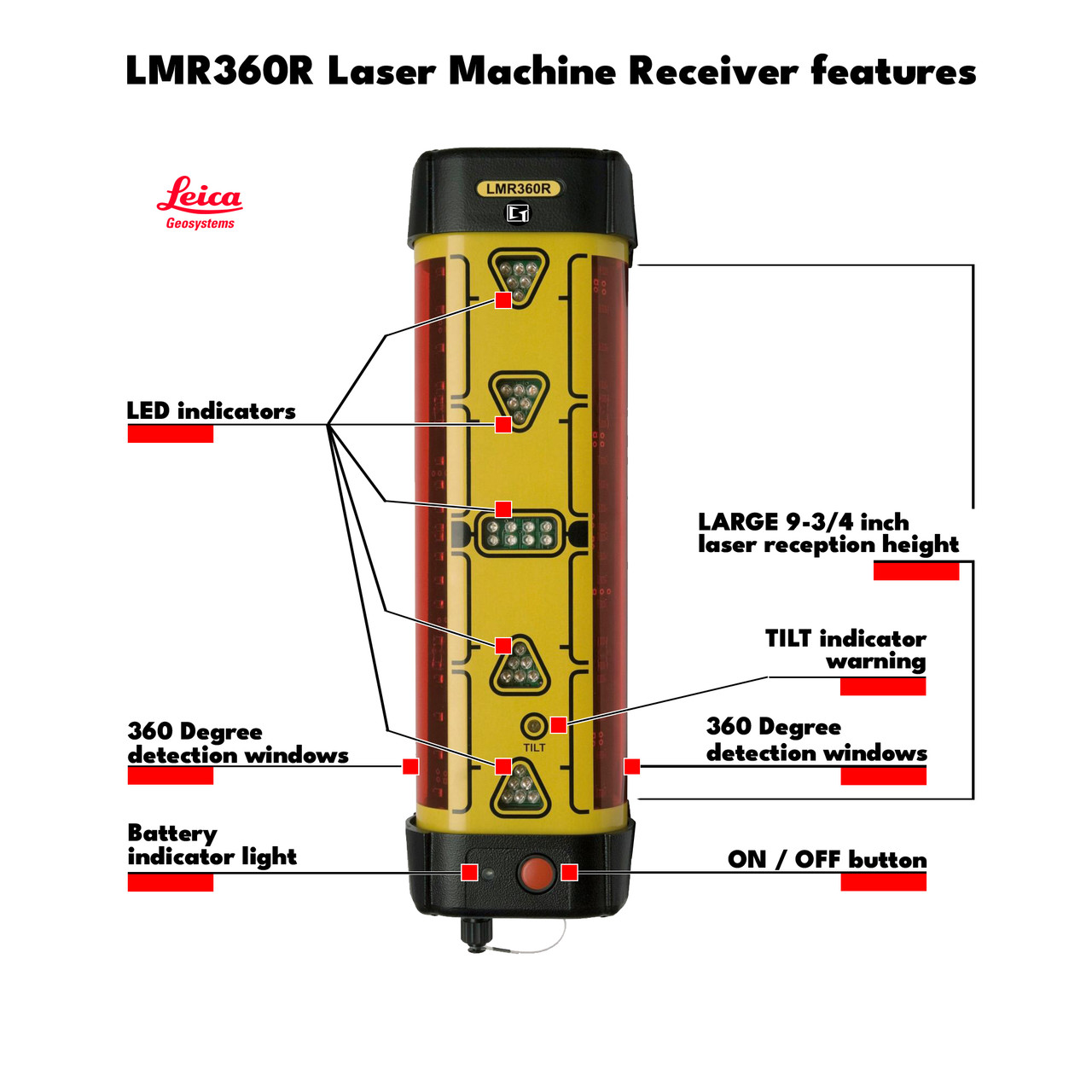

• 360° laser detection — Full circumference sensor array captures the laser plane at any blade angle or machine heading

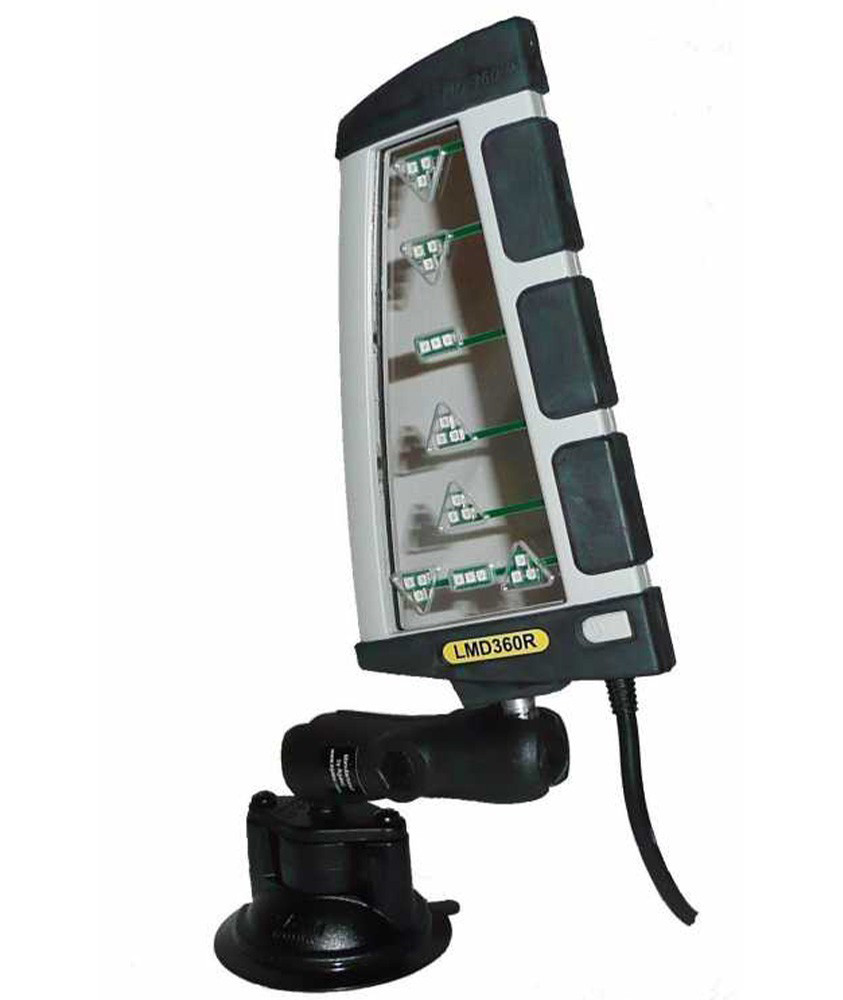

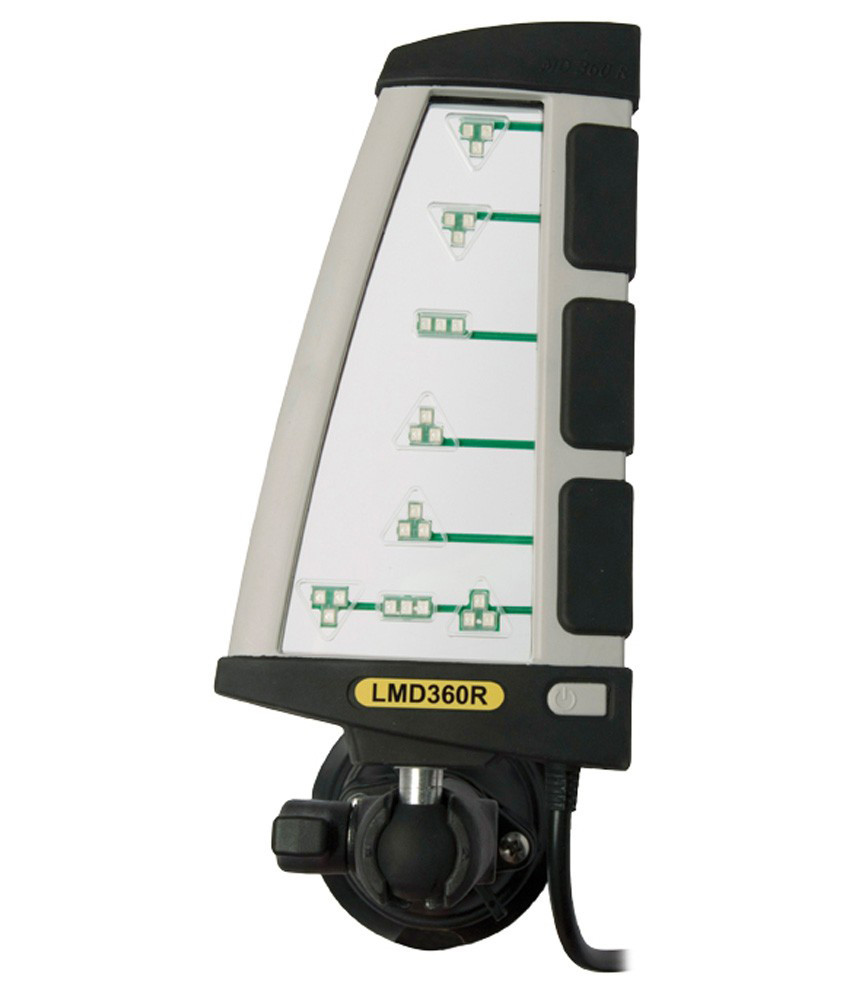

• LMD360R remote display — Bright, cab-mounted LED display provides clear cut/fill/on-grade indication at a glance
• Long-range reception — Operates up to 300 m from the laser source, covering large grading pads and road projects
• Rugged construction — Built to withstand vibration, dust, and moisture on active construction sites
• Compatible with Leica rotating lasers — Works seamlessly with Leica Rugby and iCON series rotating laser levels

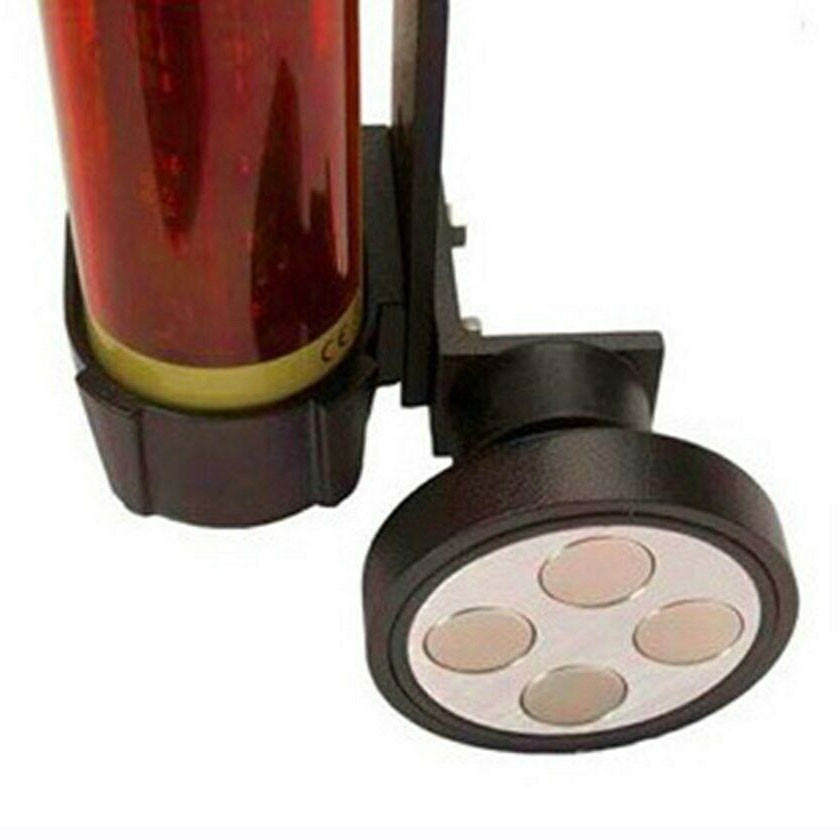

• Quick-release mast mount — Fast on/off between machines or during transport
• Audible and visual grade alerts — Operator receives both LED and audible feedback for on-grade confirmation

Job Applications

Road Subgrade & Base Prep: Set your rotating laser at design grade and let the LMR360R guide the motor grader blade precisely through long subgrade passes. The wireless display keeps the operator focused on the cut line without distraction from cable clutter or turning to check a mast-mounted display.

Parking Lot & Site Grading: The 360° reception angle is a major advantage when grading large flat pads where the blade swings through wide arcs. No dead zones, no signal loss at odd angles—just consistent on-grade feedback throughout the pass.

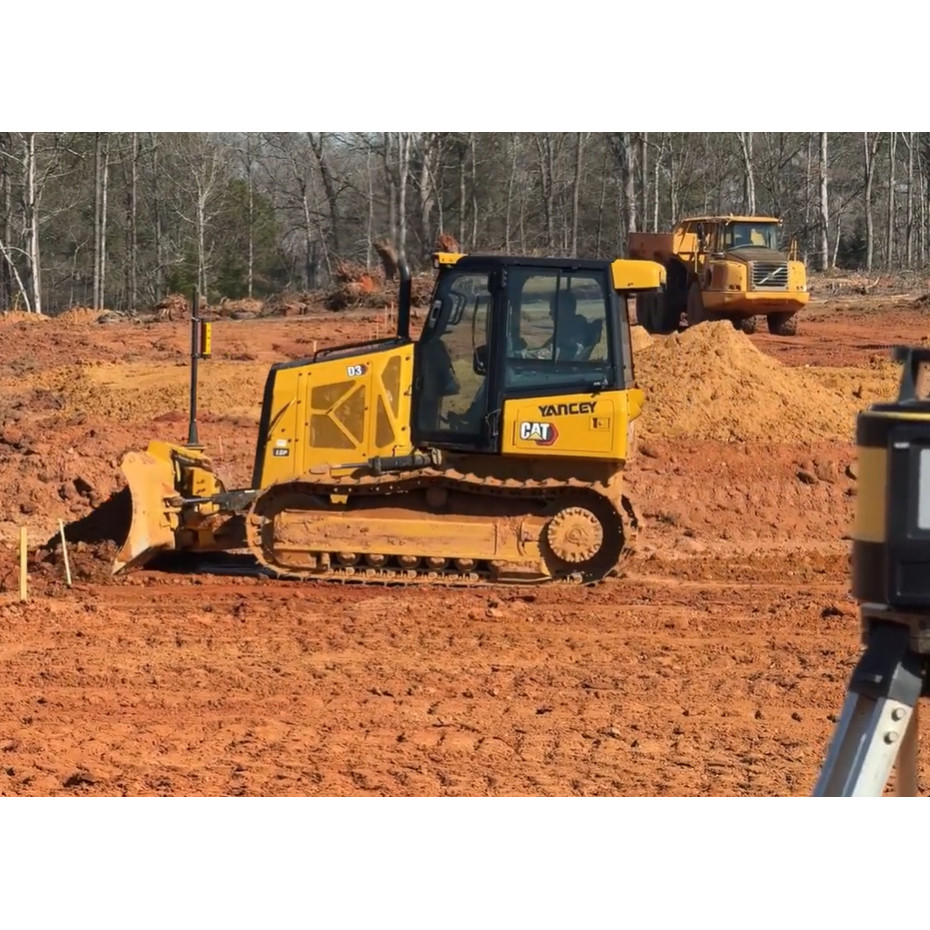

Detention Basin & Pond Shaping: Sloped basin work requires constant grade reference as the dozer or grader works around the perimeter. The LMR360R maintains laser lock through tight turns and varying machine headings, making complex slope work faster and more accurate.

Finish Grading & Tolerances: When spec tolerances are tight, wireless machine control helps operators stay within grade limits on every pass rather than relying on grade stakes alone. Fewer check shots, fewer delays, and a finished surface the inspector can't argue with.

Compatible Accessories

• Leica Rugby 610 Rotating Laser — Single-slope rotating laser, ideal pairing for grade-only machine control applications
• Leica Rugby 840 Rotating Laser — Dual-slope laser for complex cross-fall and crown grading work
• Leica iCON iCG60 Rotating Laser — Construction laser with extended range for large-site machine control
• Leica Universal Mast Mount — Industry-standard quick-release mount for blade or mast installation
• Replacement Rechargeable Battery Pack — OEM battery for LMR360R receiver

Related Guides

• How to Set Up a Laser Machine Receiver on a Motor Grader
• Rotating Laser vs. GPS Machine Control: Which Is Right for Your Project?
• Leica Rugby Series Laser Buyer's Guide
• Machine Control Laser Receiver Troubleshooting Tips

Frequently Asked Questions

Does the LMR360R work with non-Leica rotating lasers?

The LMR360R is optimized for use with Leica rotating lasers including the Rugby and iCON series. Compatibility with third-party lasers may vary depending on the laser's beam characteristics. Contact our team to confirm compatibility with a specific laser model before purchasing.

What is the maximum working range of the LMR360R?

The LMR360R has a reception radius of up to 300 meters (approximately 985 feet) from the rotating laser source, making it suitable for large grading pads, road projects, and open site work where the laser is set at a central location.

Is the LMD360R display included in this listing?

Yes. This listing (part number 6009893) includes both the LMR360R wireless machine receiver and the LMD360R in-cab remote display as a complete system. No additional display purchase is required.

Can the receiver be moved between multiple machines?

Yes. The LMR360R uses a standard quick-release mast mount and can be transferred between machines on the jobsite. This makes it a cost-effective solution for contractors who run multiple pieces of equipment but want to share a single high-quality receiver system.
