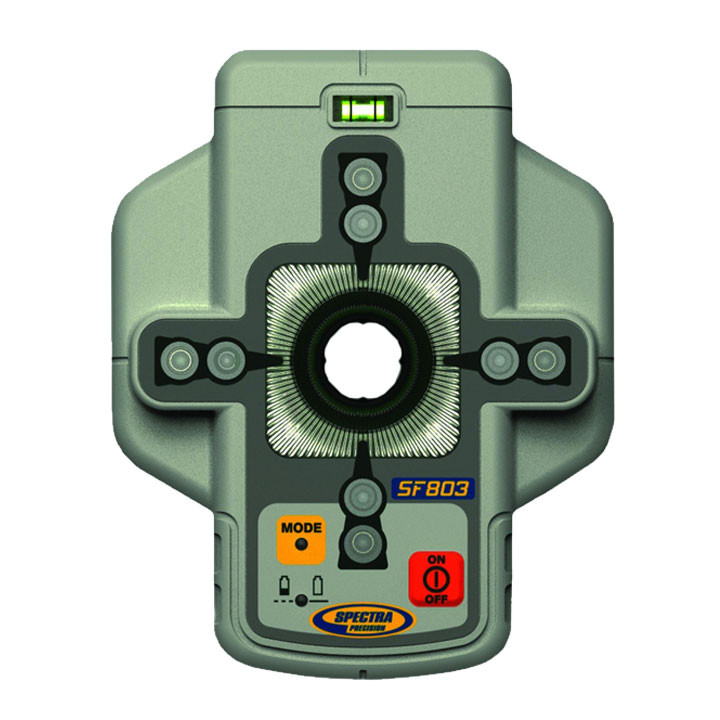

Spectra Precision SF803 Spot Finder used with Spectra DG813 Pipe Laser

Spectra Precision SF803 Spot Finder for DG813 Pipe Laser

Overview

The Spectra Precision SF803 Spot Finder is an advanced laser detection instrument engineered specifically for the Spectra DG813 Dialgrade Pipe Laser, enabling crews to locate and automatically align laser beams in low-light manhole environments and across extended utility runs with unprecedented accuracy. This rugged detector features a high-visibility LCD display, audible tone guidance, and a precision detection window that simplifies target acquisition even in challenging underground conditions. Designed for demanding municipal and commercial pipe installation projects, the SF803 dramatically reduces setup time while ensuring proper grade alignment throughout the entire run. Its ergonomic rod-mountable design and extended battery life make it the essential companion tool for contractors running gravity sewer, storm drain, and culvert installations where precision grade control determines project success and long-term infrastructure performance.

Key Specifications

• Compatibility: Spectra DG813 Dialgrade Pipe Laser (optimized for red beam detection)
• Detection Range: Up to 1,000 feet (305 meters) from laser source
• Accuracy: ±1/16 inch (1.5 mm) at detection window center
• Detection Window: 3.5-inch (89 mm) high-visibility LCD with on-grade indicator
• Audio Alerts: Multi-tone positioning system (high/low/on-grade signals)
• Display Modes: Spot position indicator with directional arrows and numerical offset
• Power Source: 4 AA alkaline batteries (included)
• Battery Life: Approximately 60 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Ingress Protection: IP67 waterproof and dustproof rating
• Mounting: Universal rod clamp fits grade rods from 1 to 1.5 inches diameter
• Weight: 1.8 lbs (0.8 kg) with batteries
• Dimensions: 8.5 × 4.2 × 2.8 inches (216 × 107 × 71 mm)
• Warranty: 3-year manufacturer's warranty

What's in the Kit

• Spectra Precision SF803 Spot Finder detector unit
• Universal rod clamp mounting bracket
• 4 AA alkaline batteries (pre-installed)
• Heavy-duty protective carrying case
• Quick-start laminated reference card
• Complete operator's manual
• Manufacturer's 3-year warranty registration card

Job Applications

• Gravity Sewer Installation: The SF803's precision detection window and audible tones enable operators to maintain exact grade specifications in deep manholes where visual laser confirmation is impossible, preventing costly grade errors that lead to flow problems and system failures.
• Storm Drain Construction: Extended 1,000-foot detection range allows crews to work on long runs between catch basins without repositioning the DG813 laser, dramatically reducing setup time on large municipal drainage projects with multiple grade changes.
• Culvert Alignment: IP67 waterproof rating ensures reliable operation in wet conditions common to culvert work, while the high-contrast LCD remains visible in the variable lighting encountered when working from both ends of the installation.
• Sanitary Line Rehabilitation: Compact design allows the SF803 to operate effectively in confined rehabilitation tunnels and existing pipe bursting applications where space constraints prevent traditional laser viewing methods.
• Commercial Site Utilities: Multi-tone audio guidance lets operators keep eyes on excavation safety while confirming grade, improving workflow efficiency on commercial developments with complex utility coordination requirements.
• Agricultural Drainage Systems: Extended battery life (60 hours) supports multi-day field drainage projects in remote locations where power access is limited and consistent grade control is critical for proper field water management.

Compatible Accessories

• Spectra Precision DG813 Dialgrade Pipe Laser — Primary compatible laser system
• Spectra Precision Telescoping Grade Rods — Professional-grade mounting rods with metric/imperial scales
• Heavy-Duty AA Alkaline Batteries (24-pack) — Extended-life power for continuous operation
• Spectra Precision Pipe Laser Targets — Reflective alignment targets for visual confirmation
• Replacement Hard Cases for Laser Equipment — Additional protective storage solutions
• Spectra RC803 Remote Control — Wireless control for DG813 laser adjustment

Related Guides

• Complete Pipe Laser Setup Guide: Achieving Perfect Grade on Every Run
• How to Calibrate and Maintain Your Laser Detection Equipment
• Gravity Sewer Installation Best Practices: Tools, Techniques, and Grade Control
• Comparing Pipe Laser Systems: Spectra vs. Topcon vs. Leica

FAQ

Will the SF803 work with pipe lasers from other manufacturers?

The SF803 is specifically calibrated for the Spectra DG813 red beam laser and may not provide accurate detection with other laser systems. For optimal performance and accuracy, always use the SF803 exclusively with Spectra Precision DG813 pipe lasers. Using non-compatible lasers can result in reduced detection range and accuracy errors.

How far can the SF803 detect the laser beam in typical sewer installation conditions?

Under normal conditions with minimal ambient light interference, the SF803 can reliably detect the DG813 laser beam at distances up to 1,000 feet. Actual range may be reduced in extremely bright conditions or when excessive dust is present. For runs exceeding 1,000 feet, reposition the laser at an intermediate manhole to maintain detection accuracy.

Can I use the SF803 in wet manhole conditions or during rainy weather?

Yes, the SF803 features an IP67 waterproof and dustproof rating, meaning it can withstand temporary immersion in water up to 1 meter deep and is fully protected against dust ingress. However, avoid prolonged submersion and always dry the unit thoroughly after exposure to wet conditions. The protective case provides additional weather protection during transport and storage.

How do I know when the detector is properly aligned with the laser beam?

The SF803 provides both visual and audible confirmation of alignment. The LCD display shows directional arrows indicating whether to move up or down, with a center "on-grade" indicator that appears when perfectly aligned. Simultaneously, the audio tone changes to a continuous steady beep when on-grade, compared to intermittent beeps when high or low. This dual-confirmation system allows for accurate positioning even in noisy job site environments.
