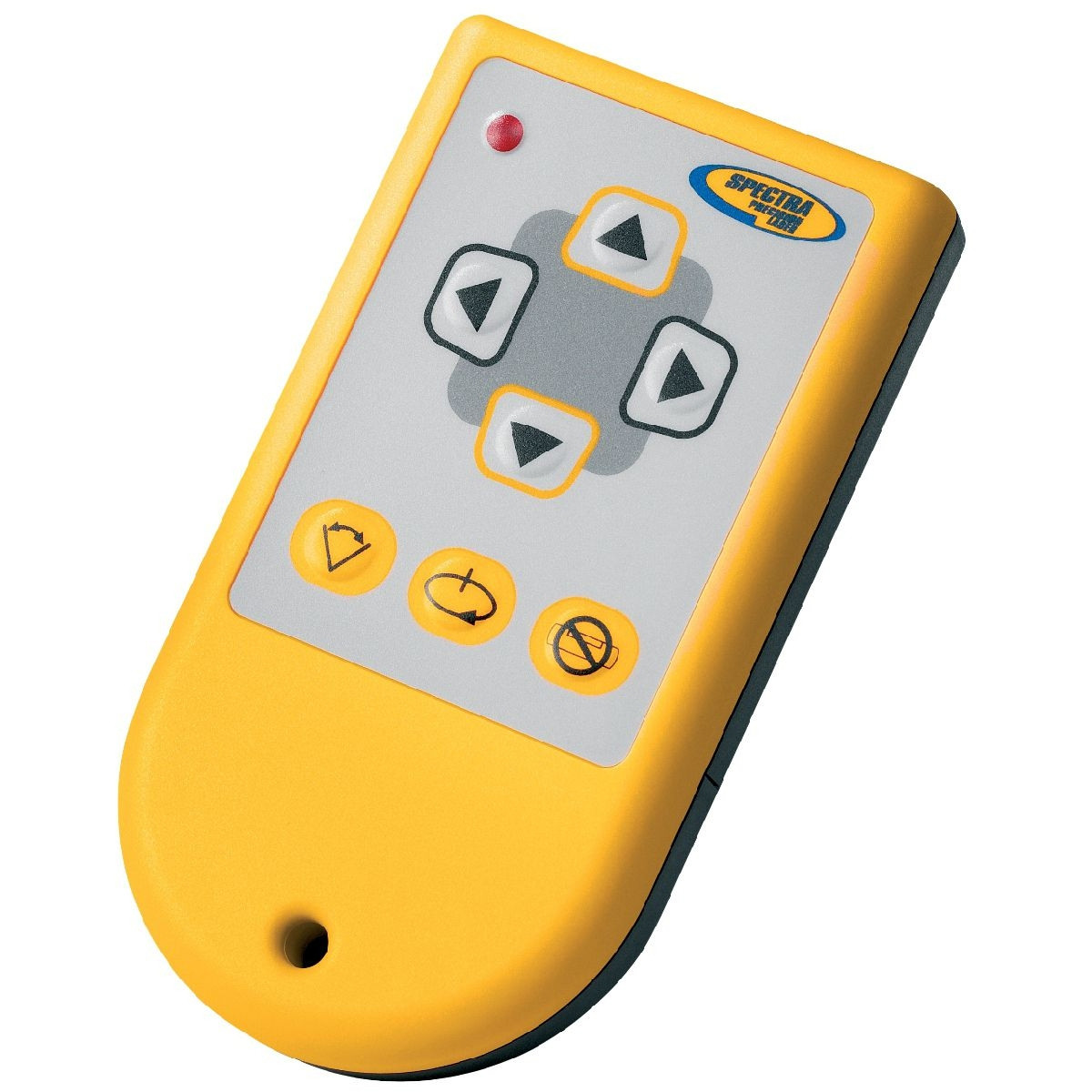

Spectra Precision RC601 Laser Remote Control

Overview

The Spectra Precision RC601 wireless remote control is designed for site contractors, grading crews, and civil construction professionals who need to establish grades, transfer elevations, and set layout points without constant trips back to the laser instrument. This remote transforms compatible Spectra rotary lasers into true one-person layout systems, eliminating the delays and miscommunication inherent in two-person laser operations. Operating at distances up to 100 feet from the laser transmitter, the RC601 allows operators to adjust laser height, axis slopes, and rotation speed from the work point—whether setting formwork elevations, establishing drainage grades, or checking foundation benchmarks. For contractors running lean crews on time-sensitive projects, this remote control directly reduces labor costs while improving grade accuracy and jobsite efficiency.

Key Specifications

• Operating Range: Up to 100 feet (30 meters) from laser transmitter
• Compatible Lasers: Spectra Precision LL100, LL100N, LL300, LL300N, LL400, LL500, HV101, HV201, HV301, HV302, and HV401 series
• Remote Functions: Laser on/off, height adjustment, X/Y axis slope control, rotation speed selection, manual alignment
• Power Source: 4 AA alkaline batteries
• Battery Life: Approximately 60 hours continuous operation
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Storage Temperature: -40°F to 176°F (-40°C to 80°C)
• Wireless Technology: IR (infrared) communication protocol
• Housing: Impact-resistant ABS plastic with protective rubber overmold
• Dust/Water Resistance: IP54 rating (dust protected, water splash resistant)
• Weight: 0.5 lbs (0.23 kg) with batteries
• Dimensions: 6.7" × 2.8" × 1.6" (170 × 71 × 41 mm)

What's in the Kit

• RC601 wireless remote control unit
• 4 AA alkaline batteries (pre-installed)
• Protective rubber holster with belt clip
• Quick reference operation card
• Operator's manual

Job Applications

• Site Grading and Excavation: Operators can adjust single-axis or dual-axis slopes from the grade stake or cut location, eliminating walks back to the tripod-mounted laser every time grade conditions change or new slope requirements are introduced.
• Foundation and Flatwork Layout: Concrete crews can raise or lower the reference plane from formwork locations to establish consistent elevation across large foundation pads, slabs, or parking decks without leaving the pour area.
• Drainage and Utility Installation: Pipe crews laying storm drains, sanitary sewers, or irrigation lines can fine-tune invert elevations and percentage slopes in real-time from the trench without climbing out to access the laser controls.
• Interior Build-Out and Ceiling Work: Commercial finish contractors installing suspended ceilings, overhead MEP systems, or metal framing can adjust the laser height plane from scaffolding or man-lifts without descending to floor level.
• Benchmark Transfer and Vertical Control: Survey crews transferring elevation from known benchmarks to construction reference points can incrementally adjust laser height to match required elevations from the target location rather than the instrument station.
• Masonry and Tilt-Up Panel Alignment: Masons and concrete panel crews can use the remote to adjust reference height for coursing checks, bond beam elevation, or panel alignment without interrupting wall construction rhythm.

Compatible Accessories

Maximize your Spectra laser system with these field-proven accessories:

Spectra LR60 Laser Receiver — rod-mounted detector with remote display readout for grade checking and elevation transfer

Spectra HL760 Digital Receiver — machine-mount receiver with LCD readout and audio alerts for dozer and excavator blade control

Spectra C59 Universal Rod Clamp — adjustable receiver mount for grade rods and range poles

Spectra 1283 Heavy-Duty Tripod — aluminum construction tripod with wide footprint for stable laser positioning

Spectra G71 Aluminum Grade Rod — telescoping 25-foot grade rod with tenths graduations for precision elevation work

Related Guides

Rotary Laser Setup Best Practices for Site Work — field procedures for establishing accurate reference planes and minimizing error sources

Spectra LL-Series Laser Comparison Guide — technical comparison of LL100, LL300, LL400, and LL500 features, accuracy classes, and job suitability

Laser Remote Control Connection Issues — troubleshooting IR communication problems, range limitations, and battery performance

Single-Slope vs. Dual-Slope Laser Applications — when to use axis slope functions and how remote control simplifies complex grade establishment

Frequently Asked Questions

Does the RC601 work with all Spectra Precision rotary lasers?

The RC601 is compatible with Spectra LL100, LL100N, LL300, LL300N, LL400, LL500, and HV-series lasers (HV101, HV201, HV301, HV302, HV401). It will not operate older GL-series models or lasers from other manufacturers. Verify your laser model supports remote control operation by checking for an infrared receiver window on the laser head—typically a dark lens panel visible on the control housing.

What is the actual working range I can expect on a construction site?

The specified 100-foot range applies to ideal conditions with direct line-of-sight between remote and laser receiver window. In practice, expect reliable operation at 75-90 feet in typical jobsite conditions with dust, ambient light, and partial obstructions. Range decreases in bright sunlight, heavy dust, or when the infrared signal must reach the receiver at extreme angles. For consistent performance, maintain a clear transmission path and angle the remote toward the laser receiver window when operating near maximum range.

Can multiple RC601 remotes control the same laser simultaneously?

No. Spectra rotary lasers respond to infrared commands from any compatible remote, but simultaneous operation by multiple remotes will cause conflicting commands and erratic laser behavior. Only one operator should use remote control functions at a time. If multiple crew members need laser access, establish clear communication protocols to avoid accidentally adjusting settings while another operator is working from the reference plane.

How do I know when remote batteries are getting low?

The RC601 features a low-battery indicator on the LCD display that appears when remaining battery capacity drops below approximately 20 percent. When this indicator activates, replace all four AA batteries as a set—mixing old and new batteries reduces performance and can cause intermittent operation. Keep spare alkaline batteries in your laser case, as battery life decreases significantly in cold weather conditions below 32°F.
