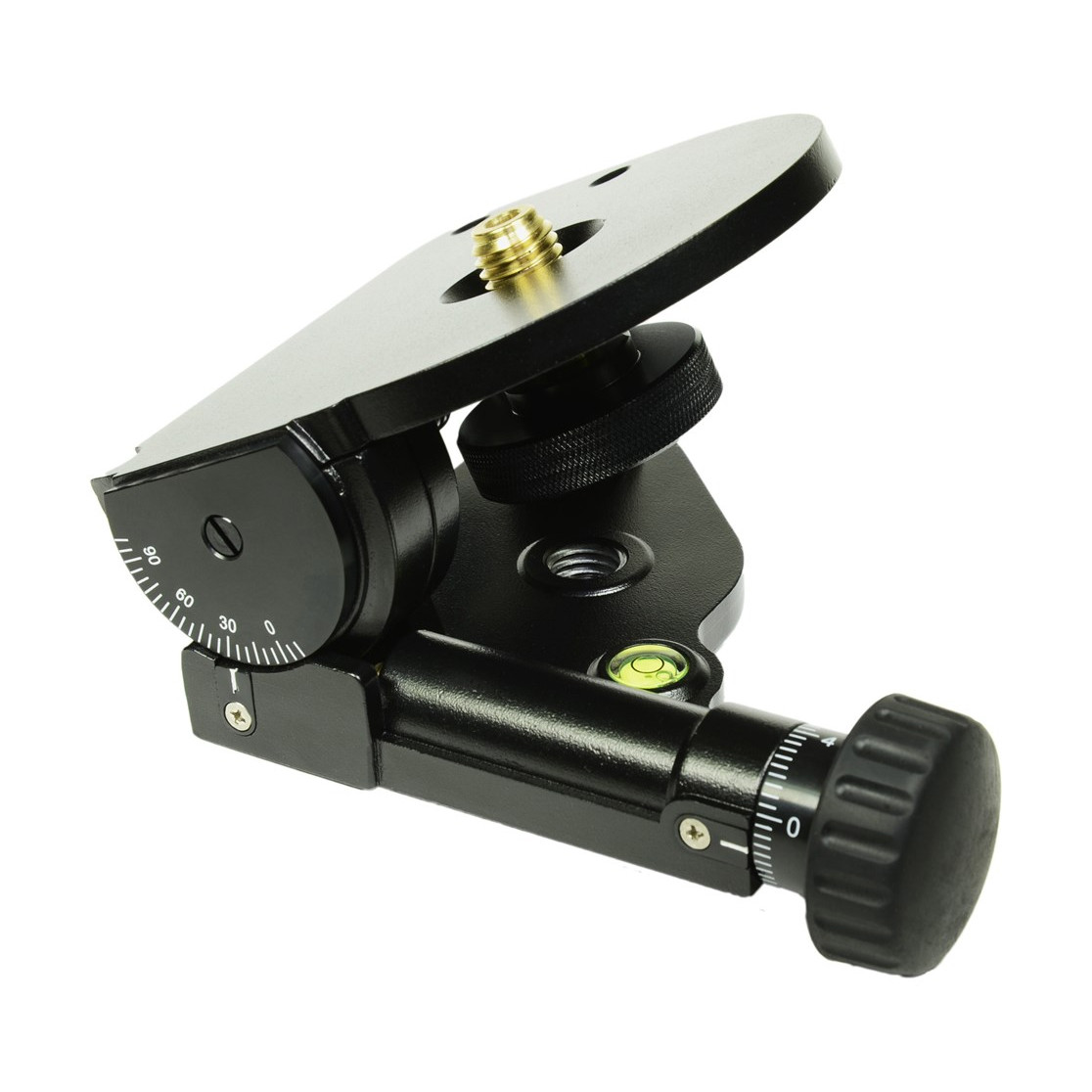

Spectra Precision M401 Tilting Base Adaptor

Overview

The Spectra Precision M401 Tilting Base Adapter transforms your standard rotary laser into a versatile slope-capable system at a fraction of the cost of dedicated grade lasers. Originally manufactured as SECO part #4852-11, this heavy-duty mounting solution has proven itself on thousands of job sites where establishing precise grades is essential. Rather than investing in expensive dual-grade laser technology, contractors can use the M401 to manually set slopes up to 8% in any direction with their existing rotary laser equipment.

Built with rugged aluminum construction and precision-machined components, the M401 features a three-point leveling system with micro-adjustment screws that allow operators to dial in exact slope specifications. The reinforced base plate provides exceptional stability on uneven surfaces, while the standard 5/8"-11 mounting threads ensure compatibility with virtually all rotary lasers and professional-grade tripods. Whether you're establishing drainage grades for concrete flatwork, setting elevations for underground utilities, or creating pitched surfaces for landscape work, the M401 delivers the accuracy and reliability professional contractors demand.

At just $156.95, this tilting base adapter represents an outstanding value for construction professionals who need occasional slope capabilities without the investment in dedicated grade laser systems that can cost thousands more. The M401 pays for itself on the first job requiring grade work, making it an essential addition to any contractor's laser level toolkit.

Key Specifications

• Maximum Slope Range: 8% in any direction (approximately 4.5 degrees)
• Leveling System: Three-point micro-adjustment with precision screws
• Mounting Thread: 5/8"-11 standard tripod thread (top and bottom)
• Base Diameter: 6.5 inches (165mm) for enhanced stability
• Construction: Heavy-duty aluminum alloy with corrosion-resistant finish
• Weight: 2.4 lbs (1.1 kg) - substantial yet portable
• Adjustment Accuracy: Fine-tune slopes to within 0.1% increments
• Temperature Range: -4°F to 122°F (-20°C to 50°C) operating environment
• Compatibility: Universal fit for rotary lasers with 5/8"-11 threads
• Warranty: Manufacturer's 1-year warranty against defects

What's in the Kit

• M401 Tilting Base Adapter with three-point leveling system
• Three precision adjustment screws with knurled grips
• Protective carrying case with foam insert
• 5/8"-11 mounting bolt for secure laser attachment
• Bubble level vial for initial setup reference
• Quick-start instruction guide with slope calculation charts
• Hex key set for maintenance and adjustment

Job Applications

• Concrete Flatwork & Drainage: Establish precise slopes for garage floors, parking lots, warehouse slabs, and exterior concrete where water runoff is critical. The M401 allows you to set the exact grade percentage specified in plans without expensive dual-grade lasers, ensuring proper drainage while maintaining ADA compliance for accessible surfaces.
• Underground Utility Installation: Set accurate slopes for sewer lines, storm drains, and French drain systems where gravity flow is essential. The tilting base adapter helps excavation crews maintain consistent pitch over long distances, preventing costly rework from improperly graded underground infrastructure that won't drain properly.
• Landscape Grading & Terracing: Create precisely pitched surfaces for lawn drainage, retaining wall terraces, and landscaped areas that require controlled water management. The M401 enables landscape contractors to match existing grades or establish new drainage patterns that prevent erosion and standing water problems.
• Foundation & Footing Layout: Verify that foundation forms and footings follow specified slopes on hillside construction where level isn't appropriate. The tilting base helps ensure stepped footings maintain proper pitch relationships, critical for structural integrity on sloped building sites.
• Roofing & Deck Construction: Establish proper pitch for flat roofs, built-up roofing systems, and deck surfaces that require slight slopes for drainage. The M401 allows roofing contractors to verify minimum slope requirements are met across large roof areas, preventing ponding water that leads to premature membrane failure.
• Sports Field & Golf Course Construction: Set precise grades for athletic fields, golf greens, and playing surfaces where drainage and playability depend on exact slope specifications. The adapter enables sports field contractors to create the subtle contours and grades that separate professional-quality installations from amateur work.

Compatible Accessories

• Heavy-duty aluminum tripods with 5/8"-11 mounting heads
• Laser receivers and detectors for outdoor grade work
• Grade rods and leveling staffs for elevation verification
• Rotary laser levels (all brands with standard mounting threads)
• Tribrach adapters for surveying equipment integration
• Laser targets and reflective panels for long-distance work
• Digital inclinometers for slope verification

Related Guides

• How to Set Up Slopes with a Rotary Laser and Tilting Base
• Calculating Proper Drainage Grades for Construction Projects
• Complete Rotary Laser Buying Guide for Contractors
• Maintaining Laser Level Accuracy in the Field

FAQ

Will the M401 work with my existing rotary laser?

The M401 features universal 5/8"-11 threading that's standard on virtually all rotary lasers from manufacturers including Spectra Precision, Topcon, Leica, Bosch, DeWalt, and others. As long as your laser has the standard 5/8"-11 mounting thread, the M401 will provide a secure, stable connection. If you're unsure about your specific model, contact our technical support team with your laser's make and model for confirmation.

How difficult is it to set an accurate slope with this adapter?

Setting slopes with the M401 is straightforward once you understand the basic process. First, level the adapter on your tripod using the bubble vial. Then, calculate your desired slope percentage and use the micro-adjustment screws to tilt the base in the required direction. Most operators can achieve accurate slopes within 15-20 minutes after familiarizing themselves with the adjustment process. The included instruction guide provides slope calculation charts and step-by-step setup procedures.

Can I use this adapter on uneven ground or hillsides?

Yes, the M401 is specifically designed for use on uneven terrain where establishing slopes is necessary. The wide 6.5-inch base plate provides exceptional stability, and the three-point leveling system compensates for irregular surfaces. However, you'll still need a stable tripod setup as your foundation. For extreme slopes or very uneven ground, consider using a heavy-duty tripod with adjustable legs and a contractor-grade tripod head for maximum stability.

What's the advantage of this adapter versus buying a dual-grade laser?

The primary advantage is cost savings. Dual-grade rotary lasers capable of setting slopes in two axes typically cost $2,000-$5,000 or more, while the M401 at $156.95 provides slope capability for contractors who need this function occasionally rather than daily. If you already own a quality rotary laser and only need slope capabilities for specific applications like drainage work or utility installation, the M401 delivers professional results without the significant investment in dedicated grade laser technology.
