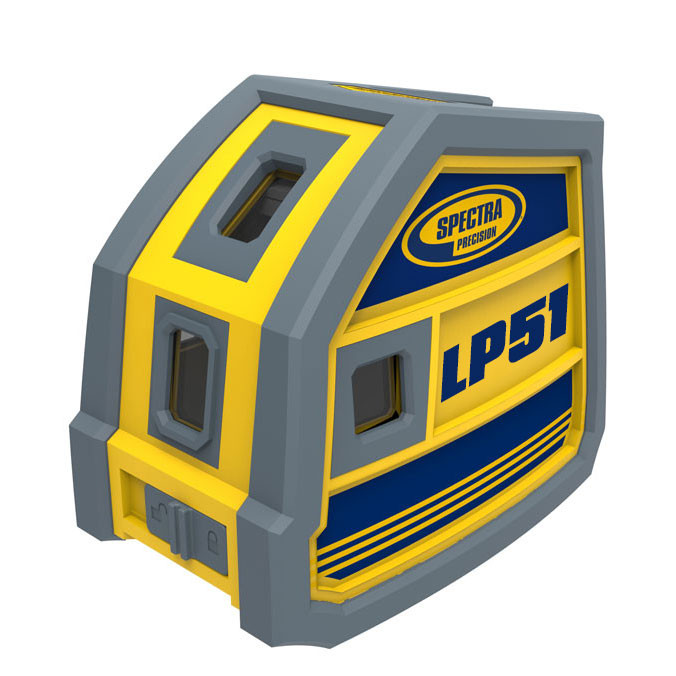

Spectra Precision LP51 Red 5 Beam Pointing Laser

Overview

The Spectra Precision LP51 Red 5 Beam Pointing Laser delivers professional-grade accuracy and versatility in a compact, job-ready package. Designed for contractors who need fast, reliable point transfer and layout capabilities, this five-beam laser projects one down, one up, and three 90° beams to establish reference points on floors, ceilings, and walls simultaneously. Its high-brightness red laser diodes remain visible in moderately lit indoor environments, making it ideal for framing crews, mechanical trades, electricians, and finish carpenters who demand speed and precision without the complexity of rotary systems.

Built to withstand the rigors of active construction sites, the LP51 features a rugged housing with IP54 dust and splash protection, ensuring consistent performance in dusty, damp conditions. The self-leveling pendulum automatically levels and compensates for minor setup variations within ±4°, while an out-of-level indicator alerts you when the tool exceeds tolerance. Whether you're laying out partition walls, transferring ceiling grid points, aligning electrical boxes, or setting door frames, the LP51 consolidates multiple layout tasks into one efficient tool, reducing setup time and improving crew productivity.

At just $215.95, the Spectra Precision LP51 represents exceptional value for trade professionals seeking a dependable five-beam laser without premium pricing. Its straightforward operation—simply place, power on, and work—eliminates the learning curve while maintaining the accuracy standards Spectra Precision is known for across the construction industry.

Key Specifications

• Laser Type: Class 2 red laser diode (635nm wavelength)

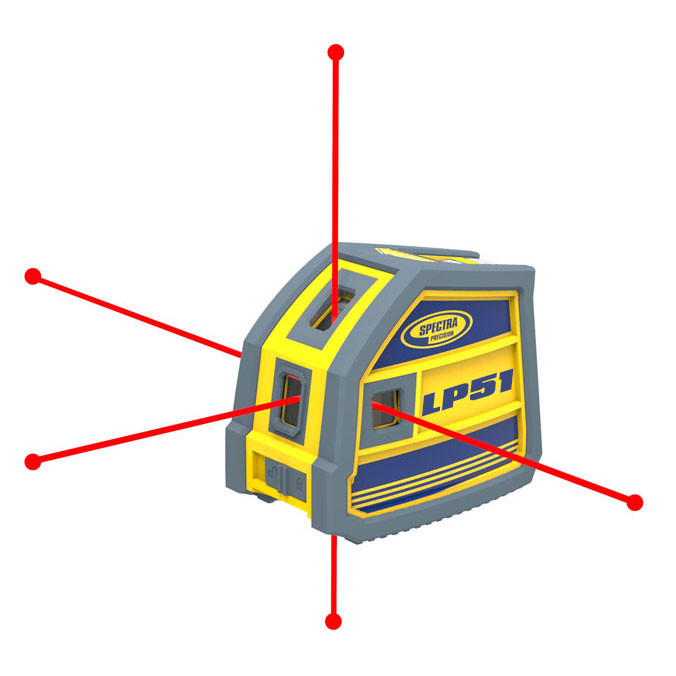

• Beam Configuration: 5 beams total (1 down, 1 up, 3 horizontal at 90° intervals)
• Accuracy: ±1/4 inch at 30 feet (±6mm at 10m)
• Self-Leveling Range: ±4° with automatic compensation
• Working Range: Up to 50 feet (15m) radius with detector capability
• Visible Range: Up to 30 feet (9m) in ambient indoor lighting
• Power Source: 3 AA alkaline batteries (included)
• Battery Life: Up to 30 hours continuous operation
• Environmental Rating: IP54 (dust and splash resistant)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Tripod Mount: Standard 1/4"-20 thread
• Weight: 1.1 lbs (0.5 kg) with batteries
• Dimensions: 3.5" × 3.5" × 5.5" (89mm × 89mm × 140mm)
• Warranty: 3-year manufacturer's warranty

What's in the Kit

• Spectra Precision LP51 Five-Beam Pointing Laser
• Hard-Shell Carrying Case with foam insert
• Magnetic Wall/Ceiling Mount Bracket
• 3 AA Alkaline Batteries
• Quick Start Guide and Safety Instructions
• 3-Year Warranty Registration Card

Job Applications

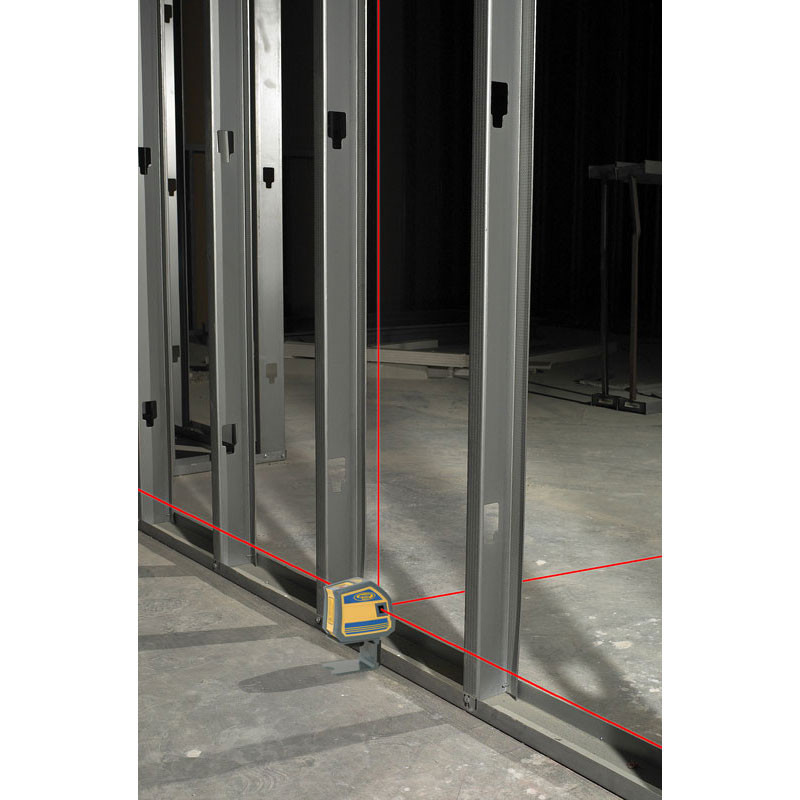

• Framing & Layout: Establish plumb reference lines for partition walls and track layouts. The simultaneous floor-to-ceiling beams let framers snap accurate chalk lines and verify stud plumb without constantly moving the tool, cutting layout time significantly on multi-room floors.
• MEP Rough-In Coordination: Transfer electrical box locations, HVAC penetrations, and plumbing chases between floors with precision. The down beam marks exact positions on lower decks while horizontal beams align fixture heights across multiple rooms, ensuring trades stay coordinated and avoid costly conflicts.

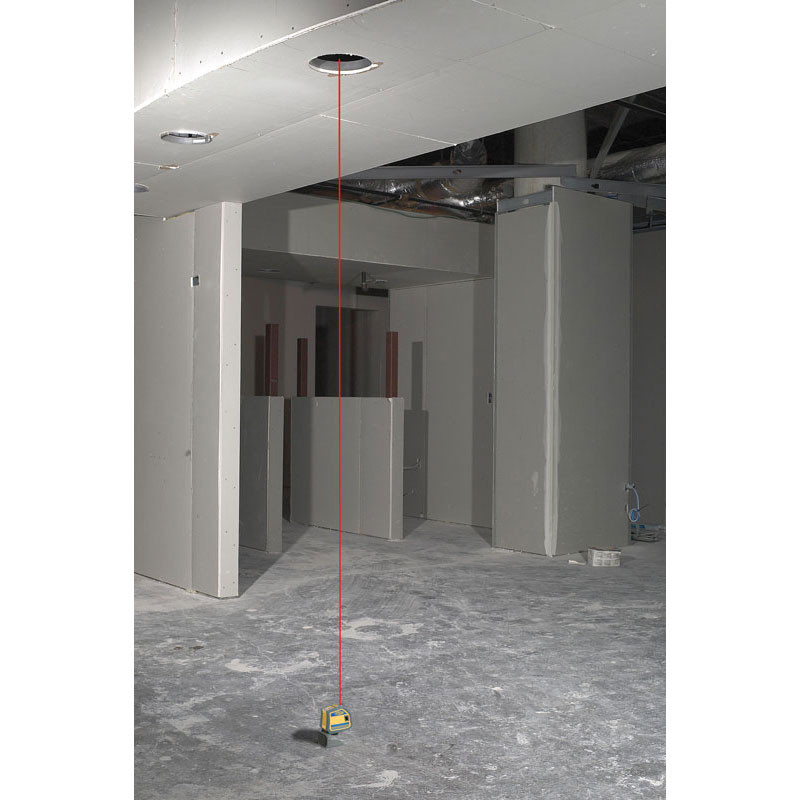

• Suspended Ceiling Installation: Project grid intersection points directly onto deck or existing ceilings. The up beam establishes hanger wire locations while horizontal beams verify wall angle alignment, helping ceiling crews maintain consistent grid geometry across large open areas without constant measurement.
• Cabinet & Millwork Installation: Set consistent cabinet heights and align multiple units across long runs. The horizontal beams create continuous reference lines at cabinet top, counter height, and base positions, while the plumb beams help position corner units and verify installation verticality.
• Door & Window Rough Opening Layout: Mark header heights and jamb plumb lines simultaneously. By positioning the laser at the opening centerline, framers can reference both sides of the rough opening and transfer heights to adjacent walls, ensuring openings are square, plumb, and properly positioned.

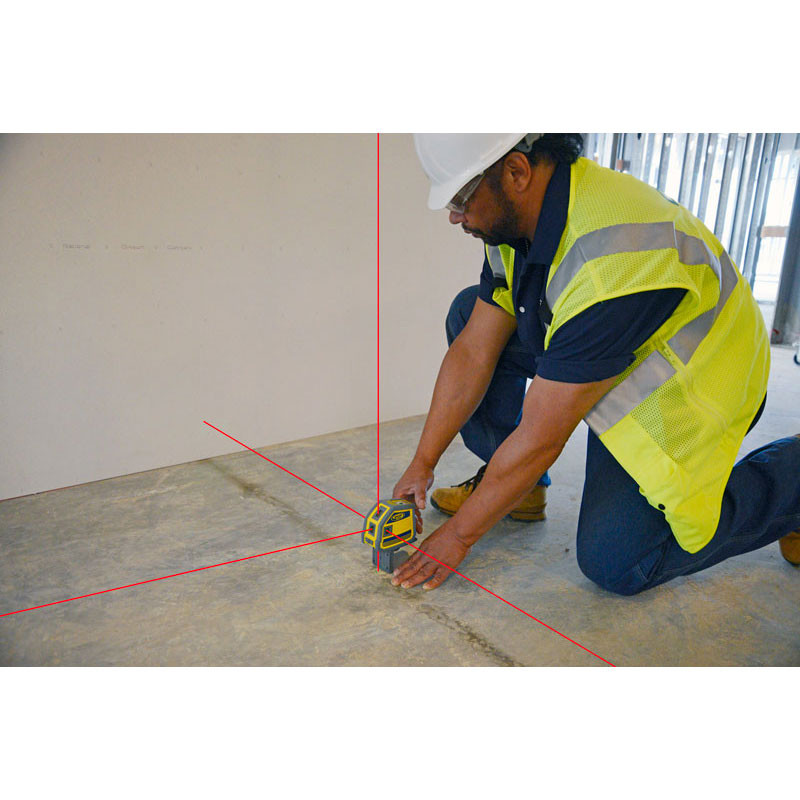

• Tile & Finish Work: Establish level reference lines for tile layouts, wainscoting, and trim installations. The 90° beam spacing creates instant square reference grids for diagonal tile patterns, while the plumb beams help align vertical tile joints and verify wall flatness before installation begins.

Compatible Accessories

• Spectra Precision Elevating Tripod: Extends laser height range from 2.5 to 5 feet for optimal beam positioning
• CR700 Laser Receiver/Detector: Extends working range to 165+ feet for outdoor or long-distance applications
• Laser Enhancement Glasses: Improve beam visibility in bright ambient conditions
• Magnetic Floor Mount: Additional mounting bracket for steel deck or metal stud attachment
• Grade Rod with Clamp: Holds receiver at precise heights for elevation transfer work
• Replacement Battery Pack: Keep spare AA batteries on site for uninterrupted operation

Related Guides

• How to Choose the Right Laser Level for Your Trade
• Point Lasers vs. Line Lasers: When to Use Each Type
• Maximizing Accuracy with Construction Lasers
• Laser Safety Best Practices for Job Sites

FAQ

Can the LP51 be used outdoors?

While the LP51 is designed primarily for indoor use, it can be used outdoors in shaded conditions or with a compatible laser detector like the CR700, which extends the working range beyond visual distance. Direct sunlight will wash out the red laser beams for visual reference, but detector mode remains effective.

What's the difference between this and a laser line tool?

The LP51 projects five distinct point beams rather than continuous lines. Point lasers excel at transferring specific locations (like electrical box positions or grid intersections) and offer longer range and better battery life. Line lasers create continuous reference lines better suited for tiling, leveling, and alignment tasks along entire surfaces.

How do I know if the laser is level?

The LP51 self-levels automatically when placed on a surface within ±4° of level. If the surface exceeds this range, the laser beams will blink to indicate an out-of-level condition, alerting you to adjust the setup. Once leveling is achieved, the beams become steady, confirming the tool is ready for accurate layout work.

Will the magnetic mount work on wood or concrete surfaces?

The included magnetic mount only adheres to ferrous metal surfaces like steel studs, metal deck, or I-beams. For wood, drywall, or concrete surfaces, use the standard 1/4"-20 threaded mount with a compatible tripod, pole, or bracket. The compact size also allows stable placement directly on flat surfaces.
