Spectra Precision LP30 Laser Pointer 3-BEAM

Overview

The Spectra Precision LP30 3-Beam Laser Pointer delivers professional-grade layout capability in a compact, pocket-sized design that revolutionizes how tradespeople approach vertical alignment work. Unlike bulky laser levels that require setup time and dedicated mounting, the LP30 deploys instantly—simply hold it against your work surface and press the button to project three precisely calibrated laser beams that establish plumb, level, and square references in seconds.

This innovative tool combines a vertical beam, horizontal beam, and self-leveling pendulum system into a handheld form factor small enough to carry in your tool pouch yet powerful enough to project visible lines across room-sized distances. Framers rely on it for door and window rough openings, electricians use it for device box alignment, and finish carpenters depend on it for cabinet installation and trim work. The LP30 eliminates the constant measuring, marking, and re-checking that slows down layout tasks, allowing single operators to maintain consistent reference points without assistants or complex setup procedures.

Built to Spectra Precision's commercial construction standards, the LP30 features a rubberized housing that withstands the drops and impacts of daily jobsite use, while its magnetic base and lanyard attachment point provide multiple mounting options. The self-leveling mechanism automatically compensates for minor surface irregularities within ±4 degrees, ensuring accuracy even when pressed against studs, joists, or walls that aren't perfectly plumb. For jobs requiring deliberate angle projection, the self-leveling function disengages with a simple switch, converting the LP30 into a manual laser pointer for specialized applications.

At $168, the LP30 represents exceptional value for contractors who need laser accuracy without the expense, bulk, and setup time of traditional rotating or line lasers. It bridges the gap between basic bubble levels and professional-grade laser systems, offering a grab-and-go solution that increases productivity across dozens of daily tasks while remaining affordable enough to equip entire crews.

Key Specifications

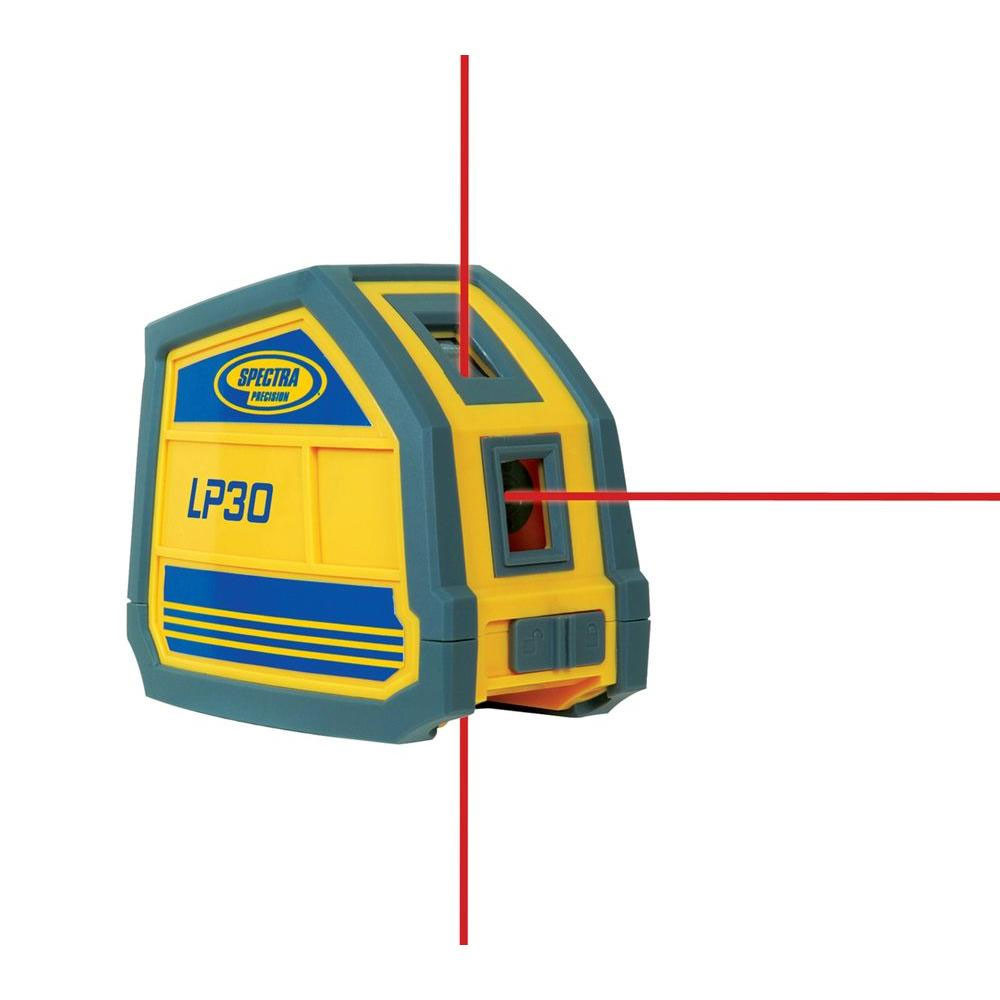

• Beam Configuration: Three independent laser diodes—one vertical, one horizontal, one perpendicular (90°)
• Leveling System: Automatic pendulum-based self-leveling within ±4° range
• Accuracy: ±1/4 inch at 30 feet (±3mm at 10m)
• Working Range: Up to 30 feet (10m) visible beam distance in typical indoor lighting
• Laser Class: Class II (IEC 60825-1), safe for construction use with standard precautions
• Power Source: Three AAA alkaline batteries (included)
• Battery Life: Approximately 6 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Dust/Water Resistance: IP54 rated—sealed against dust infiltration and water splashes
• Dimensions: 4.5" × 2.1" × 1.3" (114mm × 53mm × 33mm)
• Weight: 5.6 oz (160g) including batteries
• Mounting Options: Built-in magnets, lanyard hole, 1/4"-20 threaded socket
• Visibility Enhancement: Pulse-mode compatible with Spectra laser detectors (sold separately)

What's in the Kit

• Spectra Precision LP30 3-Beam Laser Pointer unit
• Three AAA alkaline batteries (installed)
• Protective carrying pouch with belt loop
• Wrist lanyard with quick-release clip
• Quick-start guide and safety information card
• Spectra Precision 2-year manufacturer's warranty card

Job Applications

• Electrical Box Layout: The LP30's vertical and horizontal beams allow electricians to align multiple outlet, switch, and junction boxes at consistent heights and plumb orientations without repeated measurements. Hold the tool against your first box location, mark the intersecting beams, then move along the wall to replicate exact positioning—ideal for kitchens, offices, and any space requiring symmetrical device placement. This eliminates the accumulating error that occurs with tape-measure-only methods and ensures boxes align perfectly with future drywall seams.

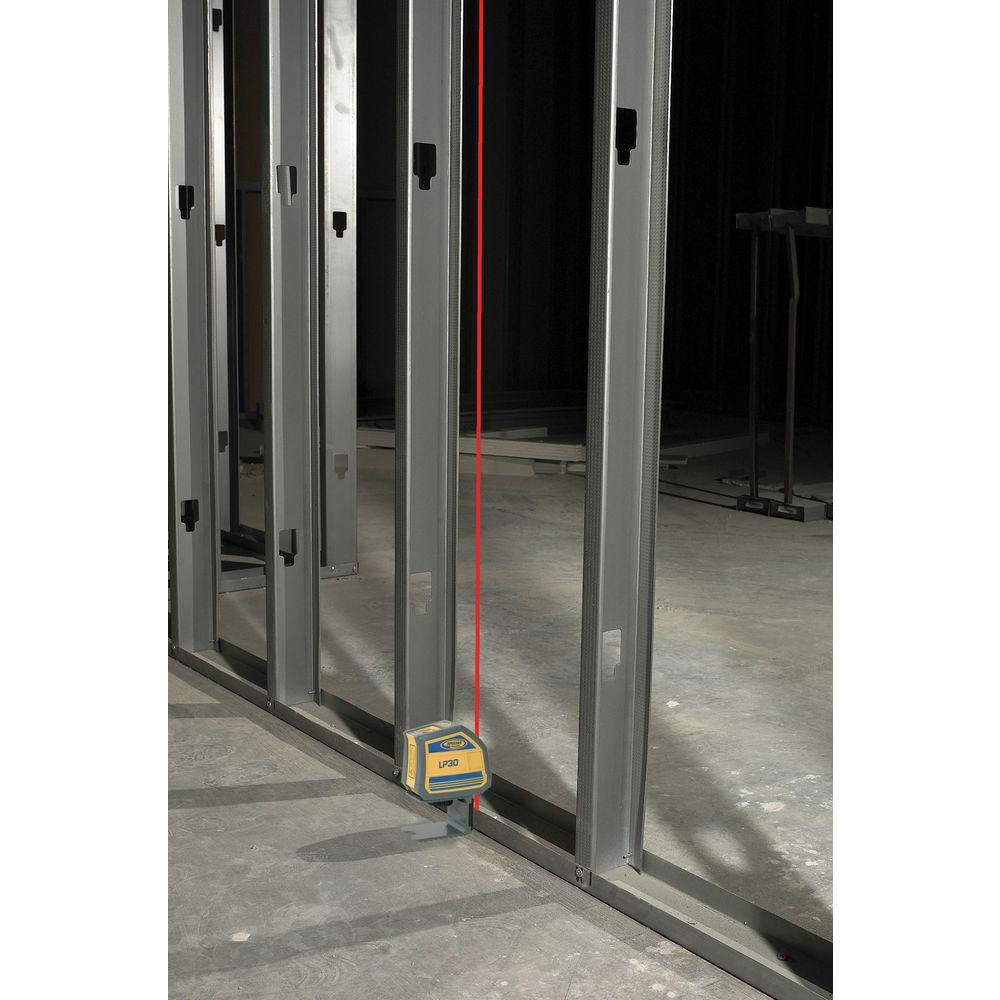

• Door and Window Framing: Framers use the perpendicular beam relationship to verify that rough openings maintain true 90° corners and plumb sides during construction. The horizontal beam establishes header height across multiple openings, while the vertical beam checks king and jack stud alignment. This real-time verification catches framing errors before sheathing begins, preventing costly corrections during door and window installation phases.
• Cabinet Installation: Kitchen and bath installers rely on the LP30 to establish level lines for wall cabinet mounting and verify plumb alignment for tall pantry units. The compact size allows positioning inside cabinet boxes to check internal squareness, while the horizontal beam projects across entire wall runs to ensure consistent soffit and crown molding lines. The magnetic base adheres to cabinet hardware and metal studs, providing hands-free reference during installation.
• Tile and Wainscoting Layout: The horizontal beam serves as a perfect reference line for tile courses, chair rail installation, and wainscoting alignment. Tile setters use it to verify level across long walls where laser levels would require mid-wall repositioning, while finish carpenters reference the beam to maintain consistent reveal on panel wainscoting. The instant-on capability means you can check alignment every few feet without interrupting workflow.
• HVAC and Plumbing Rough-In: Mechanical contractors use the vertical beam to align duct registers, supply grilles, and plumbing fixtures at consistent spacing. The tool's small footprint allows positioning in tight chases and between joists where larger lasers won't fit. HVAC installers particularly value the ability to project plumb lines onto ceiling joists for proper duct hanger placement, ensuring installations meet code requirements for slope and alignment.
• Furniture Building and Millwork: Woodworkers employ the LP30 as a 3D square reference when assembling large casework and built-ins. The three-beam configuration allows simultaneous verification of height, width, and depth alignment during glue-ups and installation. Cabinet makers use it to check drawer front alignment across multi-drawer stacks and to ensure door reveals remain consistent on face-frame construction.

Compatible Accessories

• Spectra Precision RD20 Laser Detector: Extends the LP30's working range to 165+ feet outdoors by detecting the pulsed laser beam—essential for exterior layout and large commercial spaces
• Magnetic Mounting Bracket: Aftermarket quick-release brackets that attach to the LP30's threaded socket, providing adjustable-angle positioning on steel studs and beams
• Spectra Laser Target Plates: Reflective targets that enhance beam visibility at distance and provide precise aiming points for transfer measurements
• Extended Battery Pack: Third-party AAA battery holders that mount via the threaded socket, doubling runtime for all-day layout sessions
• Laser Enhancement Glasses: Red-tinted safety glasses that improve beam contrast in bright ambient light conditions while maintaining ANSI Z87.1 eye protection

Related Guides

• Laser Level Buying Guide: Comparing Pointers, Line Lasers, and Rotary Systems
• Professional Electrical Box Layout Techniques for Remodeling Projects
• Jobsite Laser Safety: Class II Tool Usage and Eye Protection Requirements
• Modern Cabinet Installation Methods: Laser-Assisted Techniques

FAQ

Can the LP30 project all three beams simultaneously or only one at a time?

The LP30 activates all three laser beams simultaneously with a single button press, projecting vertical, horizontal, and perpendicular reference lines at once. This tri-beam operation is the tool's primary advantage—it establishes complete 3D spatial reference without requiring repositioning or multiple tools. The beams remain locked at precise 90° relationships, making the LP30 function as a handheld three-dimensional square.

How does the self-leveling function work when holding the tool by hand?

The LP30's internal pendulum mechanism self-levels when the tool is held within ±4 degrees of true level or plumb against a reference surface. You press the unit against a wall, stud, or workpiece, and the pendulum compensates for minor surface irregularities automatically. If you exceed the 4-degree leveling range, the laser beams blink to indicate out-of-level condition. For intentional angle work, switch the tool to manual mode, which locks the pendulum and projects beams at whatever angle you're holding the unit.

What's the realistic visibility range indoors versus outdoors?

Indoors with typical artificial lighting, the LP30's red laser beams remain clearly visible to 30 feet, with usable (though dimmer) visibility extending to 40-45 feet in darker conditions. Outdoors in direct sunlight, visibility drops dramatically to 6-10 feet maximum. For outdoor work or distances beyond 30 feet, pair the LP30 with the Spectra RD20 detector, which senses the pulsed beam to extend the effective range beyond 165 feet regardless of ambient light conditions. Most interior framing, electrical, and finish work falls comfortably within the 30-foot visible range.

Will the magnets interfere with electronic devices or damage surfaces?

The LP30's rare-earth magnets are strong enough to hold the 5.6-ounce unit securely on steel studs, metal ductwork, and ferrous tool surfaces but won't affect electronic devices, credit cards, or digital levels when used normally. The magnetic force is localized to approximately 1/4-inch from the housing. The magnets contact surface area is small and rubber-coated, preventing scratching on finished steel surfaces. On painted or powder-coated steel, verify the finish is cured before magnetic attachment—fresh paint may show impressions from prolonged contact.
