Spectra Precision LL400HV Laser Package with HL760 Receiver

Overview

The Spectra Precision LL400HV Laser Package served contractors in excavation, concrete, and site preparation who needed a self-leveling rotary laser for horizontal and vertical leveling tasks. This dual-slope capable system combined the LL400HV laser transmitter with the HL760 digital receiver, delivering grade control for foundation work, drainage installation, and site grading operations. The package provided single-operator flexibility with manual slope capabilities in both axes, making it suitable for small to mid-size contractors running residential and light commercial projects. The HL760's on-grade LED display and audible alerts enabled machine mounting or hand-held use, while the laser's visible red beam remained usable in typical outdoor construction conditions with proper detector use.

Key Specifications

• Laser Type: Self-leveling horizontal/vertical rotary laser with visible red beam
• Leveling Range: ±5° self-leveling with out-of-level alert
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Diameter: Up to 1,300 feet (400m) with HL760 receiver
• Rotation Speed: 600 RPM standard
• Slope Capability: Manual dual-axis slope (X and Y axes)
• Power Source: Rechargeable NiMH battery (included) or 4 D-cell alkaline batteries
• Runtime: Up to 30 hours on rechargeable battery
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Environmental Rating: IP66 dust and water resistance
• Receiver Detection Range: 1,300 foot diameter (HL760)
• Receiver Accuracy: ±1/16 inch (±1.5mm) digital accuracy
• Mounting Thread: 5/8-11 industry standard

What's in the Kit

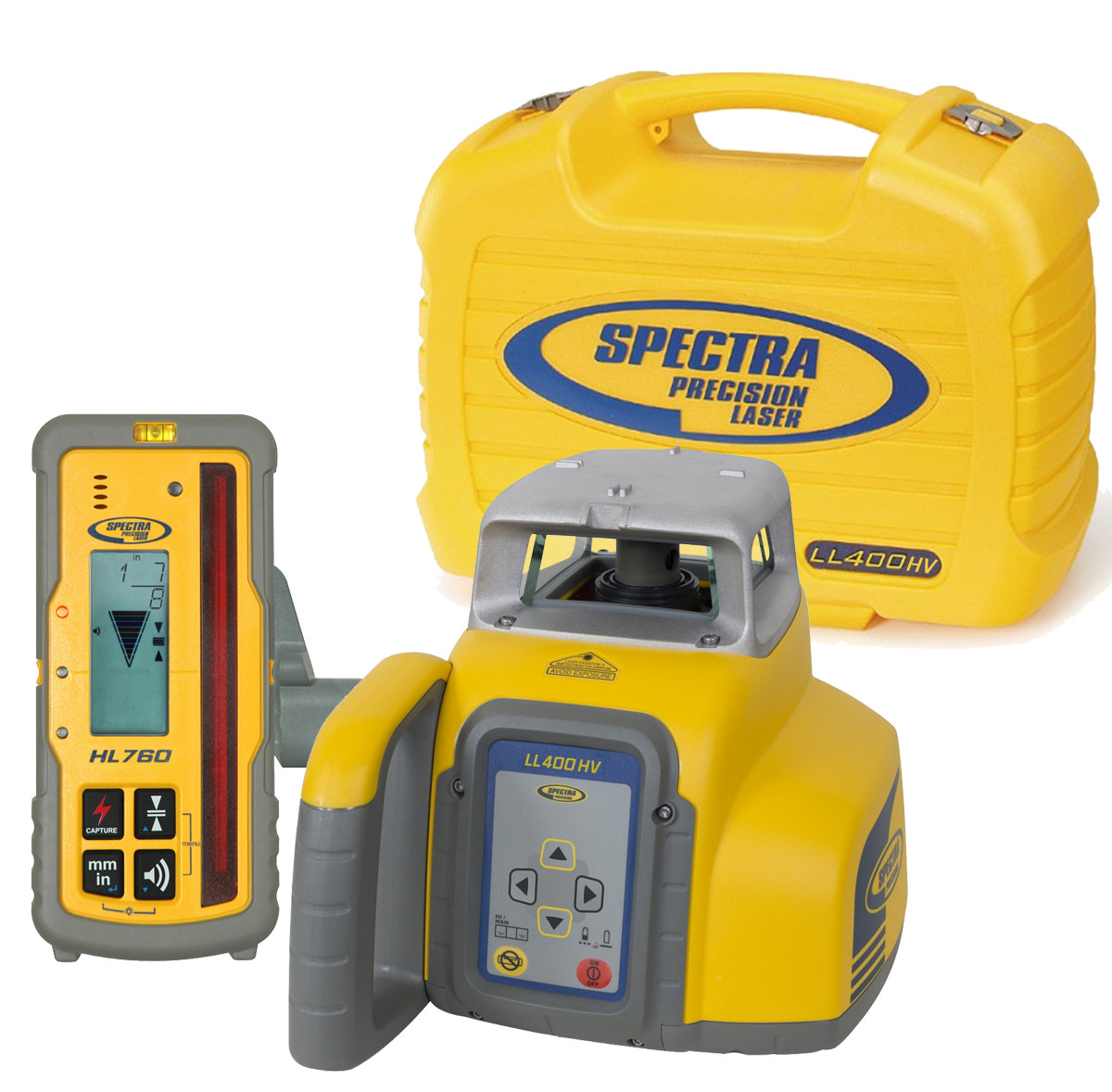

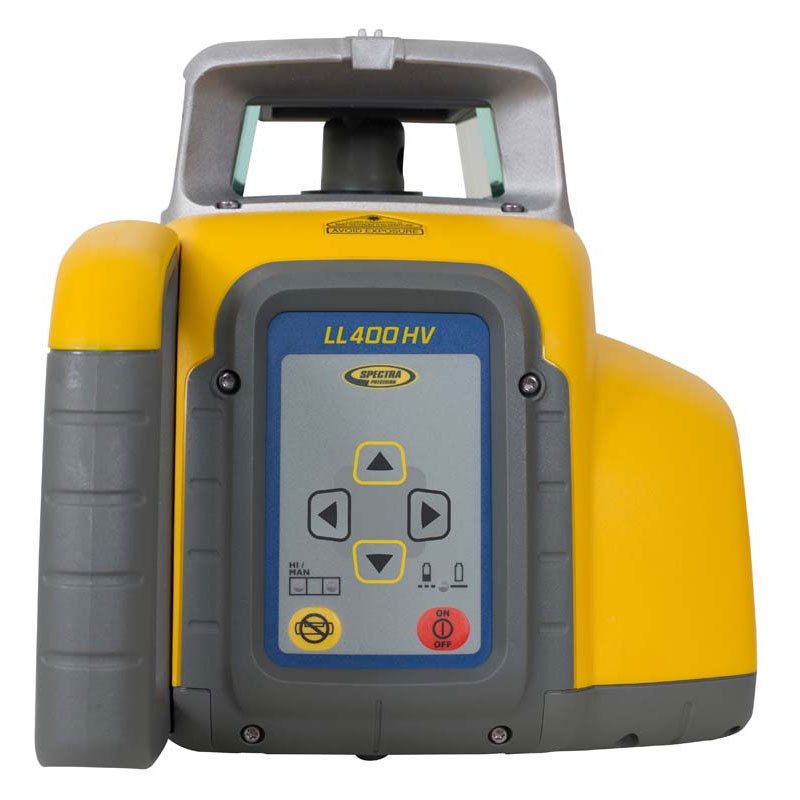

• LL400HV Self-Leveling Horizontal/Vertical Rotary Laser
• HL760 Digital Laser Receiver with rod clamp
• Rechargeable NiMH Battery Pack
• 110V Battery Charger
• RC602 Wireless Remote Control
• Hard Shell Carrying Case (laser)
• Soft Carrying Case (receiver)
• Operator's Manual and Quick Start Guide
• Calibration Certificate

Job Applications

• Foundation and Footing Layout: The dual-axis slope capability enables accurate elevation control for stepped footings and sloped foundation walls, while the HL760's digital readout provides precise depth readings for excavation crews working to architectural specifications.
• Concrete Slab Placement: Horizontal leveling mode establishes consistent elevation references across large floor pours, with the receiver's mounting bracket allowing attachment to screed rails or grade stakes for continuous grade monitoring during concrete placement operations.
• Drainage and Utility Trenching: Manual slope adjustment in single-axis mode creates precise gradients for sewer laterals, storm drains, and irrigation lines, eliminating constant calculation and reducing the risk of reverse-slope errors that cause system failures.
• Site Grading and Earthwork: The 1,300-foot working diameter covers residential lots and small commercial pads from a single setup, while vertical mode provides elevation control for retaining wall construction and grade transitions.
• Deck and Framing Leveling: Vertical beam mode establishes plumb references for wall framing and structural column alignment, with the visible red beam providing quick visual confirmation before final measurement with the digital receiver.
• Drop Ceiling Installation: Interior horizontal mode creates level reference planes for suspended ceiling grid systems, with the receiver's audible tones allowing single-operator installation without constantly checking visual displays.

Compatible Accessories

Receivers & Detection: Spectra HR550 Receiver, Spectra CR600 Machine Receiver

Mounting & Support: Heavy-Duty Elevator Tripod, Universal Receiver Rod Clamp, 5/8-11 Tribrach Adapter

Power & Batteries: Spectra NiMH Replacement Battery, D-Cell Alkaline Battery Tray

Grade Rods: Lenker 25-ft Grade Rod, Crain Direct Elevation Rod

Related Guides

• How to Set Manual Slope on Rotary Lasers
• Laser Receiver Accuracy and Detection Range Comparison
• Field Calibration Check Procedures for Rotary Lasers
• Troubleshooting Self-Leveling Laser Problems

Frequently Asked Questions

Can the LL400HV be used on a grading bucket or excavator?

The LL400HV itself mounts on tripods or fixed positions only. However, the included HL760 receiver can be paired with a compatible machine receiver like the Spectra CR600 for grade control on excavators, dozers, and motor graders. The HL760 serves as the hand-held reference while machine receivers provide cab-mounted grade indication.

What's the difference between the HL760 receiver and other Spectra receivers?

The HL760 is a digital receiver with LCD elevation readout showing exact distance from grade in inches or millimeters. This differs from basic LED receivers that only show high/low/on-grade zones. The HL760 provides numerical readings, making it faster for setting forms and checking multiple grade points without trial-and-error adjustment.

How do I set a 2% slope for drainage pipe installation?

The LL400HV uses manual slope adjustment rather than digital input. Calculate the elevation drop needed over your pipe run distance (2% = 0.24 inches per foot). Use the laser's slope adjustment knobs while monitoring with a second receiver or measuring device at a known distance. The RC602 remote allows slope adjustment from the trench, but this laser requires manual calculation rather than percentage entry.

Will the rechargeable battery hold a charge if the laser sits unused for months?

NiMH batteries self-discharge over time, losing approximately 20-30% capacity per month when stored. If your LL400HV sits idle between jobs, remove the battery pack and store it in a cool, dry location. Charge it fully before storage and top off the charge every 2-3 months. For seasonal use, the alkaline D-cell tray provides reliable backup power without charge maintenance concerns.
