Spectra Precision LL400HV-4 Laser Package with HL760 Receiver and Rechargeable Batteries

The Spectra Precision LL400HV-4 Laser Package combines the LL400HV self-leveling rotary laser, HL760 digital receiver, and rechargeable battery system for professional contractors seeking reduced operating costs and minimal downtime during extended job-site deployment. This configuration has been discontinued as Spectra simplified its product lineup, making remaining inventory valuable for crews wanting a complete horizontal/vertical laser solution with long-term cost savings.

Overview

Contractors in site preparation, excavation, concrete forming, and general construction rely on the LL400HV-4 package for accurate grade control and elevation transfer throughout the workday without battery changes. The bundled HL760 receiver provides 1,300-foot working diameter in typical conditions, while the rechargeable NiMH battery system eliminates ongoing alkaline battery expenses that accumulate across multiple tools and crew members. This package served contractors who operate equipment beyond standard 8-hour shifts or in remote locations where battery resupply proves challenging.

The LL400HV delivers ±10 arc-second accuracy with automatic leveling across ±5 degrees, enabling fast setup on uneven surfaces without manual adjustment. Dual-axis slope capability in both horizontal and vertical orientations supports drainage work, foundation layouts, and structural alignment tasks. The included rechargeable batteries reduce long-term operating costs by 60-80% compared to disposable alkaline alternatives while maintaining consistent runtime performance throughout the discharge cycle.

Key Specifications

• Accuracy: ±10 arc seconds (±1/16" at 100 feet)
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 0, 150, 300, 600, 900 RPM (selectable)
• Working Diameter: Up to 1,300 feet with HL760 receiver
• Laser Diode: Class 3R visible red beam
• Operating Time: 60+ hours (laser), 100+ hours (receiver) on rechargeable batteries
• Slope Capability: Dual-axis manual slope in horizontal and vertical modes
• Protection Rating: IP66 dust and water resistant
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Receiver Detection Range: 5 to 650-foot radius
• Receiver Accuracy: ±1/16" at 100 feet in standard mode

What's in the Kit

• LL400HV Dual-Axis Self-Leveling Rotary Laser
• HL760 Digital Receiver with Rod Clamp
• Two Rechargeable NiMH Battery Packs (laser)
• One Rechargeable NiMH Battery Pack (receiver)
• Dual-Bay Battery Charger (laser batteries)
• Single-Bay Battery Charger (receiver battery)
• AC Power Adapters for Chargers
• Hard-Shell Carrying Case
• Operator Manuals and Documentation

Job Applications

• Site Excavation and Grading: The 1,300-foot working diameter covers large cut-and-fill operations with a single setup, while rechargeable batteries support 12+ hour shifts without interruption for battery changes that disrupt excavator productivity.
• Foundation and Footing Layout: Vertical mode positions the laser beam on building corners and walls for elevation transfer and plumb reference, while ±10 arc-second accuracy maintains foundation tolerances across multi-story structures without cumulative error.
• Concrete Forming and Flatwork: Variable rotation speeds from 150 to 900 RPM optimize visibility in bright conditions or when using the laser without a receiver for visual reference on screeding and forming tasks where grade accuracy determines drainage performance.
• Utility Trenching and Drainage: Dual-axis slope capability establishes precise drainage gradients from 0.5% to 10% for sewer lines, storm drains, and agricultural applications where gravity flow depends on consistent fall over extended runs.
• Structural Steel and Masonry: Horizontal leveling mode provides continuous elevation reference for deck layout, beam placement, and CMU coursing, while the rechargeable system eliminates mid-shift battery failures that delay critical path activities.
• Multi-Shift or Remote Projects: The rechargeable battery system reduces dependency on battery logistics for projects in rural locations or facilities operating 24-hour construction schedules where alkaline battery inventory management creates administrative burden.

Compatible Accessories

Spectra Laser Receivers | Rod Clamps and Mounting Hardware | RC402 Remote Control | Grade Rods and Measuring Solutions | Heavy-Duty Laser Tripods | Laser Targets and Visibility Aids

Related Guides

Understanding Rotary Laser Accuracy Standards | Rechargeable vs. Alkaline Batteries for Construction Lasers | Setting Up Dual-Axis Slope on Rotary Lasers | Spectra Laser Calibration and Verification Procedures

Frequently Asked Questions

How much money does the rechargeable battery system save compared to alkaline batteries?

Based on typical construction use, rechargeable NiMH batteries reduce operating costs by approximately $400-600 annually per laser/receiver combination. At 60 hours runtime per charge and 500+ recharge cycles, each battery pack replaces 120-180 sets of alkaline D-cells over its service life. The initial premium for rechargeable components typically pays back within 6-9 months for crews operating lasers daily.

Can I use standard alkaline batteries if the rechargeable packs fail on the job?

Yes, both the LL400HV laser and HL760 receiver accept standard alkaline D-cell batteries as emergency backup power sources. The laser requires four D-cells and the receiver uses two D-cells, matching common alkaline configurations. This dual-power compatibility prevents project delays when rechargeable batteries discharge unexpectedly or chargers become unavailable during remote deployments.

What's the functional difference between the HL760 receiver and older Spectra receivers?

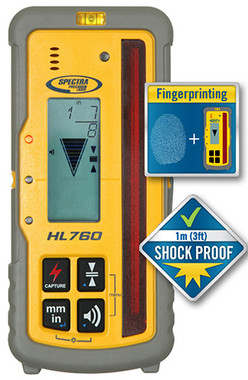

The HL760 offers digital LCD display with numeric grade readouts, extended 650-foot radius detection range, and compatibility with multiple Spectra laser wavelengths including both red and green beams. Compared to earlier models like the HL450, the HL760 provides finer on-grade sensitivity, louder audio indicators, and USB data output for integration with machine control systems on excavators and dozers.

Since this package is discontinued, are replacement parts and service still available?

Spectra Precision and authorized service centers continue supporting the LL400HV and HL760 with replacement parts, calibration services, and technical support despite the package configuration being discontinued. Common wear items including batteries, charging components, and protective lenses remain in production. The discontinuation affected only the bundled package offering, not the individual components which share parts inventory with current Spectra laser products.
