Spectra Precision LL300S-X1 PRO Laser Package - Rechargeable, HL450 Receiver, Remote, TENTHS-Rod, HD Tripod and Small Case

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Laser Class: Class IIIa / Class 3R, red beam
Slope Range: 0–25% single axis
Self-leveling Range: ±5° automatic
Working Diameter: Up to 2,600 ft (800 m) with HL450 receiver
Accuracy: ±1/16 in at 100 ft (1.5 mm at 30 m)
Remote Control Range: Up to 200 ft (60 m)

Spectra PrecisionLL300S-X1SKU 11-SCR25-CNew

Rotary Lasers →

Spectra Precision LL300S-X1 PRO Laser Package - Rechargeable, HL450 Receiver, Remote, TENTHS-Rod, HD Tripod and Small Case

Name: Spectra Precision LL300S-X1 PRO Laser Package - Rechargeable, HL450 Receiver, Remote, TENTHS-Rod, HD Tripod and Small Case
Brand: Spectra Precision
SKU: 11-SCR25-C
Price: 1545.00 USD
Availability: InStock

$1545.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

0–25% single axis Range

Cover large layout jobs with a 0–25% single axis working reach.

±1/16 in at 100 ft (1.5 mm at 30 m) Accuracy

Hold grade with a ±1/16 in at 100 ft (1.5 mm at 30 m) accuracy rating.

Grade Range

Handles 0–25% single axis so crews can match design slopes.

Battery Runtime

Runs on Up to 100 hours (rechargeable NiMH pack included) for jobsite flexibility.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Eliminates the grade checker

Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this rotary laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision LL300S-X1?

The Spectra Precision LL300S-X1 PRO Laser Package is a professional-grade rotary laser system designed for contractors requiring precision leveling and slope applications. This complete package delivers accuracy of ±1/16 in at 100 ft with a working diameter up to 2,600 ft using the included HL450 receiver, and features up to 100 hours of battery runtime on the rechargeable NiMH pack. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this rotary lasers for

Site Grading

Cut/fill earthwork, building pad preparation, base compaction

Concrete Flatwork

Slab pours, floor leveling, tilt-up panel layout

Machine Control

Grade control reference for motor graders and scrapers

Foundation Layout

Benchmark elevation transfer, footing forms, stem walls

PRODUCT OVERVIEW

Product Description

The Spectra Precision LL300S-X1-PRO is a complete, job-ready rotary laser package engineered for contractors who demand accuracy, speed, and remote-operated control across demanding grade work. By pairing the proven LL300S single-slope laser platform with the highly responsive HL450 receiver, wireless remote, tenths rod, heavy-duty tripod, and rechargeable battery system, this kit eliminates the need to source individual components—so you're operational from the first morning on site.

Package Overview & Jobsite Applications

Designed for earthwork, concrete flatwork, irrigation grading, and site prep, the LL300S-X1-PRO streamlines two-person crew workflows. The wireless remote control lets the instrument operator adjust slope settings and laser elevation from up to 200 feet away, reducing the constant back-and-forth repositioning that bleeds time on dense or active jobsites. The HL450 receiver's extended detection range—up to 2,600 feet in diameter—keeps grade checks accurate even in bright outdoor conditions where a naked beam is invisible.

Key Specifications

Laser Class: Class IIIa / Class 3R, red beam
Slope Range: 0–25% single axis
Self-Leveling Range: ±5° automatic
Working Diameter: Up to 2,600 ft (800 m) with HL450 receiver
Accuracy: ±1/16 in at 100 ft (1.5 mm at 30 m)
Remote Control Range: Up to 200 ft (60 m)
Battery Runtime: Up to 100 hours (rechargeable NiMH pack included)
IP Rating: Dustproof and waterproof construction for outdoor use
Rotation Speed: 100, 300, or 600 RPM selectable

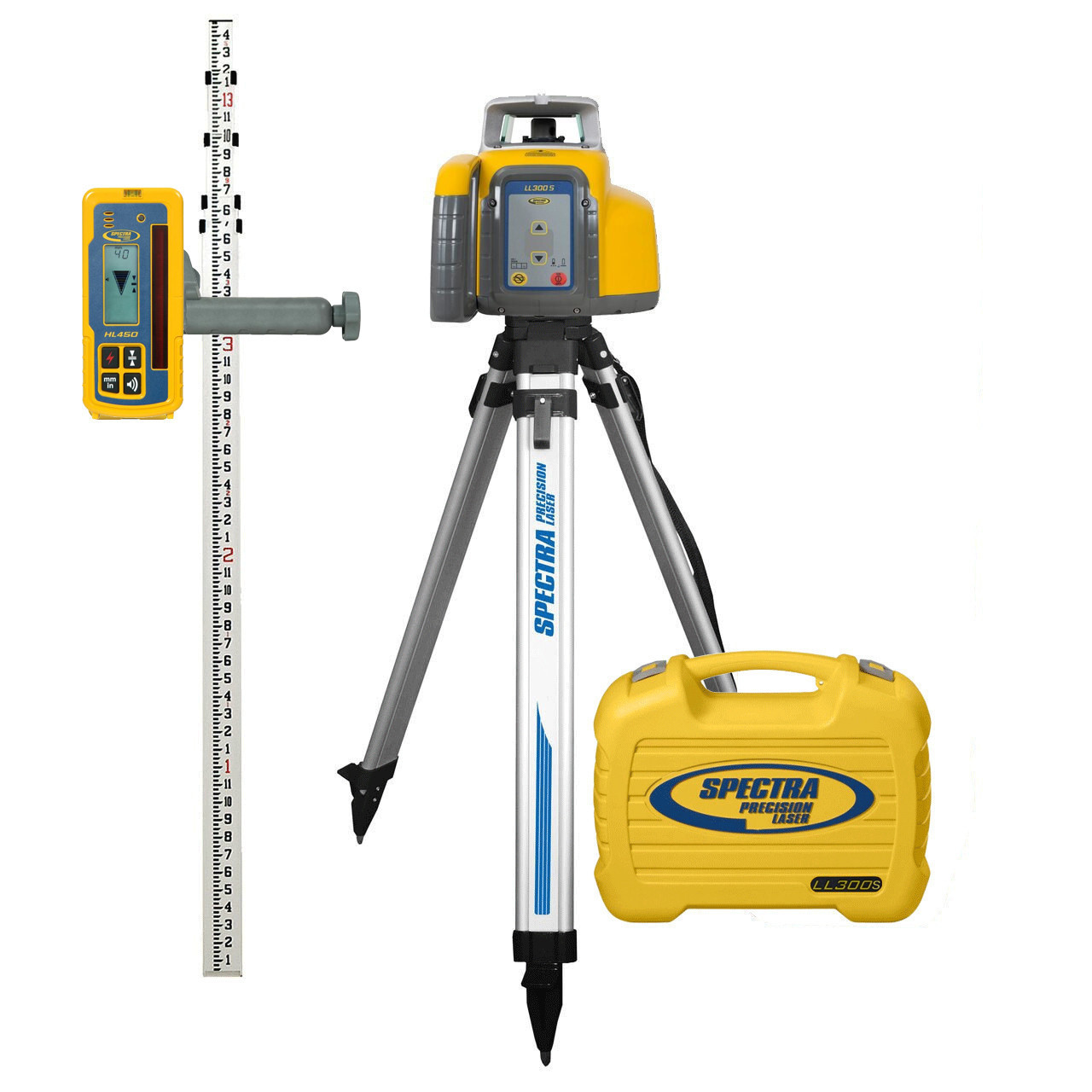

What's in the Kit

LL300S Rotary Laser: Single-slope red-beam transmitter with remote-compatible control output
HL450 Laser Receiver: Extended-range digital readout receiver with audible and visual grade indicators
Wireless Remote Control: Full instrument control—slope, elevation, and rotation speed—from up to 200 ft
Tenths Rod: Graduated grade rod calibrated in tenths of a foot for precise elevation referencing
Heavy-Duty Tripod: Aluminum contractor-grade tripod with wide stance for stable instrument mounting
Rechargeable Battery Pack & Charger: NiMH rechargeable system with up to 100-hour runtime

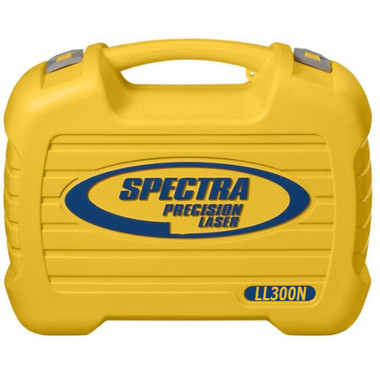

Carrying Case: Molded hard case for protected transport and organized storage

Job Applications

Site Grading & Earthwork: Set and hold precise single-axis slope grades for drainage swales, parking lots, and cut-and-fill operations. The remote lets one operator run both the laser and grade checks without a second crew member at the instrument.

Concrete Flatwork: Establish accurate elevation control for slabs, footings, and formed pours. The HL450's fine-increment digital display resolves grade deviations before concrete is placed, reducing costly re-work.

Irrigation & Drainage Grading: Single-slope capability makes the LL300S-X1-PRO a natural fit for ag grading, drainage field prep, and retention basin slope work where consistent fall-per-foot matters across large areas.

Utility & Pipeline Trenching: Maintain consistent invert grades along trench runs. The long working diameter ensures the receiver picks up the beam reliably even when working at extended distances from the instrument.

Compatible Accessories

Related Guides

Frequently Asked Questions

Can the LL300S-X1-PRO handle dual-slope grading?: No. The LL300S is a single-slope laser, meaning it grades along one axis at a time. For dual-slope applications—such as crowned road grading or two-way drainage pads—consider the Spectra Precision LL500 series, which supports simultaneous X and Y axis slopes.
What is the wireless remote range and what functions does it control?: The included remote operates up to 200 feet (60 m) from the instrument. It allows the operator to adjust slope percentage, change rotation speed, raise or lower elevation, and activate the out-of-level alarm reset—all without returning to the laser.
Is the HL450 receiver compatible with other Spectra Precision lasers?: Yes. The HL450 is compatible with most Spectra Precision and Trimble red-beam rotary lasers. If you own other lasers in the LL300, LL400, or LL500 families, the HL450 can serve as a cross-platform receiver on those instruments as well.
How long does the rechargeable battery pack last on a full charge?: Under typical operating conditions at moderate rotation speed, the included NiMH rechargeable pack delivers up to 100 hours of runtime. Heavy use at maximum rotation speed or in cold-weather conditions will reduce runtime; a spare battery pack is recommended for multi-day pours or remote sites without reliable charging access.

Why This Equipment

Auto Self-Leveling

Compensates for job site movement and setups — no manual leveling required.

Long Range

Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.

IP55+ Protection

Dust-tight and water jet resistant — built for outdoor construction in any weather.

Radio Remote

Change grade or elevation from the cab or anywhere on site without walking back.

Why Buy This?

The right rotary laser pays for itself in weeks.

A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.

The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.

Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Laser Class	Class IIIa / Class 3R, red beam
Slope Range	0–25% single axis
Self-leveling Range	±5° automatic
Working Diameter	Up to 2,600 ft (800 m) with HL450 receiver
Accuracy	±1/16 in at 100 ft (1.5 mm at 30 m)
Remote Control Range	Up to 200 ft (60 m)
Battery Runtime	Up to 100 hours (rechargeable NiMH pack included)
IP Rating	Dustproof and waterproof construction for outdoor use
Rotation Speed	100, 300, or 600 RPM selectable
Grade Range	0–25% single axis
Working Range	Up to 2,600 ft (800 m) with HL450 receiver
Remote Control	Up to 200 ft (60 m)
Battery Life	Up to 100 hours (rechargeable NiMH pack included)
