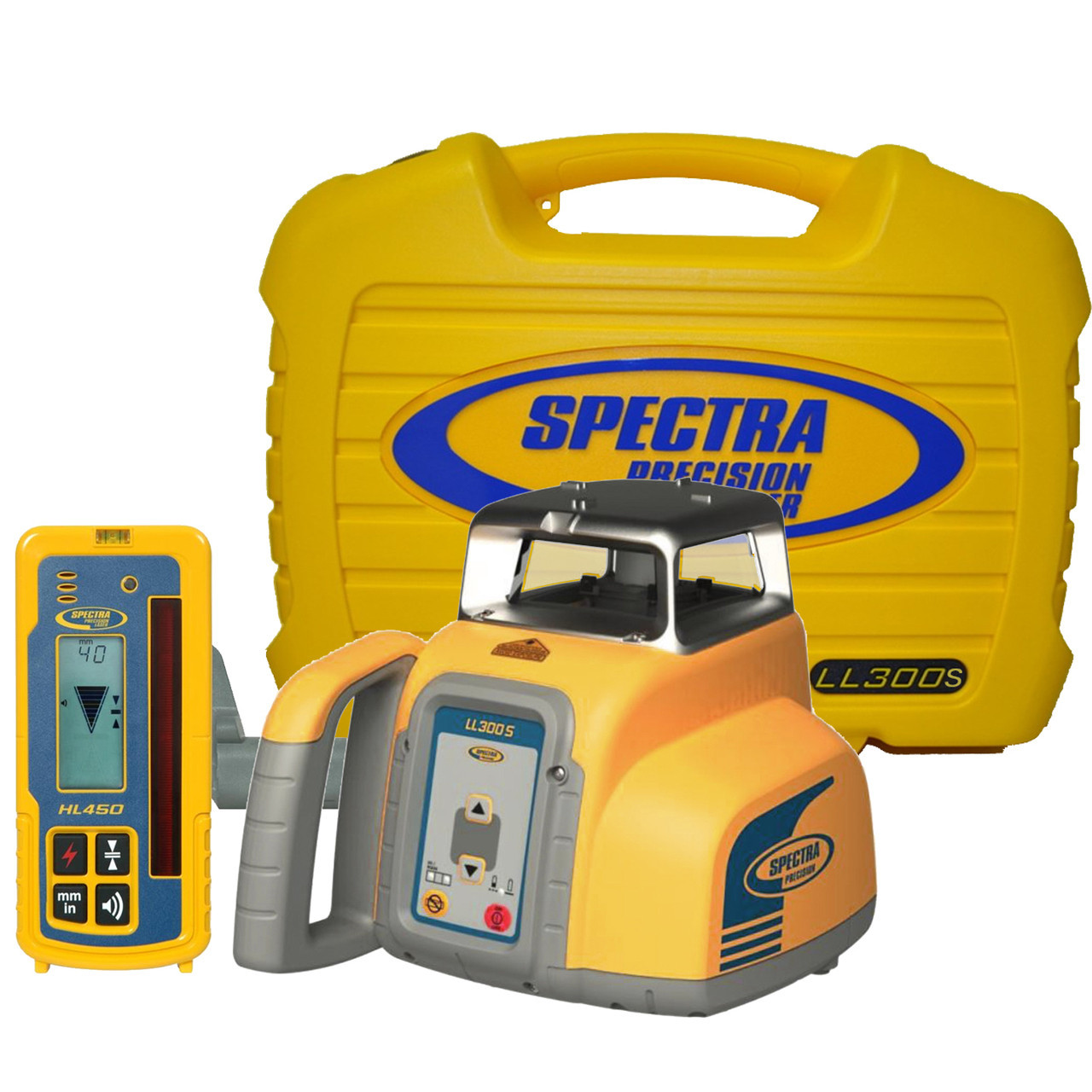

Spectra Precision LL300S-X1 Laser Package, HL450 Receiver, TENTHS-Rod, HD Tripod and Small Case

The Spectra Precision LL300S-X1 is a professional-grade rotary laser level package engineered for contractors who demand extended range, reliable self-leveling, and enhanced detection in variable jobsite conditions. Paired with the advanced HL450 laser receiver, a tenths-calibrated grade rod, a heavy-duty tripod, and a rugged field case, this complete kit is built to perform from foundation work to finish grading without compromise.

Overview & Jobsite Applications

Designed for contractors operating across large sites or in bright ambient light conditions, the LL300S-X1 package extends usable working range well beyond standard laser packages. The HL450 receiver's fine-detection window and audible/visual grade indicators allow a single operator to maintain consistent grade control across sprawling earthwork, concrete formwork, and utility trenching projects. Whether you're establishing a reference plane for a commercial slab or grading a residential site, this package delivers the accuracy and range contractors depend on daily.

Key Specifications

• Laser Class: Class IIIa / Class 3R (635–690 nm red beam)
• Self-Leveling Range: ±5° automatic compensation
• Accuracy: ±1/16 in. at 100 ft (±1.5 mm at 30 m)
• Operating Range (with HL450): Up to 2,000 ft (600 m) diameter
• Rotation Speed: 100, 300, or 600 RPM selectable
• IP Rating: IP66 — dust-tight and waterproof
• Battery Life: Up to 100 hours (4x AA alkaline)
• HL450 Receiver Detection Window: 1.18 in. (30 mm)
• Tripod: Heavy-duty aluminum with 5/8 in. x 11 thread
• Grade Rod: Tenths-graduated fiberglass, compatible with HL450

What's in the Kit

• Spectra Precision LL300S rotary laser level
• HL450 extended-range laser receiver with rod clamp
• Tenths-calibrated grade rod for precise elevation reading

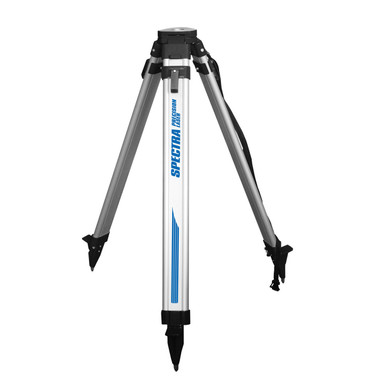

• Heavy-duty adjustable aluminum tripod

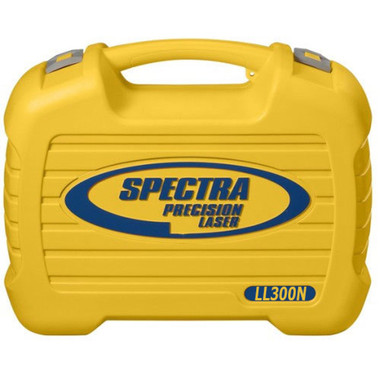

• Rugged carrying and storage case

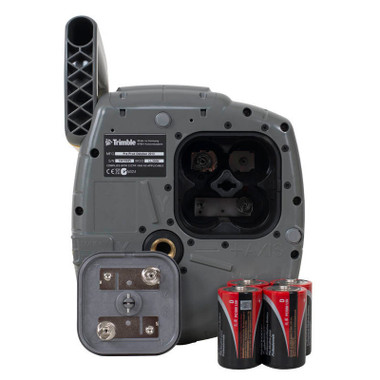

• 4x AA alkaline batteries
• Operator's manual and calibration certificate

Job Applications

Concrete Flatwork & Slab Forming: Establish a consistent elevation reference plane across the entire pour area, allowing crews to screed and set forms with confidence and minimal rework.

Site Grading & Earthwork: The extended 2,000 ft operating diameter with the HL450 receiver lets grade checkers and machine operators work across large cut-and-fill sites without relocating the instrument.

Utility Trenching: Maintain precise invert grades for storm drain, sanitary sewer, and water main installation. The audible receiver signals allow hands-free grade checking in the trench.

Interior Finish Work: Drop rotation speed to 100 RPM for enhanced beam visibility indoors. Level suspended ceilings, set partition wall plates, and transfer benchmarks between floors with ease.

Compatible Accessories

• Spectra Precision HL760 Dual-Slope Receiver
• Spectra Precision RC601 Remote Control
• Replacement AA Battery Pack for LL300S
• Spectra Precision GR500 Grade Rod Extension
• Heavy-Duty Laser Level Wall Mount Bracket

Related Guides

• How to Set Up a Rotary Laser Level on a Jobsite
• HL450 vs. HL760 Receiver: Which Is Right for Your Work?
• Laser Level Accuracy: What the Specs Actually Mean
• Rotary Laser Maintenance and Calibration Best Practices

Frequently Asked Questions

What is the maximum working range of the LL300S-X1 with the HL450 receiver?

With the HL450 receiver, the LL300S-X1 delivers a working diameter of up to 2,000 ft (600 m) in outdoor conditions, making it well-suited for large grading and earthwork sites where a standard receiver would fall short.

Is the LL300S waterproof enough for outdoor use in rain?

Yes. The LL300S carries an IP66 rating, meaning it is fully protected against dust ingress and powerful water jets. It is designed to continue operating in rain and dusty site conditions without damage to internal components.

Can the HL450 receiver be used with other Spectra Precision laser levels?

The HL450 is compatible with most Spectra Precision and Trimble rotary laser levels that emit a standard red beam. Always verify beam wavelength compatibility with your specific instrument before purchase.

What rod graduations does the included grade rod use?

The included rod is graduated in tenths of a foot, which is the standard for civil and site grading work in the United States. This allows direct readings in decimal feet, compatible with engineer's scales and most machine control workflows.
