Spectra Precision LL300S-81 Laser Package TENTHS-Rod, HD Tripod and Small Case

The Spectra Precision LL300S-81 is a professional-grade rotary laser level package engineered for experienced grading crews, site contractors, and survey teams who demand finer measurement precision without sacrificing field durability. Built around the proven LL300S laser platform, the -81 configuration bundles a tenths-graduated rod, a heavy-duty tripod, and a protective carrying case into a single turnkey kit — everything you need to establish accurate elevation control from the moment you arrive on site.

Package Overview & Jobsite Applications

The LL300S-81 is designed for contractors who move fast but can't afford measurement errors. The self-leveling mechanism automatically compensates for minor out-of-level conditions, while the tilt lock-out feature engages instantly if the unit is bumped or disturbed, protecting both the instrument and your grade shots. The tenths-graduated rod gives crews the incremental resolution needed for precise subgrade prep, concrete flatwork, and drainage work where hundredths of a foot matter. Whether you're grading a parking lot, setting batter boards, or controlling finish elevations on a commercial pour, the LL300S-81 delivers the accuracy and reliability professional results demand.

Key Specifications

• Model: Spectra Precision LL300S-81
• Laser Class: Class IIIa / Class 3R visible red laser
• Self-Leveling Range: ±5° automatic compensator range
• Accuracy: ±1/16 in. at 100 ft (±1.5 mm at 30 m)
• Working Range: Up to 2,000 ft diameter with compatible detector
• Rotation Speed: 100, 300, or 600 RPM selectable
• Battery Life: Up to 100 hours on D-cell batteries
• IP Rating: Weather-resistant construction for outdoor use
• Rod Graduation: Tenths (0.1 ft) increments for fine-resolution readings

What's in the LL300S-81 Kit

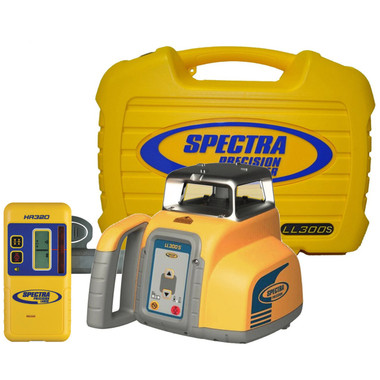

• Spectra Precision LL300S Rotary Laser Level — self-leveling, tilt lock-out protected

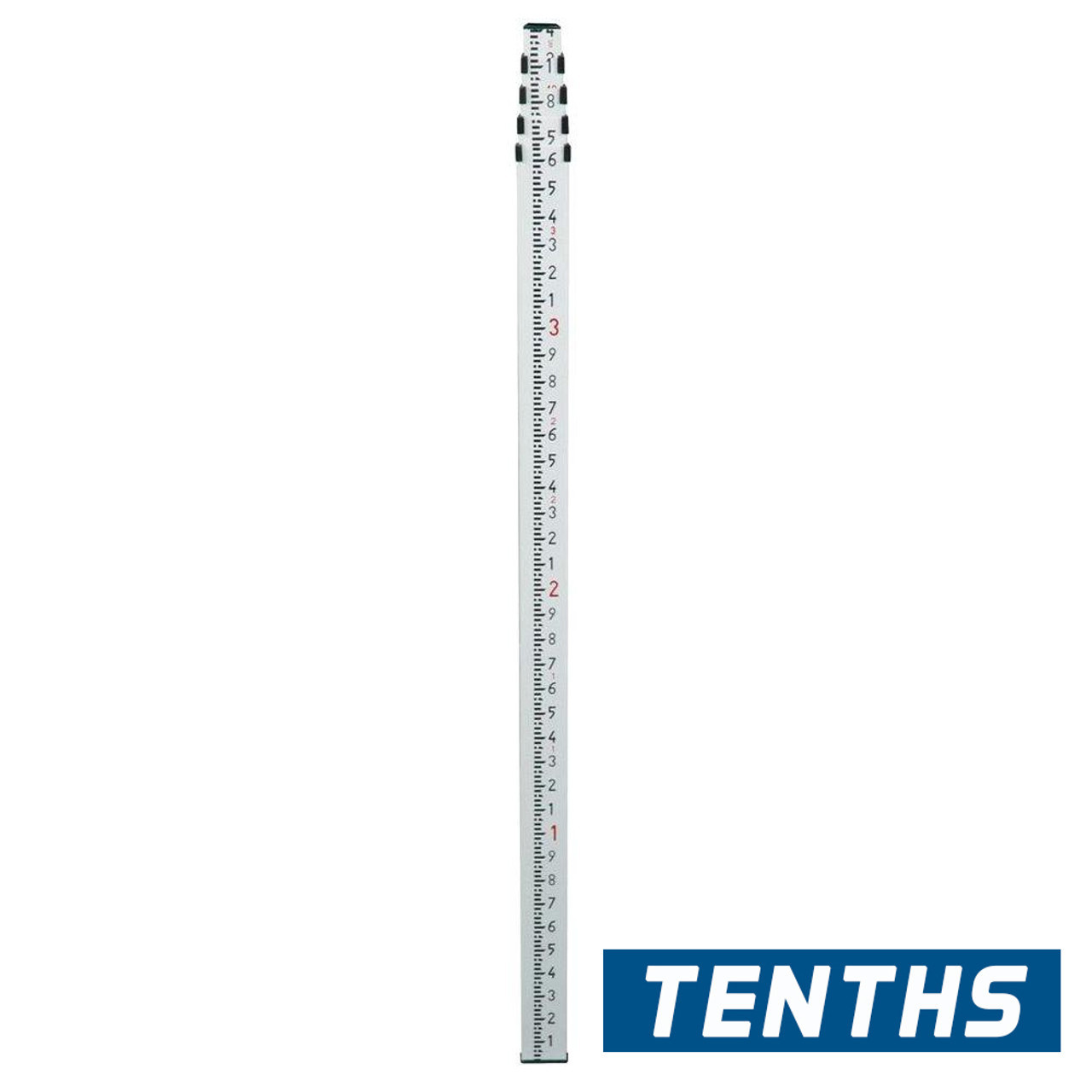

• Tenths-Graduated Grade Rod — finer 0.1 ft increments for precision elevation work

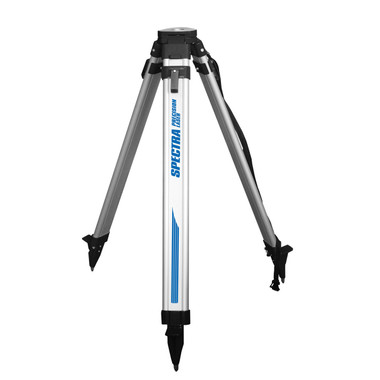

• Heavy-Duty Tripod — stable platform for consistent instrument height setup
• Protective Carrying Case — foam-lined storage and transport protection for the full kit
• D-cell batteries and operator documentation included

Job Applications

Subgrade & Finish Grading: The tenths rod gives equipment operators and grade checkers the resolution they need to hit tight subgrade tolerances on road bases, parking lots, and building pads where spec compliance is non-negotiable.

Concrete Flatwork & Slab Elevation Control: Set screed rails and check slab elevations with confidence. The LL300S-81 holds grade through long pours and gives finishing crews a reliable reference from first strike-off to final trowel pass.

Drainage & Utility Slope Work: Establish positive drainage grades and set pipe inverts accurately. The combination of tenths rod resolution and consistent laser elevation makes it straightforward to verify slope percentages across long runs.

Batter Boards & Foundation Layout: Use the LL300S-81 to quickly transfer consistent elevation marks to batter boards and form work, keeping foundations level and reducing costly rework before the pour.

Compatible Accessories

• Spectra Precision HR320 Laser Detector / Receiver
• Spectra Precision HL760 Laserometer Detector
• Replacement Tenths-Graduated Grade Rod
• Heavy-Duty Adjustable Tripod
• Spectra Precision Laser Level Carrying Case

Related Guides

• How to Set Up a Rotary Laser Level for Grading
• Tenths vs. Eighths Rod: Which Should You Use?
• Rotary Laser Level Buying Guide for Contractors
• How to Use a Laser Detector to Extend Your Working Range

Frequently Asked Questions

Does the LL300S-81 include a laser detector?

No — the LL300S-81 package includes the laser level, tenths-graduated rod, tripod, and carrying case. A compatible detector such as the Spectra Precision HR320 is sold separately and is recommended when working at extended ranges or in bright sunlight.

What is the difference between a tenths rod and a standard eighth-inch rod?

A tenths-graduated rod is marked in decimal feet (0.1 ft increments), which aligns directly with engineering-scale plans and allows easy math for slope calculations. An eighths rod uses fractional inches, which is better suited for architectural or residential layout. For grading and civil work specified in decimal feet, the tenths rod is the professional standard.

How far will the LL300S-81 laser reach on a job site?

With the naked eye and the included rod, practical range is limited by ambient light conditions. When paired with a compatible laser detector, the LL300S working range extends up to 2,000 ft in diameter, making it suitable for large grading sites and open construction areas.

Is the Spectra Precision LL300S-81 suitable for indoor leveling work?

Yes — while the LL300S-81 is optimized for outdoor grading and elevation control, the laser level itself can be used for interior applications such as dropped ceiling layout, suspended slab checks, and interior elevation transfer. The tenths rod is most applicable on exterior or slab-on-grade work where decimal-foot measurements are standard.
