Spectra Precision LL300N-X21 Laser Package, Deluxe Reciever, TENTHS-Rod, HD Tripod and Small Case

The Spectra Precision LL300N-X21 is a field-ready rotating laser package engineered for contractors who need reliable grade control, elevation transfer, and site layout without wasting time sourcing components separately. This complete kit includes the LL300N self-leveling rotating laser, a deluxe receiver with LCD readout, a tenths-graduated leveling rod, a heavy-duty tripod, and a protective carrying case — everything you need to step on site and start working. Whether you're rough grading a pad, checking floor flatness, or setting footings, the LL300N-X21 delivers the consistency and accuracy that professional work demands.

LL300N-X21 Overview: Designed for Real Jobsite Conditions

The Spectra Precision LL300N is one of the most trusted rotating lasers in the contractor market for good reason. Its self-leveling system activates quickly on uneven ground, and the out-of-level alarm alerts you immediately if the instrument is bumped or disturbed during a pour or grading run. With a working range of up to 2,200 feet in diameter when used with the included receiver, this laser handles everything from residential foundations to large commercial pads. The sealed construction resists dust and moisture, making it dependable through concrete work, earthmoving operations, and unpredictable weather.

Key Specifications

• Self-leveling range: ±5°
• Accuracy: ±1/16 inch at 100 feet
• Working range: up to 2,200 ft diameter (with receiver)
• Rotation speed: 150, 300, or 600 RPM selectable
• Battery life: up to 100 hours (4 x AA batteries)
• IP rating: Dust and moisture resistant sealed housing
• Laser class: Class IIIa / Class 3R, 635nm red beam
• Operating temperature: -4°F to 122°F

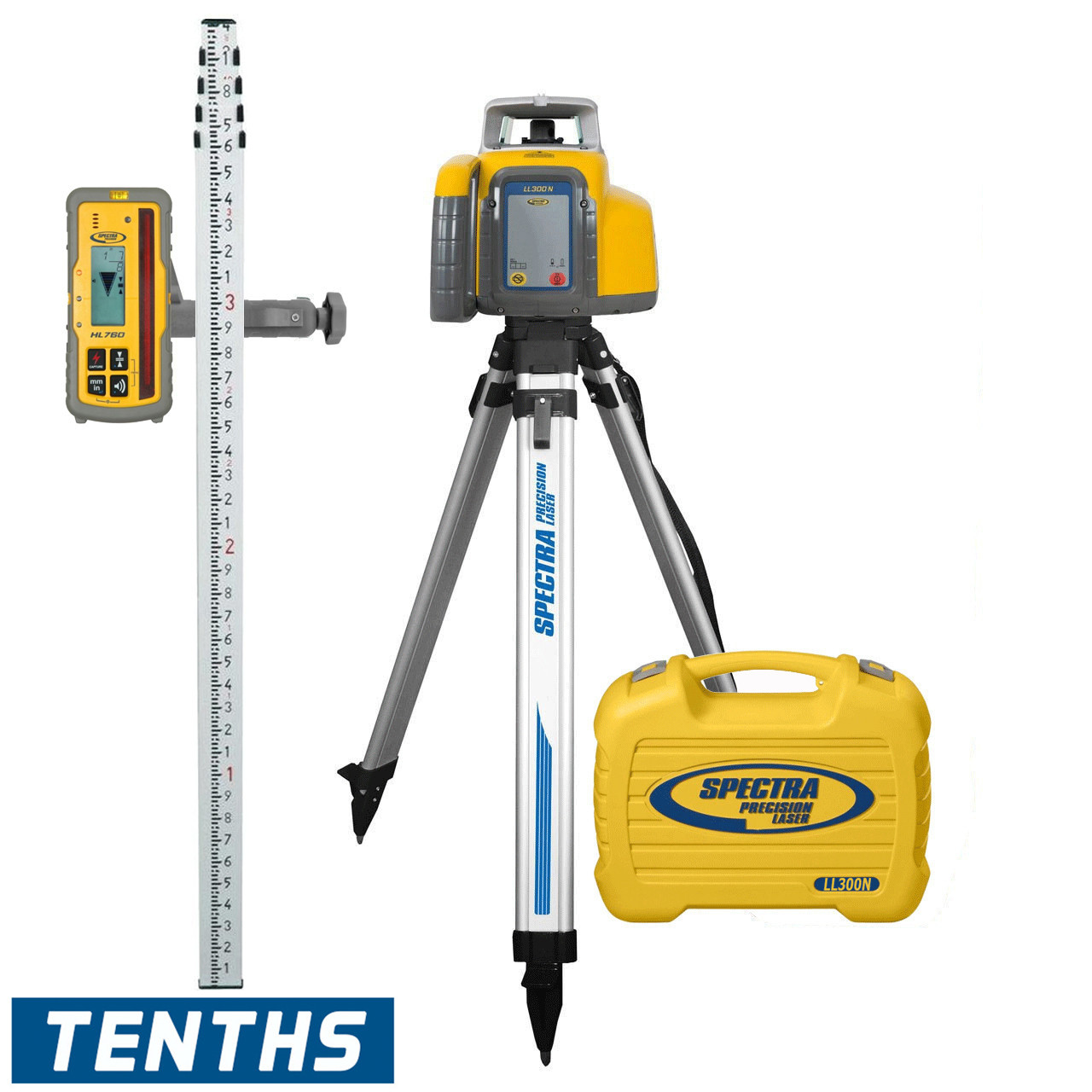

What's in the LL300N-X21 Kit

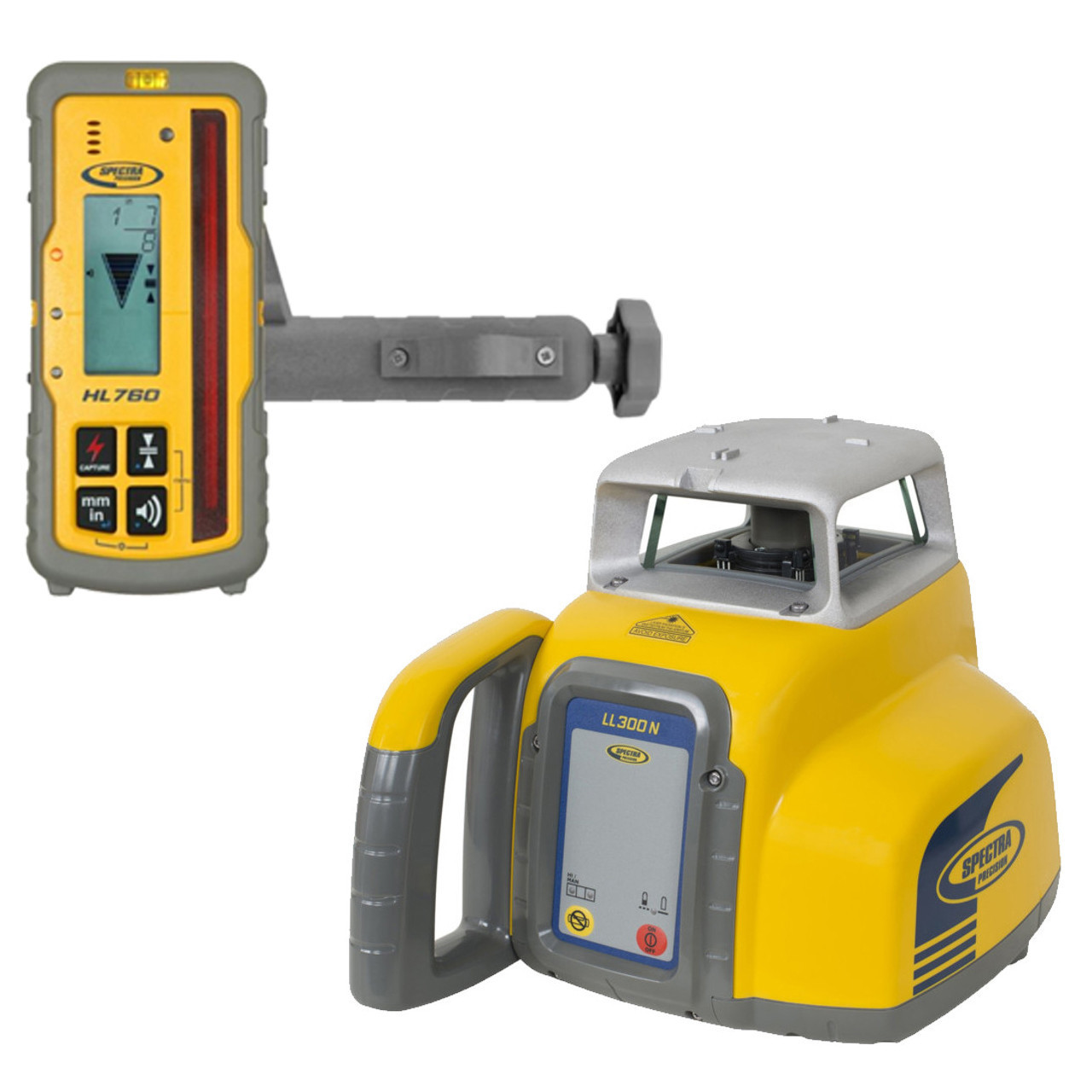

• Spectra Precision LL300N — Self-leveling single-slope rotating laser with out-of-level alarm
• Deluxe Laser Receiver — Large LCD display with audible and visual grade indicators for machine control or rod work
• Tenths-Graduated Leveling Rod — Contractor-style direct-reading rod calibrated in tenths of a foot for fast elevation checks

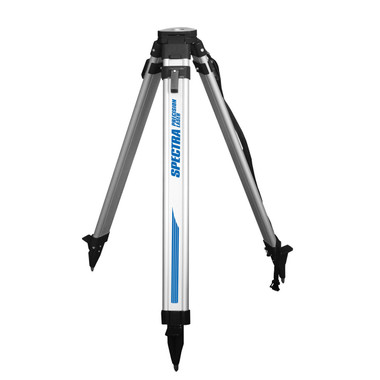

• Heavy-Duty Tripod — Stable aluminum tripod with wide-stance legs for secure instrument height on uneven terrain

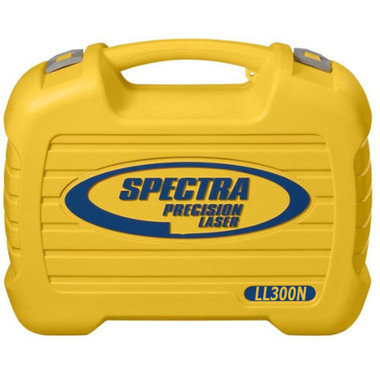

• Protective Carrying Case — Hard-shell case with foam-fitted interior to protect all components during transport and storage
• Batteries, target card, and operator documentation included

Job Applications

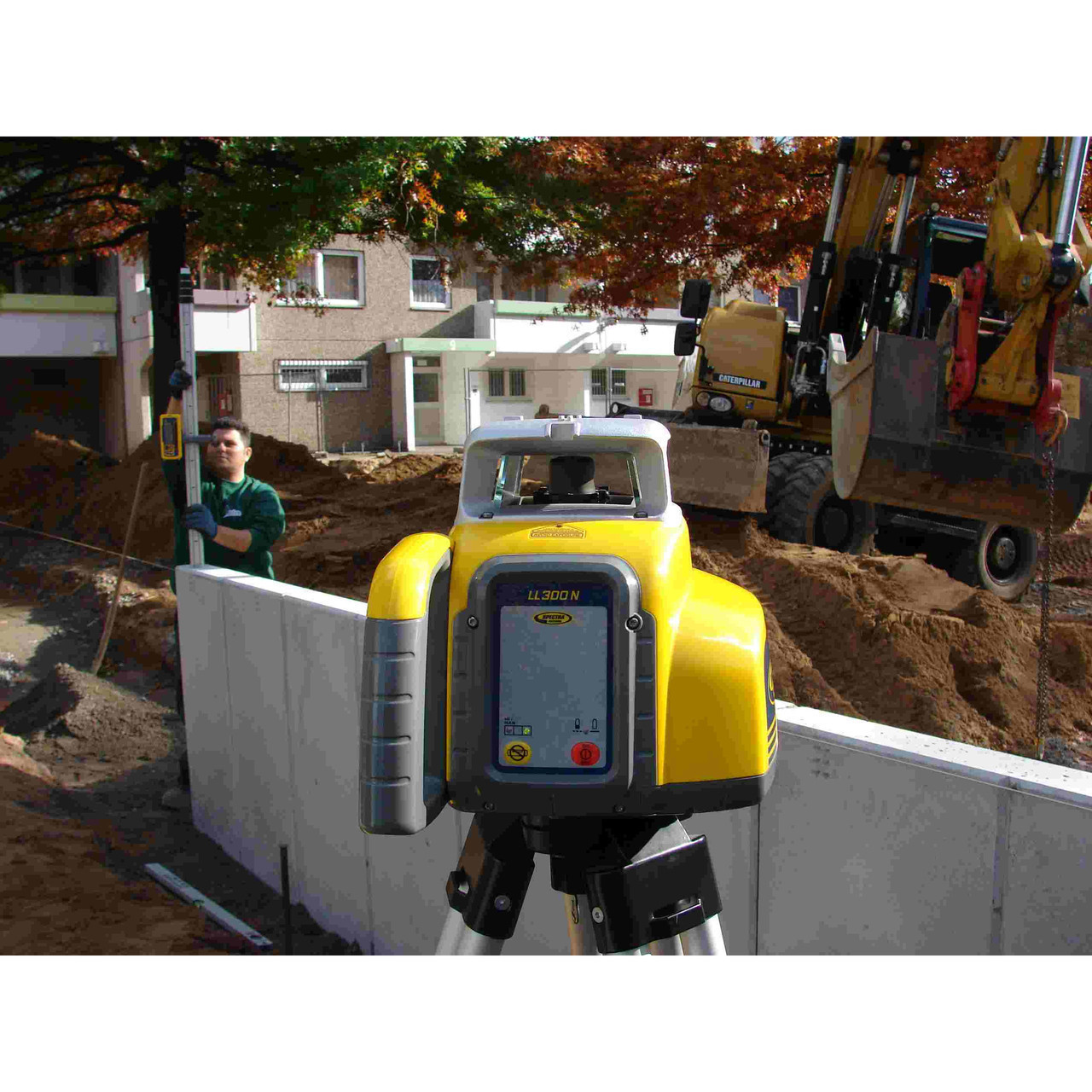

Rough Grading & Earthwork: Set the LL300N on your tripod, dial in your elevation benchmark, and give the receiver to your grade checker. The audible signals let operators work fast without stopping to read a display.

Concrete Flatwork & Foundation Layout: Use the tenths rod to verify form heights and slab elevation consistently across the full pour area. The ±1/16" at 100 ft accuracy keeps you well within spec on residential and light commercial foundations.

Drainage & Utility Slope Work: The single-slope capability lets you establish consistent fall for storm drains, swales, and utility trenches without repeatedly re-shooting elevations down the run.

Interior Elevation Checks: Drop the rotation speed to 150 RPM indoors and use the receiver for fast ceiling height verification, suspended grid layout, and floor levelness surveys.

Compatible Accessories

• Spectra Precision HR320 Machine Control Receiver
• Replacement HL450 Laser Receiver
• Spectra Precision Laser Target Cards
• Aluminum Grade Rod Extensions
• Laser Level Carrying Case Replacement Foam

Related Guides

• How to Set Up a Rotating Laser for Grade Control
• Rotating Laser vs. Optical Level: Which Do You Need?
• Understanding Laser Receiver Sensitivity Settings
• Spectra Precision LL300N vs LL500: Comparison Guide

Frequently Asked Questions

Does the LL300N-X21 work with machine control systems?

The LL300N is compatible with aftermarket machine control receivers, but the included receiver in the X21 package is a hand-held/rod-mounted unit designed for manual grade checking. For dozer or motor grader blade control, you would need a dedicated machine control receiver such as the Spectra HR320 sold separately.

What is the difference between the LL300N and the LL300N-X21?

The LL300N refers to the laser instrument itself. The X21 designation identifies this specific complete package configuration — it includes the deluxe receiver, tenths-graduated rod, heavy-duty tripod, and hard-shell carrying case. Purchasing the X21 package saves you the cost and effort of sourcing compatible accessories individually.

How long do the batteries last on the LL300N?

Running on four AA batteries, the LL300N delivers up to 100 hours of continuous operation, which translates to several weeks of typical field use. This makes it one of the most battery-efficient rotating lasers in its class and reduces operating cost significantly versus rechargeable-only models.

Is the LL300N-X21 suitable for indoor use?

Yes. While the LL300N excels outdoors with long-range receiver-based work, it is equally capable indoors for applications like suspended ceiling grid layout, floor elevation surveys, and interior partition height control. Reduce the rotation speed to improve receiver pickup sensitivity in confined interior spaces.
