Does the Seco 5321-17-ORG work on sloped or uneven terrain without additional leveling accessories?

Yes. The independent dual-clamp and twist-lock system on each leg allows you to lock legs at different angles to accommodate slope and uneven ground without requiring a separate leveling base or expensive accessories. Simply extend and lock each leg to match the terrain, then adjust the flexible center rod vertically.

What's the maximum load capacity for instruments on the center rod?

While the manufacturer specifications don't specify a load limit, this tripod is engineered for standard surveying instruments including theodolites, total stations, optical levels, and laser levels. For non-standard equipment or loads, verify weight directly with the instrument manufacturer and Seco before deployment.

How do I prevent the center rod from slipping under equipment weight?

Fully tighten the dual clamps on the center rod before positioning your instrument, then verify tightness by hand once the instrument is mounted. The pro tip is to test the elevation range and clamp security during initial setup, before moving to your actual measurement location, so you catch any looseness immediately.

Are the pointed and rubber feet reversible, or do I need both sets?

The kit includes both pointed feet for soft surfaces (soil, grass, sand) and rubber feet for hard surfaces (concrete, asphalt). You swap feet based on your job site conditions rather than using both simultaneously. Keep both sets in your vehicle so you're ready for any terrain.

What's the practical setup time for this tripod on a typical job site?

Experienced surveyors typically deploy and secure this tripod in 3–5 minutes once feet are selected for the terrain. The independent leg locking eliminates time-consuming leveling adjustments, and the flexible center rod allows final height adjustment without repositioning the entire tripod base.

Does fiberglass construction mean this tripod is fragile or prone to cracking?

No. Heavy-duty fiberglass is engineered for professional use and resists corrosion, UV damage, and environmental degradation far better than steel alternatives. Fiberglass is also lighter—reducing setup fatigue—while maintaining the rigidity and stability required for precision surveying instruments. Keep legs clean to prevent slipping, and the tripod will deliver years of reliable field service.

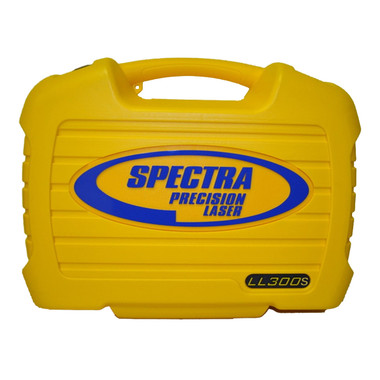

Spectra 100969 Small Carrying Case for LL300N, LL300S, LL400HV

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The Seco 5321-17-ORG is a heavy-duty fiberglass elevator tripod designed for surveyors and construction professionals needing elevated equipment positioning. It extends to 12.4 feet with a flexible center rod elevating equipment up to 6 feet. The fiberglass construction provides durability while remaining lighter than steel alternatives, reducing setup fatigue. Each leg features dual clamps and twist locks for independent locking and exceptional stability. Used for surveying, construction layout, and applications requiring significant height advantage. Professional surveyors rely on this tripod for precise instrument positioning where measurements are most critical.
Material: Heavy-duty fiberglass
Total Height: 12.4 feet
Center Rod Elevation: 6 feet
Leg Locking System: Dual clamps and twist locks per leg
Construction Type: Fiberglass legs with flexible center rod

Spectra PrecisionLL1505CSKU Seco 5321-17-ORGNew

Rotary Lasers →

Spectra Precision LL1505C Laser level Package with Deluxe HL760 Receiver - Rechargeable Batteries

$1166.40

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Up to 4,000-foot diameter (with HL760 receiver) Range

Cover large layout jobs with a Up to 4,000-foot diameter (with HL760 receiver) working reach.

±1/16 inch at 100 feet Accuracy

Hold grade with a ±1/16 inch at 100 feet accuracy rating.

Power

Runs on Rechargeable NiMH battery pack; also accepts alkaline batteries for jobsite flexibility.

Authorized Spectra Precision Dealer

Genuine, factory-fresh Spectra Precision equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Eliminates the grade checker

Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this rotary laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision LL1505C?

The Spectra Precision LL1505C Laser level Package with Deluxe HL760 Receiver - Rechargeable Batteries is a Spectra Precision Rotary Laser with Up to 4,000-foot diameter (with HL760 receiver) working range, ±1/16 inch at 100 feet accuracy, and ±5° self-leveling range. It's available from Express Tools as an authorized Spectra Precision dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this rotary lasers for

Boundary and Property Line Verification

Surveyors elevate theodolites and optical instruments to clear sight obstructions and achieve precise angle and distance measurements across property boundaries. The 12.4-foot reach eliminates line-of-sight problems created by vegetation, structures, and uneven terrain.

Construction Site Layout and Stakeout

General and grading contractors position laser levels and prism systems at elevated height to establish grade, building lines, and equipment placement across expansive job sites. The flexible center rod allows micro-adjustments to instrument height without full tripod repositioning.

Grade Control and Elevation Surveys

Concrete and grading crews use elevated laser levels to verify cut and fill elevations across large areas, improving accuracy and reducing re-work on roads, parking lots, and drainage projects. The tripod's stability on uneven terrain ensures consistent measurements throughout the survey area.

Precision Instrument Mounting for Total Stations

Licensed surveyors mount total stations at optimal height to capture three-dimensional coordinates for complex site conditions, underground utility location, and as-built documentation. Independent leg locking accommodates sloped terrain without requiring expensive leveling accessories.

Multi-Terrain Job Site Operations

Contractors moving between soft and hard surfaces (soil to concrete, grass to asphalt) switch between pointed and rubber feet without equipment changes, maintaining single tripod setup across diverse site conditions. This eliminates downtime and the cost of owning multiple specialty tripods.

PRODUCT OVERVIEW

Product Description

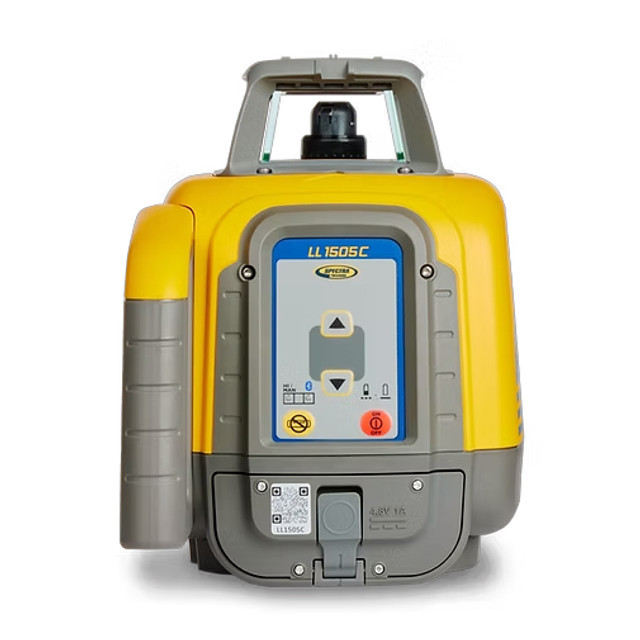

The Spectra Precision LL1505C is a professional-grade horizontal rotary laser level built for contractors who need long-range accuracy across large job sites. Paired with the deluxe HL760 laser receiver and a rechargeable battery system, this complete package delivers the performance and reliability demanded by foundation crews, concrete finishers, excavation operators, and site graders — all at a mid-range price point that makes sense for growing operations.

Overview: Built for Demanding Job Site Conditions

Whether you're establishing grade across a multi-acre site, setting forms for a concrete slab, or checking elevations during excavation, the LL1505C handles the work with consistent accuracy. Its self-leveling system and rugged housing stand up to dust, moisture, and the general abuse of daily field use. The manual slope feature allows single-axis grade setting, making it a practical choice for drainage work, road base prep, and sloped slab applications — without the cost premium of a full dual-axis grade laser.

Key Specifications

Working Range: Up to 4,000-foot diameter (with HL760 receiver)
Accuracy: ±1/16 inch at 100 feet
Self-Leveling Range: ±5°
Rotation Speed: 150, 300, and 600 RPM selectable
Slope Capability: Manual single-axis slope
Power: Rechargeable NiMH battery pack; also accepts alkaline batteries
Battery Life: Up to 100 hours on rechargeable pack
IP Rating: Water and dust resistant for field use
Laser Class: Class II, 635 nm visible red beam

What's in the Kit

Spectra Precision LL1505C rotary laser level

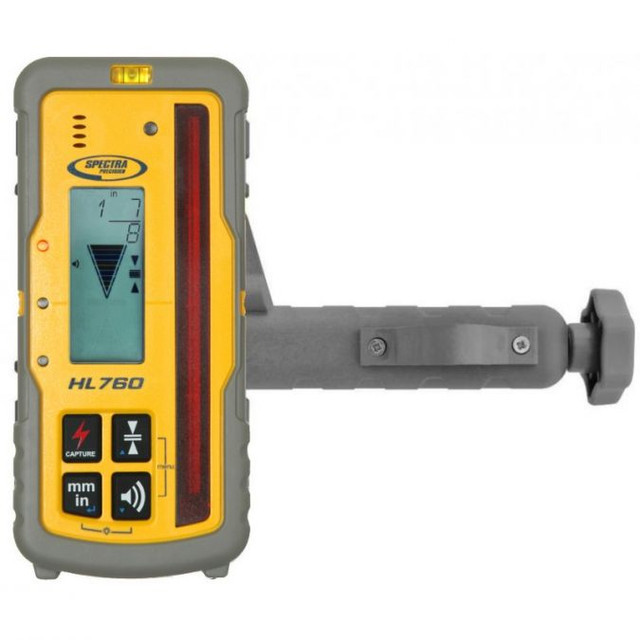

HL760 digital grade rod receiver with bracket and clamp
Rechargeable NiMH battery pack and AC charger
Carrying case for secure storage and transport
Operator's manual and warranty documentation

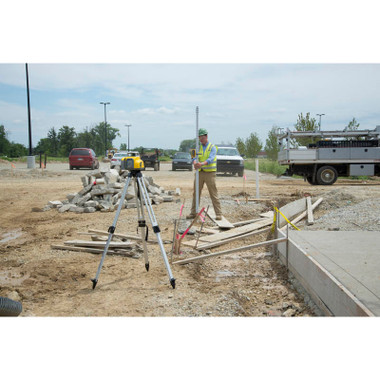

Job Site Applications

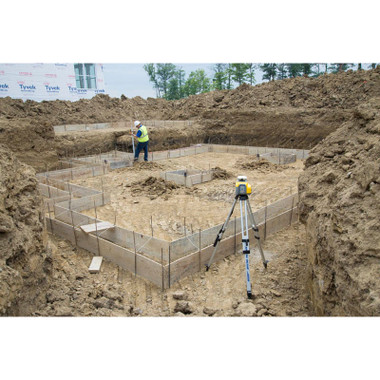

Foundation Layout & Concrete Flatwork: Establish a consistent horizontal plane across an entire pour area. The LL1505C's 4,000-foot range means one instrument setup covers even large commercial slabs without moving the laser.

Site Grading & Excavation: Mount the receiver on your grade rod or machine mast to verify cut and fill elevations quickly. Selectable rotation speed lets you optimize beam visibility based on ambient light and working distance.

Drainage & Sloped Surfaces: Use manual slope mode to set a consistent single-axis grade for drainage channels, parking lots, or sloped floor pans — without needing a more expensive dual-grade instrument.

Interior Leveling & Framing: Drop RPM to 150 for enhanced indoor visibility and use the LL1505C to establish level lines for drop ceilings, steel stud layout, and mechanical rough-in work.

Compatible Accessories

Related Guides

Frequently Asked Questions

Does the LL1505C work outdoors in bright sunlight?: Yes. The included HL760 receiver detects the laser beam in full sunlight at distances up to 4,000 feet, where the beam would not be visible to the naked eye. For close indoor work, the visible beam can be used directly without the receiver.
Can the LL1505C set grade in two directions simultaneously?: No. The LL1505C supports manual slope on a single axis only. For dual-axis grade applications, consider upgrading to the Spectra LL500 or a comparable dual-grade instrument.
What batteries does the LL1505C use?: The kit includes a rechargeable NiMH battery pack with AC charger, providing up to 100 hours of runtime. The instrument also accepts standard D-cell alkaline batteries as a backup power option in the field.
Is the LL1505C compatible with machine control systems?: The HL760 receiver can be bracket-mounted to a grade rod or machine mast for basic elevation control on dozers and motor graders. For full automatic machine control integration, a dedicated machine control receiver and compatible system are recommended.

Why This Equipment

Auto Self-Leveling

Compensates for job site movement and setups — no manual leveling required.

Long Range

Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.

IP55+ Protection

Dust-tight and water jet resistant — built for outdoor construction in any weather.

Radio Remote

Change grade or elevation from the cab or anywhere on site without walking back.

KIT CONTENTS

What's In The Box

Fiberglass Elevator Tripod with Flexible Center Rod
Pointed Feet Set (for soft surfaces)
Rubber Feet Set (for hard surfaces)

Why Buy This?

The right rotary laser pays for itself in weeks.

A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.

The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.

Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The Seco 5321-17-ORG is a heavy-duty fiberglass elevator tripod designed for surveyors and construction professionals needing elevated equipment positioning. It extends to 12.4 feet with a flexible center rod elevating equipment up to 6 feet. The fiberglass construction provides durability while remaining lighter than steel alternatives, reducing setup fatigue. Each leg features dual clamps and twist locks for independent locking and exceptional stability. Used for surveying, construction layout, and applications requiring significant height advantage. Professional surveyors rely on this tripod for precise instrument positioning where measurements are most critical.
Material	Heavy-duty fiberglass
Total Height	12.4 feet
Center Rod Elevation	6 feet
Leg Locking System	Dual clamps and twist locks per leg
Construction Type	Fiberglass legs with flexible center rod
Key Feature 1	Flexible center rod for precision elevation adjustment
Key Feature 2	Fiberglass construction lighter than steel
Key Feature 3	Independent leg locking with dual clamps
Key Feature 4	Twist lock security on each leg
Key Feature 5	Exceptional stability for elevated equipment positioning
Use Cases	Surveying operations requiring elevated instruments; Construction layout and stakeout; Boundary verification surveys; Applications requiring significant height advantage; Precision instrument positioning
Setup Steps	Extend legs to desired spread position \| Lock each leg independently using dual clamps \| Secure legs with twist locks for additional safety \| Adjust flexible center rod to required elevation \| Position surveying instrument on top for measurement
Pro Tips	Pre-inspect all clamps and twist locks before field deployment \| Keep fiberglass legs clean to prevent slipping \| Extend all legs equally for optimal stability \| Use in protected areas when possible to extend equipment life \| Test center rod elevation range during setup
Compatible Equipment	Surveying instruments and total stations; Prism systems requiring elevated mounting; Laser levels and optical levels
Common Issues	Legs not locking securely if twist locks not fully engaged \| Uneven equipment positioning if legs not equally extended \| Center rod slipping under load if clamps not properly tightened
Working Range	Up to 4,000-foot diameter (with HL760 receiver)
Accuracy	±1/16 inch at 100 feet
Self-leveling Range	±5°
Rotation Speed	150, 300, and 600 RPM selectable
Power	Rechargeable NiMH battery pack; also accepts alkaline batteries
Battery Life	Up to 100 hours on rechargeable pack
IP Rating	Water and dust resistant for field use
Laser Class	Class II, 635 nm visible red beam
