Spectra Precision LL1505C-4 Laser level Package with HL450 Receiver - Rechargeable Batteries

The Go-To Horizontal Rotary Laser for Foundation, Forming, and Site Grading

The Spectra Precision LL1505C-4 package gives contractors a field-proven combination of long-range accuracy and job-site durability in a single kit. Whether you're shooting grades across a large pour, setting forms for a foundation, or grading a commercial site, the LL1505C-4 delivers consistent, repeatable results from the first power-on of the day to the last. Its rugged housing is rated IP66 for dust and water resistance, so it keeps working when the weather turns and the site gets rough.

System Overview and Jobsite Applications

The LL1505C-4 is a self-leveling horizontal rotary laser engineered for demanding outdoor and indoor construction environments. The unit automatically levels within ±10 minutes of arc, eliminating manual setup time and reducing the chance of costly errors. The included HL450 digital readout receiver extends the working range to 2,600 feet in diameter, giving large crews the coverage they need without repositioning the instrument. The HL450 provides directional guidance — up, down, and on-grade — making solo grade work faster and more accurate.

Key Specifications

• Self-Leveling Range: ±10 minutes of arc
• Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Operating Range with HL450 Receiver: 2,600 ft (800 m) diameter
• Rotation Speed: 150, 300, or 600 RPM selectable
• IP Rating: IP66 dust and water resistant
• Drop Protection: 3 ft (1 m) drop tested
• Battery Life: Up to 50 hours on 4 D-cell alkaline batteries
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Class: Class II, 635 nm visible red beam
• Tripod Mount: 5/8 in x 11 thread

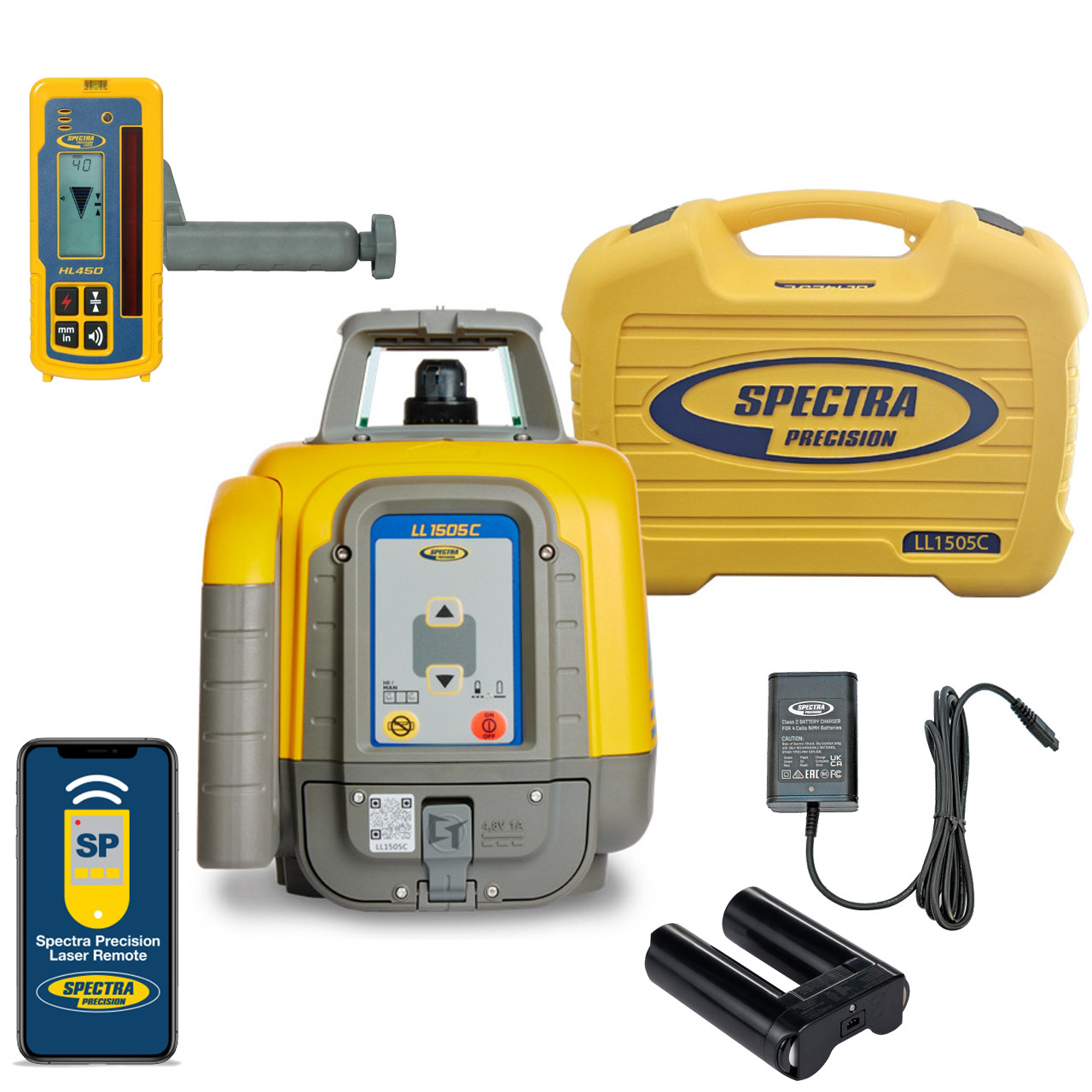

What's in the Kit

• Spectra Precision LL1505C-4 Rotary Laser Level
• HL450 Digital Readout Receiver with clamp
• Rechargeable NiMH battery pack and charger
• Alkaline battery tray (D-cell, backup power)
• Padded carrying case
• Grade rod clamp for receiver mounting
• Operator's manual and quick-start guide

Job Applications

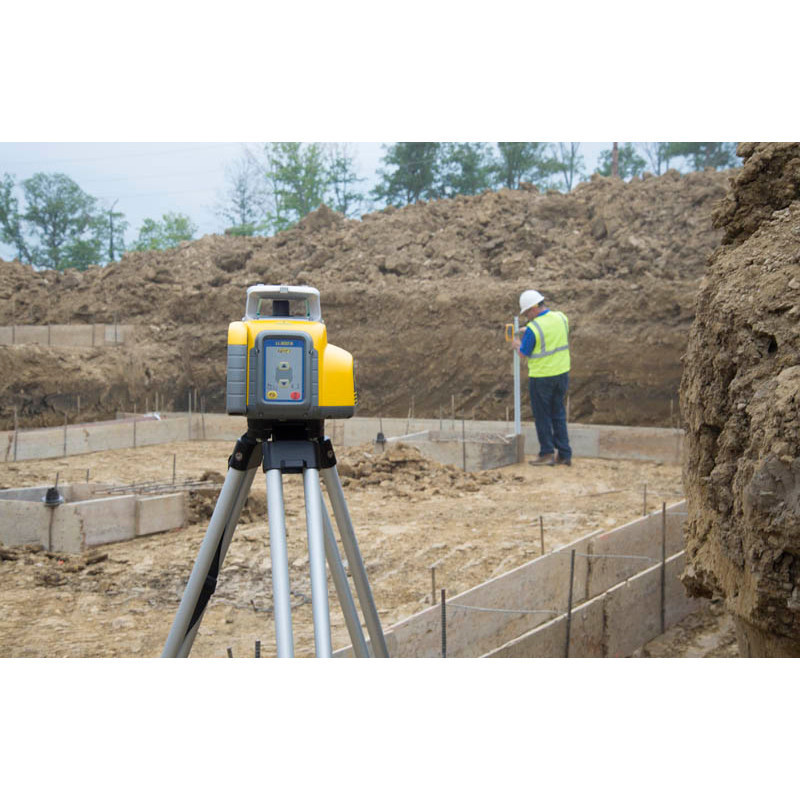

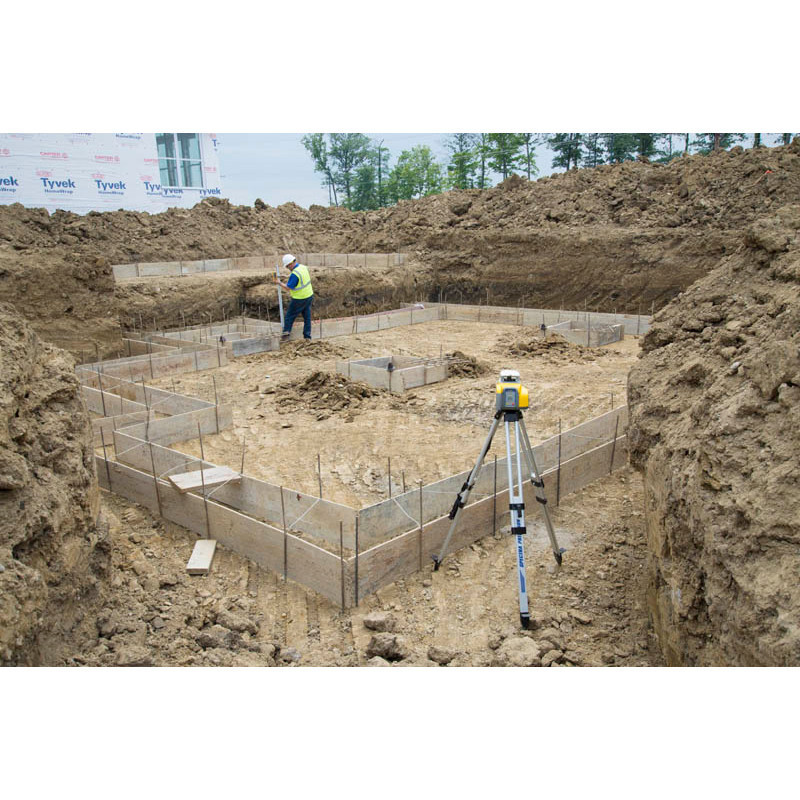

Foundation Layout: Set the LL1505C-4 on a tripod over a benchmark and shoot continuous horizontal grades around the entire perimeter of a foundation pour. The ±1/16 in accuracy at 100 ft keeps footings and stem walls on spec without repeated re-checking.

Concrete Forming and Slabs: Use the selectable rotation speeds to slow the beam for bright interior visibility or speed it up for outdoor work. Set form heights to grade quickly with one operator running the receiver along the form line while the other sets hardware.

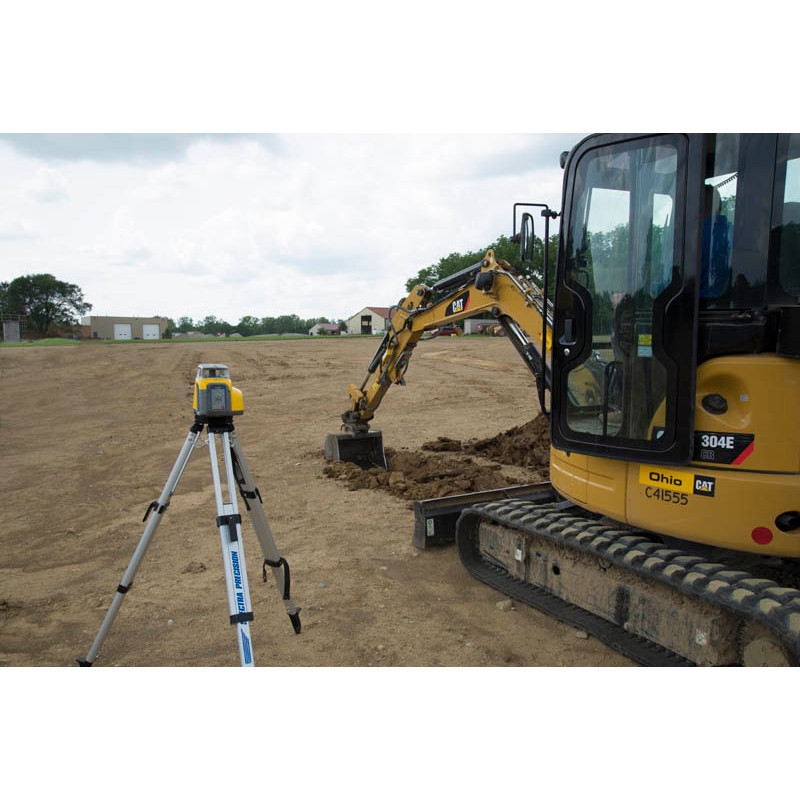

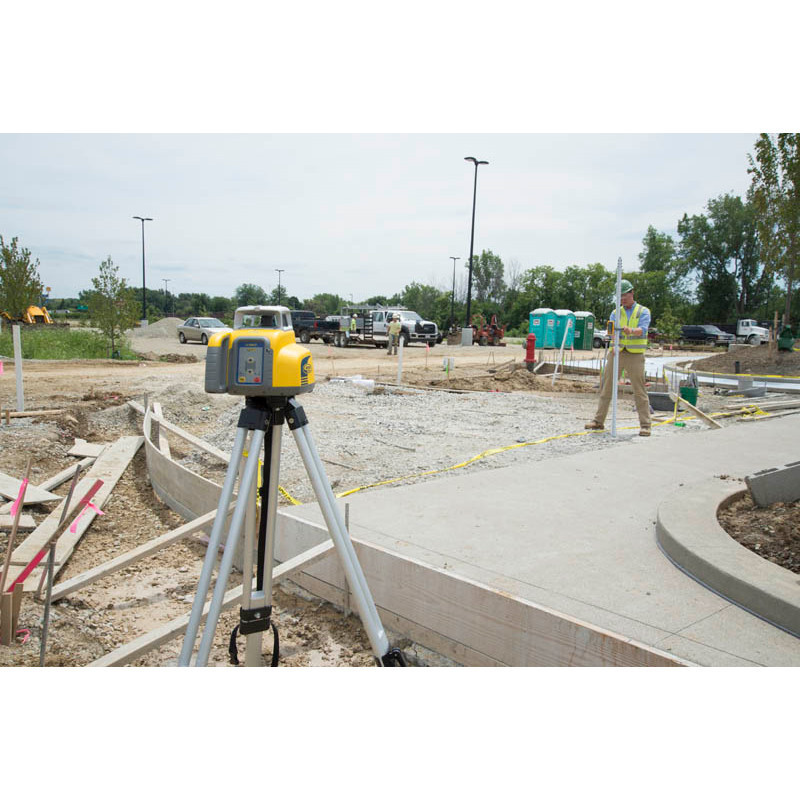

Site Grading and Earthwork: With 2,600 ft of diameter range, the LL1505C-4 covers large commercial grading operations without moving the instrument. Mount the HL450 on a grade rod and grade to cut-fill stakes across the full site.

Drainage and Pipeline Grades: The unit's horizontal plane accuracy makes it ideal for establishing consistent drainage slopes and verifying pipe inverts on utility installation projects.

Compatible Accessories

• Spectra HL450 Replacement Receiver
• Spectra HR320 Laser Grade Rod
• Spectra Tripod TK-1 Heavy-Duty Contractor Tripod
• Spectra NiMH Replacement Battery Pack
• Spectra Carrying Case Replacement
• Laser Target Plates for Outdoor Visibility

Related Guides

• How to Set Up a Rotary Laser for Foundation Layout
• Rotary Laser vs. Line Laser: Choosing the Right Tool for Your Job
• How to Use a Laser Receiver for Solo Grade Work
• Spectra Precision LL1505C-4 vs. LL300S: Which is Right for You?

Frequently Asked Questions

Can the LL1505C-4 be used for vertical or slope applications?

The LL1505C-4 is designed exclusively for horizontal plane work. It does not support manual slope or vertical plane modes. If your project requires slope matching or vertical alignment, consider the Spectra LL300S or a grade laser with slope capability.

What is the maximum range without the HL450 receiver?

Without a receiver, the visible beam can be used for short-range interior work — typically up to 50–100 ft depending on ambient light conditions. For outdoor or long-range work, the HL450 receiver is essential and extends range to 2,600 ft in diameter.

Does this package include rechargeable batteries?

Yes. The LL1505C-4 kit includes a NiMH rechargeable battery pack and charger for standard operation, plus an alkaline D-cell battery tray as a backup power option in the field — ideal when you can't access a charger on remote job sites.

Is the LL1505C-4 compatible with machine control systems?

The LL1505C-4 is not designed for machine control integration. It is optimized for optical and receiver-based manual grade work. For machine control applications, Spectra's MC and GL-series lasers are the appropriate choice.
