Spectra Precision HV302GC-X22 Horiz/Vert - Interior/Exterior RED Beam Laser GC Package w/ Remote, HL760 Receiver, Rod-INCHES, HD Tripod and Small Case
±5° Range
Cover large layout jobs with a ±5° working reach.
±1/16 inch at 100 feet Accuracy
Hold grade with a ±1/16 inch at 100 feet accuracy rating.
Grade Capability
Handles Dual-axis grade matching (manual grade mode) so crews can match design slopes.
Battery Life
Runs on Up to 100 hours (4 x D-cell alkaline) for jobsite flexibility.
Eliminates the grade checker
Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.
Authorized Dealer
Genuine equipment sourced straight from manufacturer partners.
Ships Same Day
Orders placed before 2 PM CT leave the dock today.
Genuine Gear
Factory-fresh, authentic units with legitimate firmware.
Best-Price Guarantee
Authorized-dealer pricing on every unit — request a quote anytime.
Kit Builder
Not sure what goes with this rotary laser?
Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.
Quick Answer
What is the Spectra Precision HV302GC-X22?
The Spectra Precision HV302GC-X22 Horiz/Vert - Interior/Exterior RED Beam Laser GC Package w/ Remote, HL760 Receiver, Rod-INCHES, HD Tripod and Small Case is a professional-grade red beam laser level system designed for both interior and exterior jobsite work. It delivers ±1/16 inch accuracy at 100 feet with a working diameter up to 2,000 ft when used with the included HL760 receiver. It's available from Express Tools.
What contractors use this rotary lasers for
Site Grading
Cut/fill earthwork, building pad preparation, base compaction
Concrete Flatwork
Slab pours, floor leveling, tilt-up panel layout
Machine Control
Grade control reference for motor graders and scrapers
Foundation Layout
Benchmark elevation transfer, footing forms, stem walls
Product Description
The Spectra Precision HV302GC-X22 is a contractor-ready dual-grade laser package built for general construction crews who need reliable horizontal and vertical reference planes on the jobsite. Whether you're setting elevations for concrete flatwork, aligning structural walls, or establishing grade control on exterior layout projects, this complete kit delivers the precision and range to get the job done right. The package ships with every component you need to be productive from day one — no hunting for compatible accessories, no compatibility guesswork.
Package Overview & Jobsite Applications
The HV302GC-X22 centers on the HV302GC red beam rotating laser, a rugged self-leveling instrument capable of projecting both horizontal and vertical planes simultaneously. With a working range of up to 2,000 feet in diameter when used with the included HL760 receiver, this system is equally at home on tight interior fit-out jobs and open exterior construction sites. The RC402N radio remote control lets operators adjust settings and start or stop rotation from up to 200 feet away, eliminating unnecessary trips back to the instrument. The 16-foot grade rod graduated in inches provides precise rod readings for elevation transfer and differential leveling tasks, while the heavy-duty aluminum tripod ensures a stable, repeatable setup on uneven ground. The hard-shell carrying case keeps all components organized and protected between jobs.
Key Specifications
- Model: Spectra Precision HV302GC
- Beam Color: Red (650 nm visible laser diode)
- Self-Leveling Range: ±5°
- Accuracy: ±1/16 inch at 100 feet
- Working Diameter: Up to 2,000 ft (with HL760 receiver)
- Rotation Speed: 0, 100, 300, 600 RPM selectable
- Grade Capability: Dual-axis grade matching (manual grade mode)
- Remote Control Range: Up to 200 ft (RC402N)
- IP Rating: IP66 dust and water resistant
- Battery Life: Up to 100 hours (4 x D-cell alkaline)
- Operating Temperature: -4°F to 122°F
- Receiver: Spectra HL760, detects red beam at extended range

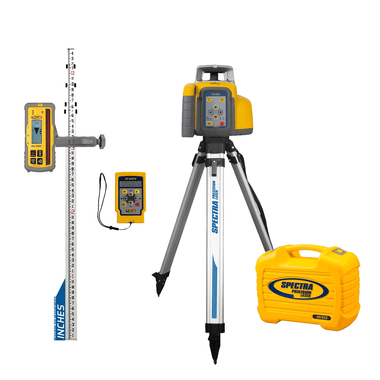

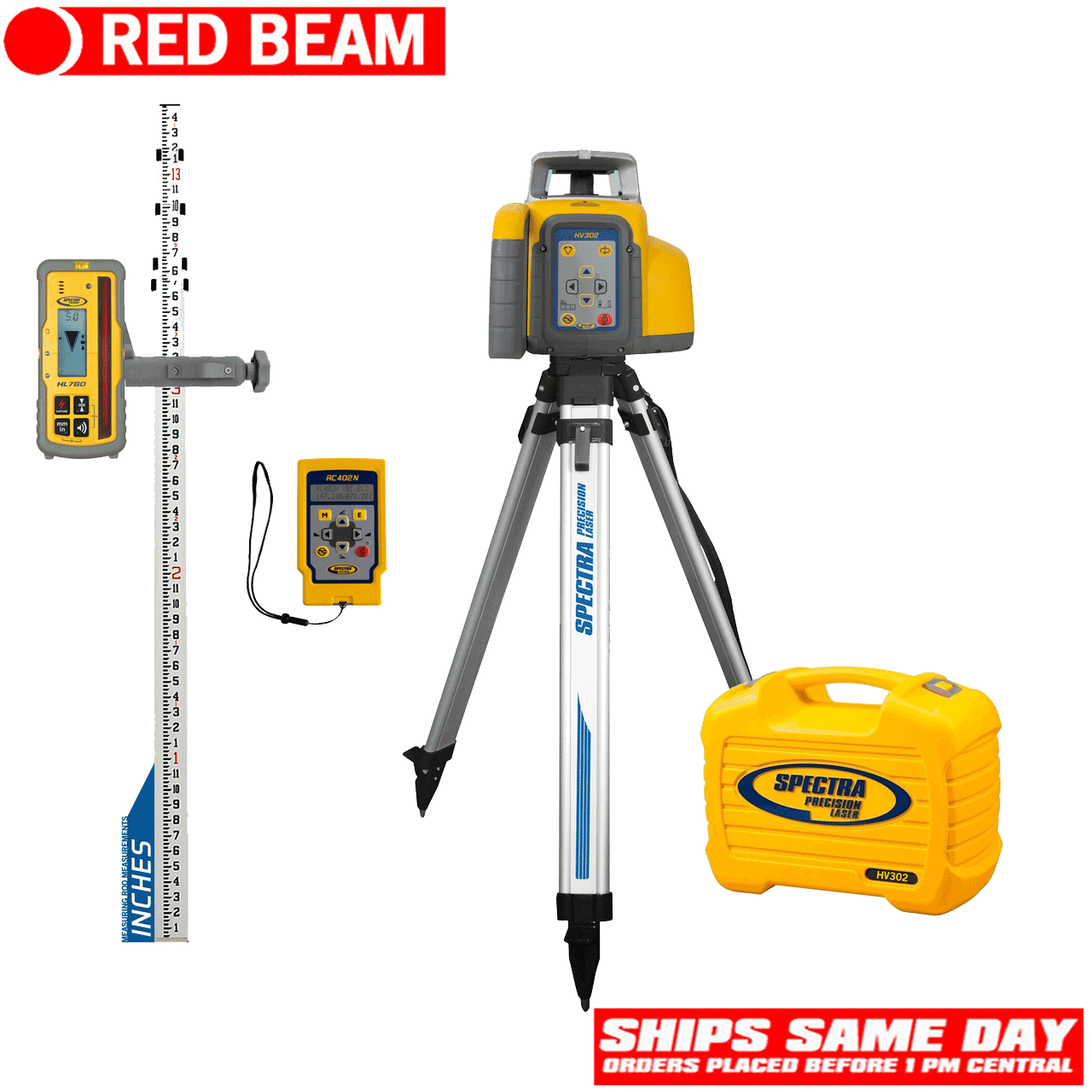

What's in the Kit
- Spectra Precision HV302GC — Dual-grade red beam rotating laser
- RC402N Radio Remote Control — Wireless instrument control up to 200 ft
- HL760 Laser Receiver — Long-range red beam detector with audio/visual indication
- 16-Foot Grade Rod (inches) — Telescoping fiberglass rod for elevation work
- Heavy-Duty Aluminum Tripod — Adjustable legs with wide stance for stable field setup
- Hard-Shell Carrying Case — Custom-fit foam interior for all components
- Batteries — 4 x D-cell alkaline batteries included
- Target Card & Documentation — Quick-start guide and calibration certificate
Job Applications
Concrete Flatwork & Slab Layout: Establish a precise horizontal reference plane across large pour areas. Use the HL760 receiver on the grade rod to verify slab elevation and control screeding height, even in bright daylight conditions where the red beam is not directly visible.

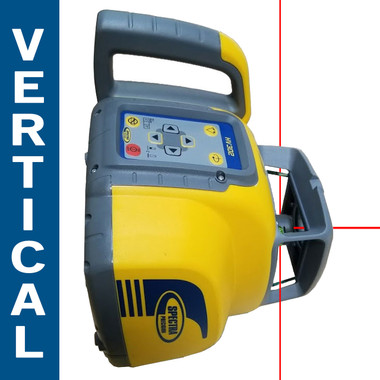

Structural Wall Plumb & Alignment: Switch to vertical plane mode to align CMU walls, tilt-up panels, or wood-frame bearing walls. The HV302GC projects a sharp vertical reference line that crews can reference from multiple points simultaneously.
Interior Fit-Out & MEP Coordination: Set consistent ceiling heights, align suspended grid systems, and coordinate mechanical, electrical, and plumbing rough-in elevations on multi-trade interior projects — all from a single instrument setup.
Site Grading & Drainage Layout: Use the manual dual-axis grade mode to match existing slope or establish designed grade on drainage swales, parking lots, and building pads. The RC402N remote keeps the operator at grade rod location for efficient single-person operation.
Compatible Accessories
Frequently Asked Questions
- Can the HV302GC-X22 project both horizontal and vertical planes at the same time?
- Yes. The HV302GC is capable of projecting simultaneous horizontal and vertical rotating planes, making it useful for both elevation control and wall alignment without reconfiguring the instrument between tasks.
- Does this package work outdoors in direct sunlight?
- The red beam laser is most visible indoors or in low-light conditions. For outdoor use in bright daylight, the included HL760 receiver is essential — it detects the beam at distances up to 2,000 feet in diameter where the beam itself is not visible to the naked eye.
- Is the RC402N remote control included, or is it an optional add-on?
- The RC402N radio remote control is included in this X22 package. It allows one operator to control rotation speed, grade settings, and instrument functions from up to 200 feet away, enabling efficient single-person operation on the jobsite.
- What is the warranty on the Spectra Precision HV302GC?
- Spectra Precision provides a standard manufacturer's warranty on the HV302GC laser. As an authorized dealer, Express Tools ensures all units are sold new with full factory warranty coverage. Contact us for current warranty terms or to initiate a warranty service request.
Why This Equipment
Auto Self-Leveling
Compensates for job site movement and setups — no manual leveling required.
Long Range
Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.
IP55+ Protection
Dust-tight and water jet resistant — built for outdoor construction in any weather.
Radio Remote
Change grade or elevation from the cab or anywhere on site without walking back.
The right rotary laser pays for itself in weeks.
A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.
The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.
Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.
Specifications
Technical Specs
Manufacturer data and field-verified measurements.
| Model | Spectra Precision HV302GC |
|---|---|
| Beam Color | Red (650 nm visible laser diode) |
| Self-leveling Range | ±5° |
| Accuracy | ±1/16 inch at 100 feet |
| Working Diameter | Up to 2,000 ft (with HL760 receiver) |
| Rotation Speed | 0, 100, 300, 600 RPM selectable |
| Grade Capability | Dual-axis grade matching (manual grade mode) |
| Remote Control Range | Up to 200 ft (RC402N) |
| IP Rating | IP66 dust and water resistant |
| Battery Life | Up to 100 hours (4 x D-cell alkaline) |
| Operating Temperature | -4°F to 122°F |
| Receiver | Spectra HL760, detects red beam at extended range |
| Working Range | Up to 2,000 ft (with HL760 receiver) |
| Remote Control | Up to 200 ft (RC402N) |
