Spectra Precision HV302G-1 Green Beam Laser Package

Overview

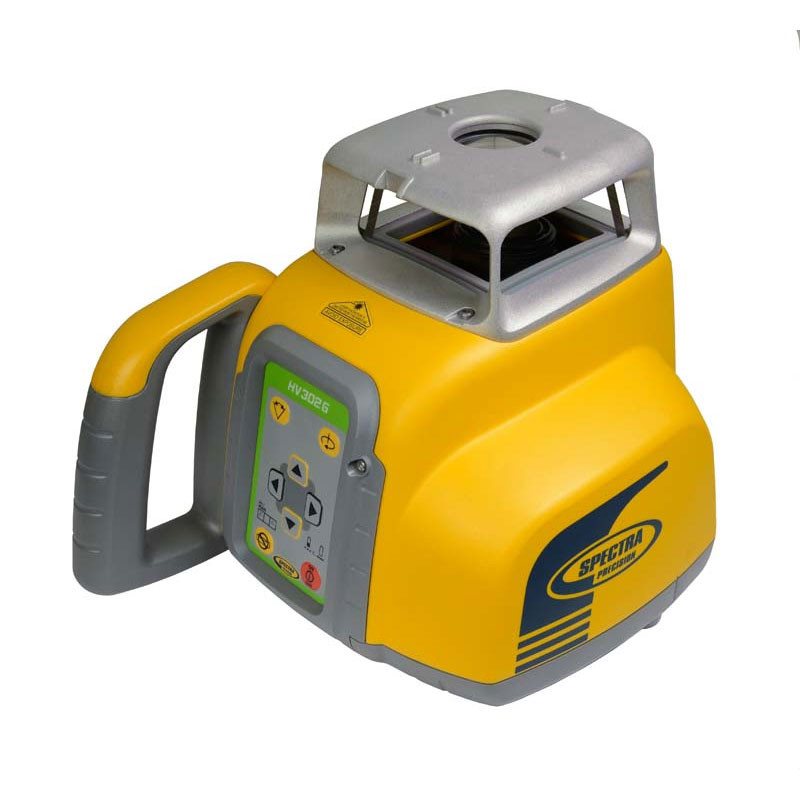

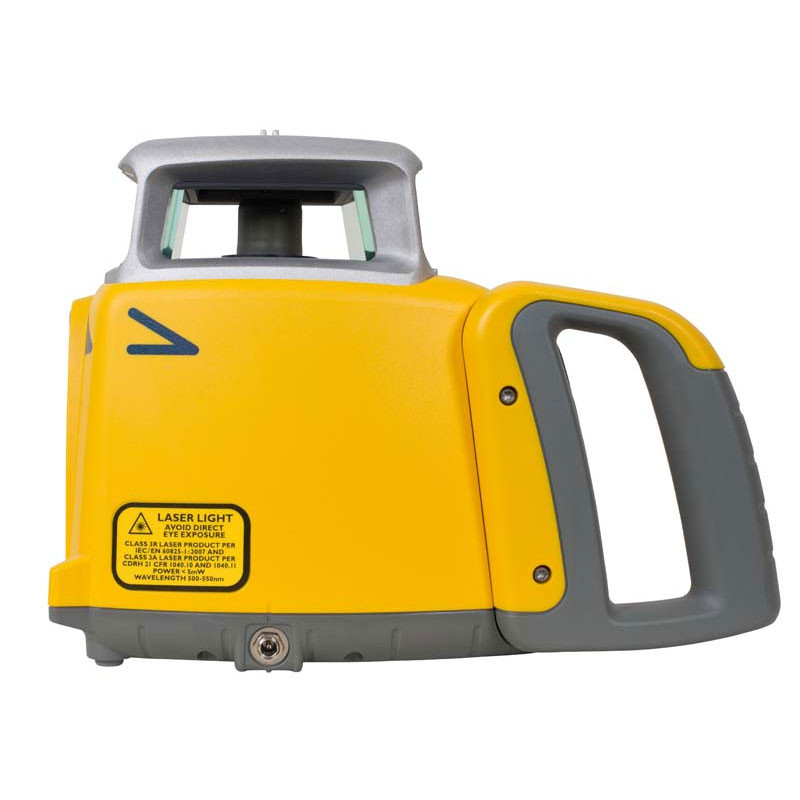

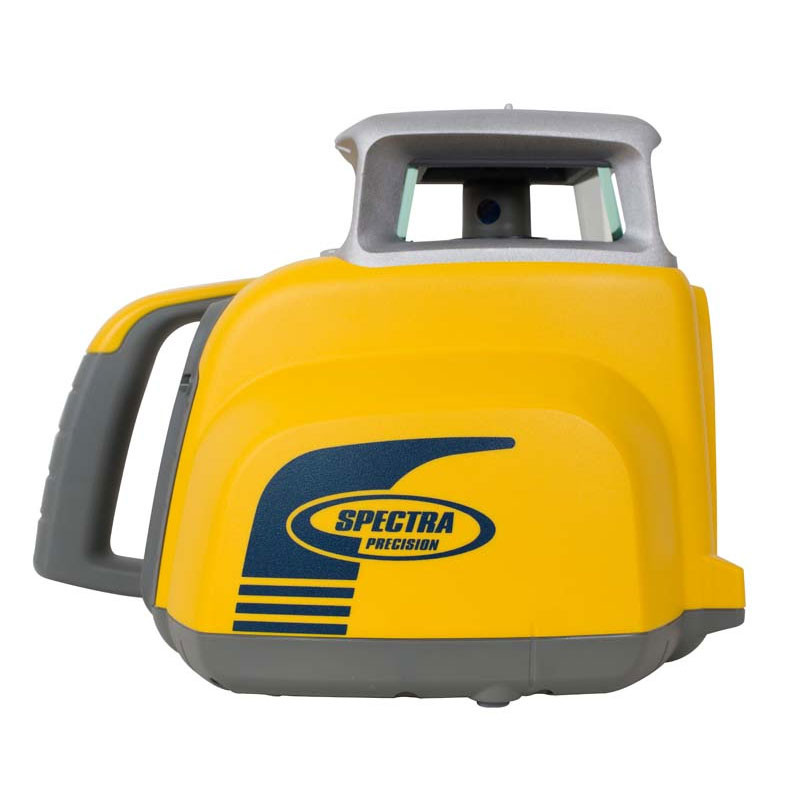

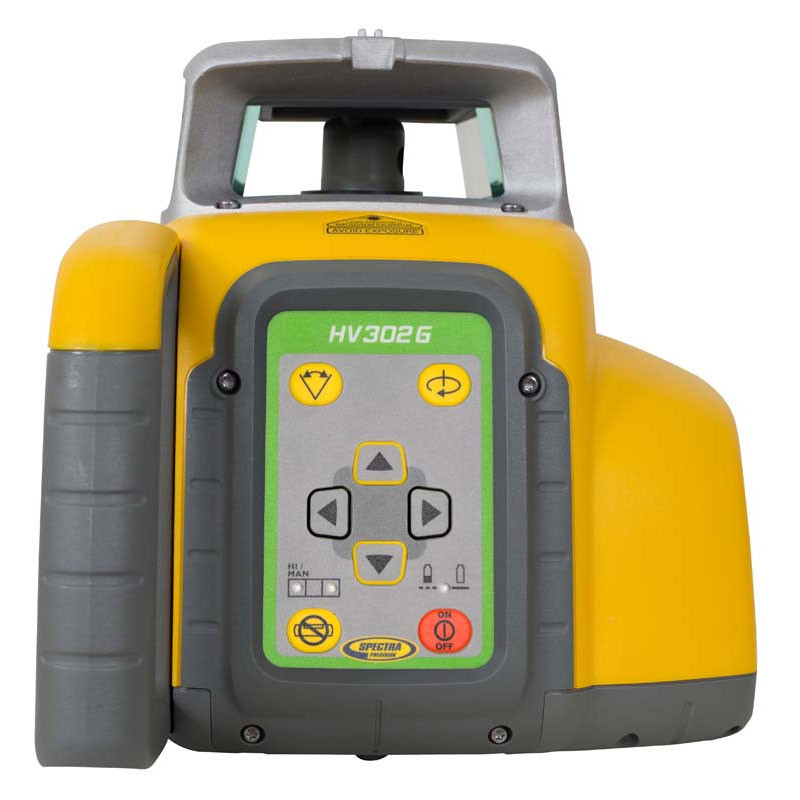

The Spectra Precision HV302G-1 Green Beam Laser Package delivers exceptional visibility and accuracy for demanding interior construction and alignment tasks. Featuring a high-intensity green laser beam that's up to 4x more visible than traditional red lasers, this professional-grade system enables faster layouts and reduces eye strain in bright ambient lighting conditions. The dual-grade capability projects both horizontal and vertical planes simultaneously, making it ideal for wall framing, door and window installation, cabinet work, and electrical rough-ins. Built with Spectra Precision's proven durability and backed by a 3-year warranty, the HV302G-1 includes the HL760 digital receiver, RC402N remote control, and rugged carrying case—everything professionals need for precision work across residential and commercial jobsites.

Key Specifications

• Laser Type: Green beam, Class 2 (532nm wavelength)
• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Operating Range: Up to 1,000 feet diameter with receiver (300m)
• Self-Leveling Range: ±5 degrees with automatic leveling
• Beam Configuration: Dual-grade horizontal and vertical planes
• Power Source: Rechargeable Li-ion battery or 4 D-cell alkaline batteries
• Battery Life: Up to 40 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• IP Rating: IP66 dust-tight and water-resistant
• Mounting: 5/8-11 thread for tripod mounting
• Warranty: 3-year manufacturer's warranty

What's in the Kit

• HV302G Green Beam Laser Transmitter
• HL760 Digital Laser Receiver with mounting bracket

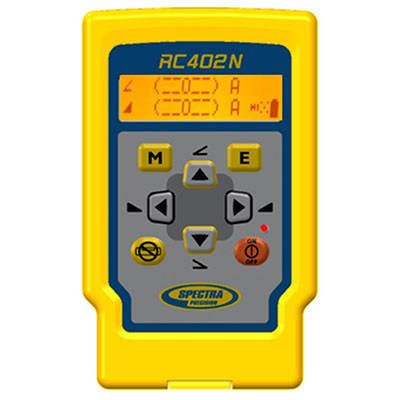

• RC402N Remote Control with 300-foot range
• Rechargeable Li-ion Battery Pack
• 110V AC Battery Charger
• Heavy-Duty Soft-Sided Carrying Case
• Laser Safety Glasses
• Operating Manual and Quick Start Guide

Job Applications

• Interior Framing & Layout: The dual-plane capability projects simultaneous horizontal and vertical reference lines for wall framing, allowing framers to check plumb and level without constantly repositioning the laser—cutting layout time by up to 50%.
• Electrical & HVAC Rough-Ins: Green beam visibility makes it easy to establish consistent heights for outlet boxes, switch boxes, and duct runs even in daylight conditions, ensuring code compliance and reducing callbacks for alignment issues.
• Cabinet & Millwork Installation: Achieve perfectly level cabinet runs and aligned upper-to-lower installations with the precision needed for high-end millwork where 1/8-inch accuracy prevents costly gaps and reinstallation.
• Suspended Ceiling Grid Installation: The 1,000-foot diameter range with receiver covers large commercial spaces, providing a consistent reference plane that keeps grid systems level across expansive areas without multiple setups.
• Tile & Flooring Layout: Establish accurate guideline references for large-format tile installations, ensuring straight rows and proper alignment from wall to wall, critical for maintaining pattern integrity in commercial lobbies and high-visibility spaces.
• Door & Window Alignment: Verify consistent header heights and sill alignments across multiple rough openings, preventing the shimming and adjustment issues that slow down trim carpenters and create finish problems.

Compatible Accessories

• Spectra Precision HL750 Laser Receiver - Backup or replacement digital receiver
• Spectra Precision RC601 Remote Control - Upgraded remote with extended range
• Heavy-Duty Laser Tripod - Adjustable tripod for elevated positioning
• Spectra Precision Laser Target - Visual alignment target for long-distance work
• Magnetic Laser Mount - Secure mounting to steel studs and beams
• Laser Detector Clamp - Grade rod and pole attachment for receiver
• Replacement Li-ion Battery Pack - Extra battery for extended runtime

Related Guides

• Green vs. Red Lasers: Visibility and Performance Comparison
• Interior Laser Level Setup: Best Practices for Accuracy
• How to Use Laser Receivers for Extended Range Applications
• Maintaining Your Laser Level: Storage, Calibration & Care

FAQ

What's the advantage of green beam over red beam lasers?

Green laser beams at 532nm wavelength are up to 4 times more visible to the human eye than red beams, especially in bright ambient lighting or daylight conditions. This increased visibility means faster setup, reduced eye strain, and the ability to see the laser line without the receiver in many interior applications, significantly improving productivity.

Can this laser be used outdoors?

Yes, the HV302G-1 can be used outdoors with the included HL760 digital receiver, which detects the laser beam up to 1,000 feet diameter. While the green beam itself may not be visible in bright sunlight, the receiver provides accurate detection for site layout, foundation work, and grading applications. The IP66 rating ensures weather resistance for outdoor jobsite conditions.

How long does the battery last on a single charge?

The rechargeable Li-ion battery provides up to 40 hours of continuous operation under normal conditions. Battery life varies based on temperature, usage patterns, and whether you're running single or dual-plane modes. The unit also accepts 4 D-cell alkaline batteries as a backup power option, and you can operate while charging with the AC adapter.

Does this laser require calibration, and how accurate is it?

The HV302G-1 comes factory-calibrated to ±1/8 inch at 100 feet accuracy. Spectra Precision recommends annual calibration checks, especially if the unit experiences a significant impact or drop. Many users perform simple field verification checks between professional calibrations. The self-leveling mechanism automatically maintains accuracy within the ±5-degree leveling range, alerting you if the unit is outside this range.
