Spectra Precision HV1305C-SC-16 Horiz/Vert - Interior/Exterior RED Beam Laser Package with CR700 Multi-Use Receiver, Remote, TENTHS Rod, Tripod and System Case
±5° Range
Cover large layout jobs with a ±5° working reach.
±1/16 inch at 100 feet (±1.5mm at 30m) Accuracy
Hold grade with a ±1/16 inch at 100 feet (±1.5mm at 30m) accuracy rating.
Battery Life
Runs on Up to 40 hours (4x AA alkaline) for jobsite flexibility.
Authorized Spectra Precision Dealer
Genuine, factory-fresh Spectra Precision equipment with legitimate firmware and calibration documentation.
Eliminates the grade checker
Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.
Authorized Dealer
Genuine equipment sourced straight from manufacturer partners.
Ships Same Day
Orders placed before 2 PM CT leave the dock today.
Genuine Gear
Factory-fresh, authentic units with legitimate firmware.
Best-Price Guarantee
Authorized-dealer pricing on every unit — request a quote anytime.
Kit Builder
Not sure what goes with this rotary laser?
Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.
Quick Answer
What is the Spectra Precision HV1305C-SC-16?
The Spectra Precision HV1305C-SC-16 Horiz/Vert - Interior/Exterior RED Beam Laser Package with CR700 Multi-Use Receiver, Remote, TENTHS Rod, Tripod and System Case is a Spectra Precision Rotary Laser with ±1/16 inch at 100 feet (±1.5mm at 30m) accuracy, ±5° self-leveling range, and Up to 2,000 ft diameter working range. It's available from Express Tools as an authorized Spectra Precision dealer with same-day shipping on in-stock orders.
What contractors use this rotary lasers for
Sewer Line Invert Establishment
Use the 1230 to position your pipe laser on flat ground outside the trench, then measure elevation from the grade offset hub to establish sewer line inverts without descending into the trench. This workflow keeps your crew safe, speeds setup, and maintains accuracy across multiple segments.
Long-Run Pipeline Grade Control
On extended pipeline installations, the 1230 provides consistent laser positioning that maintains grade accuracy throughout the run without requiring repositioning or recalculation. Contractors verify progress at multiple points using the same stable platform, ensuring the entire line stays on grade.
Grade Establishment on Mixed Terrain
When trench ground conditions are uneven or unstable, the 1230's heavy-duty construction provides a stable laser platform on nearby flat surfaces where accurate positioning is possible. You measure and control grade from a reliable reference point rather than attempting laser placement on compromised ground.
Municipal Construction Grade Checks
Municipal inspectors and contractors use the 1230 during grade verification phases to confirm laser-set elevations match design specifications. The repeatable positioning and hub measurement method ensure documentation is accurate and defensible.
Concrete Foundation Baseline Layout
General contractors establishing grades for concrete foundations alongside pipeline work use the 1230 to quickly set baseline elevations without repositioning equipment between different phases. This flexibility keeps crews efficient when managing multiple trade requirements on the same jobsite.
Product Description

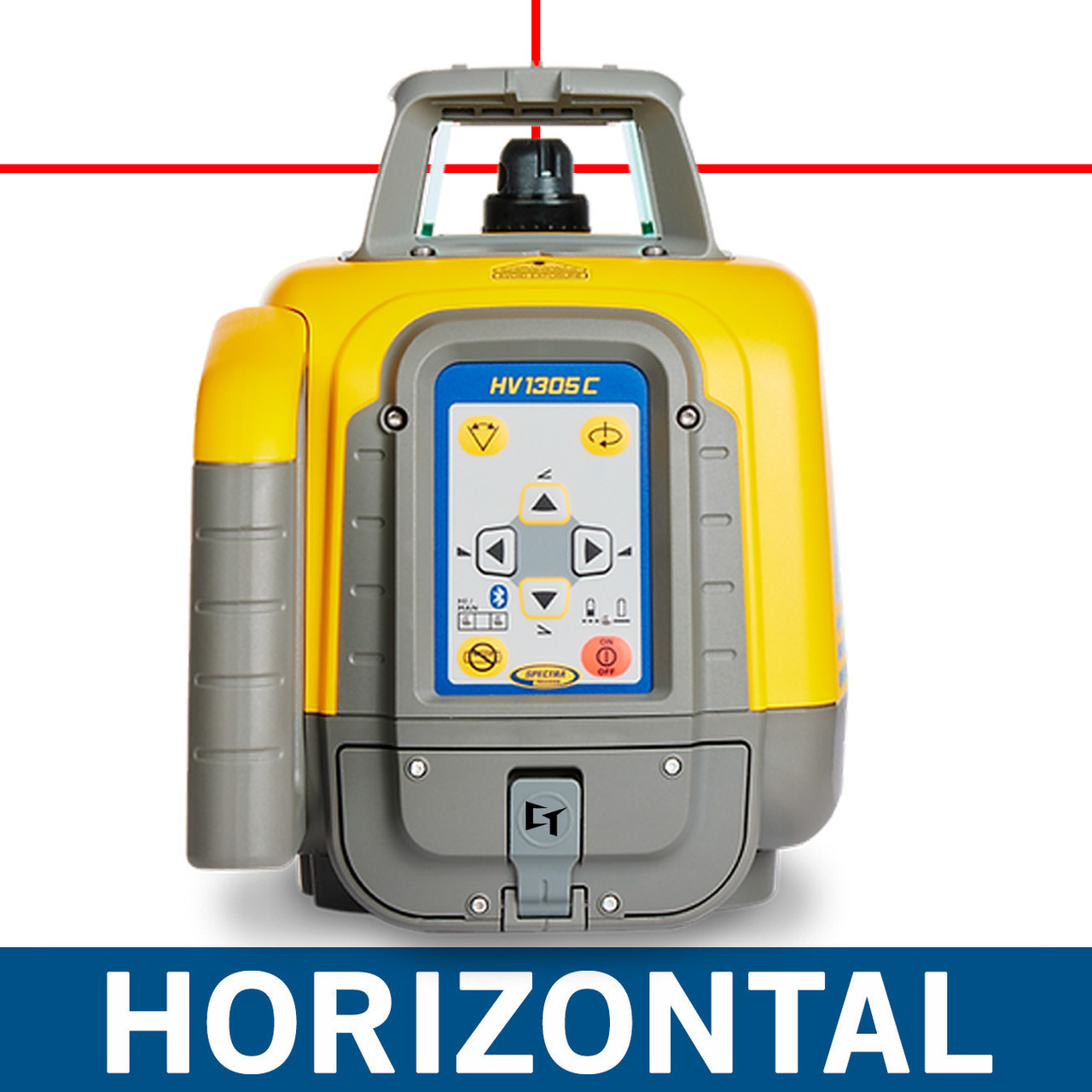

The Spectra Precision HV1305C-SC-16 is a professional-grade horizontal and vertical rotating laser package built for contractors who demand flexibility across a wide range of jobsite tasks. This configuration pairs the proven HV1305C dual-axis laser with the CR700 multi-use receiver—one of the most versatile detectors in the Spectra lineup—giving you a complete layout and grading solution right out of the case. Whether you're plumbing walls, setting grades, or squaring foundations, this package delivers the accuracy and range to get it done efficiently.
Package Overview & Jobsite Applications
The HV1305C-SC-16 package is engineered for contractors who work across multiple project types and need equipment that keeps pace. The HV1305C laser operates in both horizontal and vertical planes, making it ideal for general construction, interior finish work, site grading, and structural layout. With a working range of up to 2,000 feet in diameter when used with the included CR700 receiver, this package performs equally well on expansive outdoor sites and confined interior spaces. The RC1402N remote control allows full operation from up to 100 feet away, keeping your crew productive without constant trips back to the instrument.
Key Specifications
- Model: HV1305C-SC-16
- Laser Class: Class IIIa / 3R
- Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
- Self-Leveling Range: ±5°
- Rotation Speed: 100, 300, or 600 RPM
- Working Range (with CR700): Up to 2,000 ft diameter
- Wavelength: 635nm red laser
- Battery Life: Up to 40 hours (4x AA alkaline)
- IP Rating: IP55 dust and water resistant
- Remote Range (RC1402N): Up to 100 ft

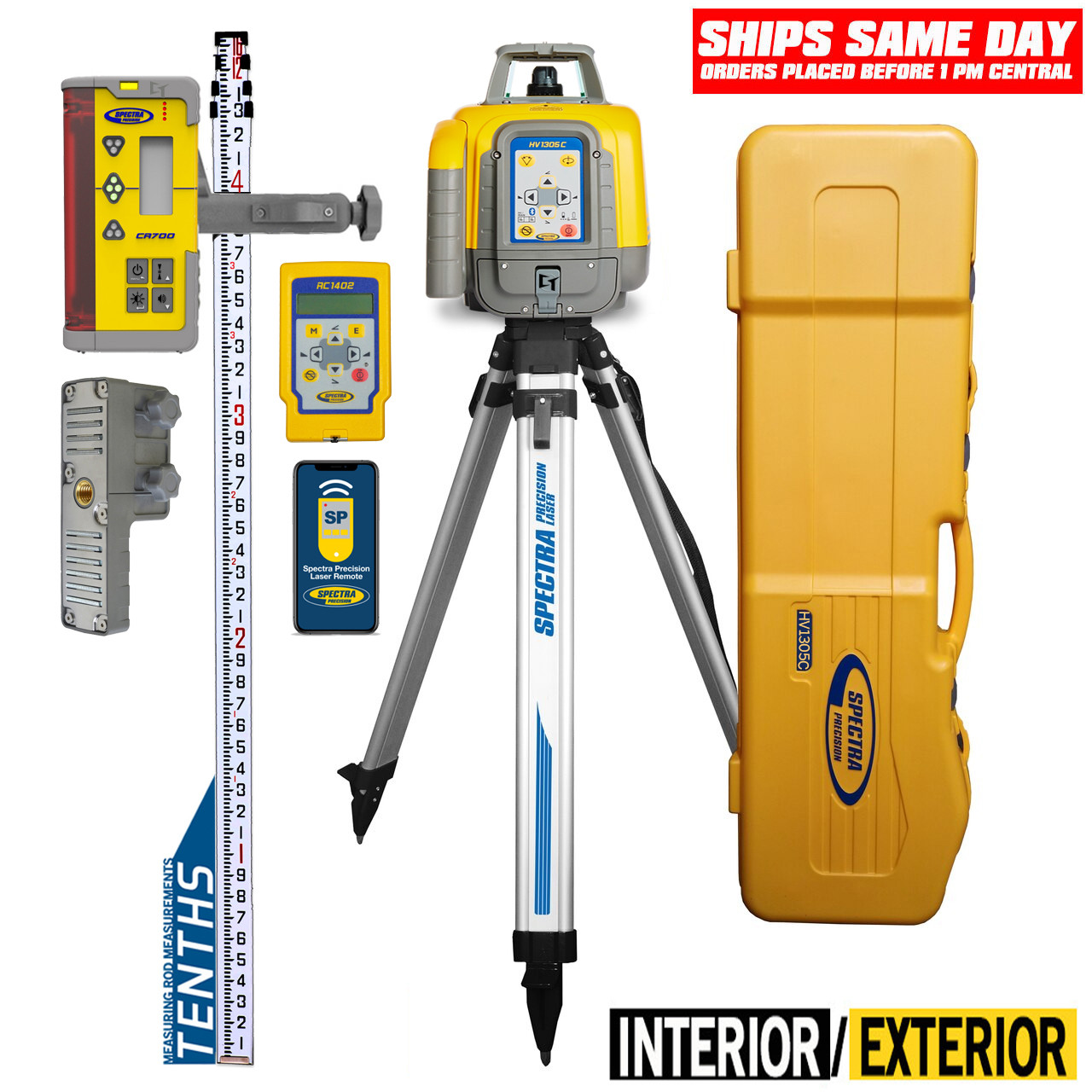

What's in the Kit
- Spectra Precision HV1305C horizontal/vertical rotating laser
- CR700 Multi-Use Receiver — compatible with rotating lasers, line lasers, and pipe lasers

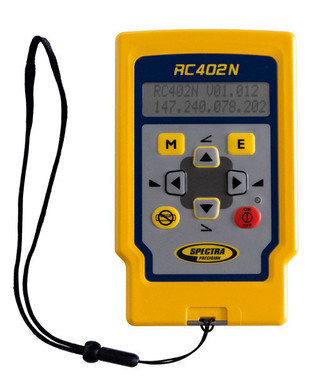

- RC1402N Remote Control — wireless operation up to 100 ft
- GR151 Grade Rod — 15-foot fiberglass tenths rod for accurate elevation readings
- Aluminum Tripod — sturdy jobsite tripod for stable instrument setup
- System Carrying Case — rugged case for organized transport and storage
Job Applications

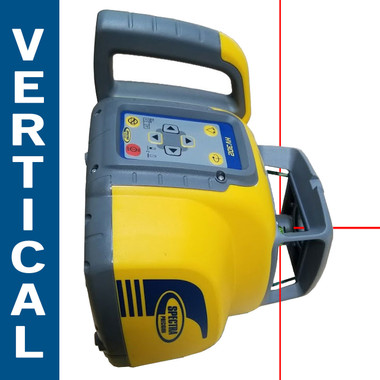

Foundation & Structural Layout: Use the vertical plane mode to establish true plumb reference lines for column and wall layout. The dual-axis capability lets you set 90-degree reference points quickly without additional layout instruments.
Site Grading & Earthwork: Mount the HV1305C on the aluminum tripod and work with the GR151 grade rod to establish consistent elevation benchmarks across large grading sites. The 2,000-ft working diameter keeps your machine operators and grade checkers in sync.
Interior Finish & Ceiling Work: Drop rotation speed to 100 RPM for slower sweep visibility on interior applications including suspended ceilings, partition walls, and drop-in grid systems where a crisp visible beam aids alignment.
Multi-Trade Coordination: The CR700 receiver's compatibility with rotating, line, and pipe lasers means your whole crew can share one detector across different instruments on the same project, reducing equipment redundancy and costs.
Compatible Accessories
- Spectra Precision CR700 Replacement Receiver
- RC1402N Remote Control
- GR151 15-Foot Grade Rod
- Spectra Precision Heavy-Duty Tripod
- Spectra Precision Laser Target Cards
- Replacement AA Battery Pack
Related Guides
- How to Choose the Right Rotating Laser Receiver
- HV1305C Setup and Calibration Guide
- Horizontal vs. Vertical Laser: Which Do You Need?
- Top Rotating Laser Packages for General Contractors
Frequently Asked Questions
- Can the CR700 receiver be used with other laser brands besides Spectra Precision?
- The CR700 is designed and optimized for use with Spectra Precision rotating, line, and pipe lasers. While it may detect signals from some other red-beam lasers, full feature compatibility and reliable performance are only guaranteed with Spectra Precision instruments.
- What is the self-leveling range of the HV1305C?
- The HV1305C will automatically self-level when set up within ±5° of level. If the instrument is set up outside this range, it will display an out-of-level warning and stop rotating to prevent inaccurate readings.
- Does this package include everything needed to start working on day one?
- Yes. The HV1305C-SC-16 package includes the laser, CR700 receiver, RC1402N remote, GR151 15-foot grade rod, aluminum tripod, and system case. You will need to supply AA batteries for the laser and a standard 9V battery for the CR700 receiver.
- What warranty is included with the Spectra Precision HV1305C-SC-16?
- The HV1305C carries Spectra Precision's standard limited warranty covering defects in materials and workmanship. Express Tools is an authorized Spectra Precision dealer, ensuring your purchase is backed by full manufacturer warranty support. Contact us for current warranty terms.
Why This Equipment
Auto Self-Leveling
Compensates for job site movement and setups — no manual leveling required.
Long Range
Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.
IP55+ Protection
Dust-tight and water jet resistant — built for outdoor construction in any weather.
Radio Remote
Change grade or elevation from the cab or anywhere on site without walking back.
What's In The Box

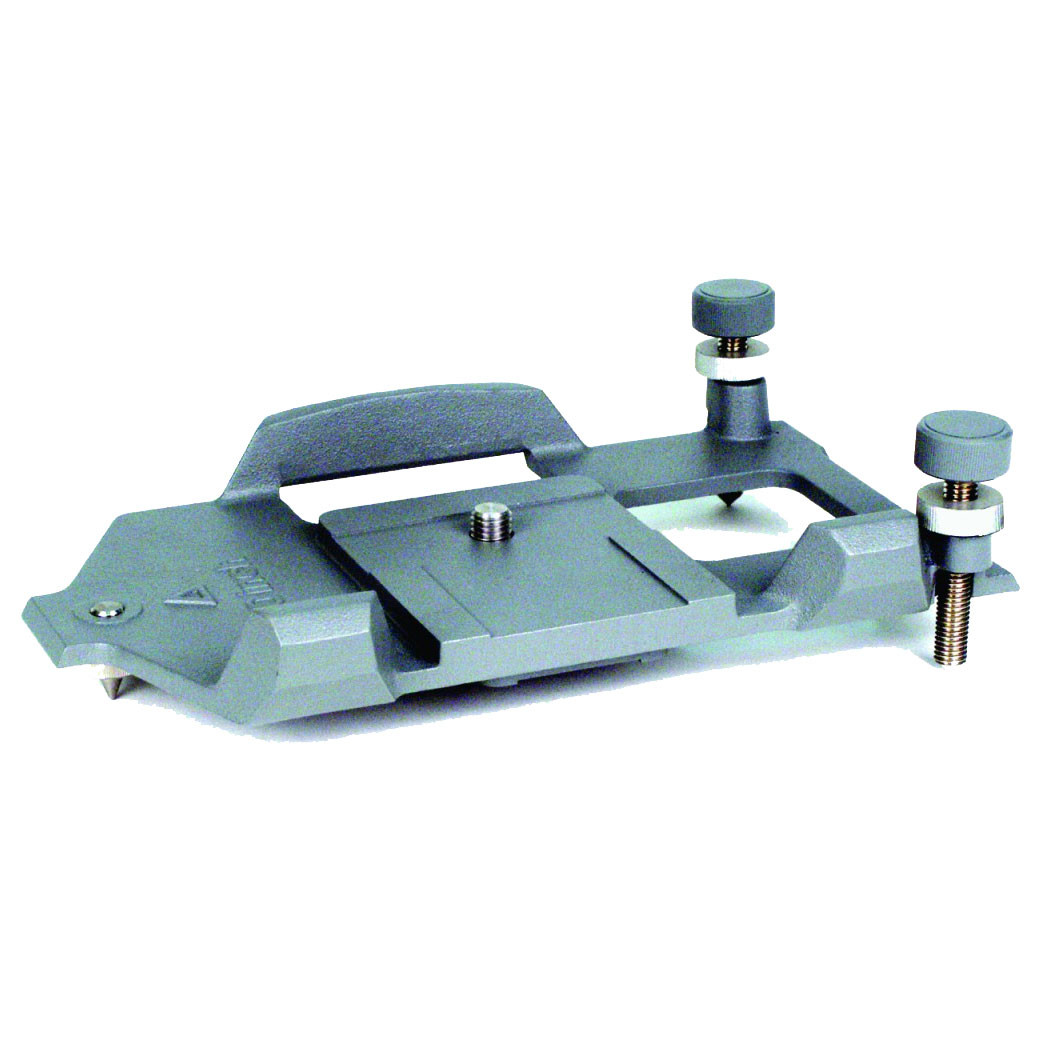

- Spectra Precision 1230 Large Invert Plate
The right rotary laser pays for itself in weeks.
A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.
The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.
Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.
Specifications
Technical Specs
Manufacturer data and field-verified measurements.
| Knowledge Summary | The Spectra Precision 1230 Large Invert Plate is a heavy-duty trivet accessory designed for professional contractors using pipe laser systems. It enables precise positioning of pipe lasers on flat surfaces when the laser beam isn't centered in the pipe. Essential for pipe and sewer line construction, it allows elevation setting by measuring down from a grade offset hub located outside the trench, eliminating complex calculations and repositioning. The invert plate maintains grade accuracy throughout long pipeline installations and is ideal for trench work, grade establishment, and precise elevation control. Contractors rely on this accessory for accurate, repeatable laser positioning in professional pipeline projects. |
|---|---|
| Product Type | Heavy-Duty Trivet Plate |
| Compatibility | Spectra Precision Pipe Laser Systems |
| Material | Heavy-Duty Construction |
| Primary Use | Pipe and Sewer Line Positioning |
| Key Feature 1 | Heavy-duty trivet construction |
| Key Feature 2 | Positions lasers on flat surfaces |
| Key Feature 3 | Grade offset hub measurement capability |
| Key Feature 4 | Eliminates complex calculations |
| Key Feature 5 | Maintains grade accuracy |
| Use Cases | Pipe and sewer line construction; Grade establishment; Trench work elevation control; Pipeline installation; Professional grading operations |
| Setup Steps | Place invert plate on flat surface | Position pipe laser on plate | Measure elevation from grade offset hub | Adjust laser position as needed |
| Pro Tips | Ensure flat, stable surface for accurate laser positioning | Use grade offset hub measurements to eliminate recalculations | Verify laser centering for repeatable results |
| Compatible Equipment | Spectra Precision Pipe Laser Systems |
| Common Issues | Unstable surface placement affecting laser accuracy | Incorrect elevation measurement from hub |
| Laser Class | Class IIIa / 3R |
| Accuracy | ±1/16 inch at 100 feet (±1.5mm at 30m) |
| Self-leveling Range | ±5° |
| Rotation Speed | 100, 300, or 600 RPM |
| Working Range | Up to 2,000 ft diameter |
| Battery Life | Up to 40 hours (4x AA alkaline) |
| IP Rating | IP55 dust and water resistant |
| Remote Control | — wireless operation up to 100 ft |
