Spectra Precision HV1305C Horiz/Vert - Interior/Exterior RED Beam Laser Package with HL450 Receiver, Remote, Small Case and Rechargeable Batteries

Dual-Axis Red Beam Laser with Premium HL450 Detection System

The Spectra Precision HV1305C with HL450 is the go-to dual-axis laser package for contractors who demand precision on every layout job. Whether you're shooting level references across a large commercial floor or plumbing door and window openings, this kit delivers consistent red beam performance backed by Spectra's industry-trusted HL450 digital receiver. The complete package includes the HV1305C laser head, HL450 receiver, RC1402N remote control, rechargeable battery system, and a hard-shell protective case — everything a professional crew needs right out of the box.

Product Overview & Jobsite Applications

The HV1305C projects independent horizontal and vertical laser planes, making it a versatile tool for interior finishing, steel framing, MEP rough-in, and general construction layout. Its self-leveling mechanism compensates within the working range automatically, reducing setup time on uneven subfloors or slabs. The HL450 receiver extends the effective working range well beyond naked-eye visibility, making this kit equally capable indoors under bright lighting and outdoors in overcast conditions. The RC1402N remote allows a single operator to control laser functions from the work area, eliminating repeated trips back to the instrument.

Key Specifications

• Laser Class: Class IIIa / Class 3R red beam
• Self-Leveling Range: ±5°
• Accuracy: ±1/8 in. at 100 ft (±3 mm at 30 m)
• Horizontal Range (with HL450): Up to 800 ft (244 m) diameter
• Vertical Range (with HL450): Up to 800 ft (244 m)
• Power Source: Rechargeable NiMH battery pack (included)
• Battery Life: Approximately 20 hours per charge
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• IP Rating: IP54 dust and splash resistant
• HL450 Receiver Display: Digital grade readout with audible and visual signals

What's in the Kit

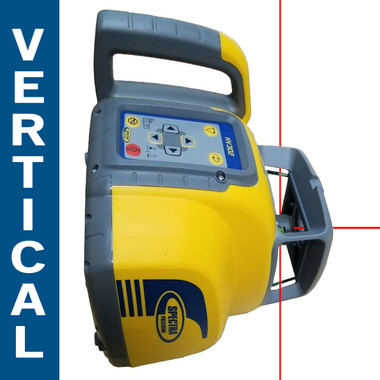

• Spectra Precision HV1305C horizontal/vertical laser

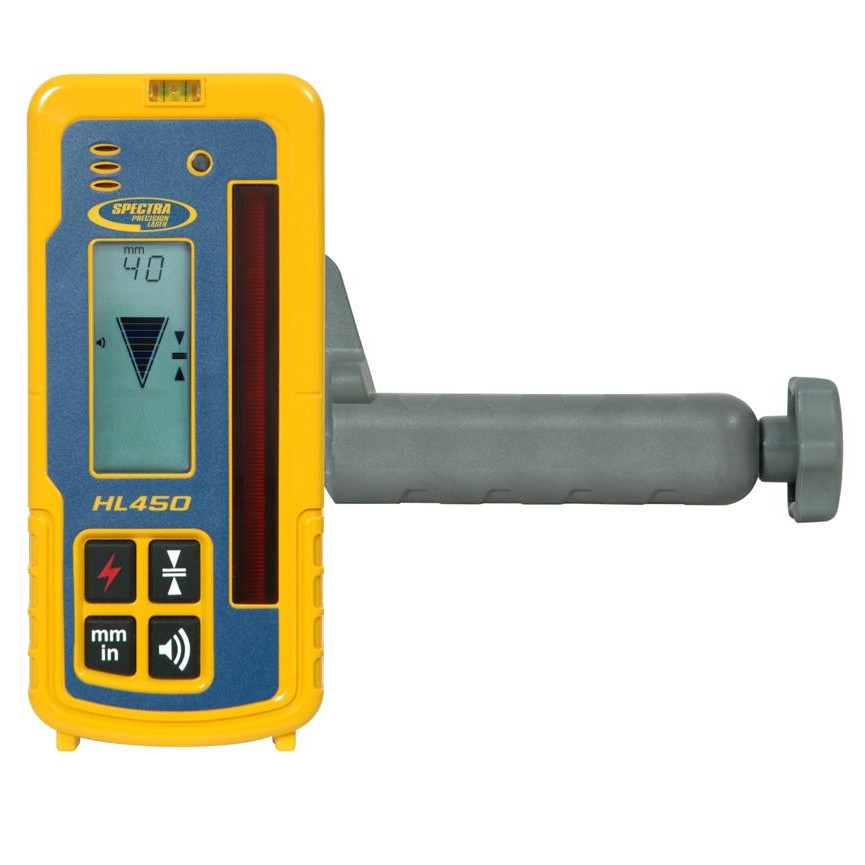

• HL450 digital laser receiver with rod clamp

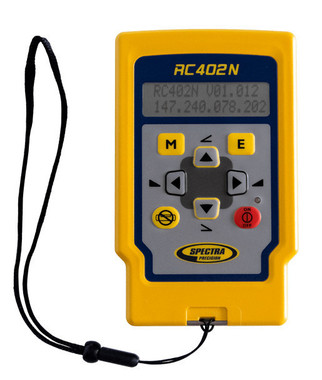

• RC1402N wireless remote control
• Rechargeable NiMH battery pack
• AC wall charger
• Hard-shell protective carrying and storage case
• User documentation and warranty card

Job Applications

Interior Ceiling & Wall Layout: Set the HV1305C on a tripod or floor mount and project a level plane to establish drop ceiling grids, crown molding lines, or consistent wall heights across large open bays — no chalk lines required.

Steel & Metal Stud Framing: Use the vertical beam to plumb partition walls, door bucks, and curtain wall mullions. The HL450 receiver's audible signal guides framers to the exact plane without stopping to check the beam visually.

MEP Rough-In: Electricians, plumbers, and HVAC crews use the level reference to maintain consistent conduit runs, pipe slopes, and duct hangers across long spans in commercial and industrial spaces.

Concrete & Masonry Layout: Establish benchmark elevations and transfer level references across poured slabs or masonry block courses, using the extended HL450 range to work across large footprints without moving the instrument.

Compatible Accessories

• HL450 Replacement Receiver
• RC1402N Replacement Remote Control
• Spectra Precision Universal Laser Tripod
• Replacement NiMH Rechargeable Battery Pack
• Spectra Wall/Ceiling Mounting Bracket

Related Guides

• How to Choose Between a Single-Axis and Dual-Axis Laser Level
• HV1305C vs. HV301G: Red Beam vs. Green Beam Comparison
• Getting the Most Range from Your Laser Receiver Outdoors
• Laser Level Accuracy Standards Explained for Contractors

Frequently Asked Questions

Does the HV1305C project horizontal and vertical beams simultaneously?

Yes. The HV1305C can operate horizontal and vertical laser planes at the same time, independently, or in either mode alone depending on your layout task. This makes it practical for plumb and level references in a single setup.

What is the advantage of the HL450 receiver over the standard CR700 receiver?

The HL450 provides a digital grade display with finer resolution readout, a wider detection window, and stronger signal sensitivity compared to the CR700. This translates to greater working range — especially outdoors or in large interior spaces — and more precise on-grade confirmation for the operator.

Can the RC1402N remote control be used from a ladder or elevated work platform?

Yes. The RC1402N is a handheld wireless remote designed for single-operator use. It allows you to turn the laser on or off, switch operating modes, and adjust functions without returning to the instrument, which is particularly useful when working at height or across large areas.

Is the HV1305C suitable for outdoor use?

The HV1305C carries an IP54 rating, providing protection against dust ingress and splashing water, making it suitable for typical outdoor construction conditions. For outdoor use in daylight, the HL450 receiver is essential since the red beam is difficult to see with the naked eye in bright ambient light.
