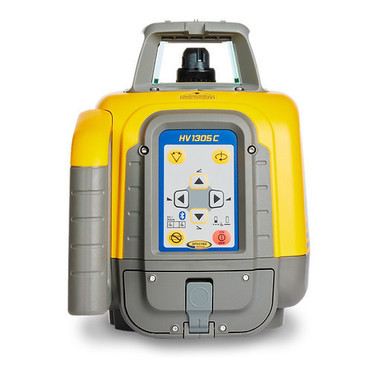

Spectra Precision HV1305C-29E Horiz/Vert - Interior/Exterior RED Beam Laser Package with HL760 Receiver, Remote, INCHES Rod, Elevator Tripod and Small Case - Rechargeable

The Spectra Precision HV1305C-29E is a complete, job-ready laser package engineered for contractors and tradespeople who work from architectural plans dimensioned in feet, inches, and fractions. Built around Spectra's reliable self-leveling horizontal/vertical red beam laser, this kit pairs the instrument with the HL760 laser detector, a GR152 grade rod graduated in feet-and-inches, and a heavy-duty elevator tripod — giving you every tool needed to establish, transfer, and verify grade elevations without converting between measurement systems on the fly.

Package Overview & Jobsite Applications

The HV1305C-29E is built for finish carpenters, general contractors, concrete formwork crews, and MEP tradespeople who dimension everything in feet and inches. Unlike decimal-tenths rods used in civil survey work, the GR152 rod reads directly in the same units shown on architectural drawings and building plans. Pull your rod reading, write it on your layout sheet, and move on — no mental arithmetic, no conversion errors. The self-leveling laser operates over a 600-foot diameter range, making it equally at home on large commercial slabs, residential framing decks, and interior finish work.

Key Specifications

• Laser Type: Self-leveling red beam, horizontal & vertical planes
• Working Range: Up to 600 ft (183 m) diameter with HL760 detector
• Self-Leveling Range: ±5°
• Accuracy: ±1/8 in at 100 ft (±3 mm at 30 m)
• Grade Capability: Manual grade mode available
• Power Source: Rechargeable NiMH battery pack (charger included)
• Battery Runtime: Up to 20 hours per charge
• Rod Graduation: Feet-inches-fractions (GR152)
• Detector: Spectra HL760 with audible/visual grade indication
• Tripod: Elevator-style, adjustable center column
• IP Rating: Weather-resistant construction for outdoor use

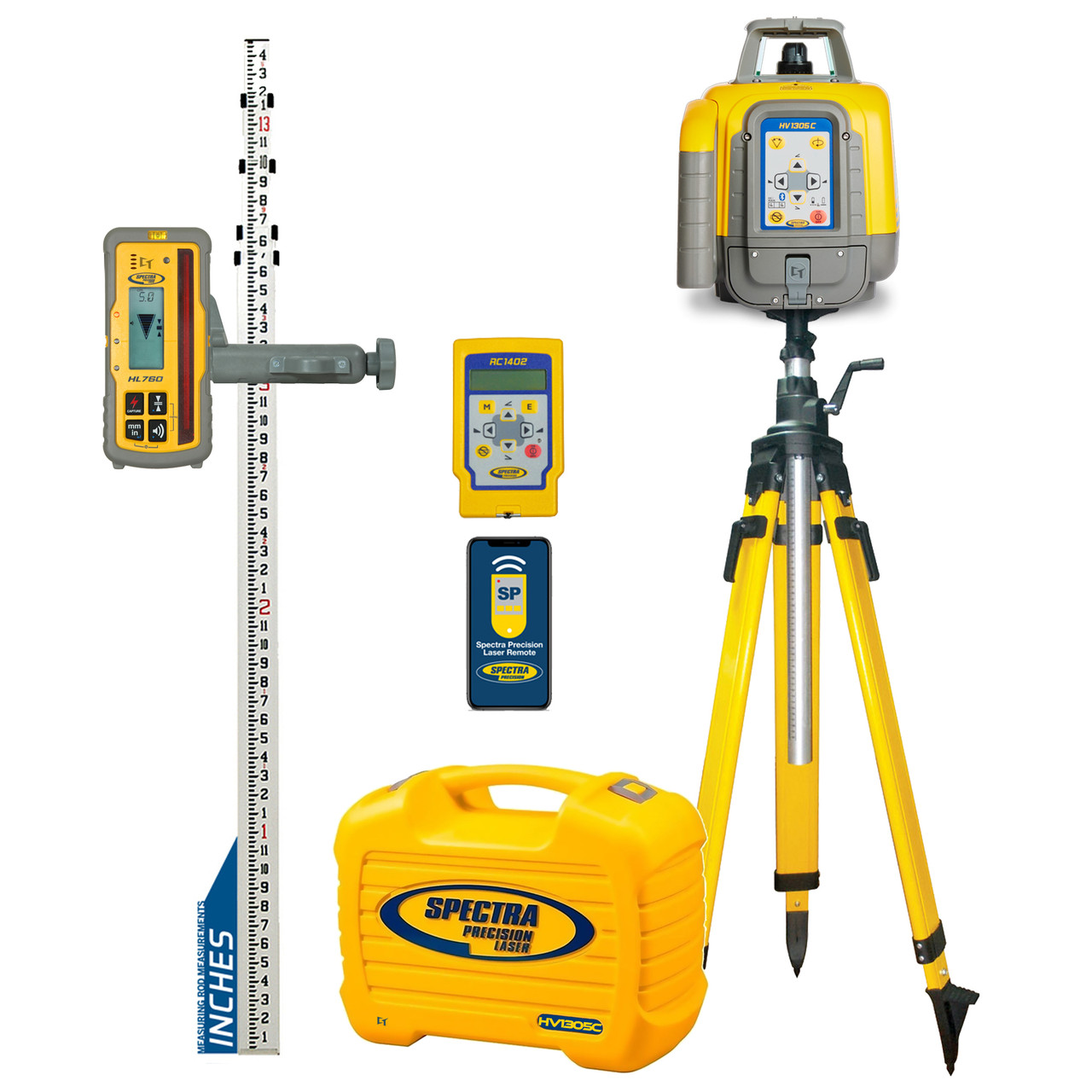

What's in the Kit

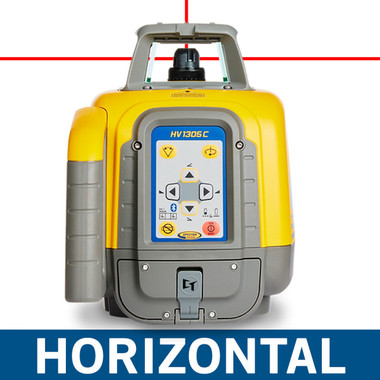

• Spectra Precision HV1305C horizontal/vertical self-leveling laser

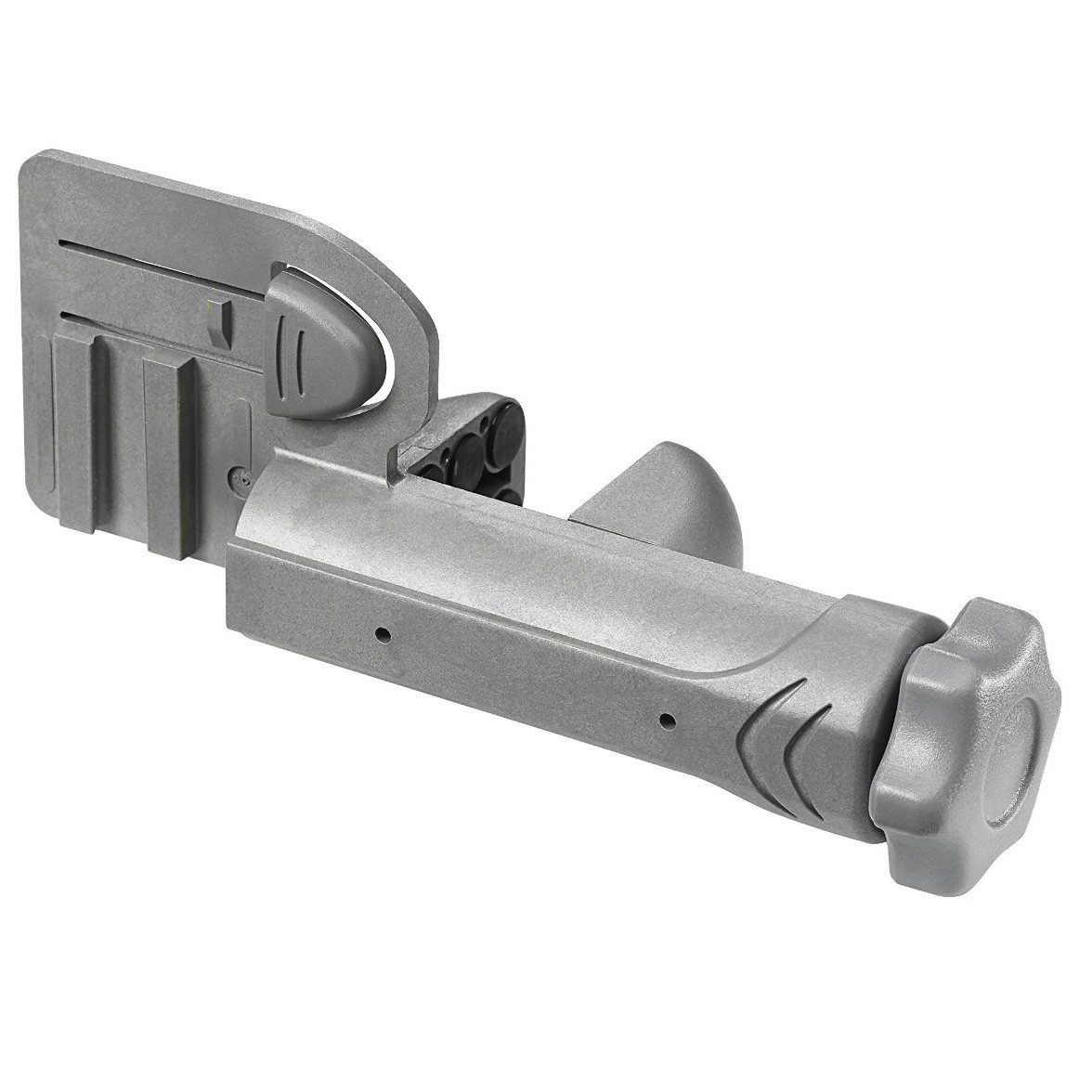

• HL760 laser detector with magnetic bracket
• GR152 grade rod graduated in feet-inches-fractions
• Heavy-duty elevator tripod
• Rechargeable NiMH battery pack
• AC wall charger
• Carrying case
• User manual & warranty documentation

Job Applications

Residential Framing & Decks: Set the laser on the elevator tripod, run the HL760 around the perimeter, and confirm plate heights or deck elevations directly against your plan dimensions — all in feet and inches with no conversion.

Interior Finish & Drop Ceilings: Establish a reference elevation with the horizontal plane, then use the vertical plane to plumb partition walls or align grid hanger locations. Read the GR152 rod and transfer measurements to your framing tape without switching units.

Concrete Formwork & Flatwork: Set screed rails or form heights by shooting the HL760 detector on the GR152 rod at each support point. The feet-inches graduation matches typical structural drawing callouts directly.

Mechanical, Electrical & Plumbing Rough-In: MEP contractors working from architectural backgrounds can lay out pipe drops, duct heights, and conduit elevations in feet-inches without translating from a decimal-tenths instrument reading.

Compatible Accessories

• Spectra HL760 Replacement Laser Detector
• Spectra GR152 Replacement Inches-Graduated Grade Rod
• Spectra NiMH Rechargeable Battery Pack
• Heavy-Duty Elevator Tripod (Replacement)
• Spectra Laser Carrying Case

Related Guides

• HV1305C-29E vs HV1305C-19E: Inches Rod vs Decimal Rod — Which Is Right for Your Trade?
• How to Use a Laser Detector on a Grade Rod for Elevation Transfer
• Choosing the Right Laser Level Kit for Residential Construction
• Spectra Precision Laser Comparison Guide

Frequently Asked Questions

What is the difference between the HV1305C-29E and the HV1305C-19E?

The only difference is the grade rod included in the kit. The 29E includes the GR152 rod graduated in feet, inches, and fractions — standard for architectural and building construction work. The 19E includes a decimal-tenths rod preferred in civil survey and grading applications. The laser, detector, tripod, and all other components are identical.

Can the HL760 detector be used independently of the grade rod?

Yes. The HL760 includes a magnetic bracket that mounts directly to any standard grade rod, a wall bracket, or a surveyor's pole. It provides audible beeps and a visual LED display to indicate when you're on-grade, above, or below the laser plane — useful for any elevation transfer task.

Does this kit support manual grade or slope mode?

The HV1305C laser includes a manual grade mode that lets you tilt the instrument out of self-level to project a sloped reference plane. This is useful for drainage slopes, ramp grades, or any application requiring a consistent pitch along a run.

Is the HV1305C-29E suitable for outdoor use in variable weather?

Yes. The HV1305C laser is built with weather-resistant construction for typical outdoor jobsite conditions. It is not submersible, but it handles dust, light moisture, and temperature swings common on active construction sites. For maximum battery runtime in cold weather, keep the battery pack insulated between uses.
