Spectra Precision HV1305C-14-NR Horiz/Vert - Interior/Exterior RED Beam Laser Package with CR700 Multi-Use Receiver, Small Case and Rechargeable Batteries

The Spectra Precision HV1305C-14-NR is a field-ready rotary laser kit engineered for contractors who need reliable horizontal and vertical coverage across a wide range of general construction applications. Bundled with the CR700 multi-use laser receiver, a rechargeable battery system, smartphone app remote control, and a protective carrying case, this kit eliminates the need to source accessories separately — everything you need to get to work on day one is included.

System Overview & Jobsite Applications

Built around the HV1305C red beam rotary laser, this kit delivers a self-leveling platform suited for both interior finish work and exterior site layout. The dual-axis design allows the instrument to project both horizontal and vertical planes independently or simultaneously, making it a versatile workhorse for residential framing, commercial tenant improvements, concrete flatwork, and general elevation control. The included CR700 receiver extends the working range beyond unaided eye detection, allowing crews to maintain grade and alignment outdoors or in bright ambient light conditions.

Key Specifications

• Model: Spectra Precision HV1305C-14-NR
• Laser Class: Red Beam Rotary

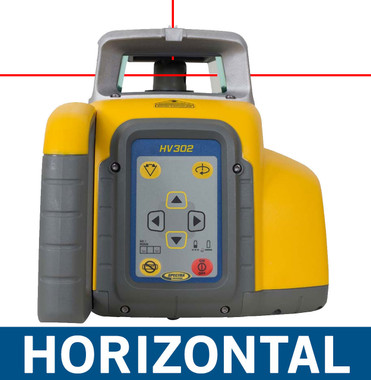

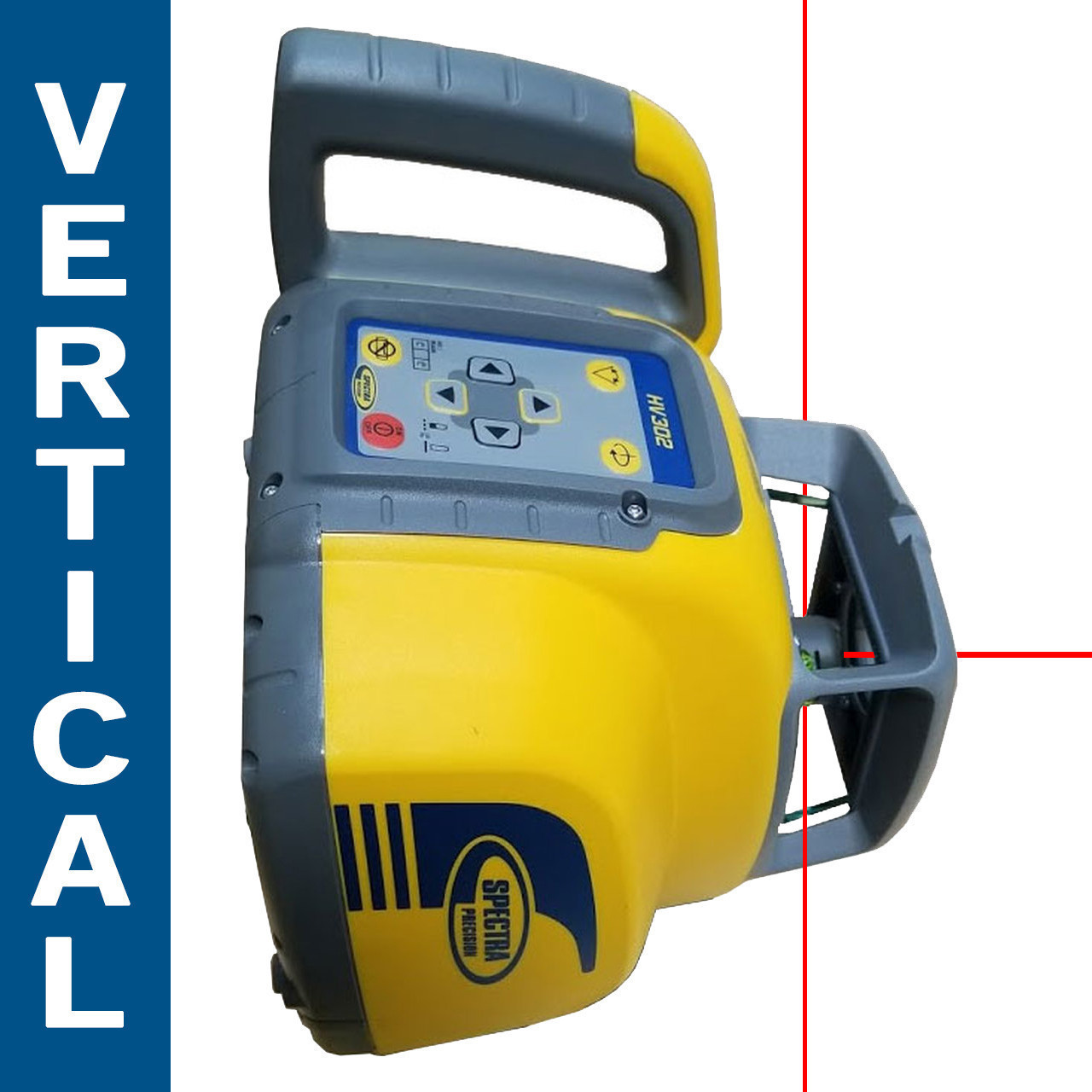

• Operating Modes: Horizontal, Vertical, Dual-Axis
• Self-Leveling Range: ±5°
• Rotation Speed: Variable (multi-speed)
• Working Range (unaided): Up to 200 ft diameter
• Working Range (with CR700 receiver): Up to 2,000 ft diameter
• Accuracy: ±1/16 in at 100 ft
• Power Source: Rechargeable battery system (included)
• Remote Control: Smartphone app compatible
• IP Rating: Weather-resistant for exterior use

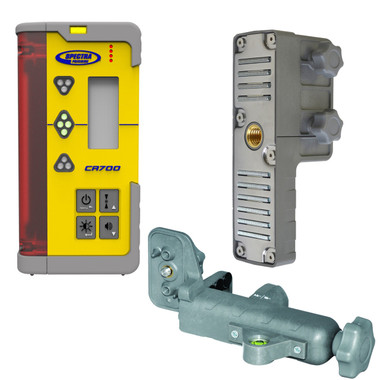

• Included Receiver: Spectra CR700

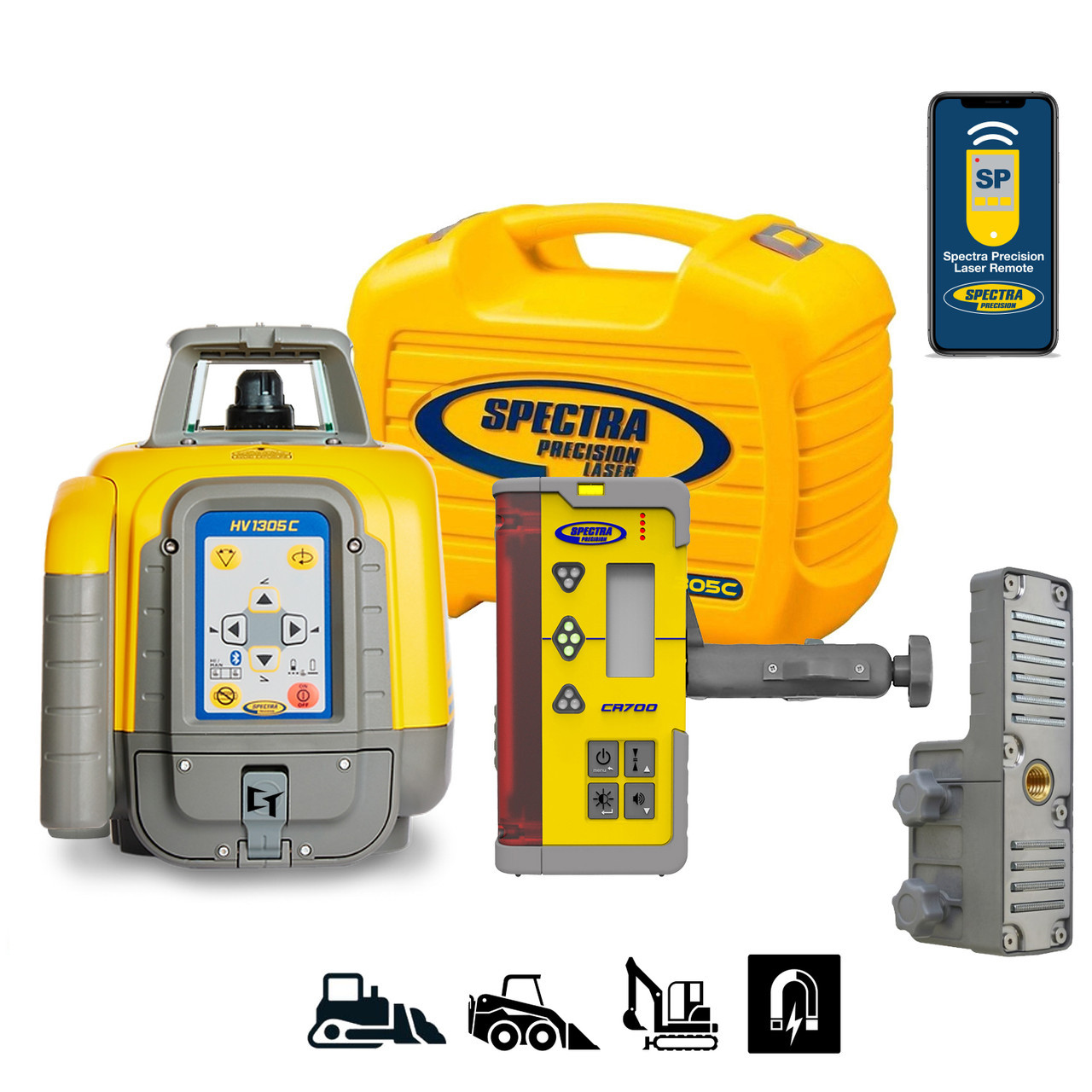

What's in the Kit

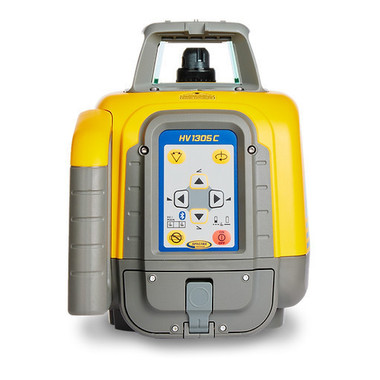

• Spectra Precision HV1305C red beam rotary laser instrument
• CR700 multi-use laser receiver with clamp
• Rechargeable battery pack and charger
• Smartphone remote control app compatibility (iOS & Android)
• Protective hard-shell carrying case
• Operator's manual and quick-start documentation

Job Applications

Interior Layout & Framing: Project vertical planes for wall layout, partition alignment, and door/window plumb checks without moving the instrument between reference points.

Elevation Control & Grade Work: Use the CR700 receiver on a grade rod to establish and maintain consistent elevation across slabs, footings, and site grading tasks where visual beam detection is impractical.

Suspended Ceiling & MEP Coordination: The horizontal plane mode allows crews to set consistent drop ceiling heights and coordinate mechanical, electrical, and plumbing rough-in elevations across large commercial floor plates.

Exterior Site Layout: Extended range with the CR700 receiver supports building corner layout, utility trench grades, and landscape grading on open jobsites where long sight lines are required.

Compatible Accessories

• Spectra CR700 Replacement Receiver
• Spectra TP-1 Tripod
• Spectra Grade Rod & Accessories
• Spectra Replacement Rechargeable Battery Pack
• Laser Target Cards & Alignment Plates

Related Guides

• How to Set Up a Rotary Laser for Slab Elevation Control
• Red Beam vs. Green Beam Rotary Lasers: Which Is Right for Your Job?
• Using a Laser Receiver for Outdoor Grade Work
• Smartphone Remote Control Setup for Spectra Rotary Lasers

Frequently Asked Questions

Does the HV1305C-14-NR work outdoors in daylight?

Yes. While the red beam is visible indoors and in low-light conditions, outdoor use in bright daylight requires the included CR700 receiver, which detects the beam electronically and extends the effective working range up to 2,000 ft in diameter — well beyond what the naked eye can detect.

What does the "NR" suffix mean in the model number?

The "NR" designation indicates this kit configuration does not include a specific tripod or rod package, allowing contractors who already own compatible tripods and grade rods to avoid paying for duplicate equipment. All critical operating components — the laser, receiver, batteries, and case — are included.

Is the smartphone remote control compatible with both iOS and Android?

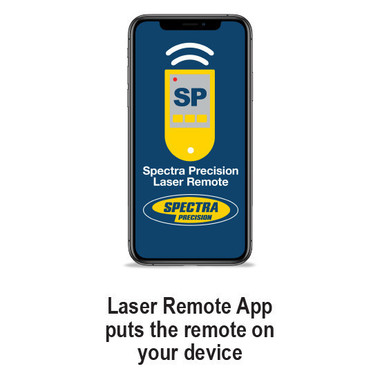

Yes. The Spectra smartphone remote app is available for both iOS and Android platforms. It allows you to control rotation speed, stop-spin targeting, and other instrument functions from a distance — useful when you're working alone or positioning the beam from across the jobsite.

How does the self-leveling system work and what happens if the instrument is bumped?

The HV1305C uses an internal automatic compensator to self-level within a ±5° range. If the instrument is disturbed beyond that range, it will detect the out-of-level condition and shut down the rotating beam or alert the operator, preventing inaccurate readings from being used on the job.
