Spectra Precision GL622N Dual Grade Laser with HL760 Receiver and RC602N Remote

Overview

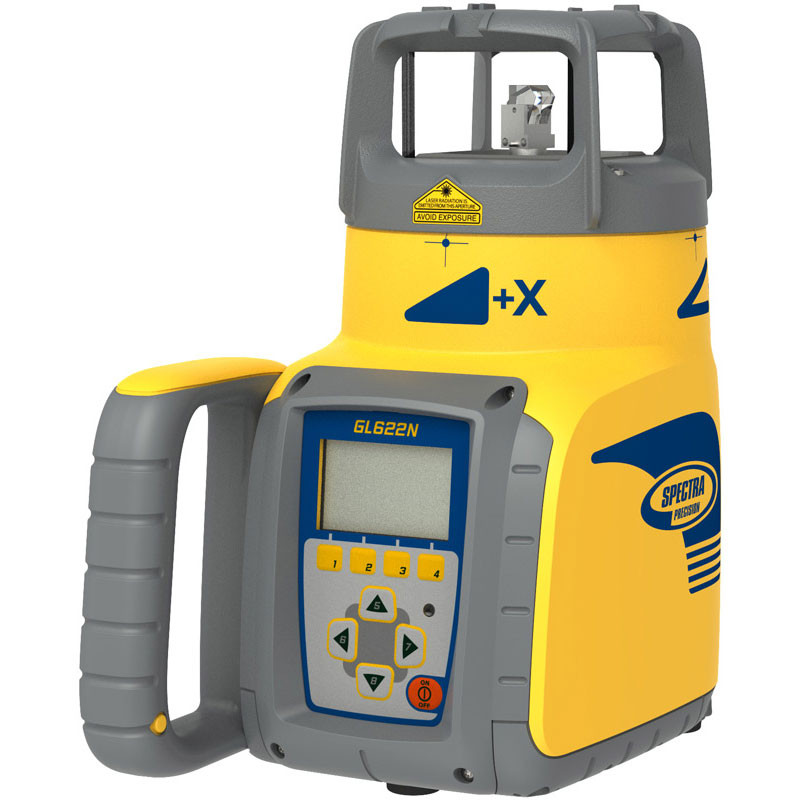

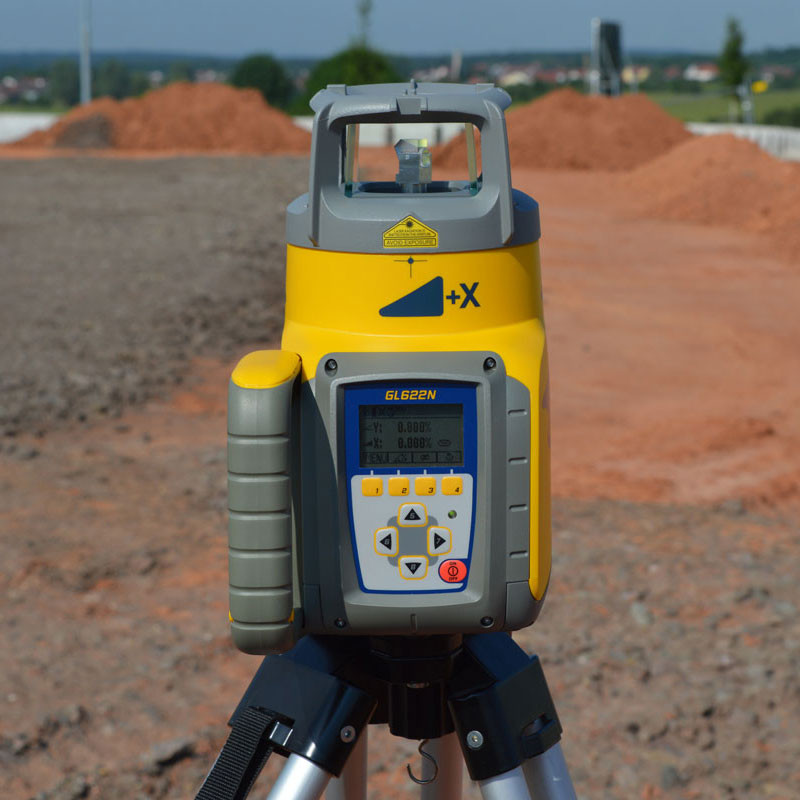

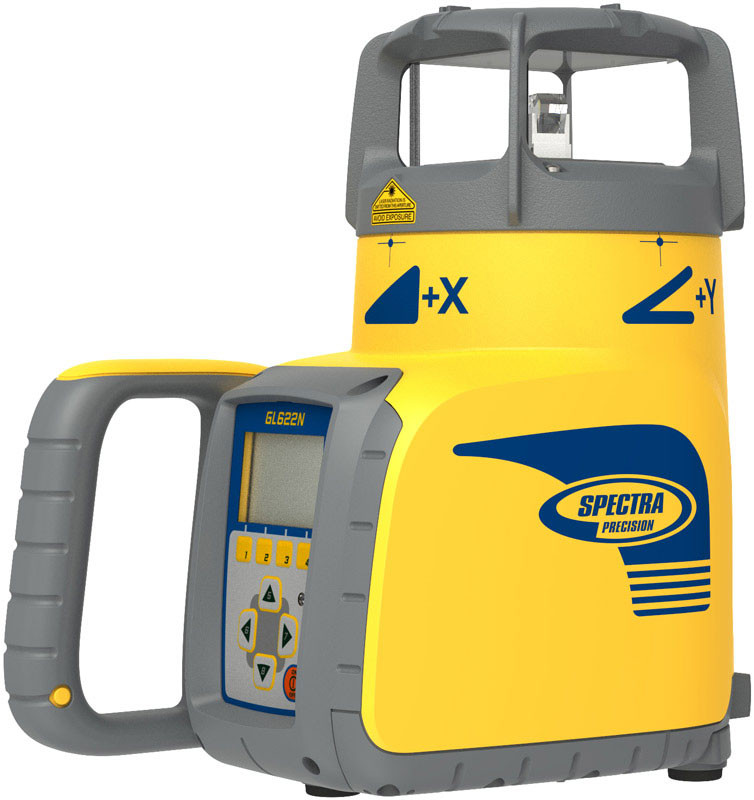

The Spectra Precision GL622N Dual Grade Laser System represents the pinnacle of professional-grade laser leveling technology for demanding construction and grading applications. This comprehensive package combines the GL622N dual slope laser transmitter with the advanced HL760 digital receiver and RC602N remote control, delivering a complete solution for contractors who need precision, versatility, and productivity on complex job sites.

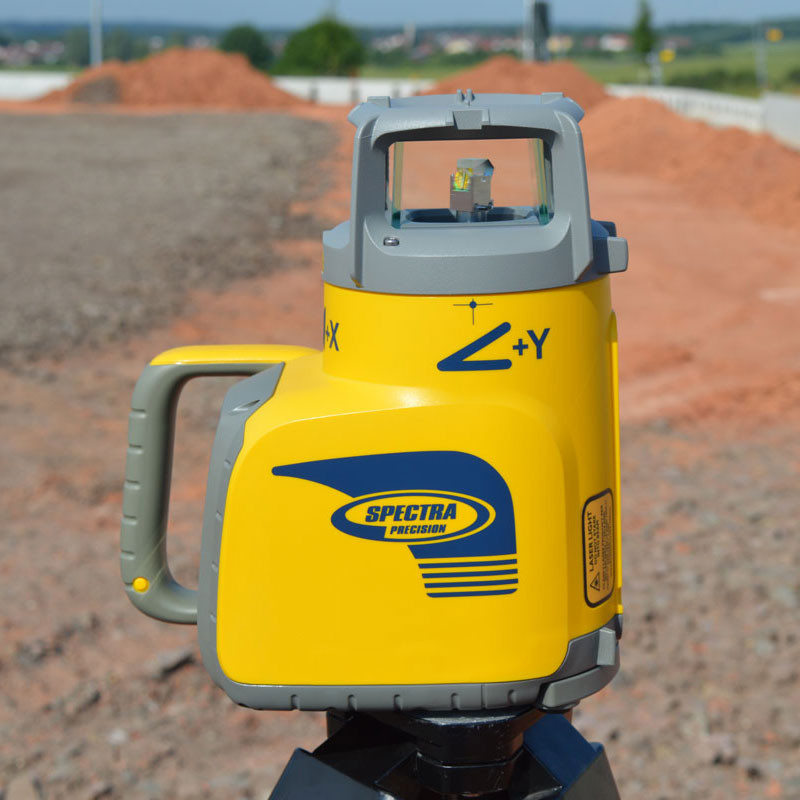

What sets the GL622N apart is its dual slope capability, allowing you to establish two independent grades simultaneously—a critical feature for parking lots, athletic fields, and drainage projects where cross-slopes are essential. The laser provides exceptional accuracy within ±1/16 inch at 100 feet, with a working diameter of up to 2,600 feet (800 meters), making it ideal for everything from residential foundations to large-scale commercial developments.

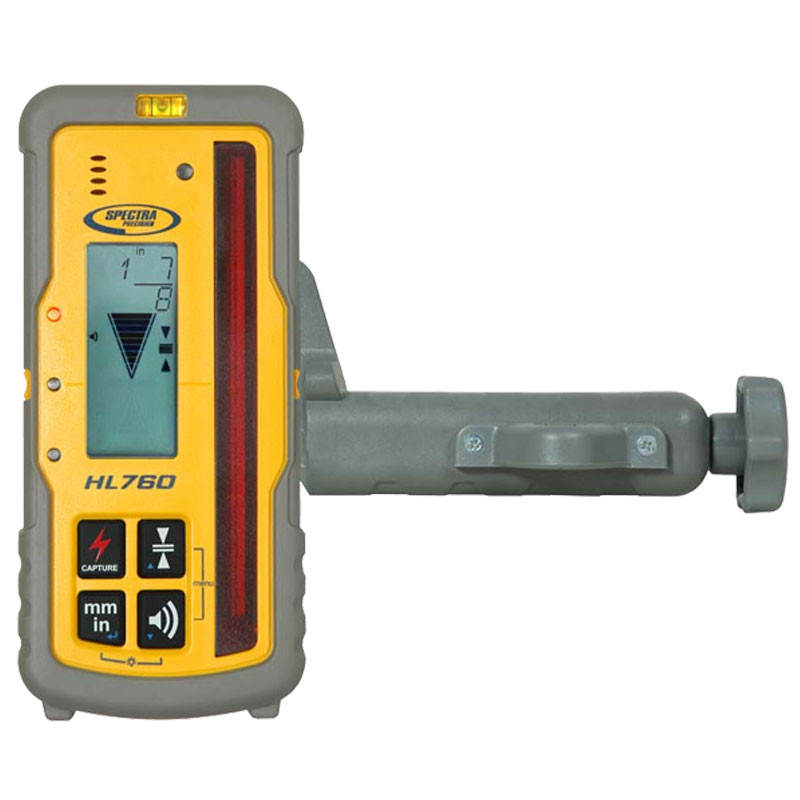

The included HL760 digital receiver features a large LCD display that shows elevation in 1/16-inch increments, eliminating guesswork and reducing callbacks. Combined with the RC602N remote control that operates from up to 1,000 feet away, this system enables single-operator efficiency and dramatically reduces time spent walking back to adjust the laser. The rugged, IP67-rated construction ensures reliable performance in rain, dust, and harsh job site conditions.

Key Specifications

• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Diameter: Up to 2,600 feet (800m) with receiver
• Slope Range: -15% to +15% in both axes
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 0, 300, 600, 900, 1200 RPM (variable)
• Laser Diode: Class 3R, 635nm visible red beam

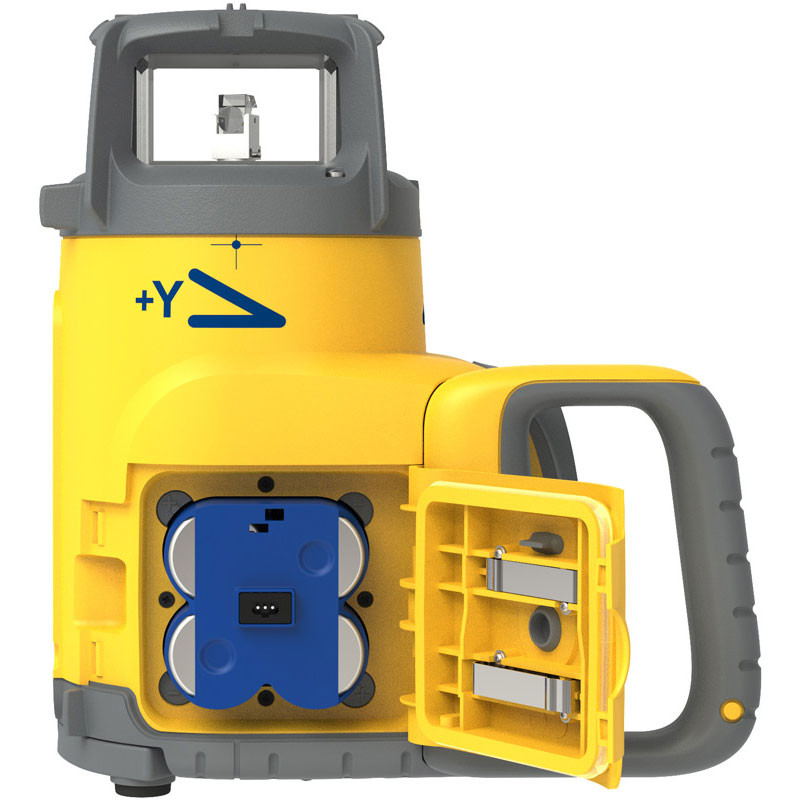

• Power Source: Rechargeable NiMH battery (40+ hours runtime)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Protection Rating: IP67 (dustproof and waterproof)
• Remote Range: Up to 1,000 feet (300m) with RC602N
• Receiver Detection Range: 2,600 feet diameter (800m)
• Display Resolution: 1/16 inch (1mm) on HL760 receiver

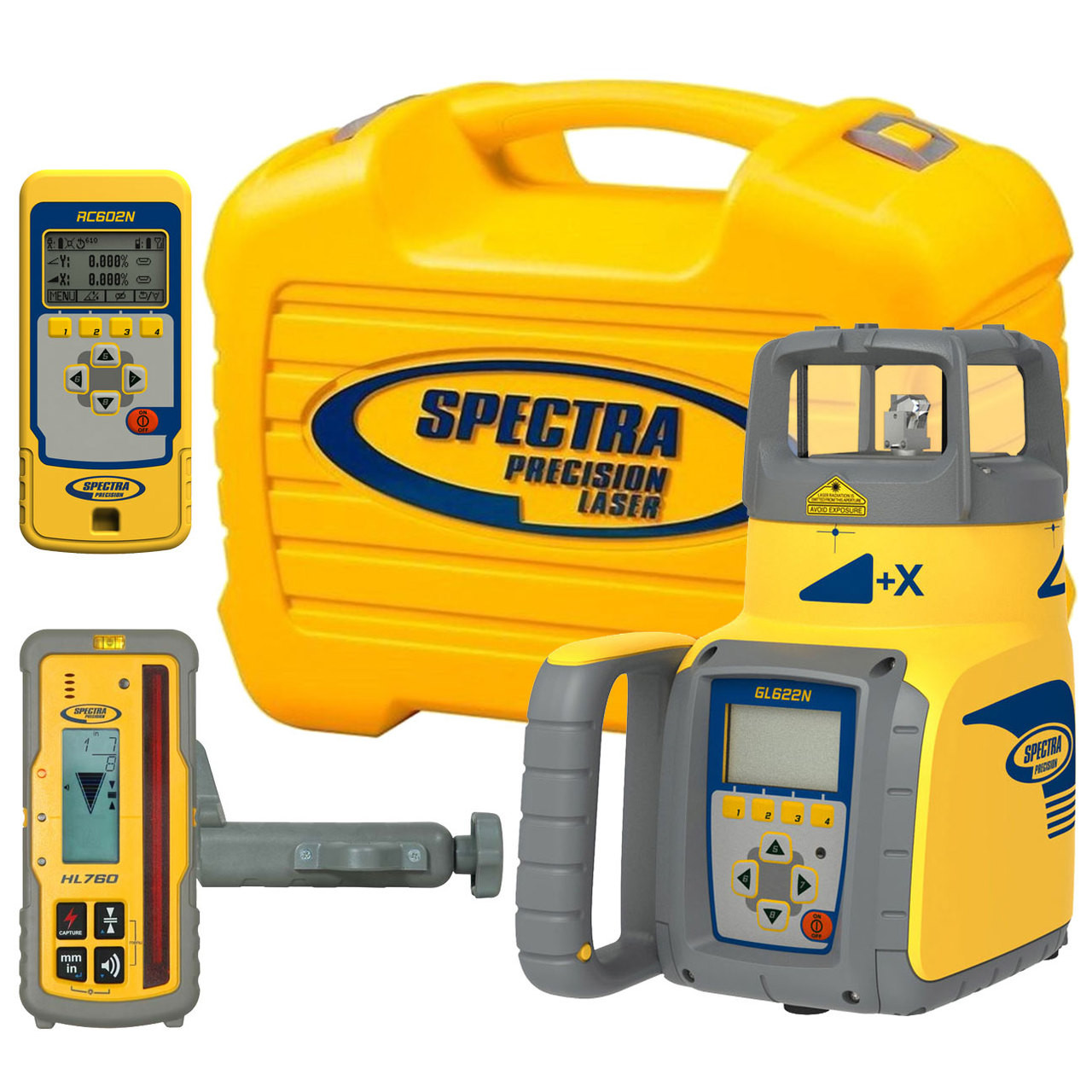

What's in the Kit

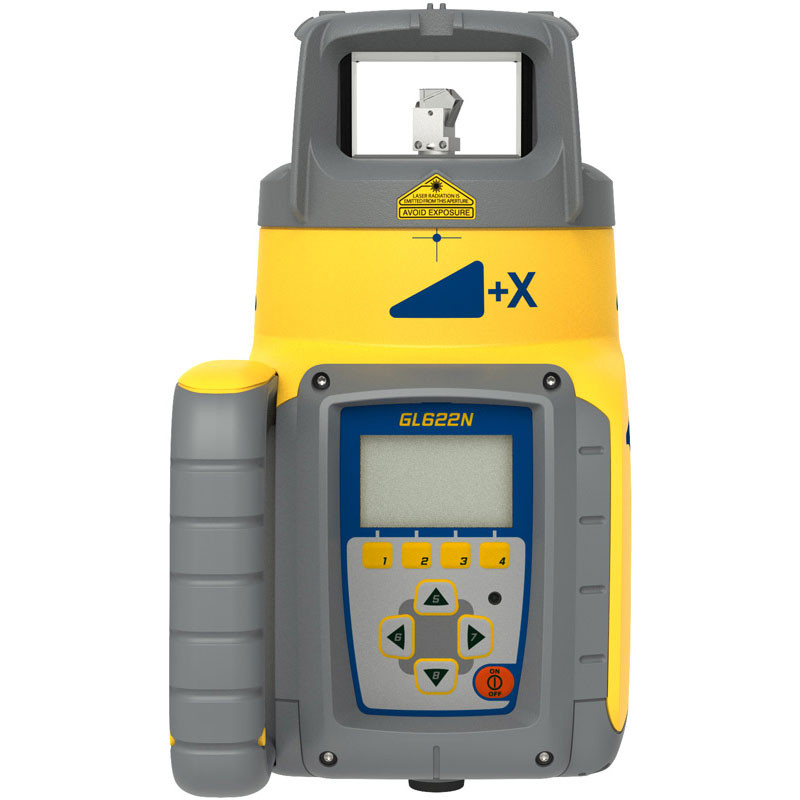

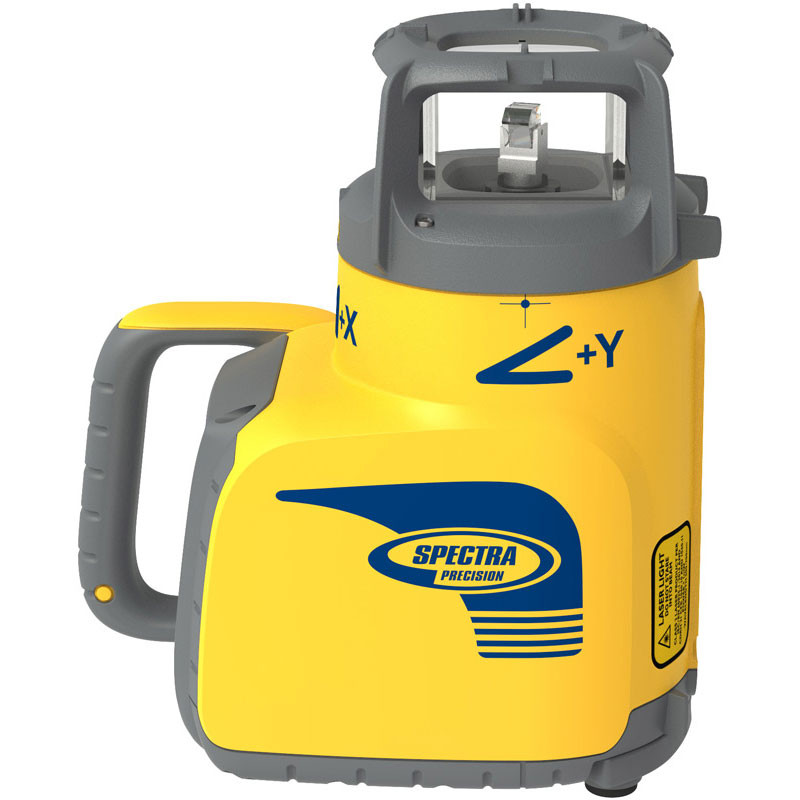

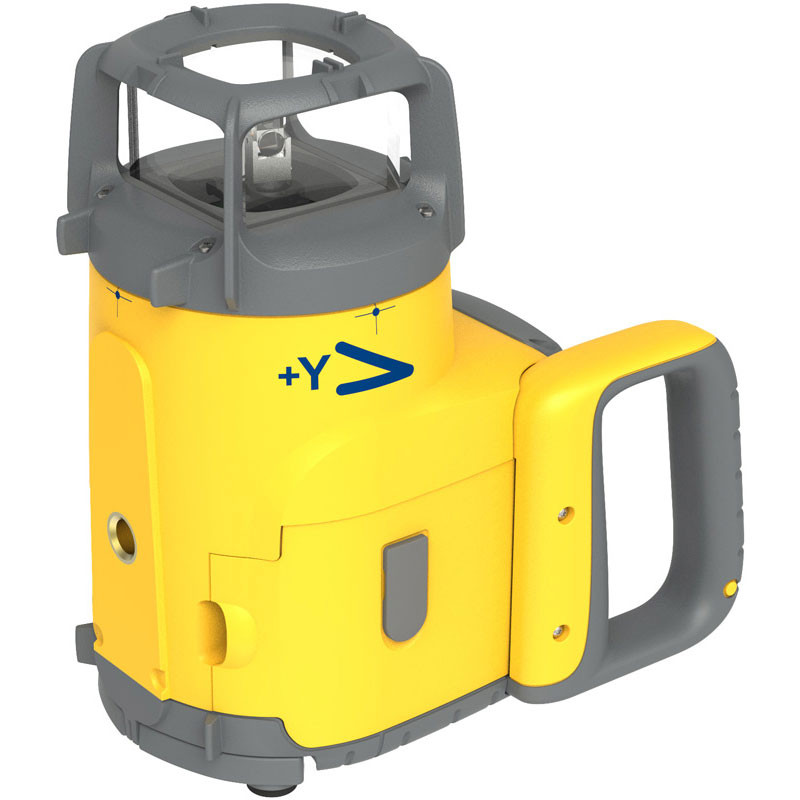

• GL622N Dual Grade Laser Transmitter

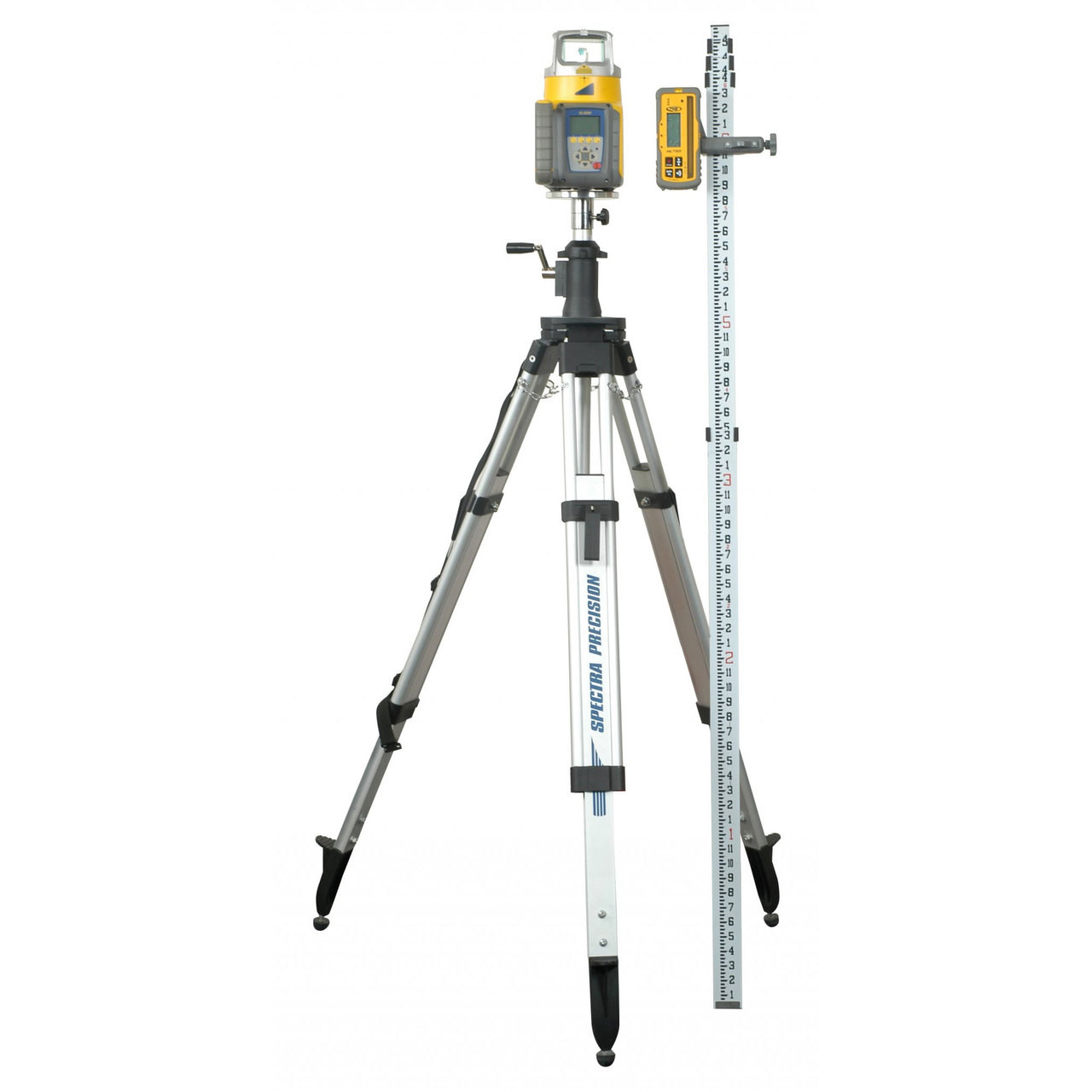

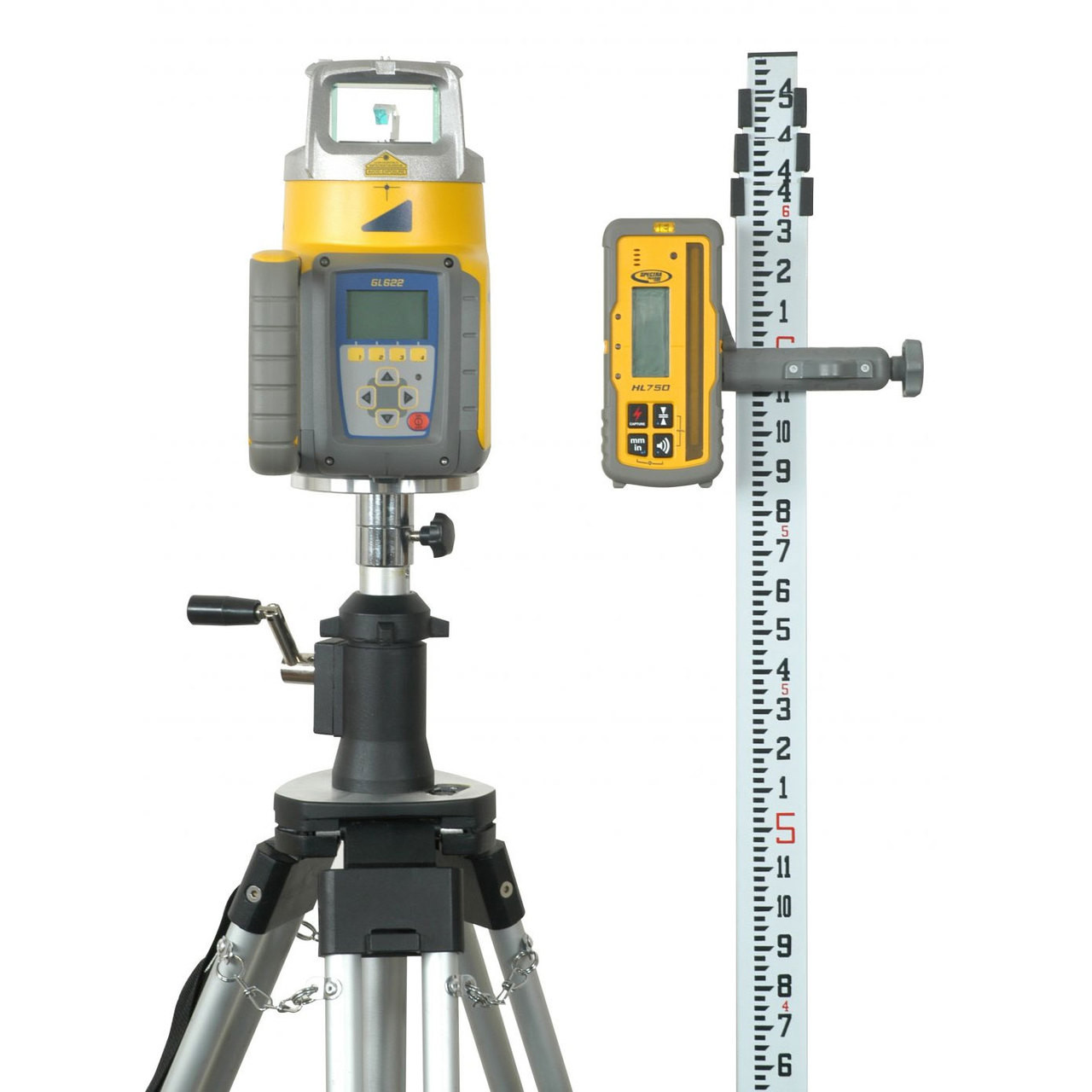

• HL760 Digital Laser Receiver with Rod Clamp
• RC602N Remote Control
• Rechargeable NiMH Battery
• Battery Charger with AC Adapter
• Rugged Hard-Shell Carrying Case
• Operator's Manual and Quick Start Guide
• Calibration Certificate

Job Applications

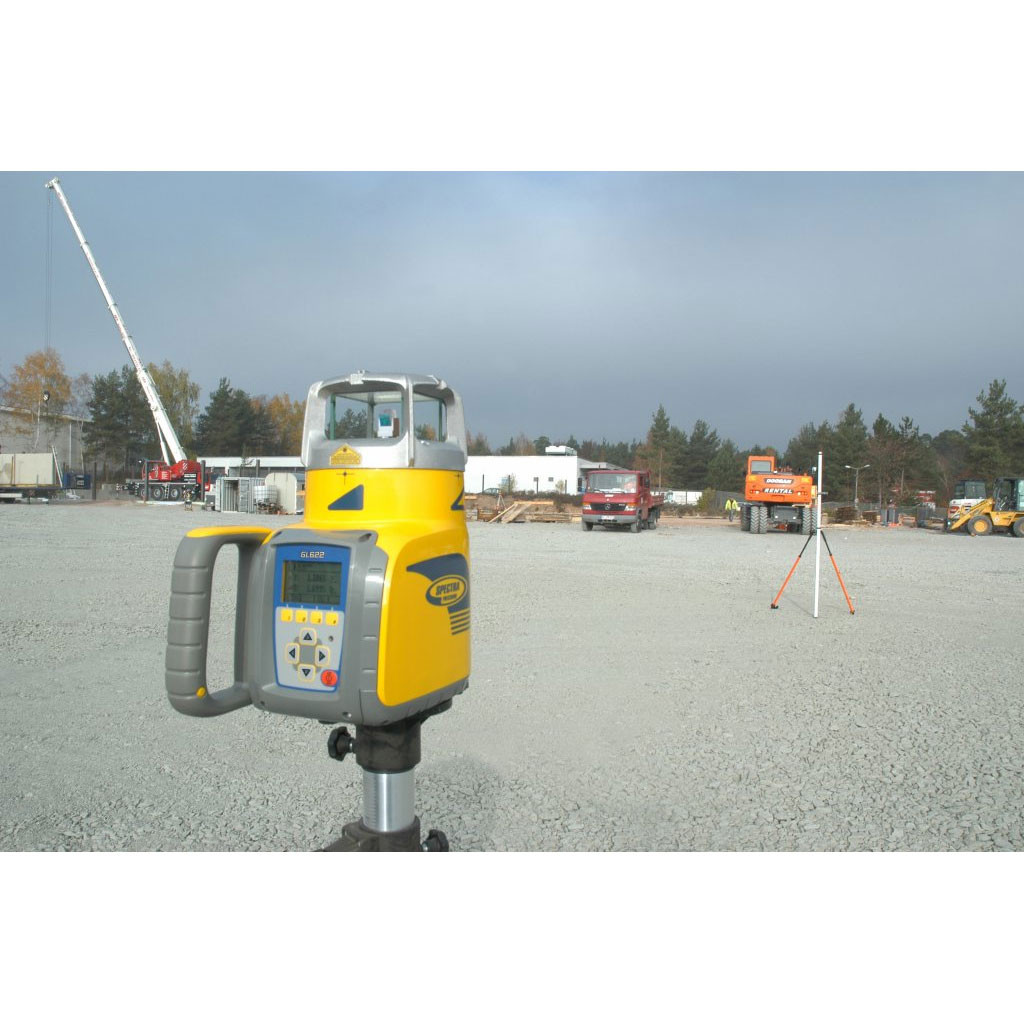

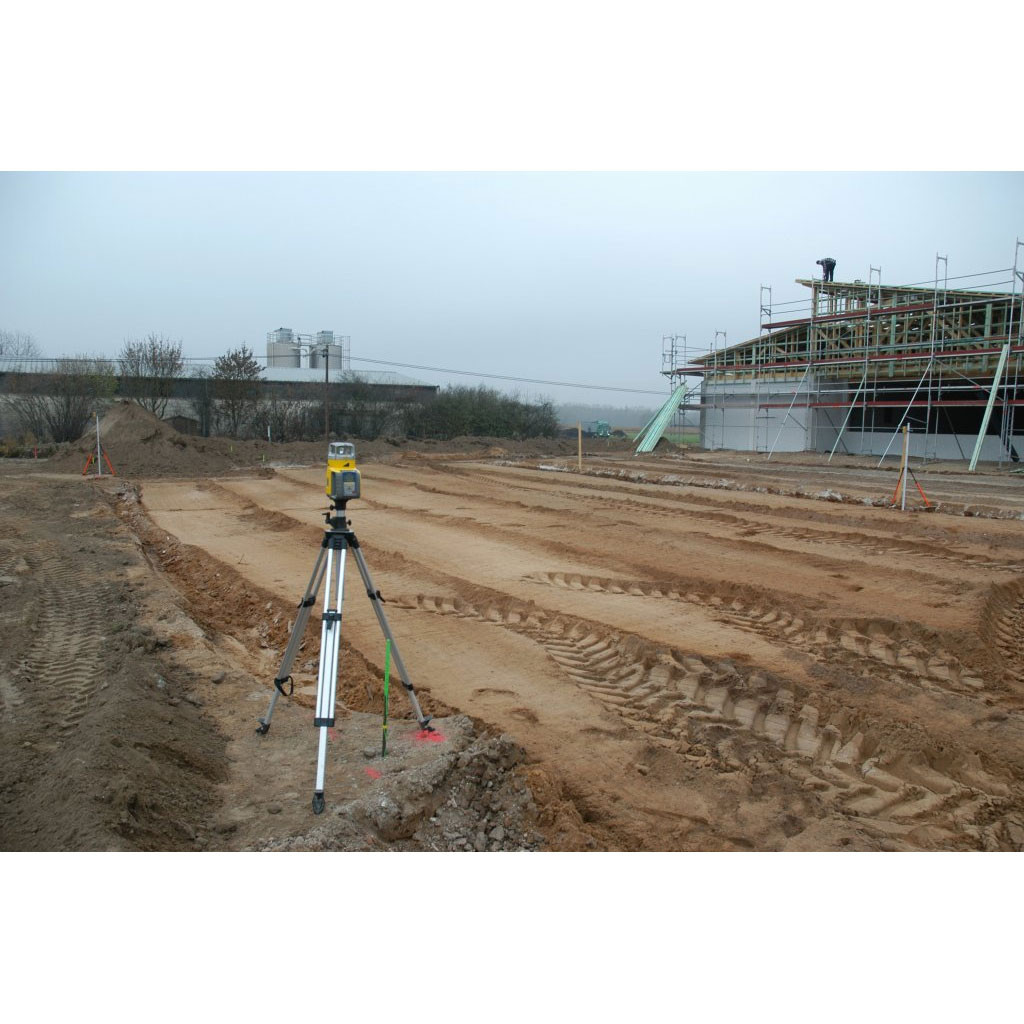

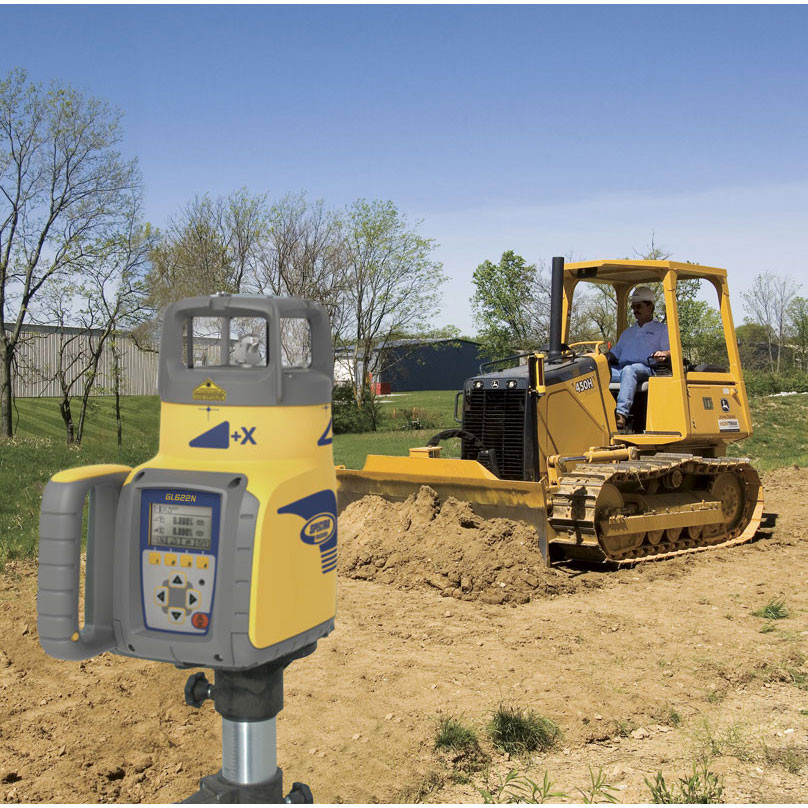

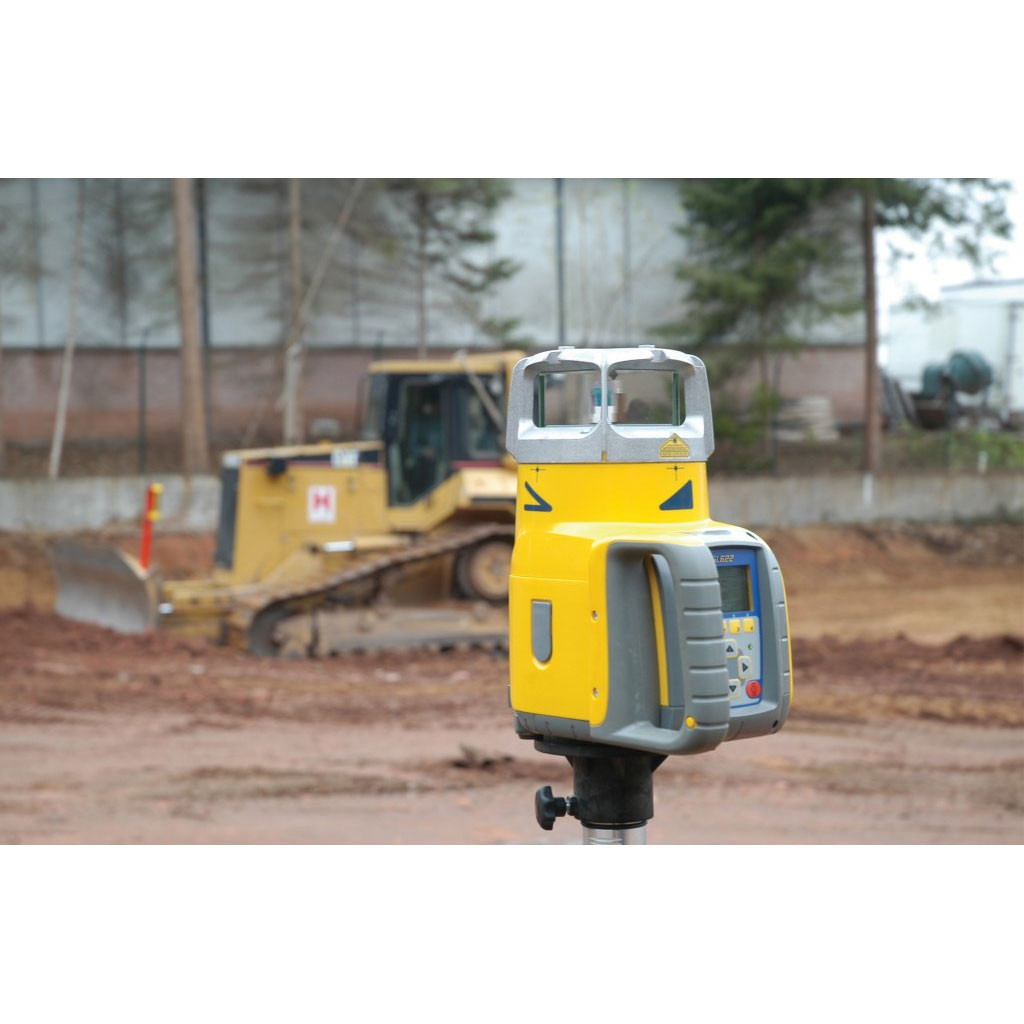

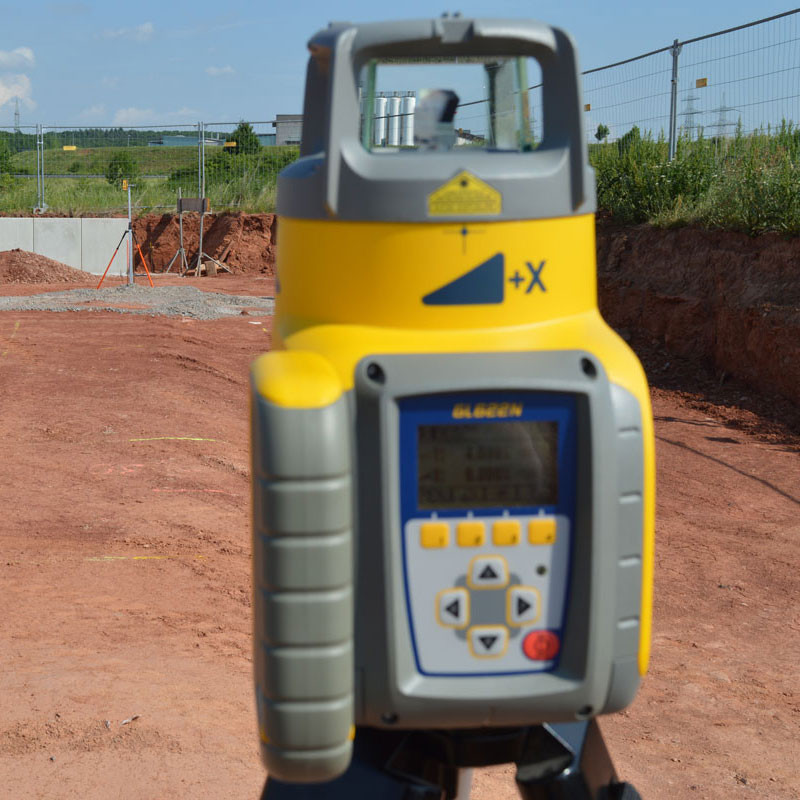

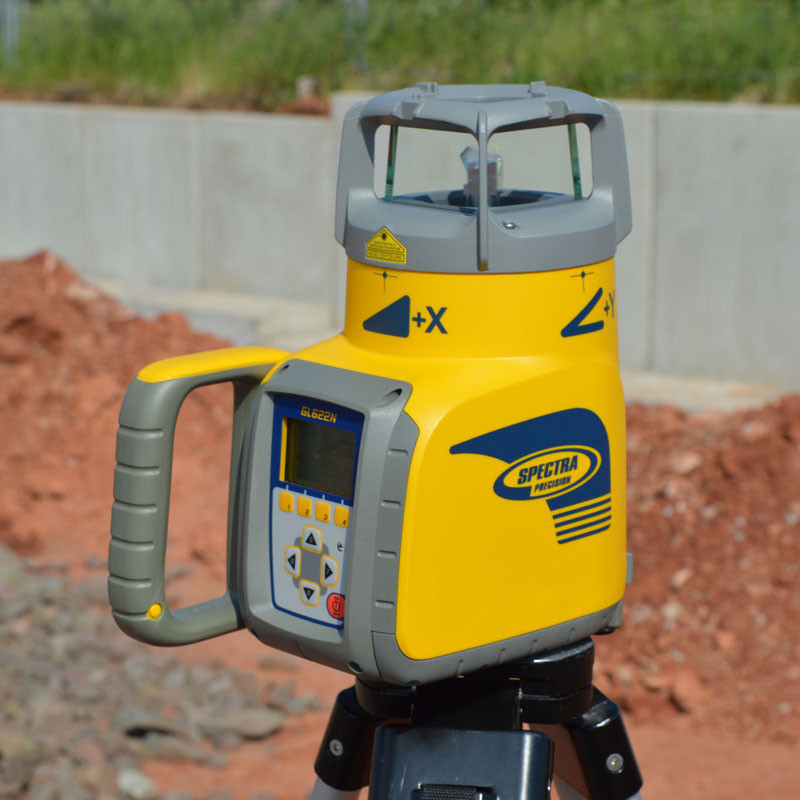

• Site Excavation and Grading: The GL622N's dual slope capability shines in large-scale earthmoving projects where you need to establish complex drainage patterns. Set both X and Y axis slopes simultaneously to create compound grades for proper water runoff, eliminating the need for multiple setups and significantly reducing layout time on commercial and residential developments.
• Parking Lot and Pavement Construction: Achieving proper drainage in parking facilities requires precise cross-slopes, typically 2% in multiple directions. The dual grade function allows you to set perpendicular slopes in a single setup, while the HL760's digital readout ensures consistent elevation control across the entire surface, preventing ponding and ensuring ADA compliance.
• Athletic Field Installation: Crown slopes on sports fields demand accuracy and consistency to ensure proper drainage without affecting play. The GL622N enables you to establish the crown center and gradual slopes toward sidelines simultaneously, while the 2,600-foot working diameter covers entire fields without repositioning, saving hours on baseball diamonds, soccer fields, and golf courses.

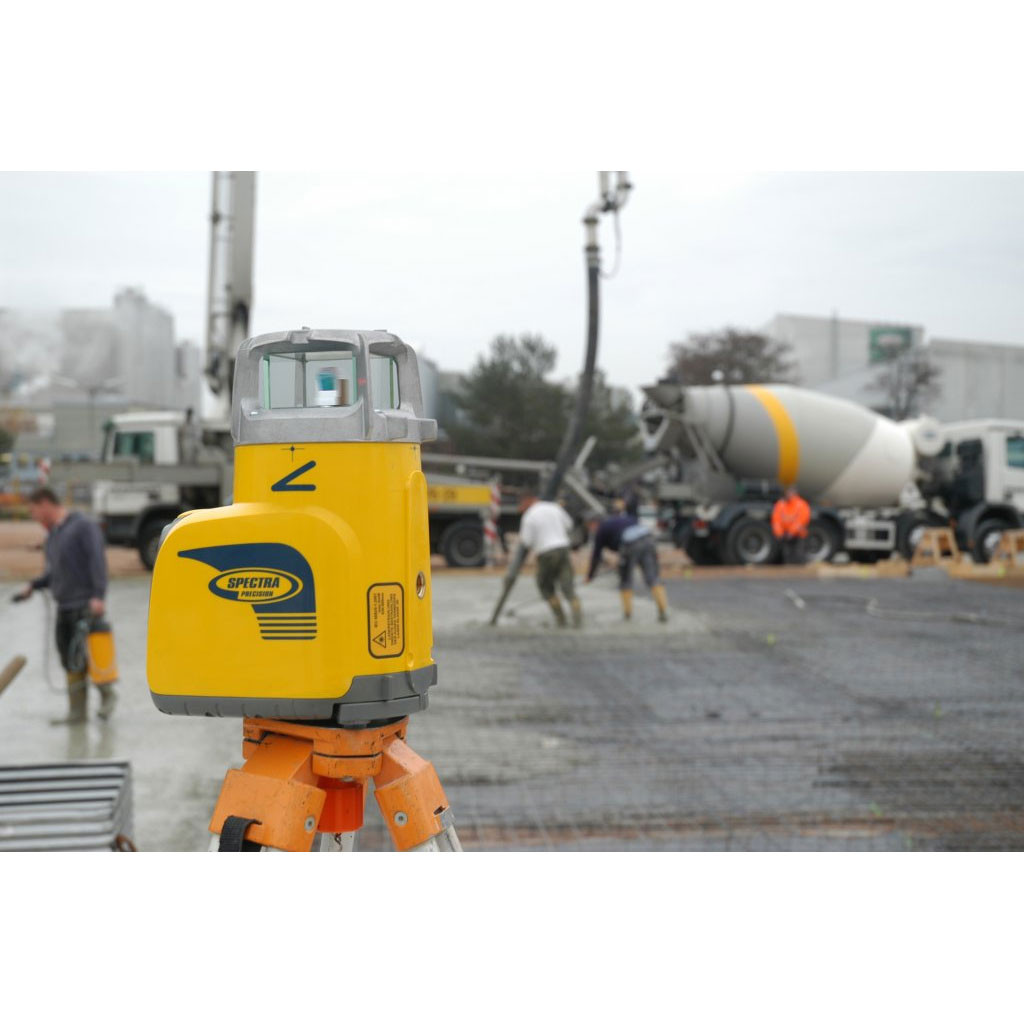

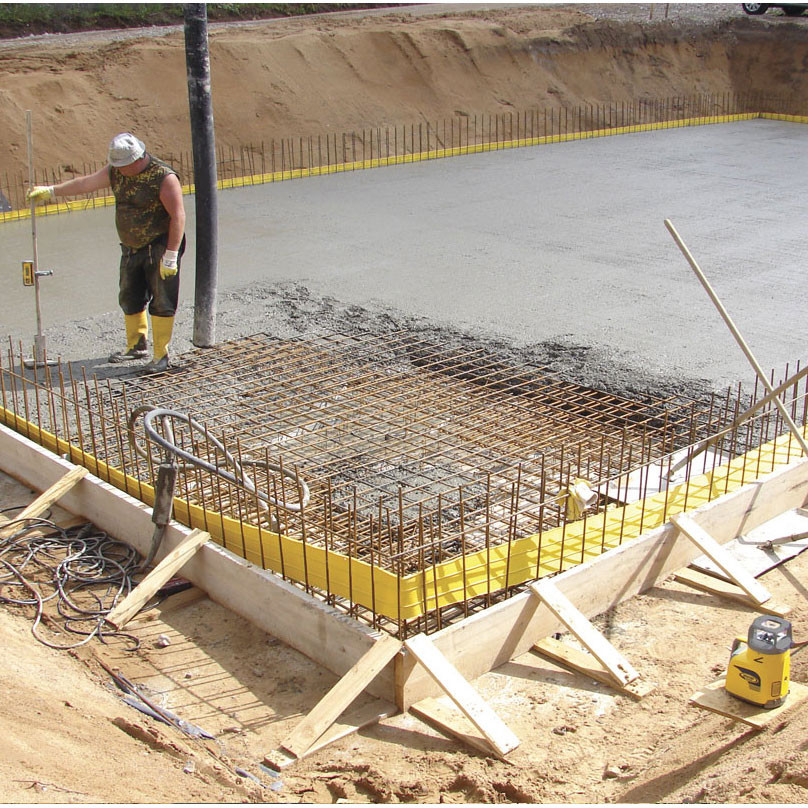

• Foundation Layout and Concrete Forming: Foundation accuracy directly impacts every subsequent construction phase. The horizontal mode with ±1/16-inch precision ensures footings, slabs, and walls are level within tight tolerances, while the remote control allows the operator to make fine adjustments from the work area, improving efficiency and reducing elevation errors that lead to costly corrections.
• Drainage and Utility Installation: Gravity-fed drainage systems require consistent slopes, typically between 1-4%, over extended distances. The GL622N maintains these precise gradients across the entire run, while the HL760 receiver's digital display provides real-time feedback for trenching depth, ensuring proper flow rates and preventing standing water or system backups.
• Land Leveling for Agriculture: Precision agriculture and efficient irrigation depend on properly graded fields. The extensive working range covers large agricultural plots in fewer setups, while the dual slope capability accommodates complex topography, improving water distribution, reducing runoff, and maximizing crop yields through better moisture management.

Compatible Accessories

• Spectra Precision RC602N Replacement Remote Control
• HL760 Replacement Digital Receiver
• Heavy-Duty Laser Grade Rod (10-ft and 14-ft options)
• Tripod with Flat Head (Standard and Heavy-Duty)
• Laser Detector Pole Clamp Replacement
• Additional NiMH Rechargeable Battery Pack

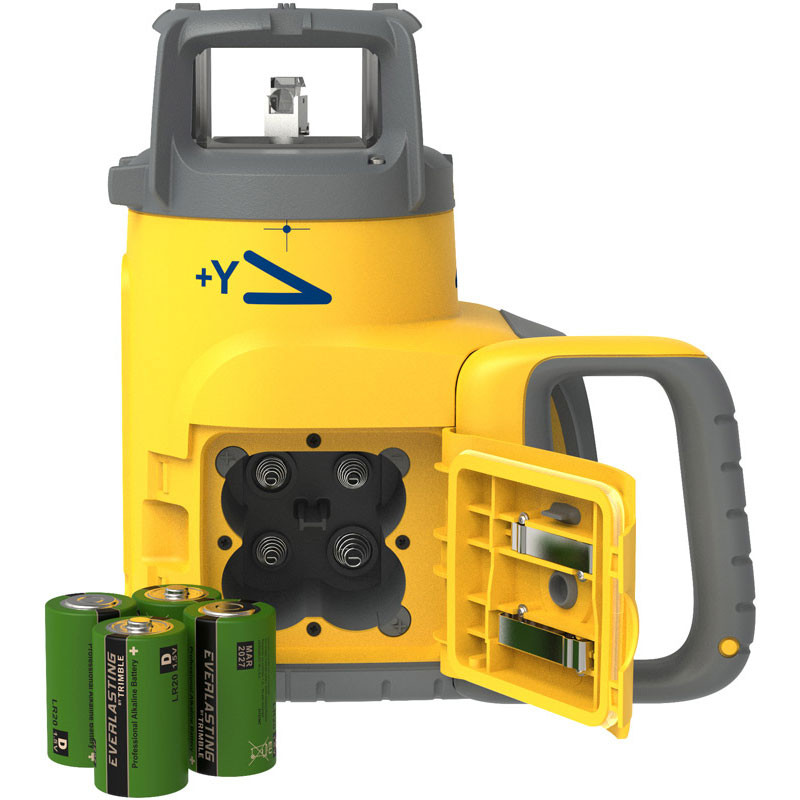

• 12V Alkaline Battery Tray (backup power option)
• Laser Enhancement Glasses for Bright Conditions
• Wall/Column Mount Bracket
• Rotating Laser Detector Rod Clamp

Related Guides

• Complete Guide to Choosing the Right Construction Laser Level
• Single Grade vs. Dual Grade Lasers: Which Do You Need?
• Understanding Laser Receivers and Detection Range
• Maintaining and Calibrating Your Rotating Grade Laser

FAQ

What's the difference between single and dual grade lasers?

A single grade laser creates a sloped plane in one direction only, suitable for simple drainage or straight slopes. The GL622N dual grade laser can create slopes in two perpendicular directions simultaneously (X and Y axes), enabling compound slopes essential for parking lots, athletic fields, and complex drainage scenarios. This eliminates multiple setups and ensures accurate cross-slopes that would be difficult to achieve with single-grade units.

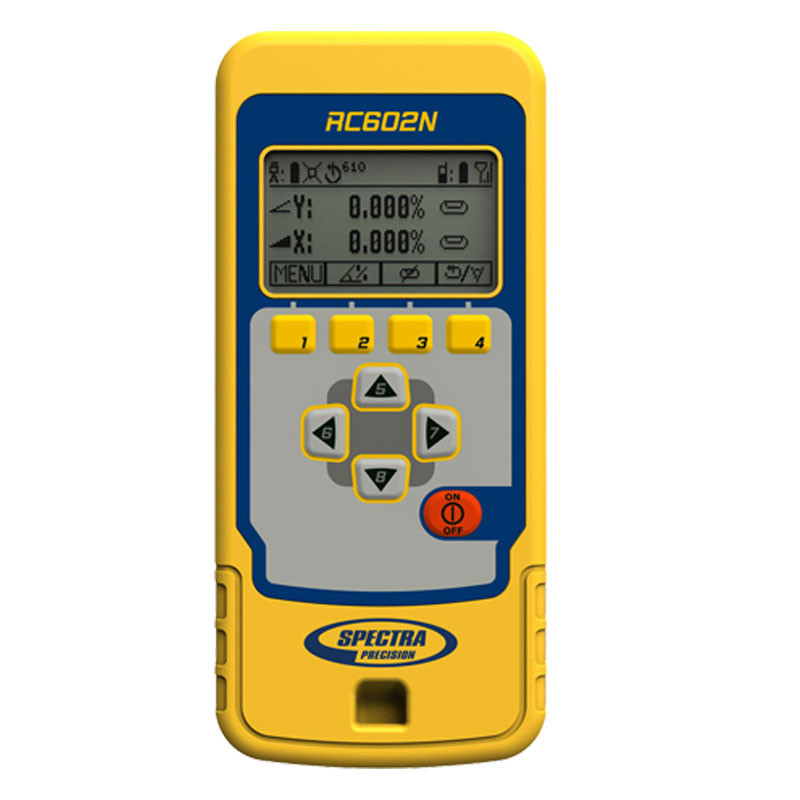

How far can I use the RC602N remote control from the laser?

The RC602N remote control has an effective range of up to 1,000 feet (300 meters) from the GL622N laser transmitter under normal conditions. This extensive range allows a single operator to make slope adjustments, change rotation speed, or switch between modes without walking back to the unit, dramatically improving productivity on large job sites. Range may be reduced by obstacles, interference, or low battery conditions.

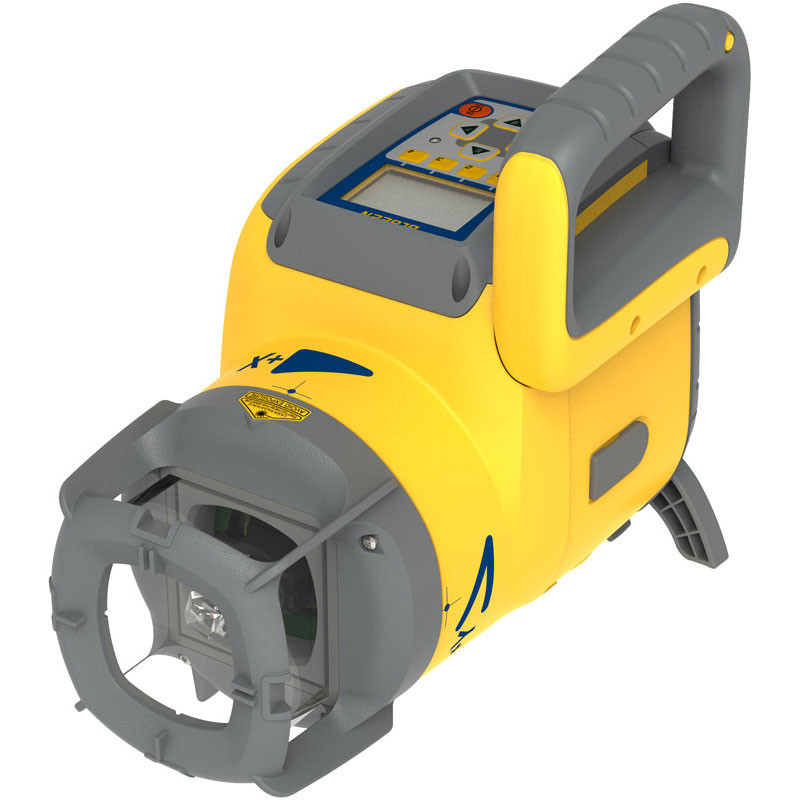

Can the GL622N be used for vertical layout or plumb applications?

No, the GL622N is designed specifically for horizontal leveling and grade applications. It rotates in a horizontal plane only and cannot be positioned vertically for wall plumb or vertical alignment work. For projects requiring both grade work and vertical layout, consider pairing the GL622N with a dedicated pipe laser or multi-function laser level that includes vertical capabilities.

How often does the GL622N need calibration, and can I do it myself?

Spectra Precision recommends professional calibration annually or whenever the laser is dropped or subjected to significant impact. While the GL622N includes robust self-leveling and error detection, precision verification requires specialized equipment. Most dealers and service centers offer calibration services, and the laser will alert you if it detects out-of-level conditions. Proper storage and handling will maintain accuracy between scheduled calibrations.
