Spectra Precision GL622N-BCC Dual Grade Laser with NO RECEIVER and NO REMOTE CONTROL

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Grade Range: ±10% on both X and Y axes simultaneously
Self-leveling Range: ±5°
Working Range: Up to 2,000 ft (600 m) diameter with compatible receiver
Grade Accuracy: ±1.5 arc seconds (±0.0004 ft/ft)
Rotation Speed: 100, 300, and 600 RPM selectable
Power Source: Rechargeable NiMH battery pack (included)

Spectra PrecisionGL622N-BCCSKU 11-SCR05-MNew

Grade Lasers →

Spectra Precision GL622N-BCC Dual Grade Laser with

Name: Spectra Precision GL622N-BCC Dual Grade Laser with NO RECEIVER and NO REMOTE CONTROL
Brand: Spectra Precision
SKU: 11-SCR05-M
Price: 2885.00 USD
Availability: InStock

Tool only — receiver & accessories sold separately

$2885.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

±10% on both X and Y axes simultaneously Range

Cover large layout jobs with a ±10% on both X and Y axes simultaneously working reach.

±1.5 arc seconds (±0.0004 ft/ft) Accuracy

Hold grade with a ±1.5 arc seconds (±0.0004 ft/ft) accuracy rating.

Power Source

Runs on Rechargeable NiMH battery pack (included) for jobsite flexibility.

Authorized Spectra Precision Dealer

Genuine, factory-fresh Spectra Precision equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Continuous grade control, no stakes

Eliminates grade staking between passes. One operator on the machine vs. 2-3-person conventional crew.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this grade laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision GL622N-BCC?

The Spectra Precision GL622N-BCC Dual Grade Laser with NO RECEIVER and NO REMOTE CONTROL is a professional-grade dual-axis rotary laser designed for contractors requiring precision grading on job sites. It delivers ±10% grade range on both X and Y axes simultaneously with ±1.5 arc seconds grade accuracy, and operates up to 2,000 ft diameter working range with a compatible receiver. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this grade lasers for

Motor Grader Control

Automatic blade control for road base and subgrade

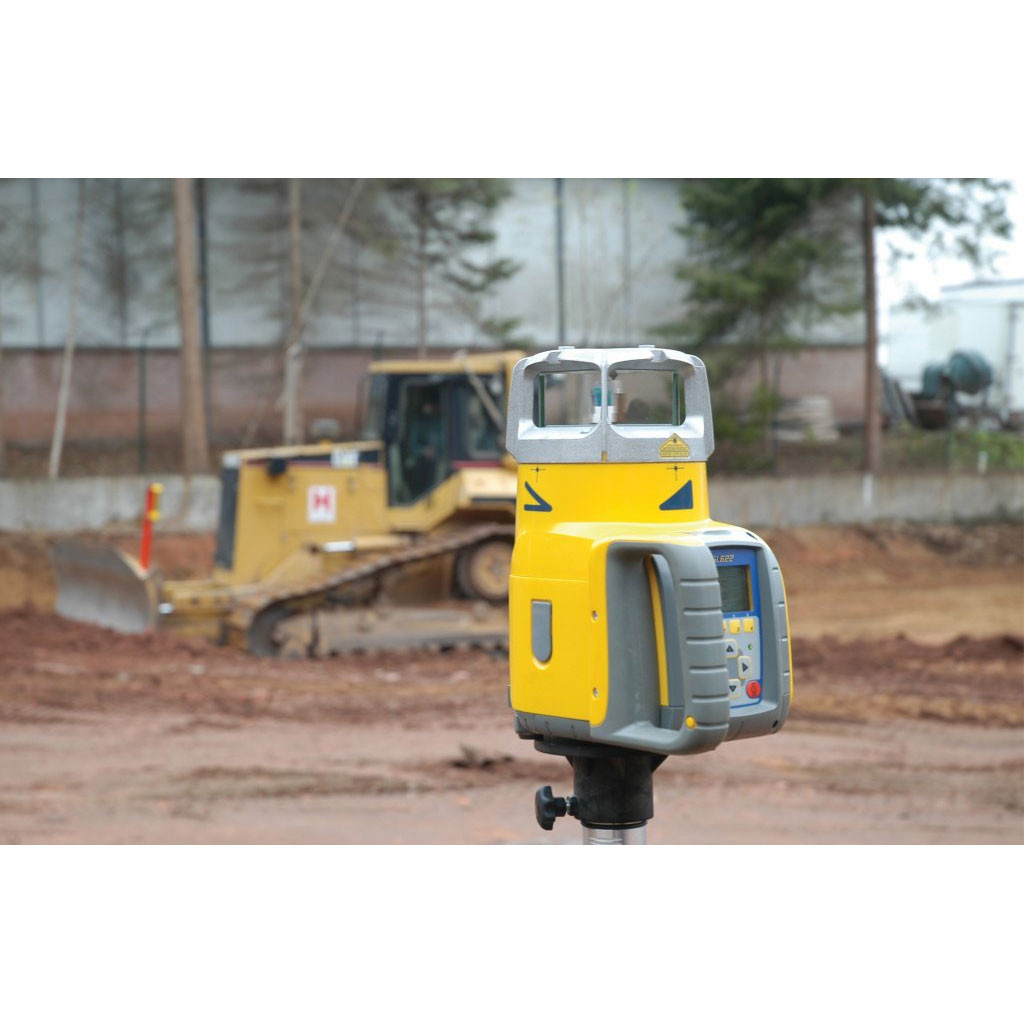

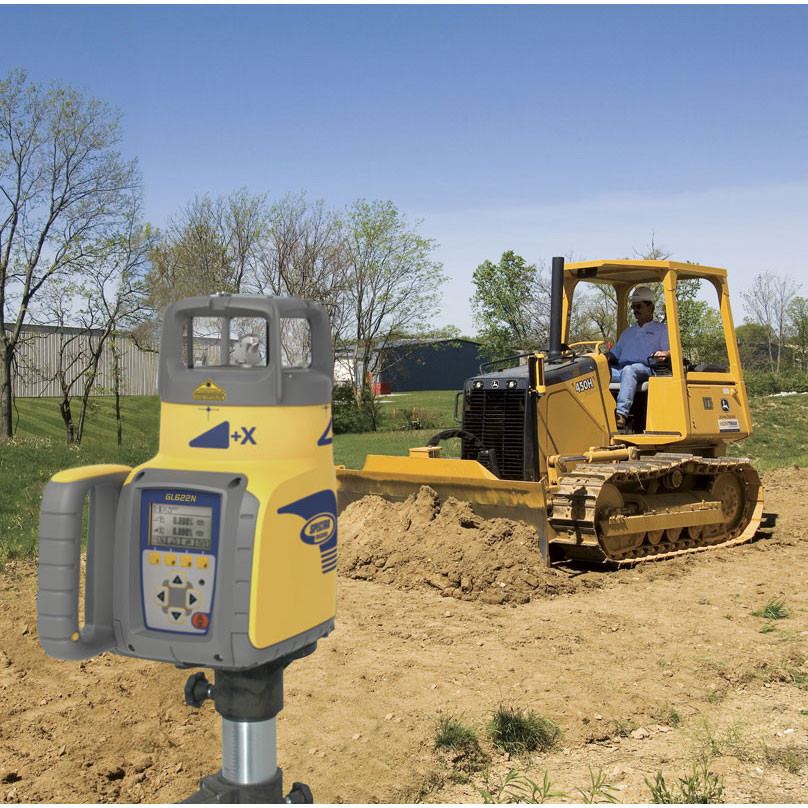

Dozer Earthwork

Push-to-grade for rough cut and finish passes

Pipe Trench Grading

Set trench bottom elevation for gravity pipe installation

Drainage Work

Parking lot drainage, swales, retention basins

PRODUCT OVERVIEW

Product Description

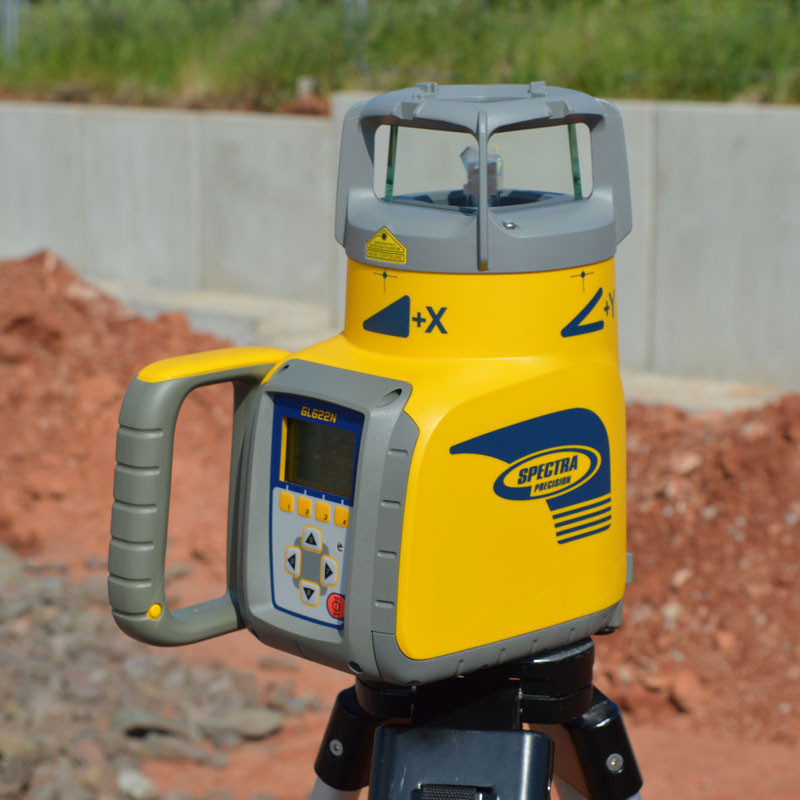

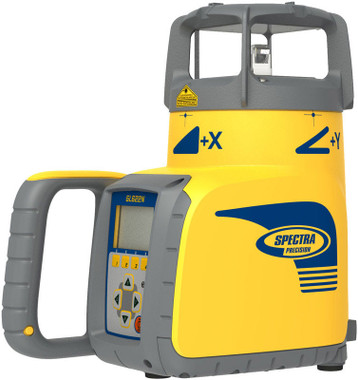

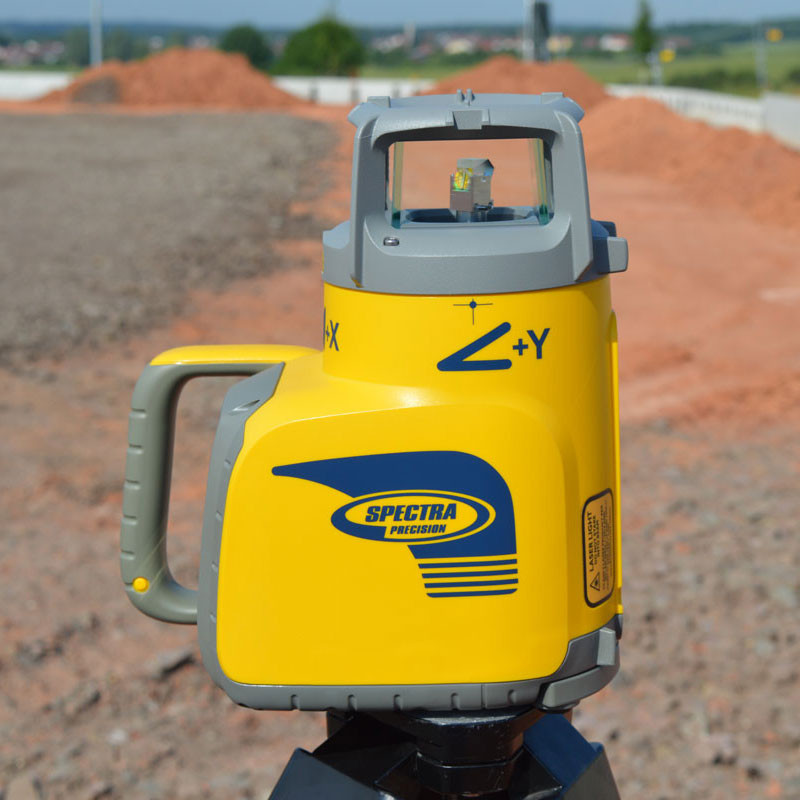

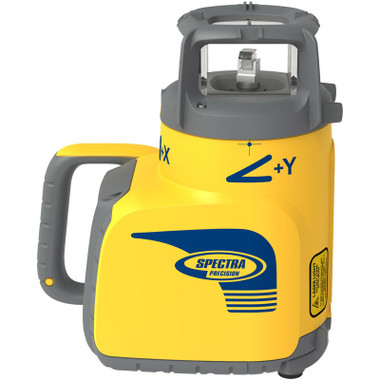

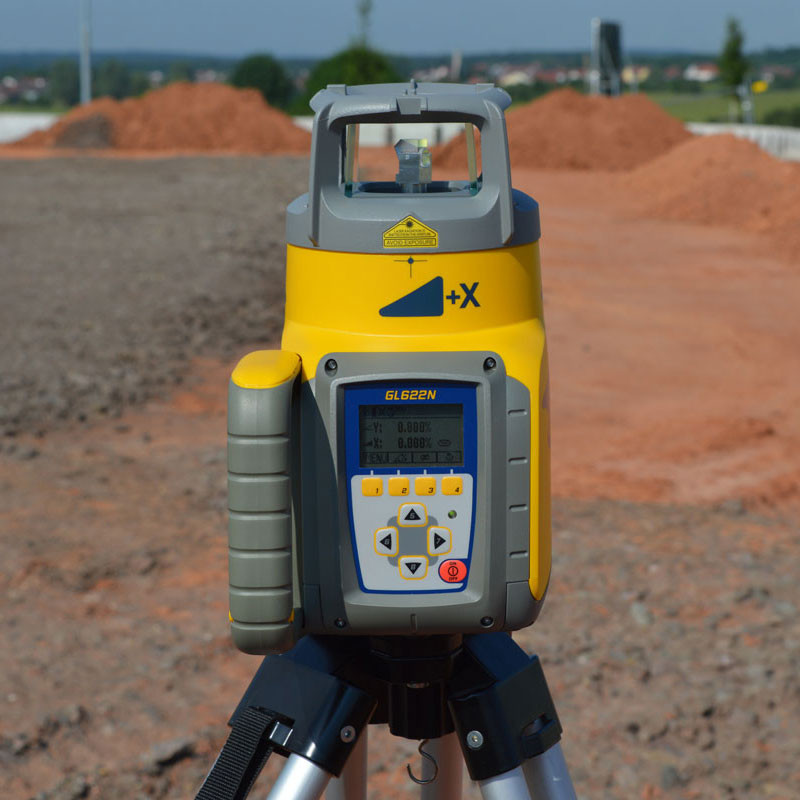

The Spectra Precision GL622N-BCC is a professional-grade dual-slope rotating laser transmitter designed for contractors who demand precision across complex grading, drainage, and site preparation work. This bare unit configuration ships with the transmitter, rechargeable battery pack, charger, and protective carrying case — without a machine control receiver or remote control. It is the ideal choice for crews who already own compatible receivers, manage multiple laser systems across a fleet, or need a direct transmitter replacement without duplicating accessories they already have on the job.

Product Overview

The GL622N-BCC delivers the same dual-grade capability as the full GL622N kit in a cost-efficient package. Dual-axis grade control allows operators to set independent slopes on both the X and Y axes simultaneously, making it well suited for parking lot drainage, road crown work, agricultural land forming, and complex slab pours. The self-leveling system compensates for minor setup variations and the high-visibility laser beam maintains accuracy across long working ranges — up to 2,000 feet in diameter with a compatible receiver. Whether you're working on a municipal drainage project or a large commercial concrete pour, the GL622N-BCC delivers the performance professionals rely on.

Key Specifications

Grade Range: ±10% on both X and Y axes simultaneously
Self-Leveling Range: ±5°
Working Range: Up to 2,000 ft (600 m) diameter with compatible receiver
Grade Accuracy: ±1.5 arc seconds (±0.0004 ft/ft)
Rotation Speed: 100, 300, and 600 RPM selectable
Power Source: Rechargeable NiMH battery pack (included)
Battery Life: Up to 100 hours per charge
Operating Temperature: -4°F to 131°F (-20°C to 55°C)
Ingress Protection: IP66-rated dust and water resistance
Weight: Approximately 9.5 lbs (4.3 kg) with battery

What's Included in the Bare Unit Configuration

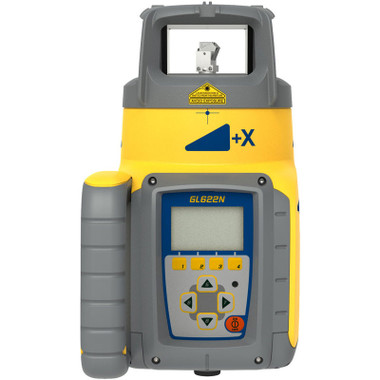

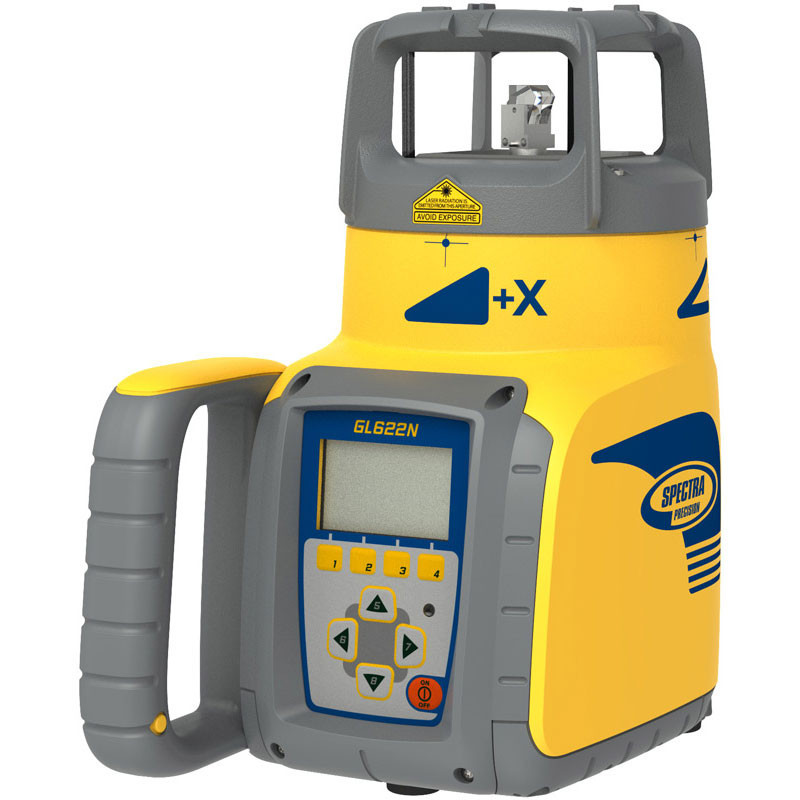

Spectra Precision GL622N dual-grade laser transmitter

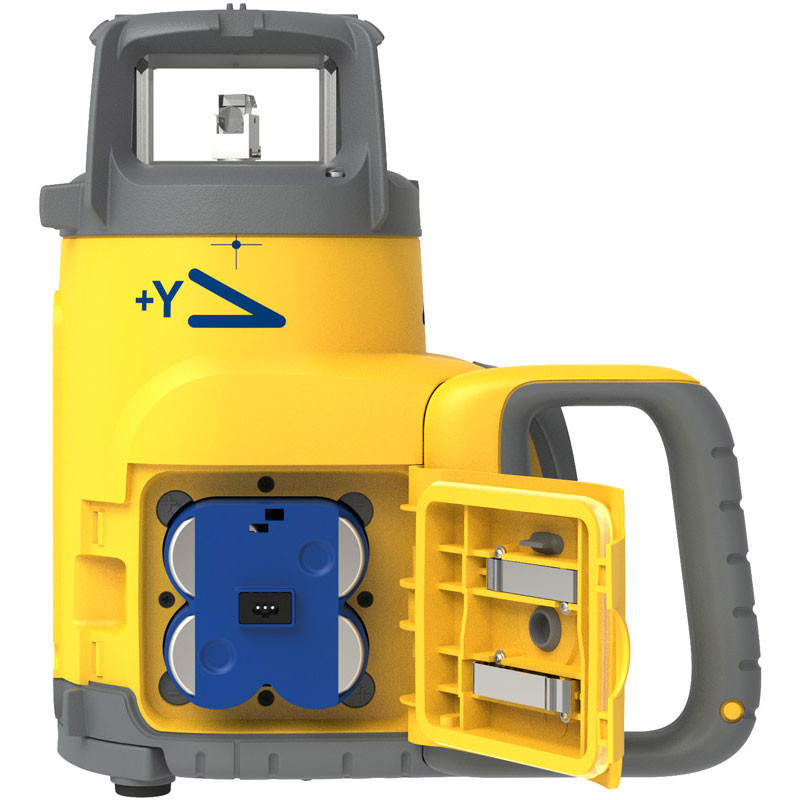

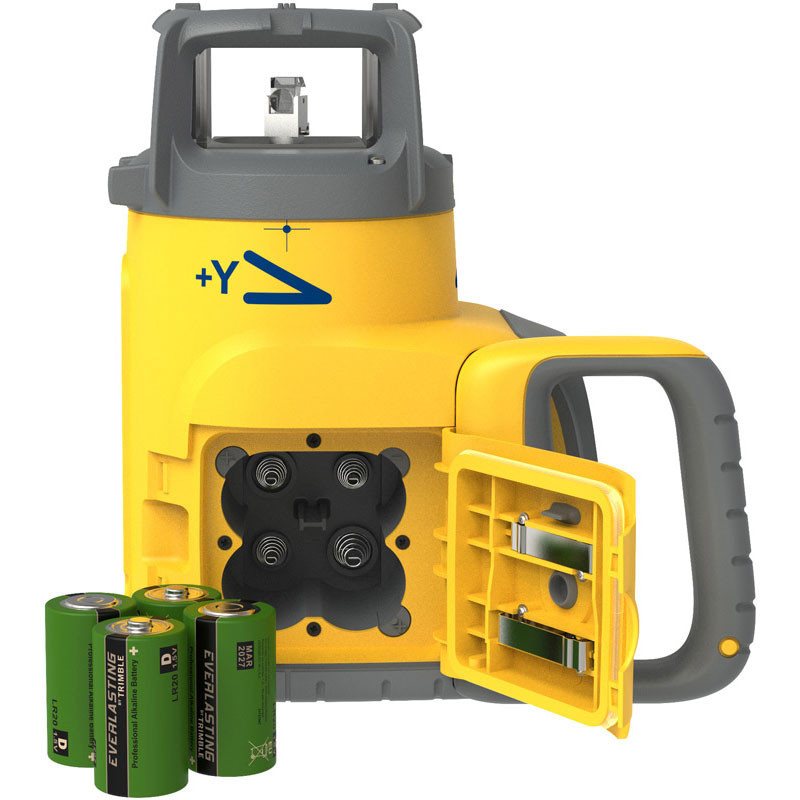

Rechargeable NiMH battery pack
Battery charger
Hard-shell protective carrying case
Note: Machine control receiver and remote control are NOT included

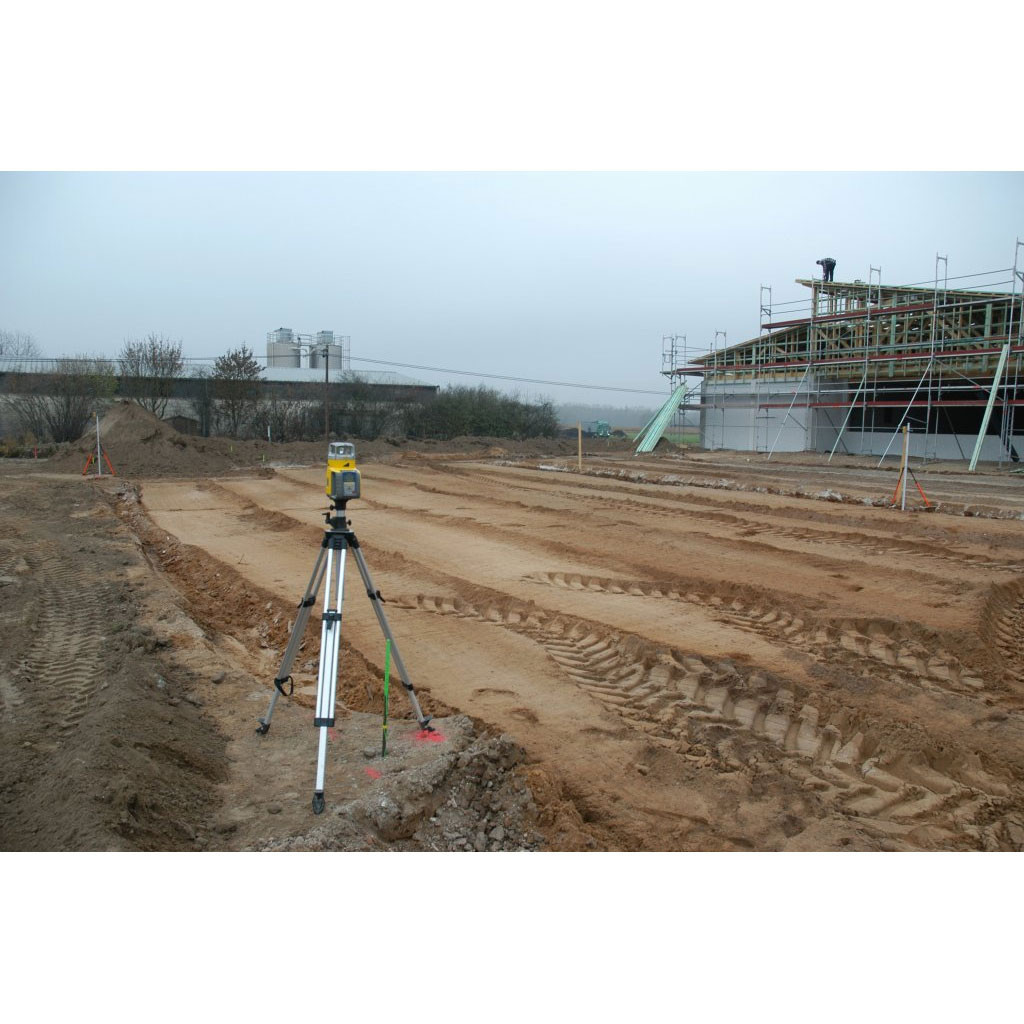

Job Applications

The GL622N-BCC is built for demanding site conditions across a range of contractor applications:

Parking Lot and Road Drainage: Set independent X and Y slopes to achieve precise two-plane drainage gradients without manual string lines or repeated grade checks.
Agricultural Land Forming: Cover large field areas with consistent grade accuracy, reducing irrigation runoff issues and improving crop field efficiency.

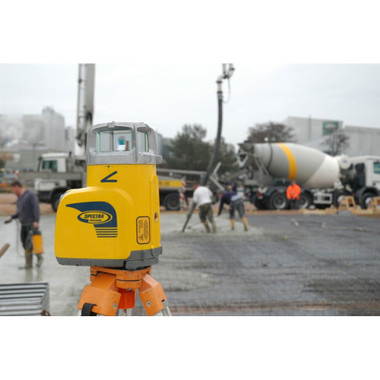

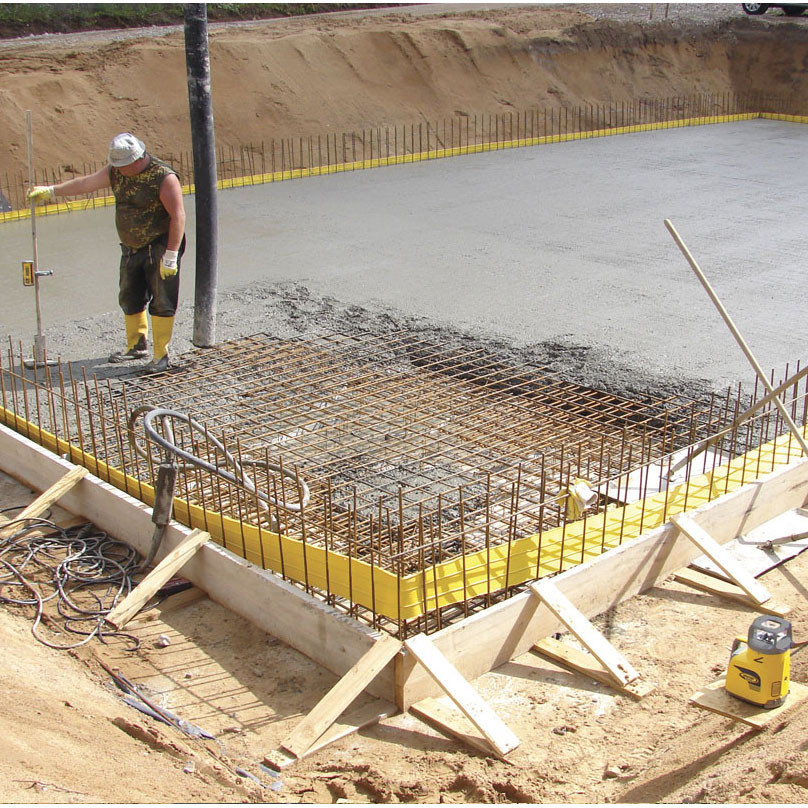

Commercial Slab and Foundation Work: Maintain tight grade tolerances across large concrete pours, ensuring floors meet spec and drain correctly from day one.
Pipeline and Utility Trenching: Establish consistent fall-per-foot grades for gravity-fed drainage and sewer lines across long trench runs.

Compatible Accessories

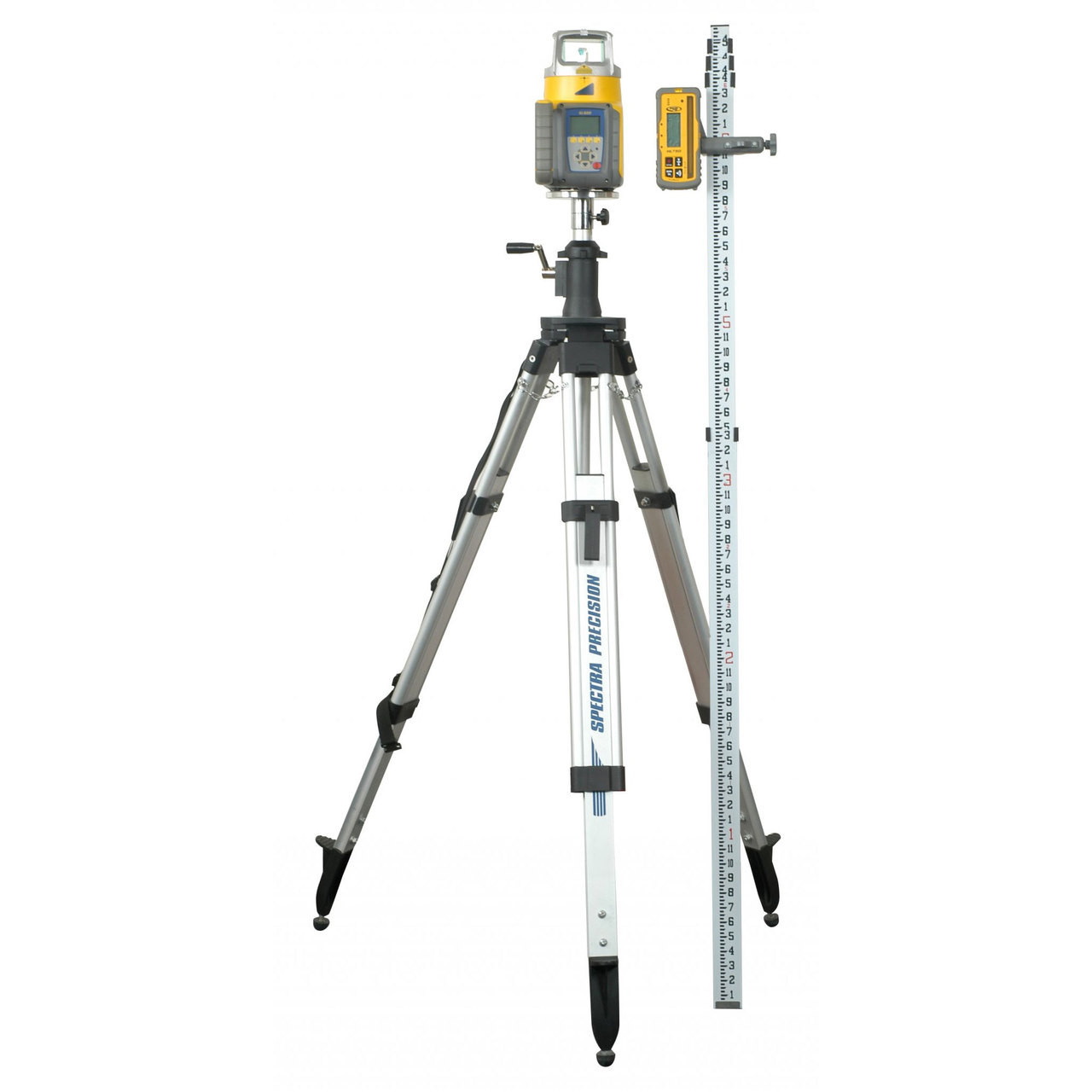

Pair the GL622N-BCC with compatible Spectra Precision accessories to build a complete system or expand your existing setup:

Related Guides

Frequently Asked Questions

Does the GL622N-BCC include a laser receiver?: No. The BCC configuration is a bare unit that includes only the transmitter, rechargeable battery pack, charger, and carrying case. A machine control or hand-held receiver must be purchased separately. This makes it an economical option for contractors who already own compatible Spectra Precision receivers.

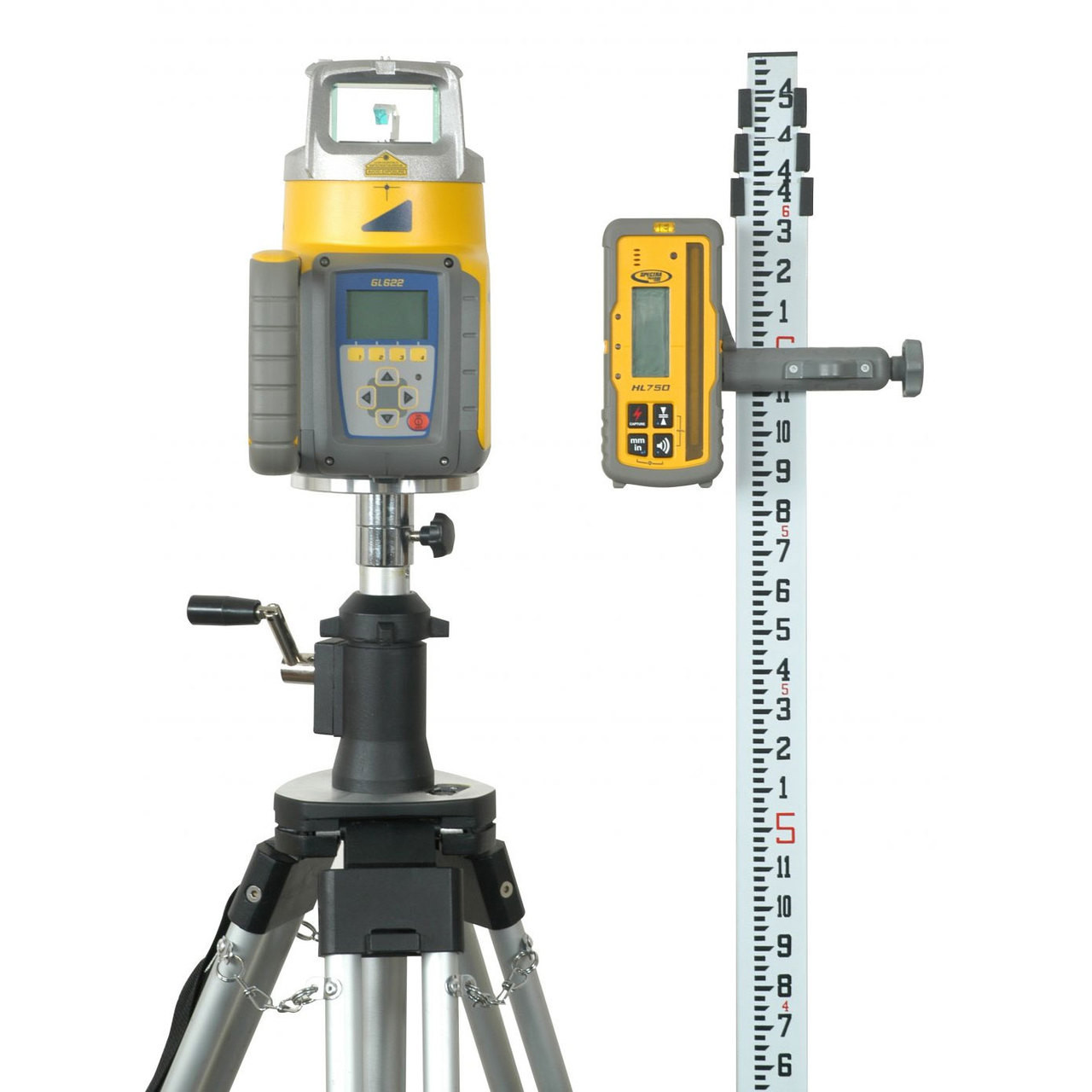

Which receivers are compatible with the GL622N-BCC?: The GL622N-BCC is compatible with a range of Spectra Precision receivers including the HL760 machine control receiver and the HR320 hand-held receiver, among others. If you're unsure which receiver works with your existing equipment, contact the Express Tools team for guidance before purchasing.

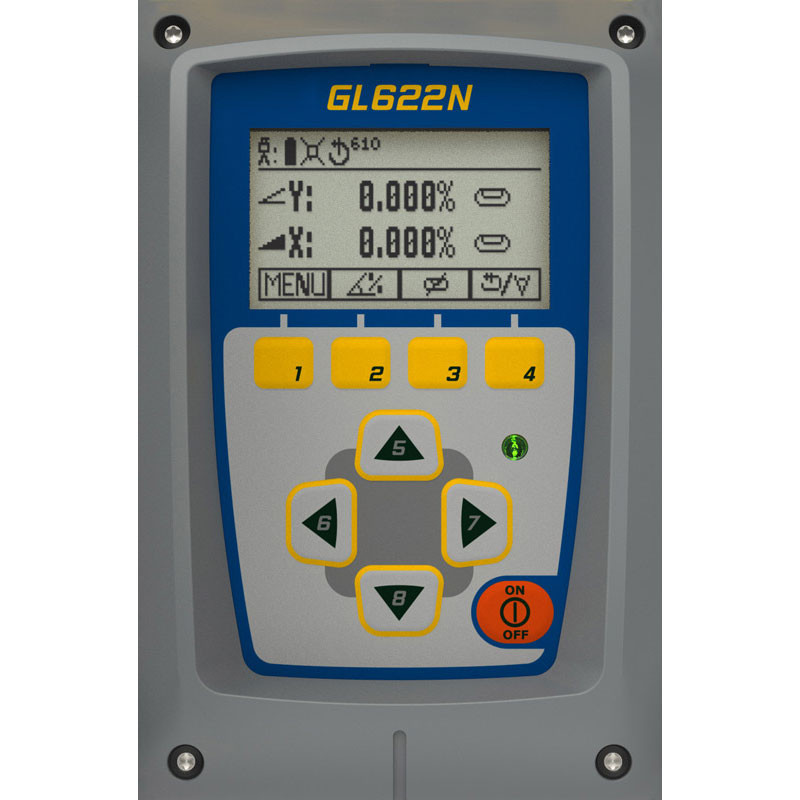

Can the GL622N-BCC be operated remotely?: The RC402N remote control (sold separately) is compatible with the GL622N and allows full remote operation of grade settings and rotation speed from up to 330 feet away. Remote control is not included in the BCC bare unit package.
What is the battery life and charging time for the included battery pack?: The included NiMH rechargeable battery pack provides up to 100 hours of runtime under normal operating conditions. A full recharge typically takes approximately 8 hours using the included charger. The long battery life makes the GL622N-BCC well suited for multi-day continuous operation on large job sites.

Why This Equipment

Dual Grade Control

Control two slopes simultaneously for crowns, swales, and complex drainage layouts.

Machine Ready

Pairs with machine receivers for dozer, grader, and scraper grade control.

IP67 Rated

Weatherproof for outdoor use in rain, dust, and construction site conditions.

High Accuracy

±0.1mm/m grade accuracy — holds tolerance through a full working day.

Why Buy This?

Continuous grade control. No continuous labor.

Grade stakers cost $50–80/hr and disappear between passes. A dual-slope grade laser installs once and controls your blade automatically — through every cut, every fill, every pass. That's the math that makes grade lasers one of the fastest ROI investments in earthwork.

Professional contractors specify dual-grade systems for a reason: single-grade units work for straight drainage. The moment a job has a crown, a swale, or a complex parking lot slope — you need dual-grade.

Buying from Express Tools means authorized, factory-fresh inventory, legitimate firmware, and technical knowledge when you need it.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Grade Range	±10% on both X and Y axes simultaneously
Self-leveling Range	±5°
Working Range	Up to 2,000 ft (600 m) diameter with compatible receiver
Grade Accuracy	±1.5 arc seconds (±0.0004 ft/ft)
Rotation Speed	100, 300, and 600 RPM selectable
Power Source	Rechargeable NiMH battery pack (included)
Battery Life	Up to 100 hours per charge
Operating Temperature	-4°F to 131°F (-20°C to 55°C)
Ingress Protection	IP66-rated dust and water resistance
Weight	Approximately 9.5 lbs (4.3 kg) with battery
Power	Rechargeable NiMH battery pack (included)
IP Rating	IP66-rated dust and water resistance
