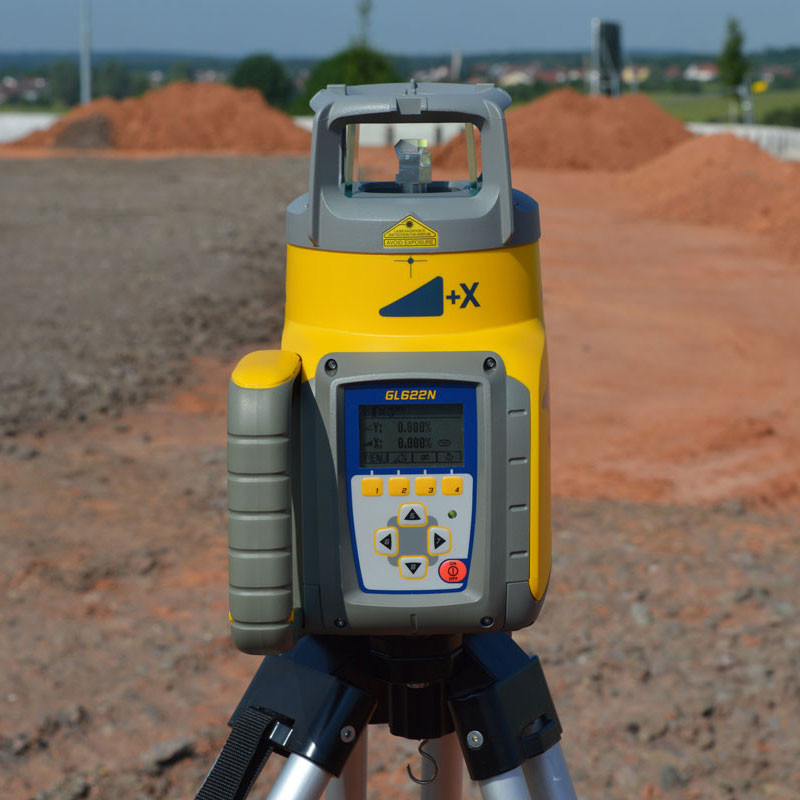

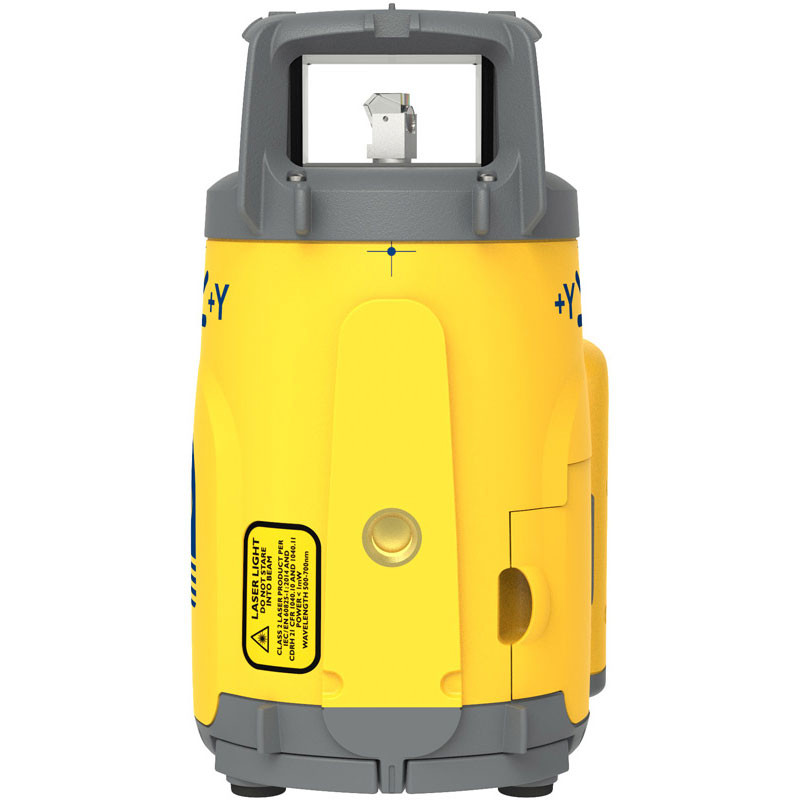

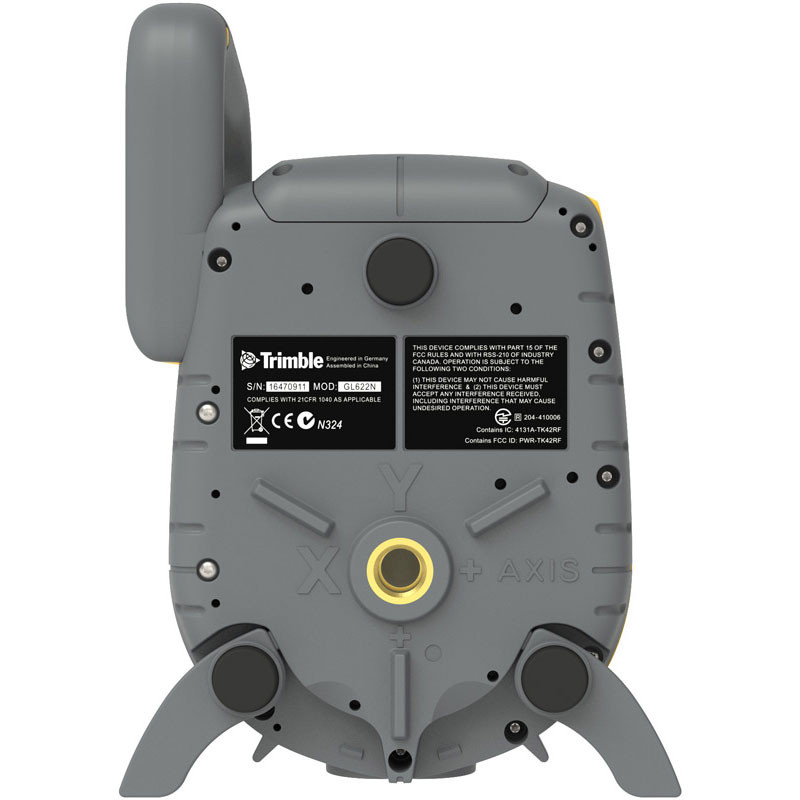

Spectra Precision GL622N-1 Dual Grade Laser with (2) x HL760 Receivers and RC602N Remote

Overview

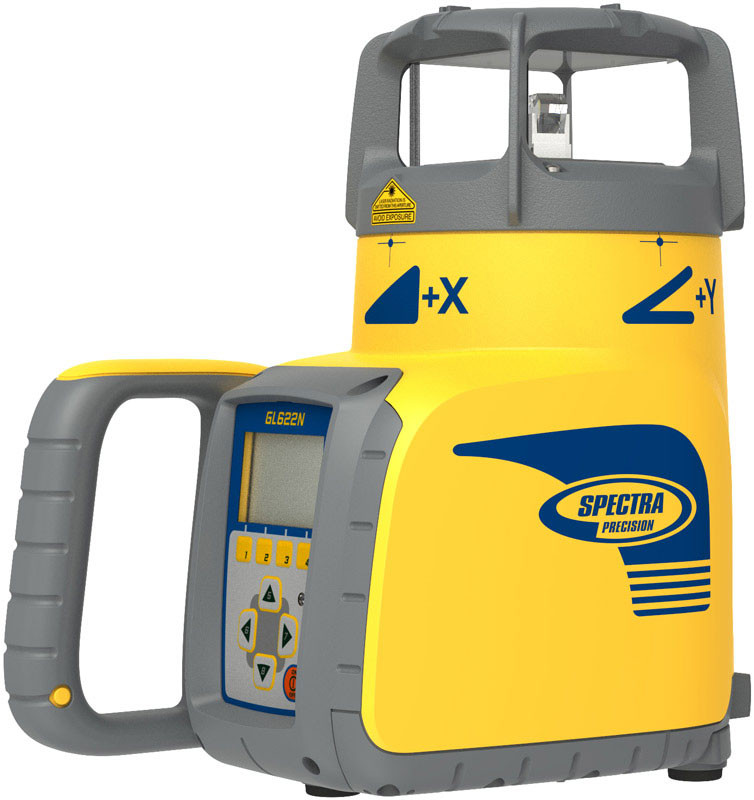

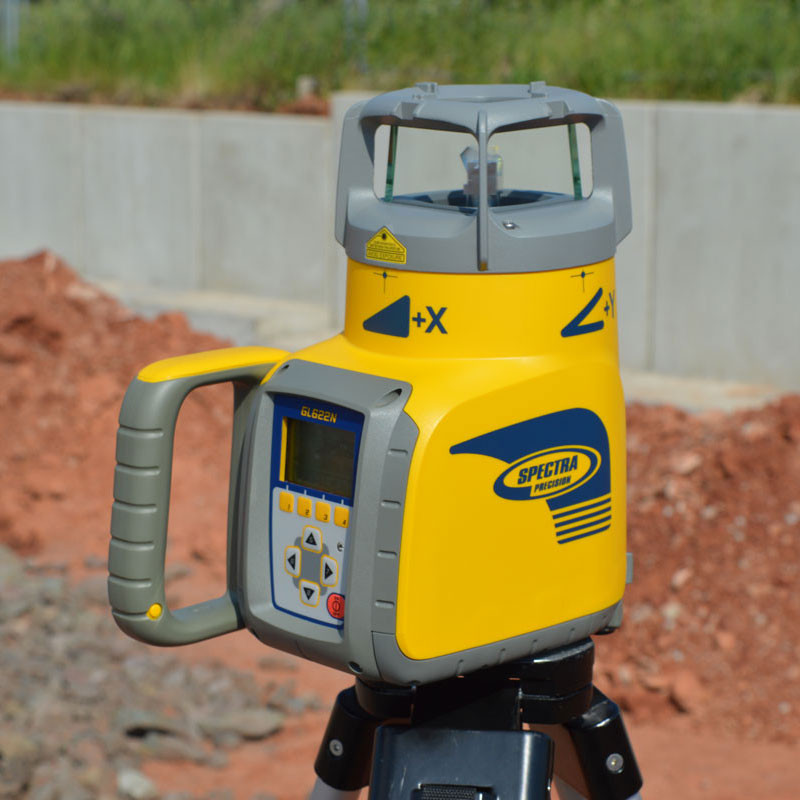

The Spectra Precision GL622N-1 Dual Grade Laser is a professional-grade rotating laser system engineered for contractors who demand precision, durability, and jobsite efficiency. This complete kit includes the GL622N dual-slope laser, two HL760 digital receivers, and the RC602N remote control—delivering everything needed to establish accurate grade on complex excavation, foundation, and grading projects. With dual-grade capability, this laser allows operators to set independent X and Y-axis slopes simultaneously, eliminating the need for manual grade calculations and dramatically reducing setup time on compound-slope applications.

Designed for the rigors of commercial construction, highway work, and large-scale site development, the GL622N-1 combines Spectra Precision's legendary reliability with modern productivity features. The inclusion of two HL760 receivers enables multiple crew members to check elevations independently across expansive jobsites—no radio communication or crew coordination required. Whether you're grading a stadium parking lot, establishing foundation elevations, or working on drainage systems with complex slopes, this system delivers the accuracy and versatility that keep projects on schedule and within tolerance.

At $3,275, the GL622N-1 dual receiver package represents exceptional value for contractors seeking a complete, jobsite-ready laser solution. The system's IP67 environmental rating, 2,600-foot diameter working range, and ±5 arc second accuracy make it suitable for the most demanding applications, while the intuitive controls and self-leveling technology ensure operators of all experience levels can achieve professional results from day one.

Key Specifications

• Leveling Capability: Dual-axis grade (independent X and Y slopes) plus single slope and level modes
• Accuracy: ±5 arc seconds (±1/16" at 100 feet)
• Working Range: 2,600-foot diameter (1,300-foot radius) with HL760 receivers
• Rotation Speed: 0, 150, 300, 600, 900 RPM (variable for different detection ranges and conditions)
• Self-Leveling Range: ±5 degrees on both axes with automatic alarm and shutdown if disturbed
• Environmental Protection: IP67 rating—fully dustproof and waterproof to 3 feet for 30 minutes

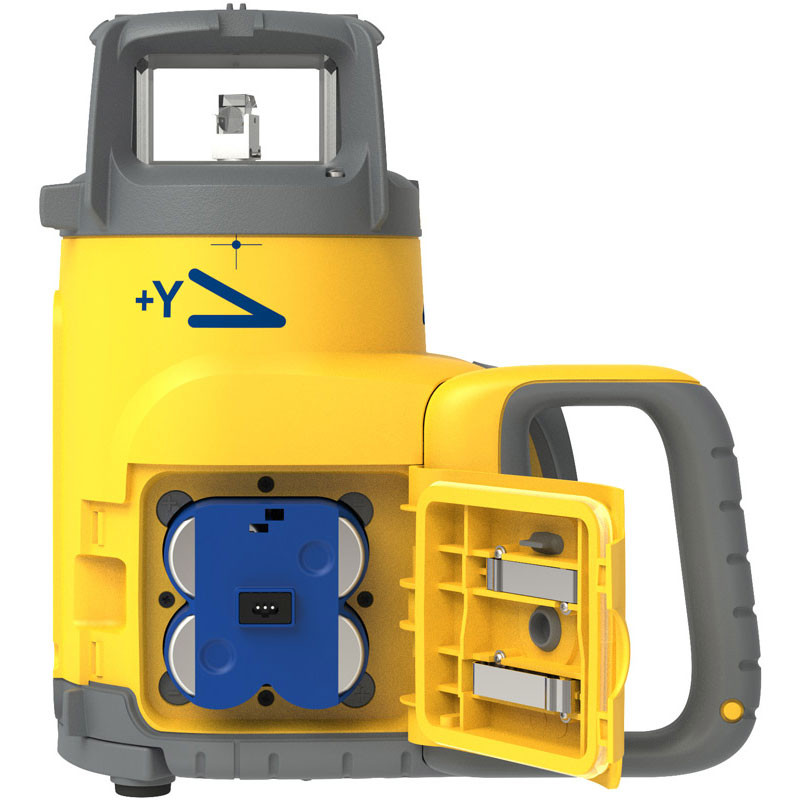

• Power: Rechargeable NiMH battery (up to 60 hours runtime) or alkaline D-cells (backup option)
• Remote Control Range: RC602N operates up to 1,000 feet from laser
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Beam Class: Class 2 visible red laser, safe for general construction use

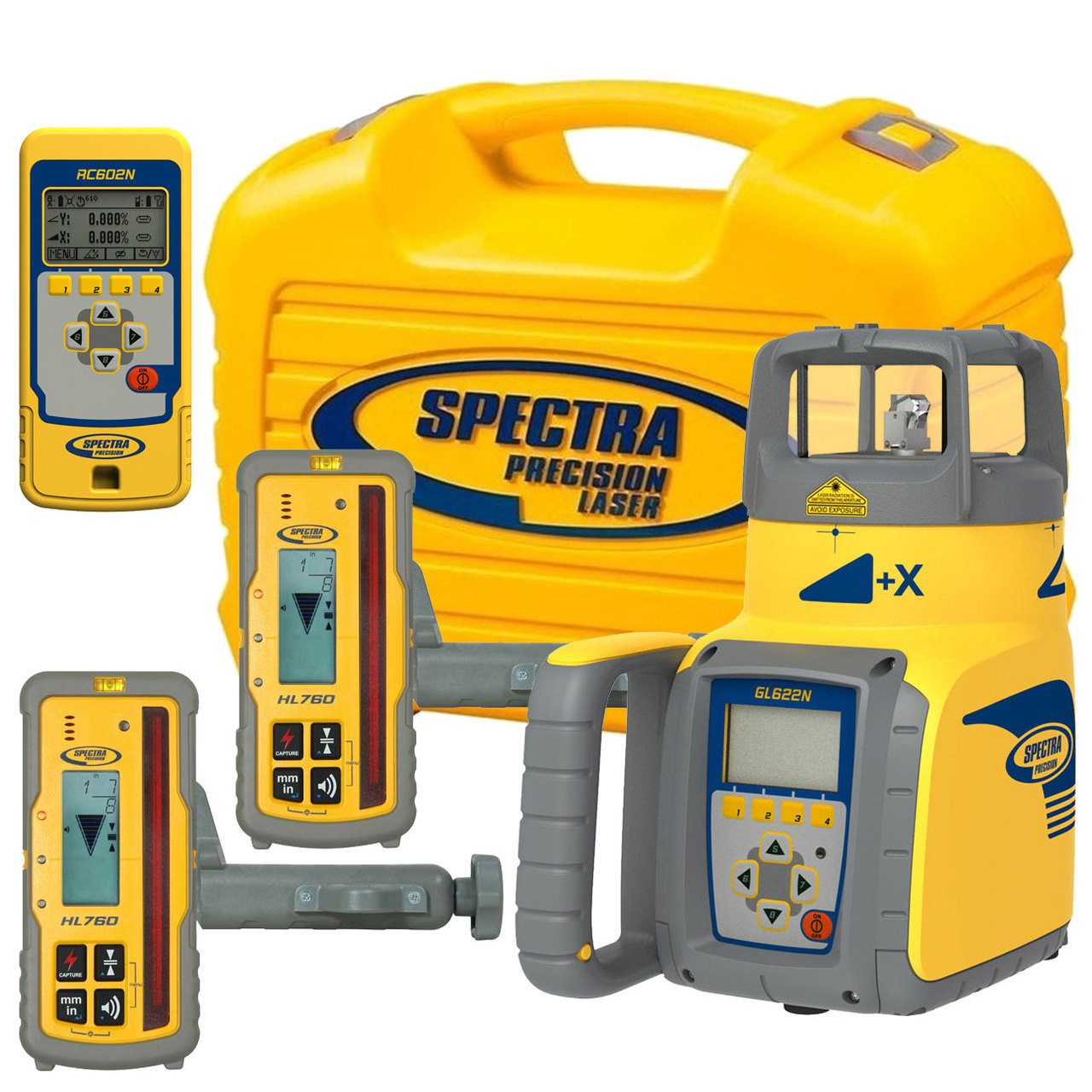

What's in the Kit

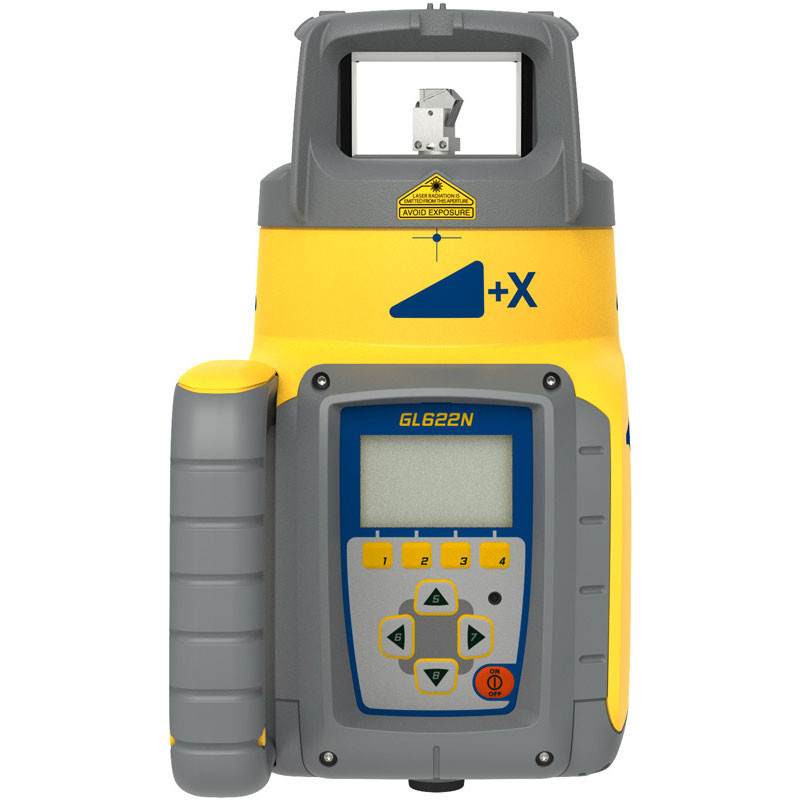

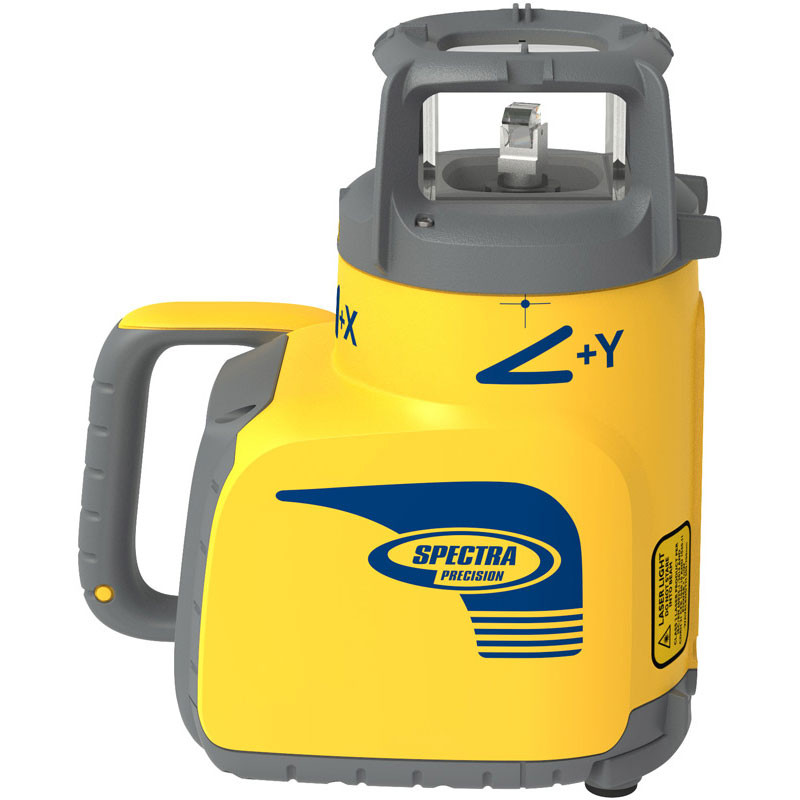

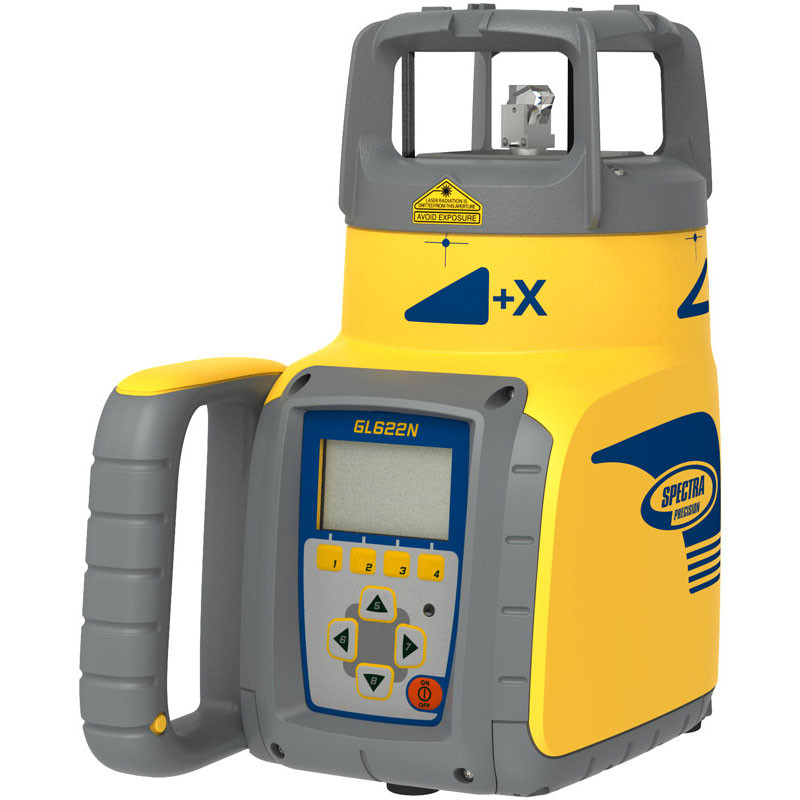

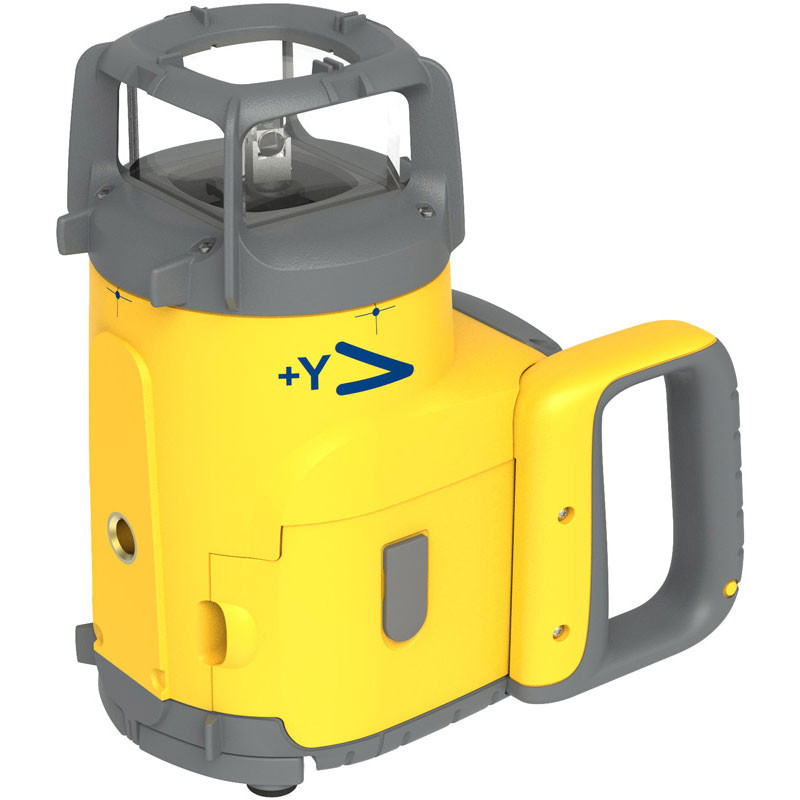

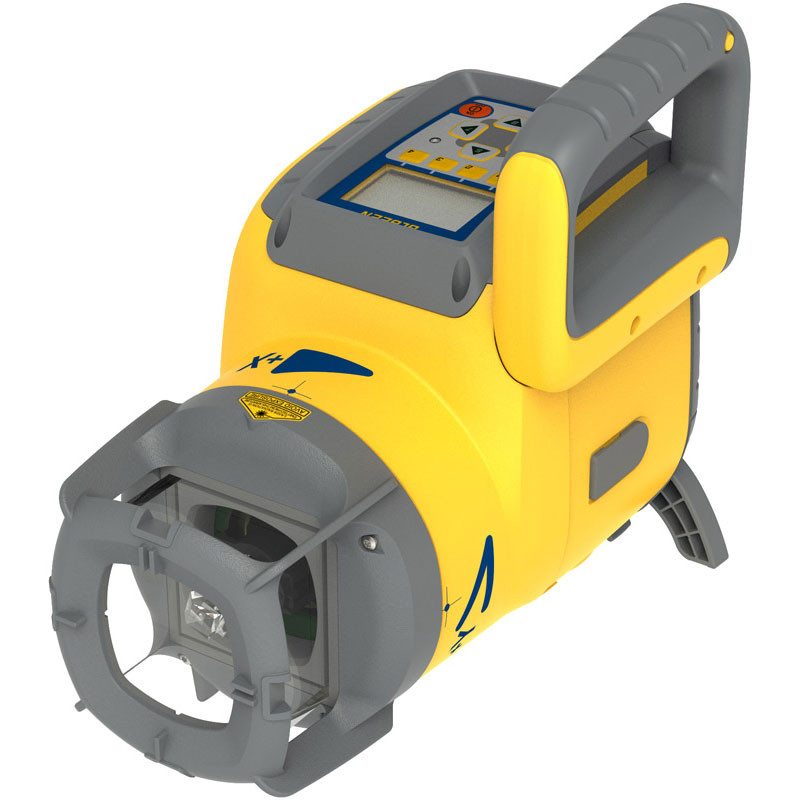

• GL622N dual-grade rotating laser transmitter

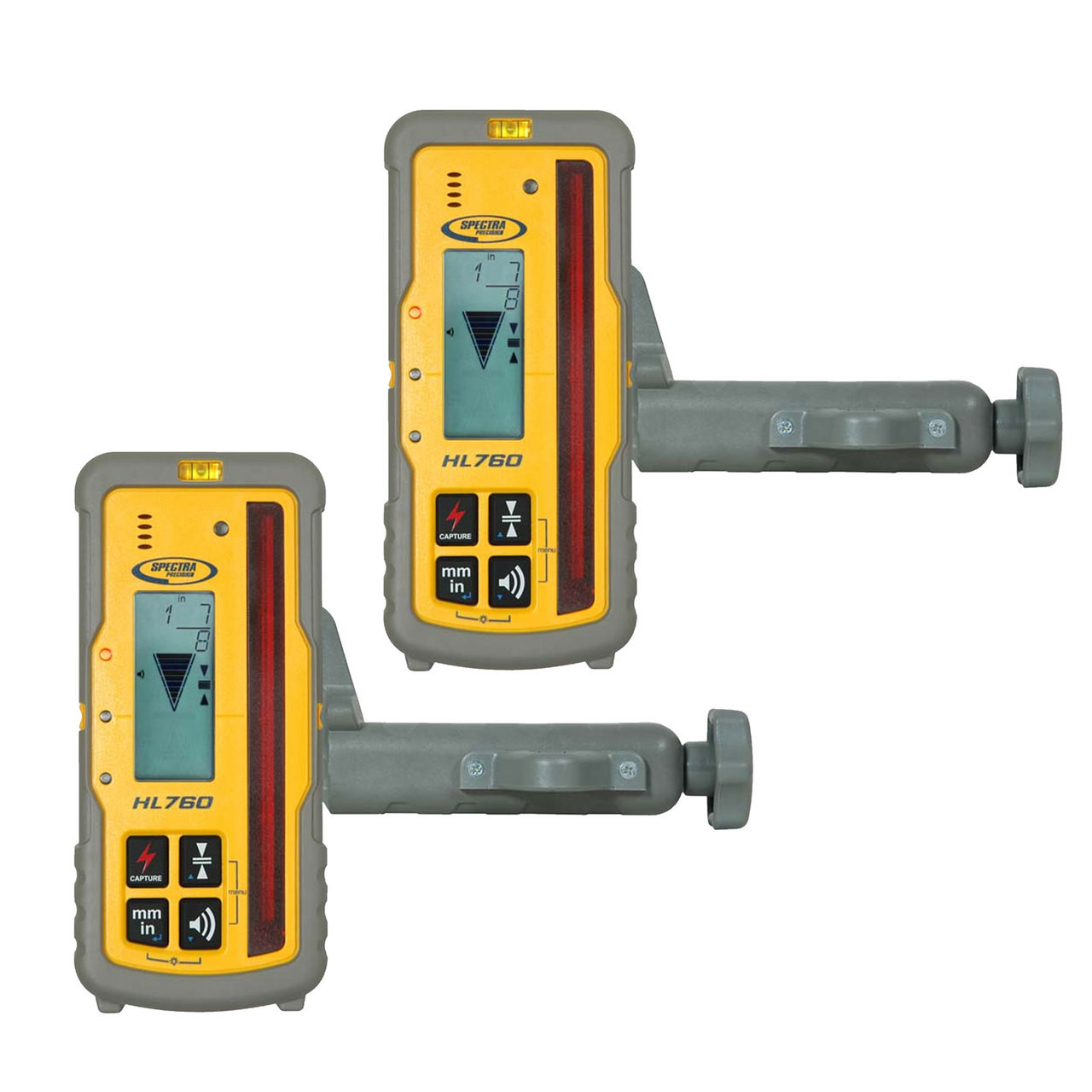

• Two (2) HL760 digital laser receivers with rod clamps

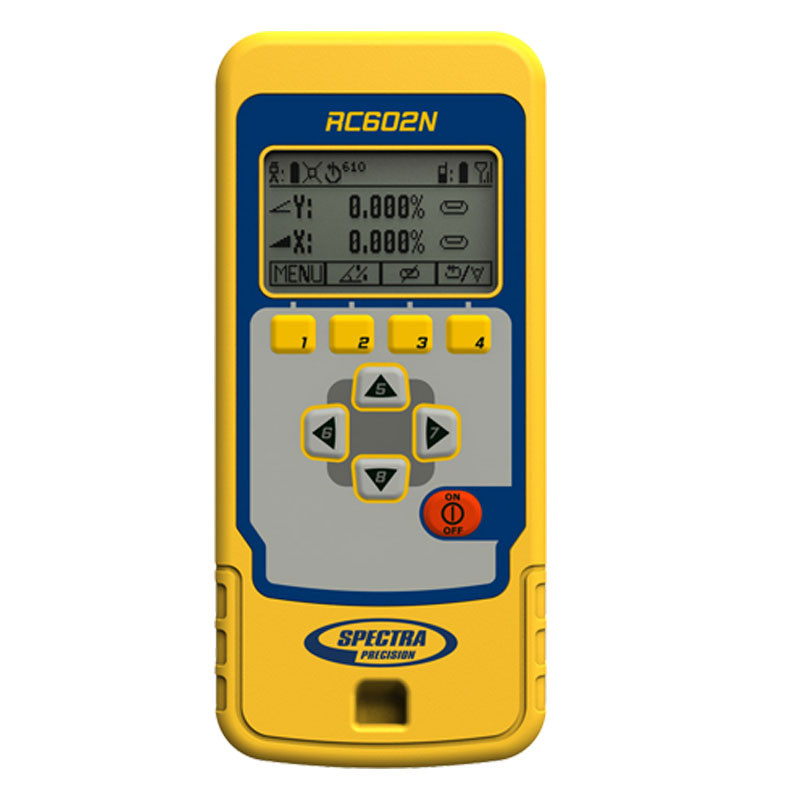

• RC602N wireless remote control
• Rechargeable NiMH battery pack for laser
• Battery charger with multi-voltage capability (110-240V)
• Heavy-duty hard-shell carrying case with custom foam inserts
• Alkaline battery tray (backup power option)
• Operator manual and quick-start guide
• Calibration certificate with test data

Job Applications

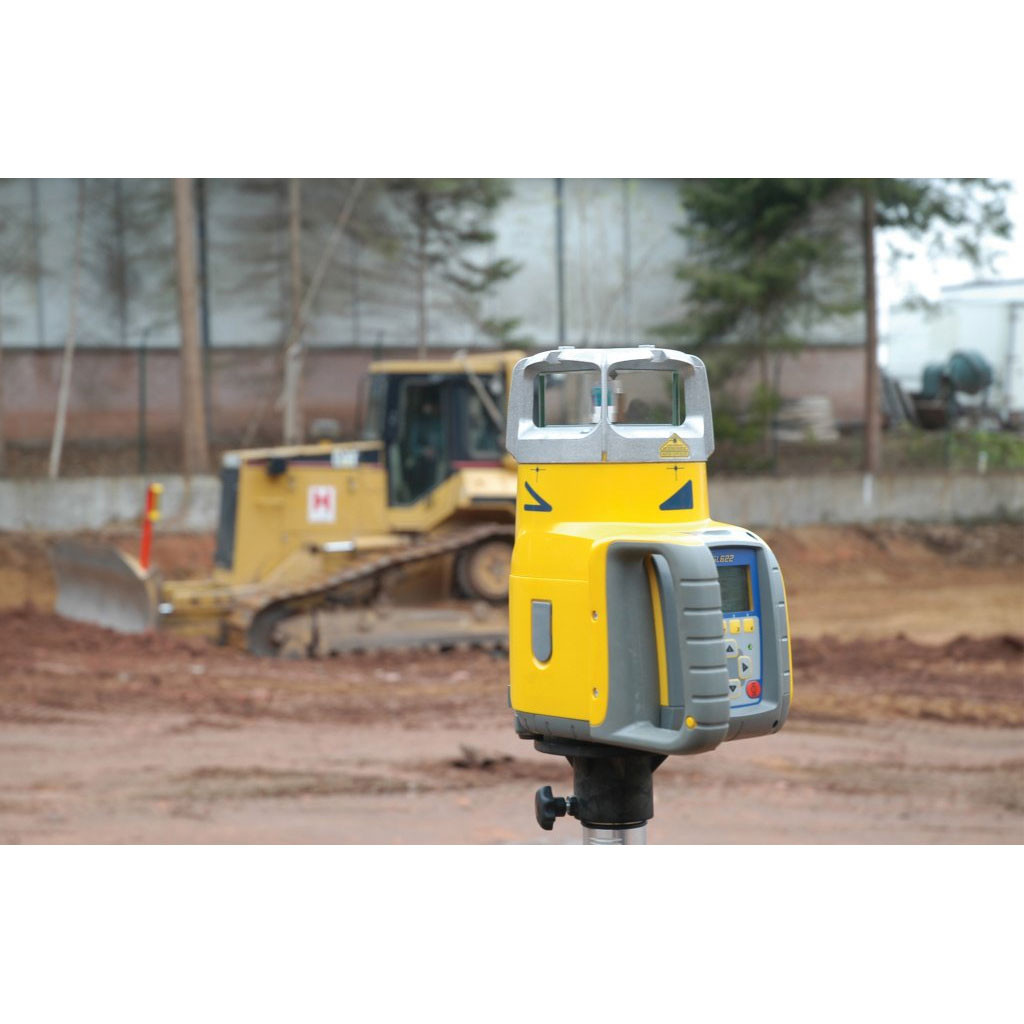

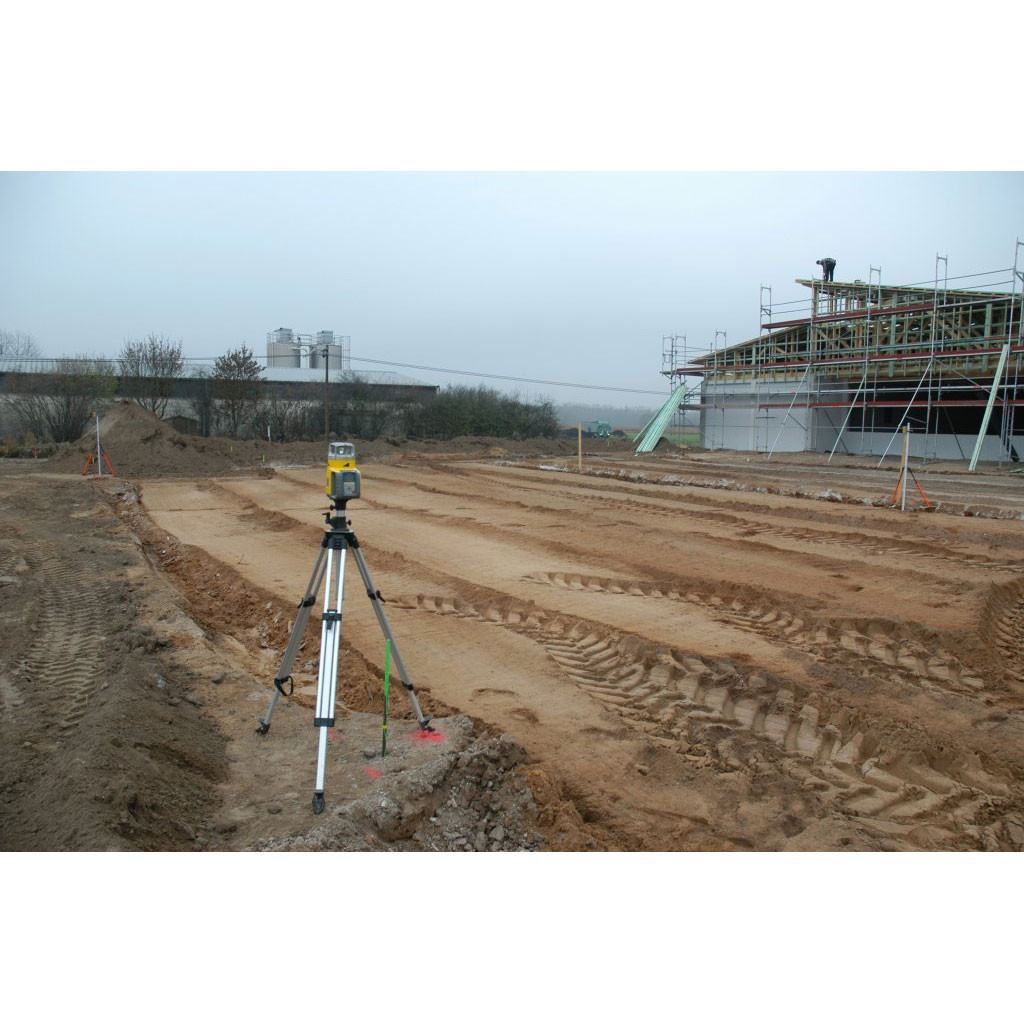

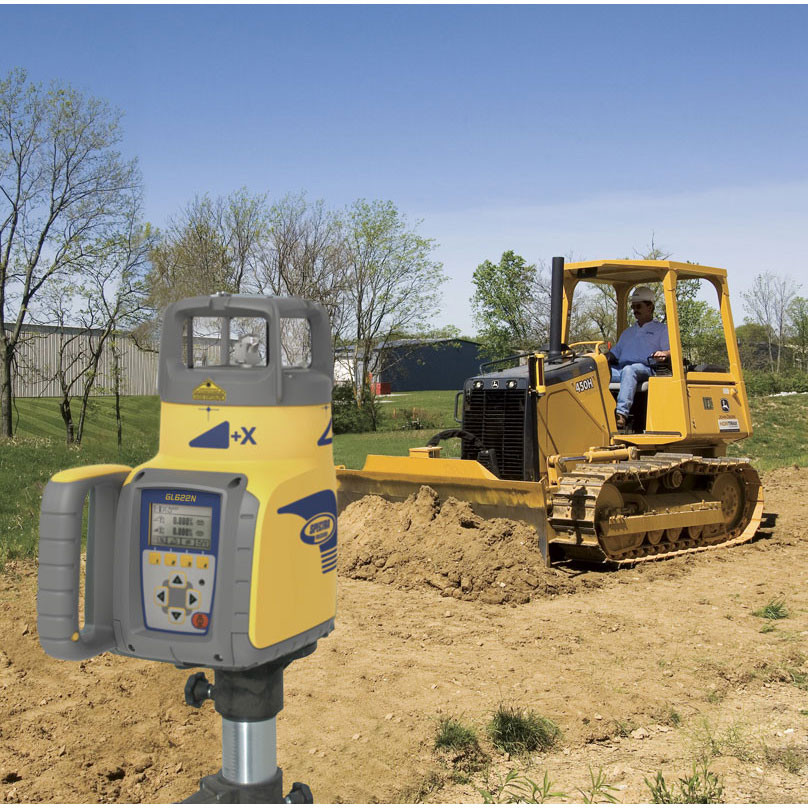

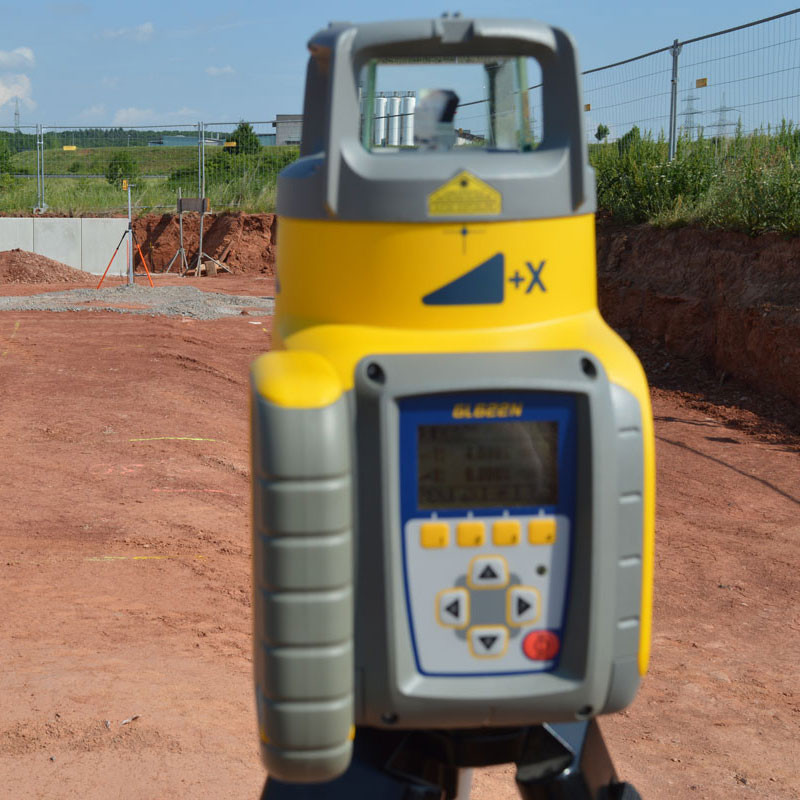

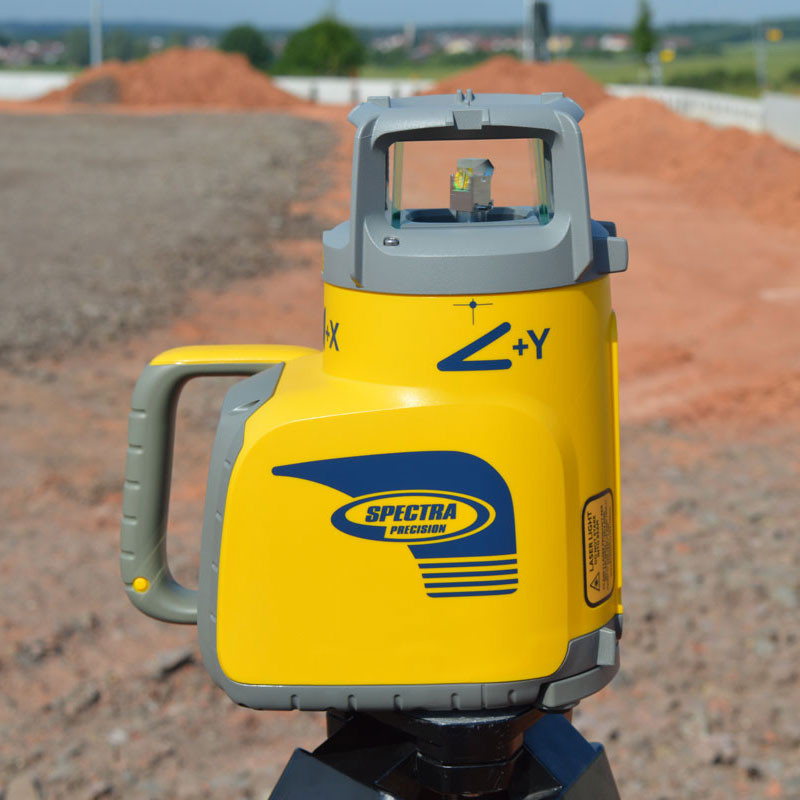

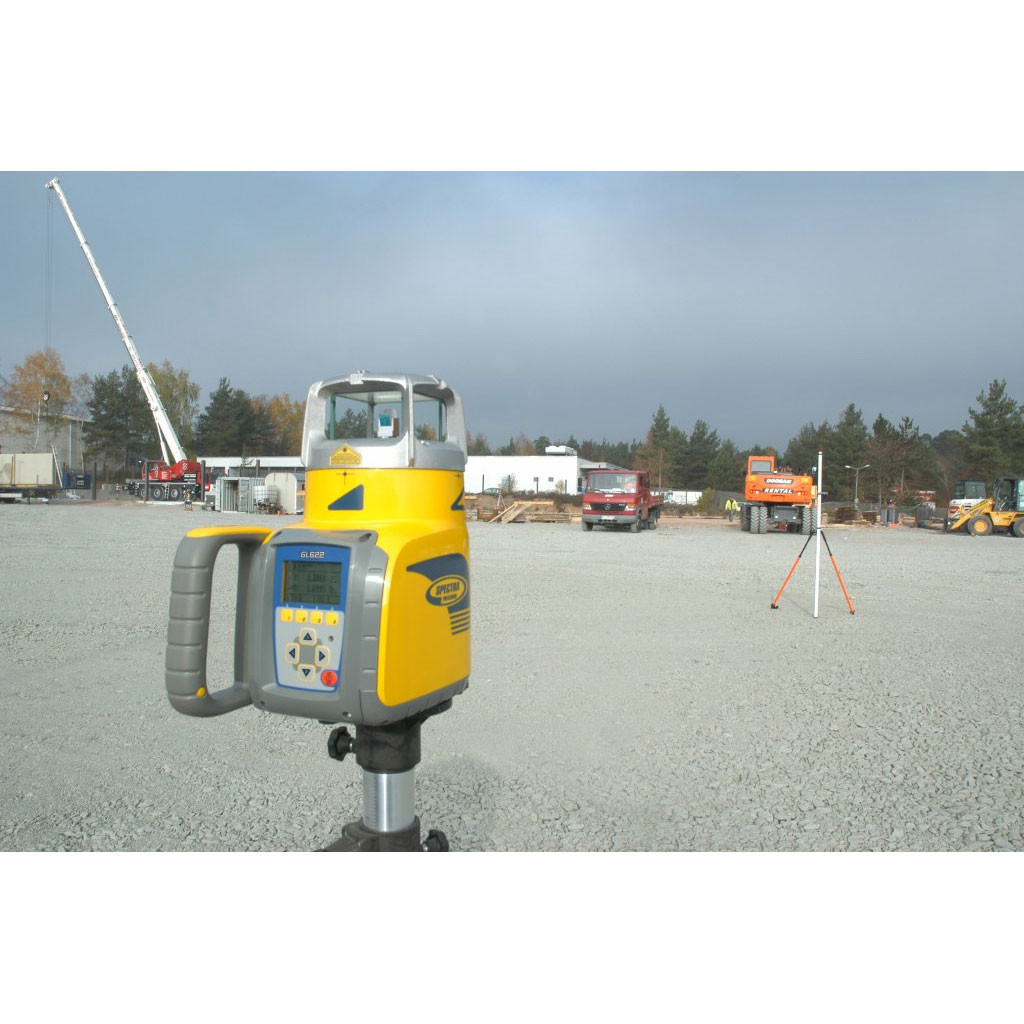

• Site Grading and Excavation: The dual-receiver configuration allows dozer and excavator operators to work simultaneously on opposite ends of a site while a foreman checks intermediate elevations—eliminating bottlenecks and keeping heavy equipment productive. Dual-grade capability handles complex drainage slopes without mathematical conversions or multiple setups.

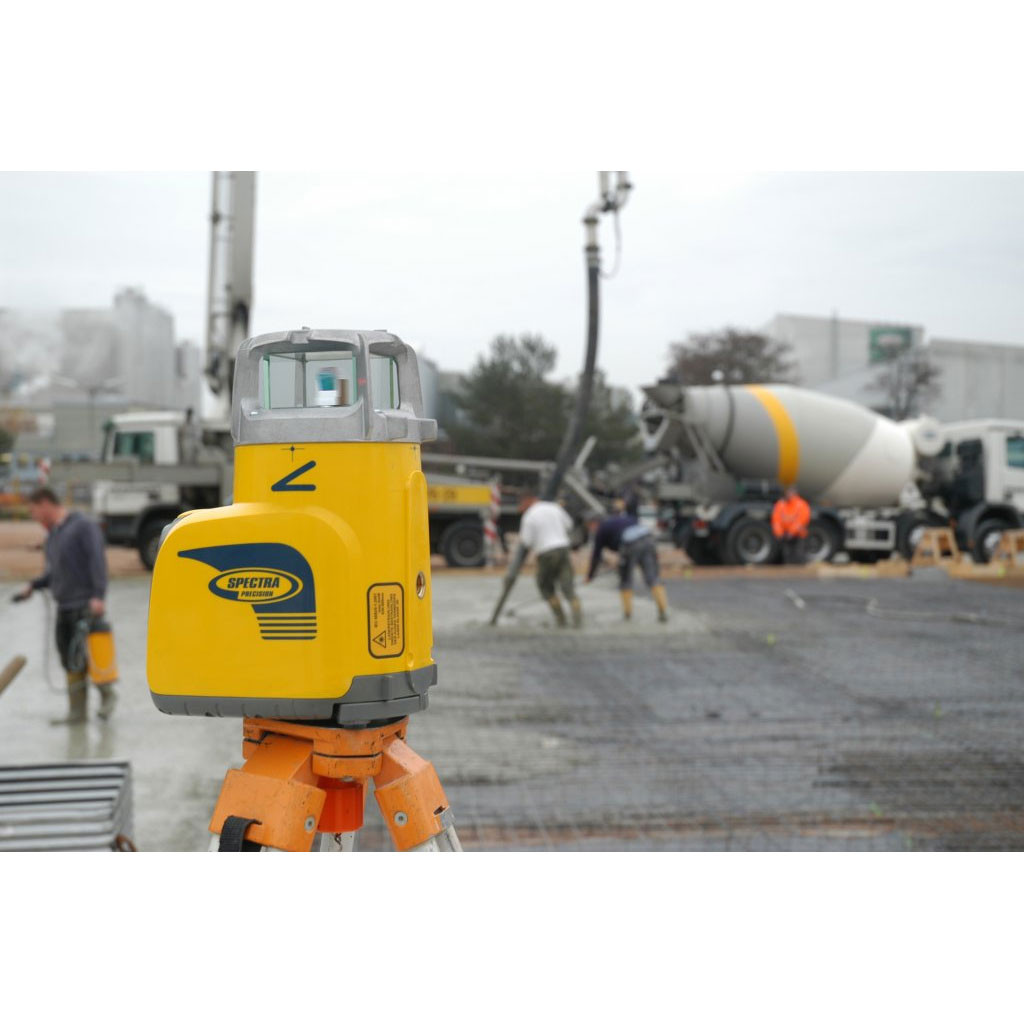

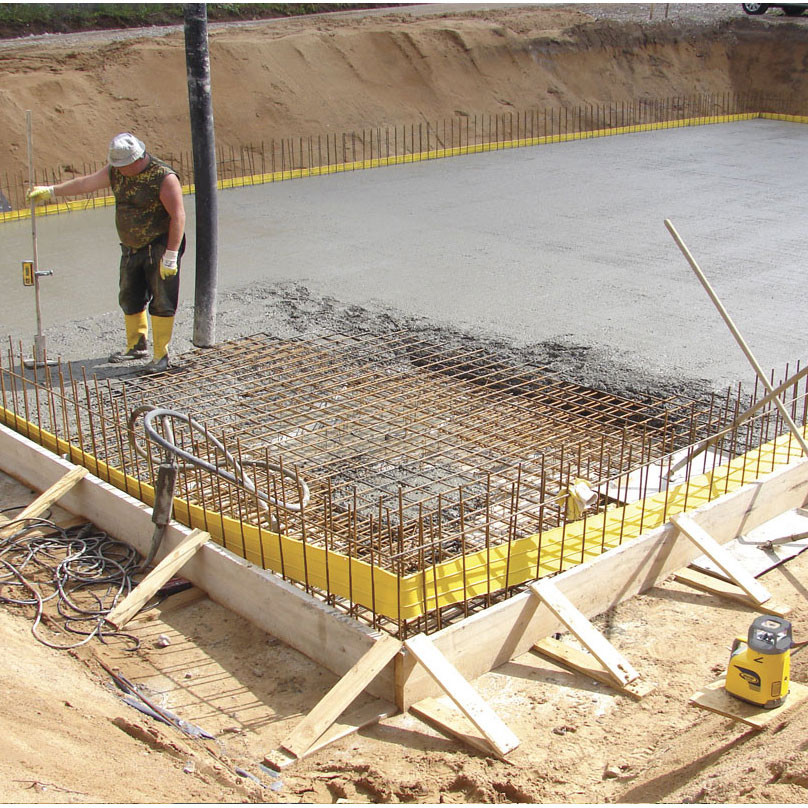

• Foundation and Concrete Work: Establish formwork elevations, screed guides, and final concrete surfaces with confidence. Two receivers enable independent quality checks—one on the screed, one with the inspector—ensuring ACI tolerance compliance on slabs, footings, and decks without work interruptions.
• Highway and Road Construction: The 2,600-foot working diameter covers long road sections from a single setup point, while dual-grade mode automatically calculates cross-slope and longitudinal grade for crowned roads, superelevated curves, and drainage transitions. Multiple receivers keep paving crews, grade checkers, and equipment operators working in parallel.
• Athletic Fields and Golf Courses: Create precise drainage planes across football fields, soccer pitches, and golf greens where water management is critical. The laser's ability to set compound slopes eliminates standing water issues, while dual receivers allow simultaneous elevation verification across the field without disrupting laser operation.
• Utility and Drainage Installation: Set accurate pipeline grades for storm sewers, sanitary systems, and irrigation lines. The RC602N remote allows the laser operator to make slope adjustments from the trench without returning to the instrument, while two receivers enable checks at manholes and critical tie-in points simultaneously.
• Parking Lot and Hardscape Projects: Establish subgrade and finish elevations for asphalt and concrete paving across large parking areas, plazas, and industrial yards. Multiple receivers reduce crew size requirements by allowing fewer workers to cover more ground, significantly lowering labor costs on price-competitive flatwork projects.

Compatible Accessories

• HL700 Economy Receiver: Cost-effective additional receiver for basic elevation checks without digital readout
• CR700 Machine Receiver: Direct-mount receiver for excavators, dozers, and graders with machine control systems
• Elevation Rod Package: Telescoping grade rods (10', 13', 16' options) with metric/inch graduations

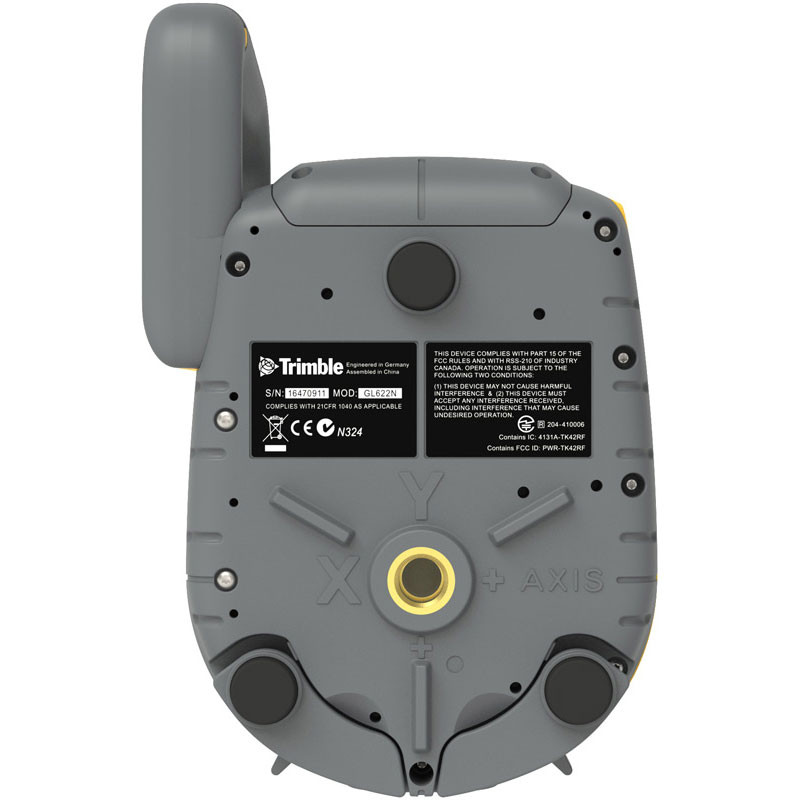

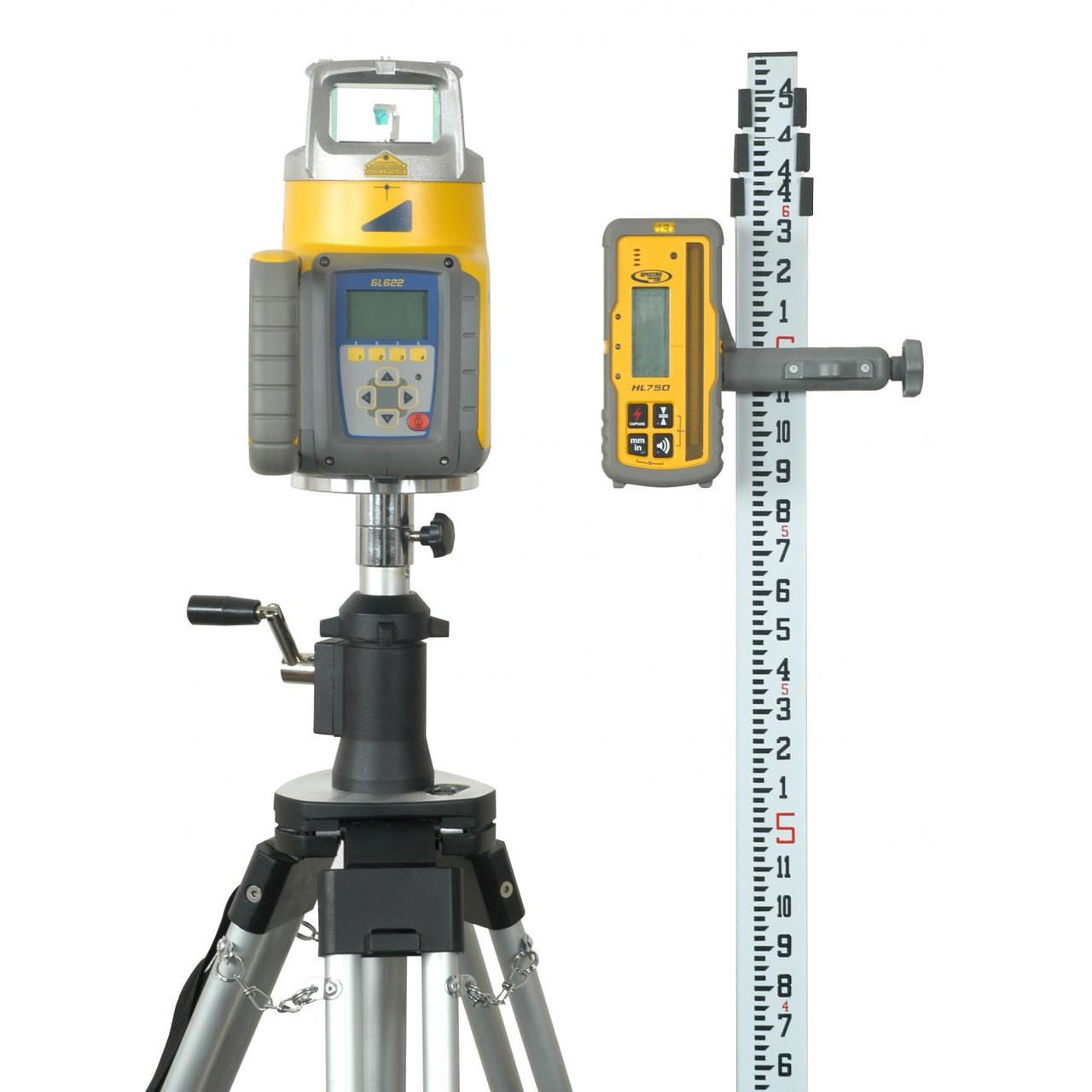

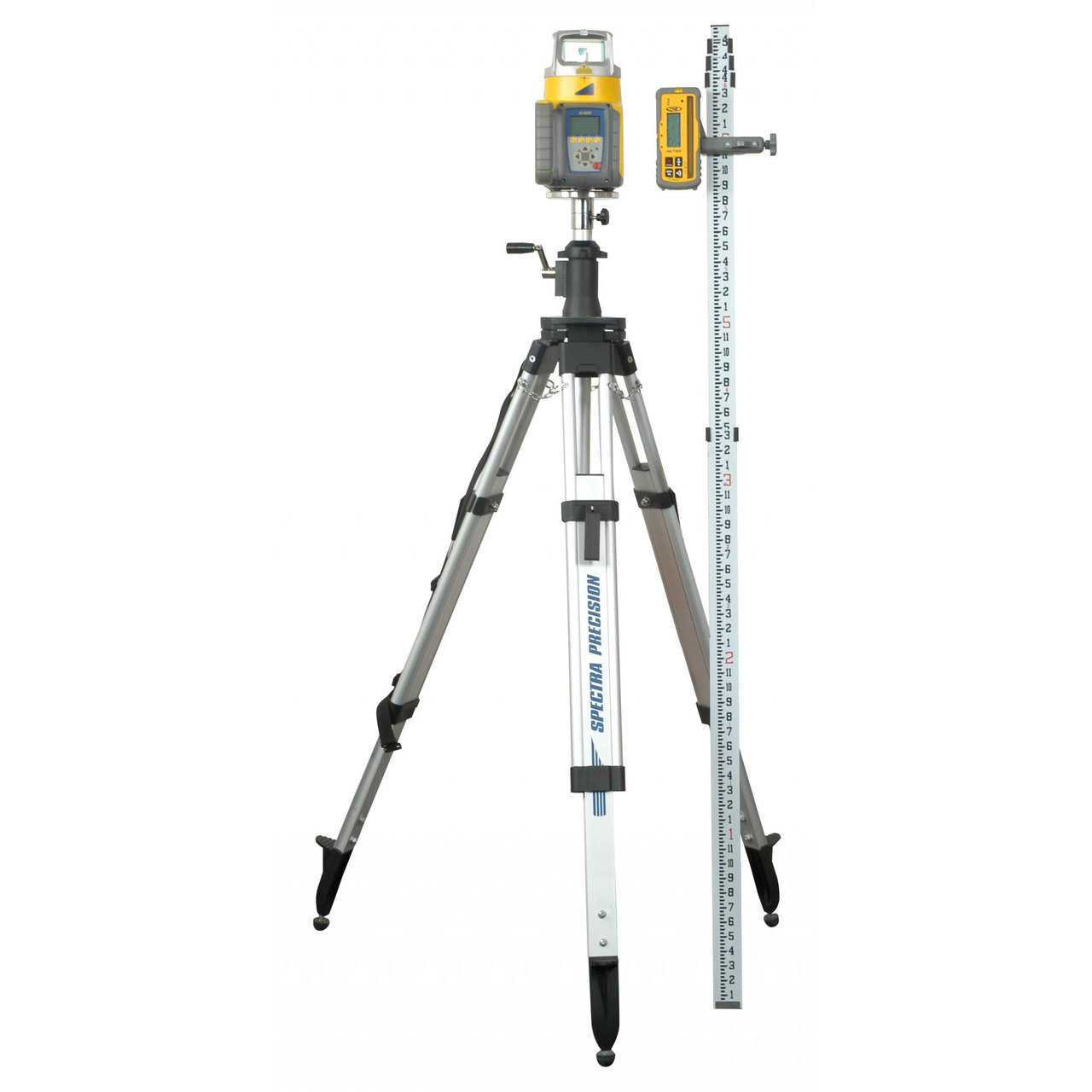

• Heavy-Duty Tripod: Aluminum or wood tripods with quick-clamp heads and 5/8"-11 thread
• Detector Pole Kit: Adjustable detector poles from 6' to 16' for non-contact elevation verification
• Truck Mount: Magnetic base for mounting laser to steel equipment or structures
• Additional RC602N Remote: Extra remote controls for multi-operator jobsites
• Replacement Battery Packs: Spare NiMH batteries for extended runtime on long shifts

Related Guides

• Complete Guide to Choosing Rotating Laser Systems for Construction
• How to Set Up and Use Dual-Grade Lasers for Complex Slopes
• Laser Receiver Comparison: Choosing the Right Detector for Your Application
• Spectra Precision Laser Calibration and Maintenance Schedule

FAQ

What's the advantage of having two receivers instead of one?

Two receivers allow multiple crew members to check elevations simultaneously across large jobsites without waiting for a single receiver to be transported between locations. This dramatically improves productivity on grading projects, reduces equipment idle time, and eliminates radio communication delays. For example, a dozer operator can have one receiver while a foreman uses the second to verify finished grade—both working independently from the same laser setup.

Can this laser be used for indoor concrete floor work?

Yes, the GL622N-1 excels at interior slab work, warehouse floors, and large concrete pours. The variable rotation speed allows you to optimize visibility in different lighting conditions, while the dual-grade capability handles sloped floors for drainage in commercial kitchens, wash bays, and industrial facilities. The 2,600-foot diameter easily covers large warehouse spaces from a single central setup.

How difficult is it to set dual-grade slopes?

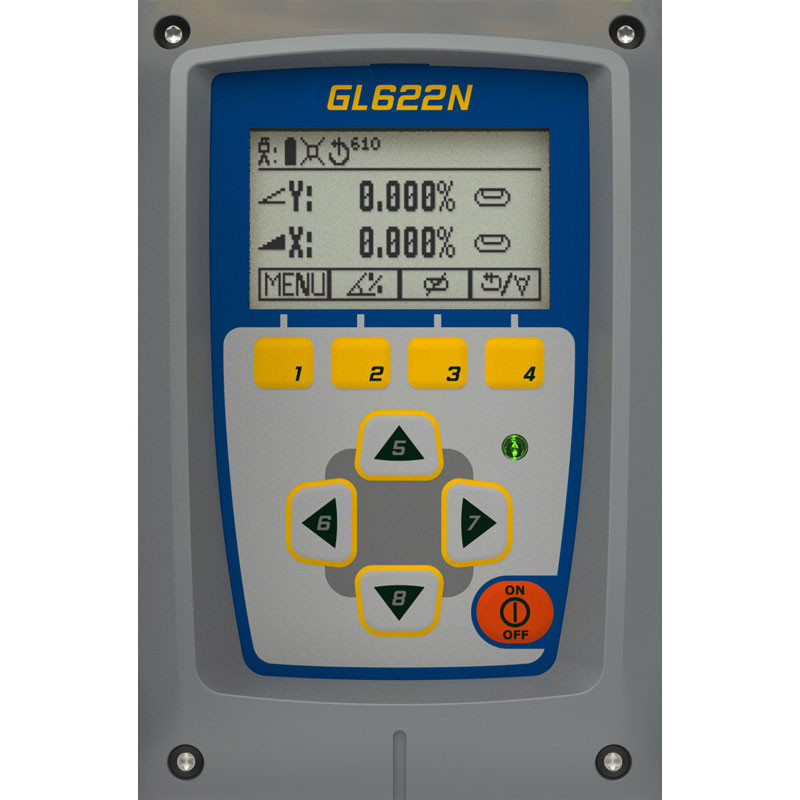

Spectra Precision has simplified dual-grade setup considerably. You input the desired X-axis and Y-axis slopes using the control panel or remote, and the laser automatically calculates the compound slope plane. Most operators become proficient after one or two setups. The system eliminates manual trigonometry and reduces setup time by 60-70% compared to establishing complex slopes with traditional single-grade lasers and multiple setpoints.

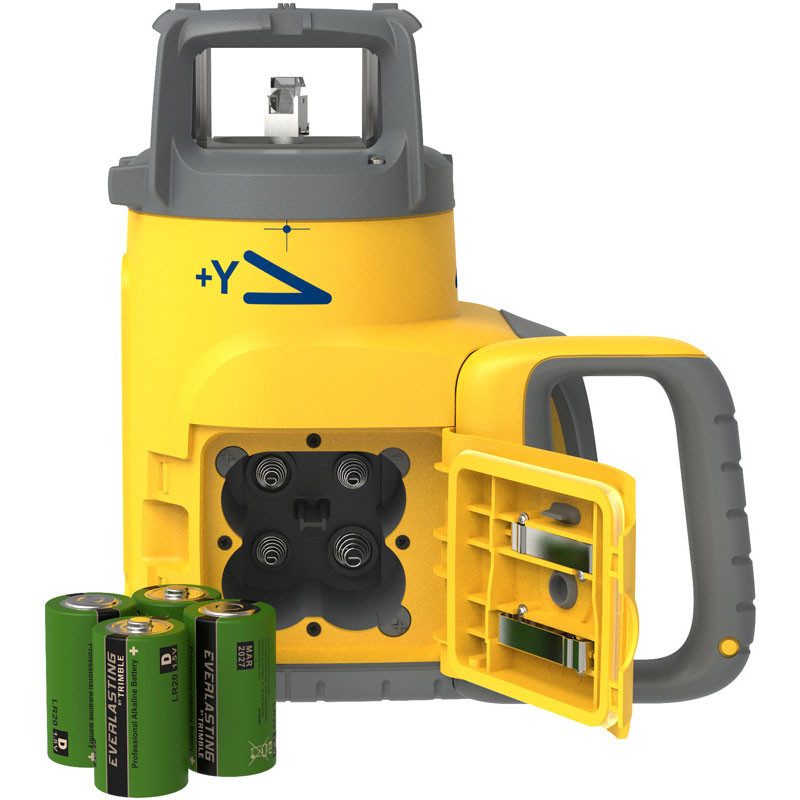

What's the battery life, and can I use alkaline batteries as backup?

The included rechargeable NiMH battery provides up to 60 hours of continuous operation at moderate rotation speeds—typically 5-8 workdays on a single charge. The kit includes an alkaline battery tray that accepts standard D-cell batteries as a backup power source, ensuring you're never stranded mid-project due to a depleted rechargeable pack. Most contractors keep one battery charging while using the other for uninterrupted operation.
