Spectra Precision GL422N-26 Dual Grade Laser w/ CR700 Receiver, INCHES-Rod and Tripod

Overview

The Spectra Precision GL422N-26 Dual Grade Laser represents a breakthrough in versatile grading technology for contractors working in imperial measurement environments. This complete package combines Spectra's proven dual-slope laser platform with the advanced CR700 laser receiver, a professional inches-graduated leveling rod, and a durable aluminum tripod—delivering everything needed for sophisticated grading projects straight out of the box. Unlike single-slope systems that limit you to one-directional grading, the GL422N-26 establishes two independent slopes simultaneously, dramatically reducing setup time on complex drainage installations, dual-plane foundations, and multi-directional excavation projects. The CR700 receiver provides exceptional range and precision, detecting the laser beam at distances up to 2,000 feet (diameter), while the inches-graduated rod ensures seamless integration with U.S. construction plans and specifications. Whether you're installing irrigation systems, grading parking lots, establishing building pads, or managing drainage for agricultural applications, this complete system delivers professional-grade accuracy with the operational flexibility that dual-slope capability provides. The GL422N-26 is built to withstand demanding jobsite conditions with IP66 environmental protection, ensuring reliable performance in dust, rain, and temperature extremes that would sideline lesser equipment.

Key Specifications

• Laser Type: Dual-slope rotating laser with independent X and Y axis control
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Range: Up to 2,000 feet diameter with CR700 receiver
• Slope Range: -10% to +10% on both axes (dual-slope capability)
• Rotation Speed: 600 RPM for extended range, 900 RPM for close-in visibility
• Self-Leveling Range: ±5 degrees with automatic out-of-level alert
• Power Source: Rechargeable Ni-MH battery (50+ hours runtime) or alkaline batteries
• Environmental Protection: IP66 rating (dust-tight and water-resistant)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• CR700 Receiver: Digital LCD display with on-grade accuracy to 1/16 inch
• Rod Graduation: Inches measurement (imperial system)
• Warranty: 3-year manufacturer warranty on laser, 1-year on accessories

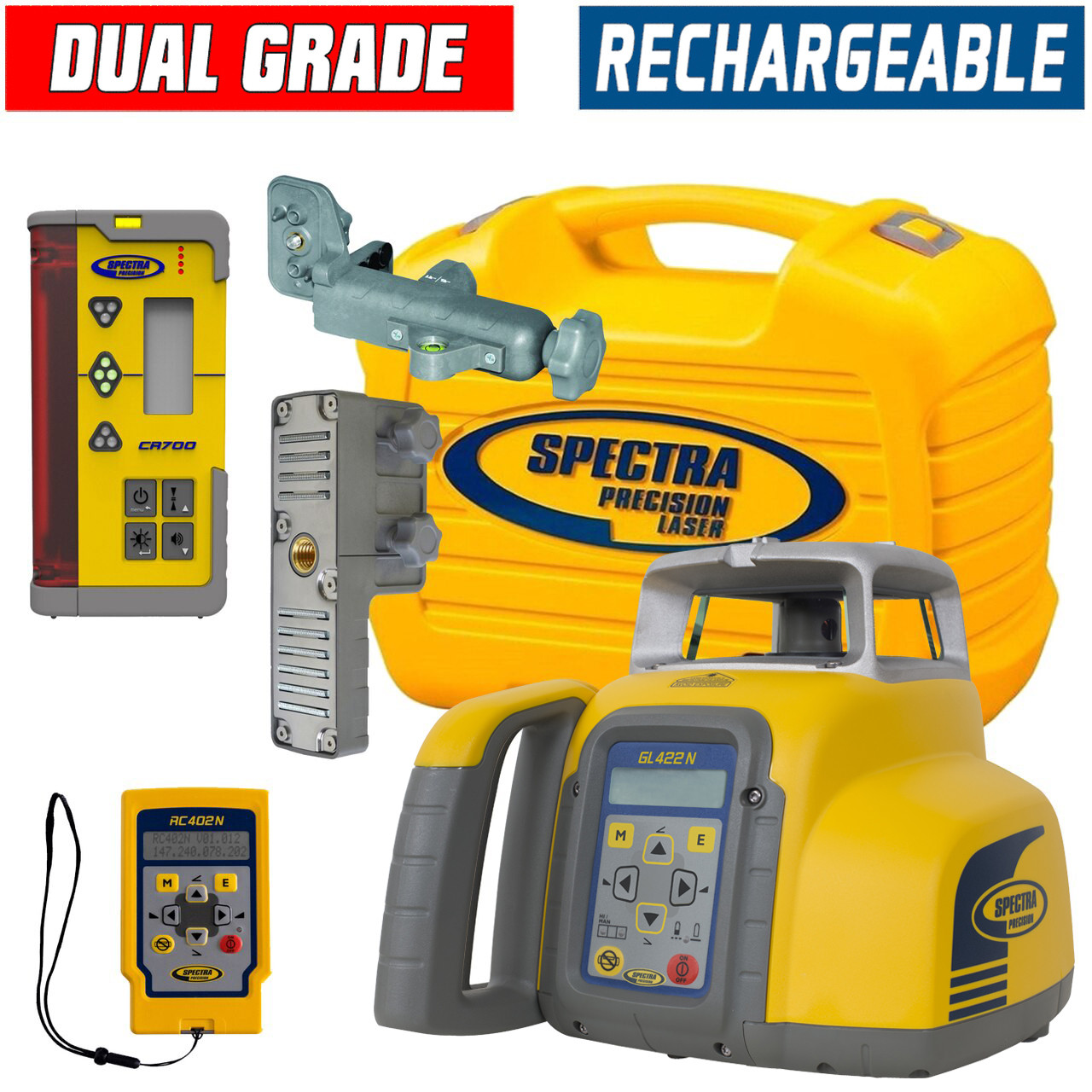

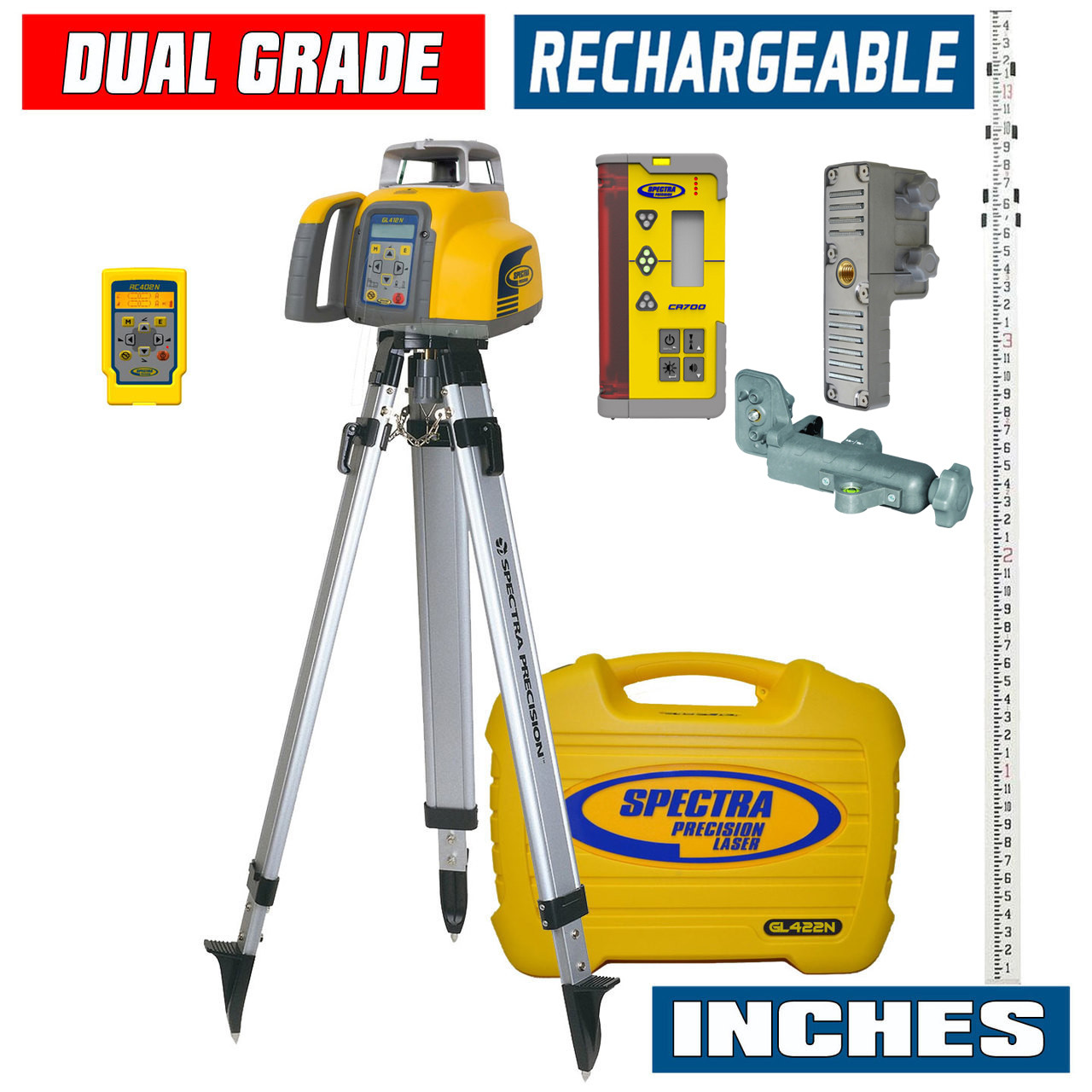

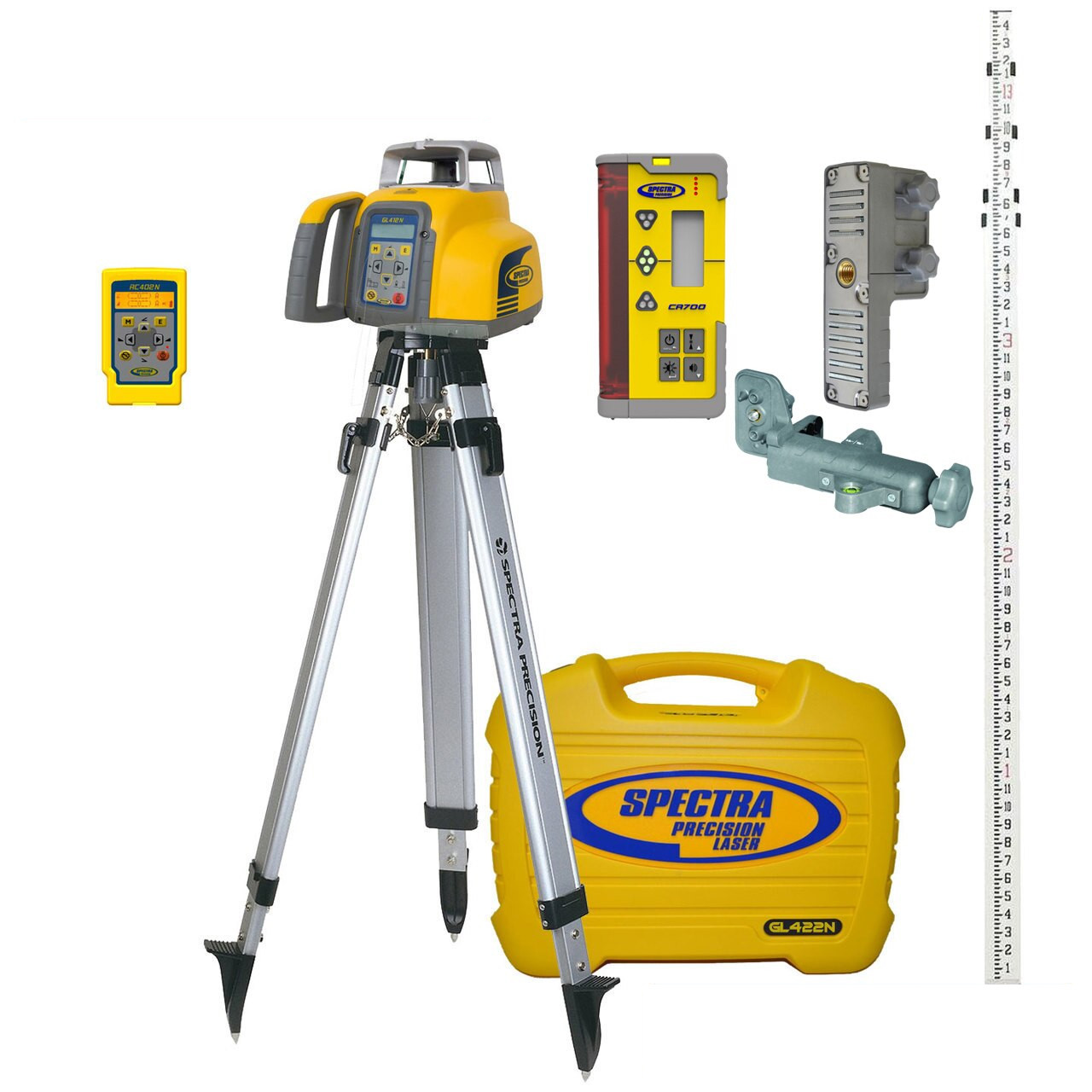

What's in the Kit

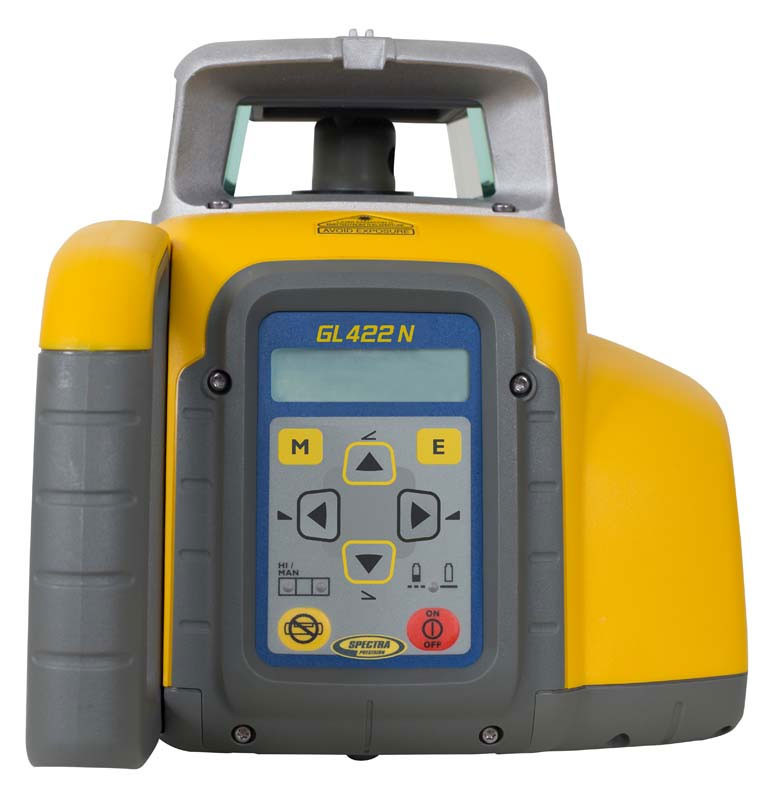

• GL422N Dual-Slope Grade Laser Transmitter
• CR700 Machine-Mountable Laser Receiver with Rod Clamp
• Inches-Graduated Leveling Rod (telescoping)
• Heavy-Duty Aluminum Tripod with Quick-Release Mount
• Rechargeable Ni-MH Battery Pack
• 110V Battery Charger
• Alkaline Battery Tray (backup power option)
• RC703 Remote Control for Slope Adjustment
• Protective Hard-Shell Carrying Case
• Operating Manual and Quick-Start Guide
• Calibration Certificate

Job Applications

• Parking Lot and Roadway Grading: The dual-slope capability excels in establishing proper drainage planes for parking areas and access roads where water must flow in multiple directions toward catch basins. Set independent X and Y slopes to create complex drainage patterns without multiple setups, saving hours on layout and verification.
• Building Foundation and Slab Preparation: Achieve precise elevation control for foundation excavation and concrete slab pours. The 2,000-foot range covers large commercial building footprints from a single setup, while the ±1/16 inch accuracy ensures foundations meet strict architectural tolerances and building codes without costly corrections.
• Agricultural Drainage and Land Leveling: Perfect for establishing consistent grades across fields for proper water management and irrigation efficiency. The extended range allows coverage of large agricultural plots, while dual-slope functionality enables complex drainage patterns that prevent waterlogging and optimize crop yields.
• Utility Trenching and Pipeline Installation: Maintain accurate slope control for sewer lines, storm drains, and underground utilities requiring precise fall rates. The CR700 receiver mounts directly on excavators and trenchers, providing real-time depth guidance that keeps operators on grade and prevents costly over-excavation or inadequate slope.
• Site Development and Rough Grading: Streamline mass earthwork operations on residential subdivisions and commercial developments. Dual-slope capability allows you to establish finish grades matching civil plans with complex drainage requirements, reducing surveying costs and enabling faster progression through grading phases.
• Sports Field and Recreational Facility Construction: Create precise crowned surfaces for athletic fields, golf courses, and recreational areas where proper drainage is critical for playability and turf health. The inches-graduated rod integrates seamlessly with U.S.-based architectural drawings and grading plans.

Compatible Accessories

• HL700 Laser Receiver with Inches Display – handheld alternative to CR700
• RC703M Machine-Mount Remote Control with Magnetic Base
• G71 Rechargeable Battery Pack – extended capacity option
• C59 Wall Charger – 12V DC vehicle charging adapter
• Laser Enhancement Glasses – improves beam visibility in bright conditions
• Heavy-Duty Wooden Tripod – premium stability for demanding applications
• Elevating Tripod – variable height adjustment for uneven terrain
• Rod Bipod Stabilizer – improves rod stability in windy conditions
• Target Plate – beam acquisition aid for initial setup and alignment

Related Guides

Single-Slope vs. Dual-Slope Grade Lasers: Choosing the Right System

Laser Receiver Best Practices: Maximizing Accuracy and Range

Grade Laser Calibration and Preventive Maintenance Schedule

Drainage Grading Fundamentals for Contractors

FAQ

What's the advantage of dual-slope capability over single-slope grade lasers?

Dual-slope lasers like the GL422N can establish two independent slopes simultaneously (X and Y axes), allowing you to create complex drainage planes and multi-directional grades from a single setup. This eliminates the need to rotate or reposition your laser for jobs requiring water flow in multiple directions, significantly reducing setup time on parking lots, building pads, and agricultural applications. Single-slope lasers only grade in one direction, requiring repositioning for perpendicular grades.

Can the GL422N-26 be used for flat/level applications or only for slope work?

Absolutely. The GL422N functions as both a precision rotary level laser (0% slope on both axes) and a dual-grade laser. Simply set both X and Y slopes to zero for level reference plane applications like drop ceiling installation, elevation transfer, or height matching. This versatility makes it a true multi-purpose tool that handles both leveling and grading requirements without needing separate equipment.

What's the actual working range I can expect with the CR700 receiver in typical conditions?

While the maximum range is 2,000 feet diameter (1,000-foot radius), practical working range depends on conditions. In typical daylight on most jobsites, expect reliable detection at 600-800 feet radius. Early morning, late afternoon, or overcast conditions extend this to 900+ feet. For maximum range in bright sunlight, use laser enhancement glasses or work during lower-light periods. The high-power beam mode optimizes range performance.

Is the inches-graduated rod compatible with metric-based lasers and receivers?

The physical rod will work with any laser system, but the inches graduation is optimized for imperial measurement workflows. If your plans and specifications use metric measurements, you'll need to perform conversions, which introduces potential for errors. For metric projects, we recommend the GL422N-27 package which includes a metric-graduated rod. The CR700 receiver in this package displays in inches/fractions, matching the rod graduation for seamless operation.
