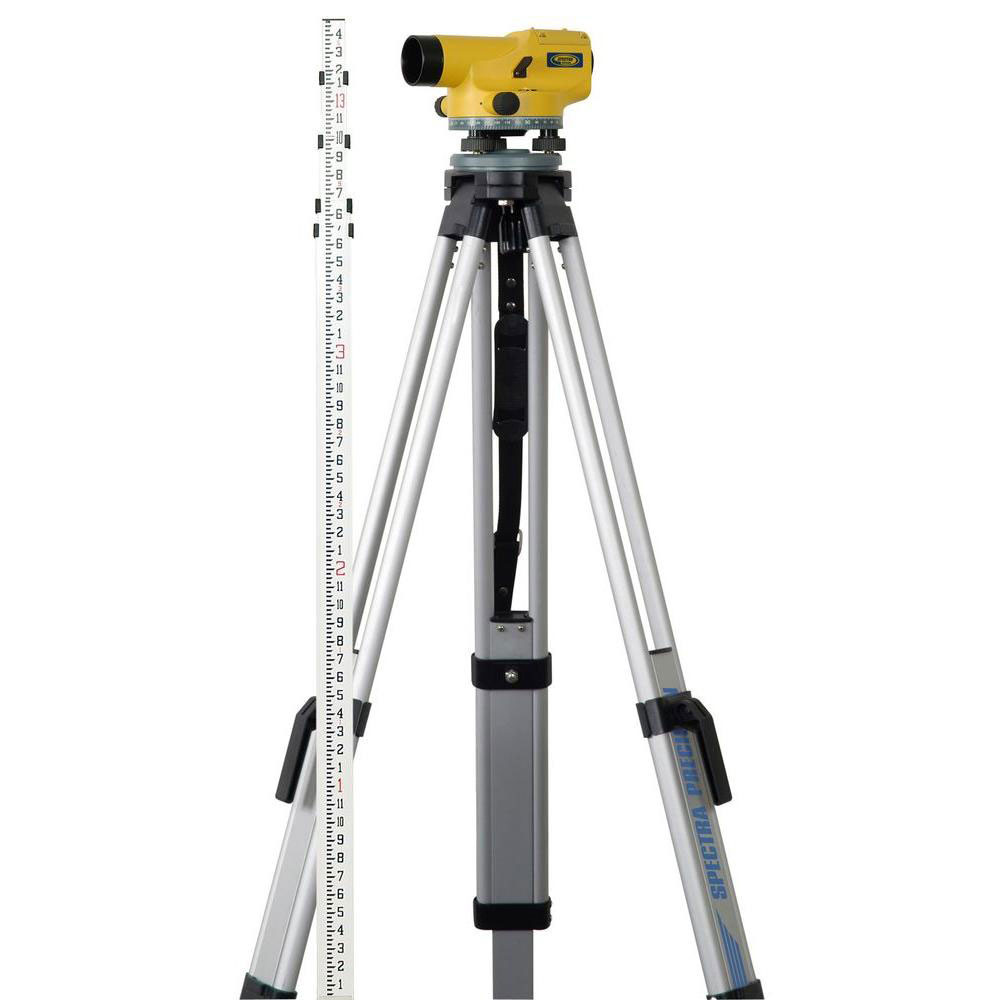

Spectra Precision AL24M-2 Automatic Level 24 power with Measuring Rod-inches and Tripod

Overview

The Spectra Precision AL24M-2 Automatic Level is a field-proven optical instrument designed for professionals who demand accuracy, durability, and speed in elevation measurements. Combining powerful 24x magnification with advanced magnetic damping technology, this automatic level delivers rapid, precise readings for grade establishment, site layout, and leveling applications across construction, surveying, and civil engineering projects.

Built for daily jobsite use, the AL24M-2 features a rugged, weather-resistant housing that withstands harsh conditions while maintaining accuracy within ±1.5mm at 30 meters. The self-leveling compensator automatically adjusts the line of sight, eliminating manual leveling errors and dramatically reducing setup time. Whether you're establishing building elevations, checking foundation grades, or setting drainage slopes, this complete kit—including a measuring rod graduated in inches and a sturdy aluminum tripod—provides everything needed to start measuring immediately.

Engineered for ease of use, the AL24M-2 appeals to both experienced surveyors and operators new to optical leveling. The intuitive design, clear optics, and compact form factor make this automatic level an indispensable tool for contractors, site engineers, landscape professionals, and municipal workers who require reliable elevation control without the complexity or expense of digital systems.

Key Specifications

• Magnification: 24x optical power for clear target visibility at distance
• Accuracy: ±1.5mm per 30m double-run leveling
• Compensator Type: Magnetic damping automatic compensator
• Compensator Range: ±15 arc minutes (approximately ±0.25°)
• Objective Aperture: 36mm for excellent light gathering
• Minimum Focus Distance: 0.3m (1 foot) for close-range work
• Horizontal Circle: 360° graduated for angle reference
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Instrument Weight: 1.7kg (3.75 lbs) for easy transportation
• Tripod Thread: Standard 5/8" x 11 for universal compatibility

What's in the Kit

• Spectra Precision AL24M-2 Automatic Level instrument
• Measuring rod with inch graduations (extends to verify elevations)
• Heavy-duty aluminum tripod with adjustable legs and quick-clamp locks
• Hard-shell protective carrying case for instrument
• Adjustment tools and hex key set
• Lens cloth for optical maintenance
• Instruction manual with setup and calibration procedures
• Manufacturer's warranty documentation

Job Applications

• Foundation and Concrete Work: Establish precise foundation elevations and verify formwork is level before concrete pours. The 24x magnification allows clear rod readings across large slabs, ensuring uniform thickness and proper drainage slopes from a single setup position.
• Site Grading and Excavation: Check cut-and-fill elevations during earthwork to meet design grades efficiently. The magnetic damping system stabilizes quickly even when ground vibration from heavy equipment is present, minimizing delays and allowing continuous productivity.
• Drainage and Utility Installation: Set accurate slopes for stormwater systems, sanitary sewers, and underground utilities. Optical levels excel in trench work where GPS signals may be obstructed, providing reliable elevation control regardless of satellite visibility.
• Building Construction Layout: Transfer benchmark elevations to various building locations and verify floor levels during multi-story construction. The automatic compensator maintains accuracy throughout the day despite temperature changes or minor instrument disturbances.
• Landscaping and Irrigation: Establish grades for proper surface drainage, athletic fields, golf courses, and irrigation system planning. The compact size and quick setup make the AL24M-2 ideal for landscape professionals who move between multiple job locations daily.
• Agricultural Land Leveling: Determine field elevations for precision agriculture, terrace construction, and irrigation efficiency. The rugged construction withstands dusty, muddy farm environments while delivering the accuracy needed for modern agricultural practices.

Compatible Accessories

• Spectra Precision Grade Rods (metric and engineer's scale options available)
• Heavy-duty fiberglass tripods for increased stability in windy conditions
• Replacement carrying cases and protective covers
• Optical plummet for precise centering over control points
• Laser detector for use with laser-equipped automatic levels
• Rod levels and targets for improved measurement accuracy
• Adjustment and calibration tool kits

Related Guides

• How to Set Up and Use an Automatic Level
• Automatic Levels vs. Total Stations: Which Tool for Your Project?
• Establishing and Transferring Site Benchmarks
• Maintaining and Calibrating Optical Surveying Instruments

FAQ

Do I need special training to operate the AL24M-2 automatic level?

No specialized certification is required, though basic understanding of leveling principles is helpful. The automatic compensator handles the precision leveling, so operators mainly need to learn proper setup, focusing, and rod reading. Most users become proficient within a few hours of practice, and the included manual provides clear setup instructions.

What's the difference between an automatic level and a laser level?

Automatic optical levels like the AL24M-2 require an operator to visually read a graduated rod through the telescope, offering excellent accuracy without batteries or electronic components. Laser levels project a beam that can be detected electronically, allowing one-person operation over longer distances. Optical levels are often preferred for their reliability, lower cost, and independence from power sources or electronic failures.

How far can I accurately shoot elevations with this instrument?

With the 24x magnification, the AL24M-2 can take accurate readings up to 100 meters (330 feet) under good conditions, though optimal accuracy occurs within 30-60 meters. Maximum distance depends on atmospheric conditions, rod graduation size, and operator vision. For most construction applications, setups every 50-75 meters provide excellent results.

Can this level be used in light rain or dusty conditions?

Yes, the AL24M-2 is built with weather-resistant seals to protect against dust and light moisture, though it's not fully waterproof for submersion. It operates reliably in temperatures from -20°C to +50°C. For prolonged use in heavy rain, additional protective covering is recommended. The rugged construction makes it suitable for typical construction site conditions including dust, vibration, and temperature fluctuations.
