Spectra Precision 1238 Pipe Laser Centering Plate 8-inch

Overview

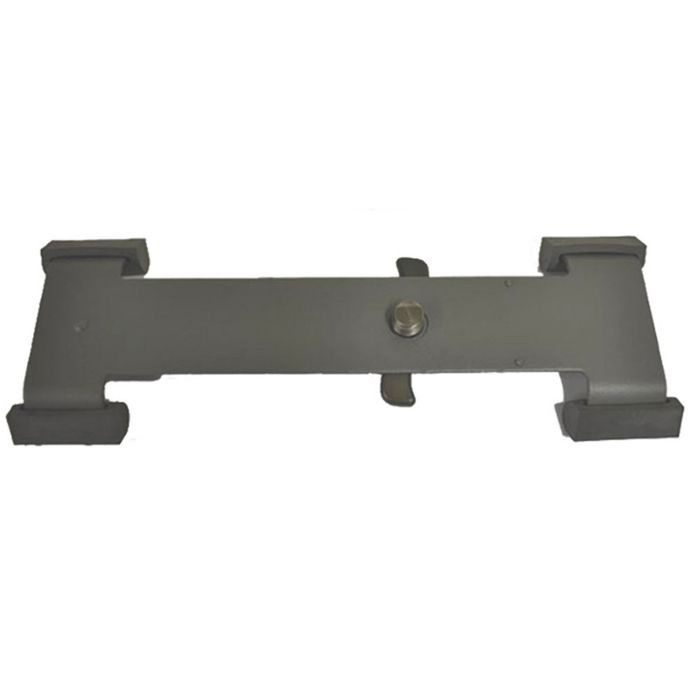

The Spectra Precision 1238 Pipe Laser Centering Plate delivers precision-engineered automatic alignment for 8-inch diameter pipe installations. Designed specifically for use with Spectra Precision DG511 and DG711 pipe lasers, this centering plate eliminates the time-consuming and error-prone process of manual laser positioning. Its precision-machined construction ensures the laser beam projects perfectly along the pipe centerline, delivering the repeatable accuracy required for sewer line installation, storm drain systems, and underground utility construction.

Built from durable materials engineered to withstand the harsh conditions of underground construction environments, the 1238 centering plate features a robust design that maintains alignment integrity even when subjected to vibration, temperature fluctuations, and the rigors of daily job site use. The plate's self-centering mechanism automatically positions your pipe laser at the geometric center of 8-inch pipes, dramatically reducing setup time while improving alignment consistency across your entire project. For contractors working on municipal infrastructure, residential developments, or commercial construction projects requiring precise pipe grades, this centering plate represents an essential tool for achieving professional-grade results with maximum efficiency.

Key Specifications

• Compatible Pipe Diameter: 8 inches (203mm)
• Compatible Laser Models: Spectra Precision DG511 and DG711 pipe lasers
• Centering Mechanism: Automatic self-centering design
• Construction: Heavy-duty precision-machined materials
• Weight: Lightweight for easy handling and positioning
• Alignment Accuracy: Ensures geometric center positioning for repeatable laser projection
• Application Environment: Underground construction, sewer/storm drain installation
• Setup Type: Tool-free installation and removal

What's in the Kit

• 1 × Spectra Precision 1238 Pipe Laser Centering Plate (8-inch diameter)
• Manufacturer documentation and specifications

Job Applications

• Sewer Line Installation: Maintain precise grade control for gravity-flow sewer systems where proper slope is critical for waste transport and preventing backups or standing water in municipal and residential applications.
• Storm Drain Construction: Ensure accurate alignment for stormwater management systems that require consistent grades to prevent pooling, minimize erosion, and meet engineered drainage specifications for commercial and infrastructure projects.
• Underground Utility Conduit: Achieve straight-line accuracy for electrical, telecommunications, and utility conduit installations where precise alignment prevents costly re-work and ensures long-term system accessibility for maintenance.
• Culvert and Drainage Projects: Deliver repeatable centering for culvert installations under roadways and drainage applications where misalignment can lead to structural failure, erosion issues, or compromised water flow capacity.
• Residential Development Infrastructure: Streamline subdivision utility installation by reducing setup time per pipe section, allowing crews to maintain productivity while meeting grade specifications across extensive residential development projects.
• Industrial Process Piping: Position laser systems for industrial facility piping where precise grades ensure proper drainage, prevent fluid accumulation, and maintain process efficiency in manufacturing and processing environments.

Compatible Accessories

• Spectra Precision DG511 Pipe Laser: Red beam pipe laser providing visible alignment reference for general-purpose pipe laying applications
• Spectra Precision DG711 Pipe Laser: Advanced dual-grade pipe laser with digital grade entry and remote control capabilities for complex installations
• Spectra Precision Pipe Laser Targets: High-visibility targets designed for quick grade verification and alignment confirmation during pipe installation
• Spectra Precision RC502 Remote Control: Wireless remote for adjusting laser settings without entering the trench, improving safety and efficiency
• Additional Centering Plates: Alternative diameter centering plates for 6-inch, 10-inch, 12-inch, and other pipe sizes to accommodate diverse project requirements
• Pipe Laser Tripod and Mounting Accessories: Stable mounting solutions for initial setup points and reference positioning
• Pipe Laser Batteries and Chargers: Extended-capacity power solutions ensuring uninterrupted operation during full-day installations

Related Guides

• Complete Guide to Pipe Laser Setup and Calibration Best Practices
• How to Choose the Right Centering Plate for Your Pipe Laser System
• Understanding Grade Requirements for Sewer and Storm Drain Installation
• Pipe Laser Troubleshooting: Common Alignment Issues and Solutions

FAQ

Is the Spectra 1238 centering plate compatible with pipe lasers from other manufacturers?

The 1238 is specifically engineered for Spectra Precision DG511 and DG711 pipe lasers. While the 8-inch diameter sizing is standardized, the mounting interface and centering mechanism are optimized for Spectra laser models. Using this plate with other manufacturers' lasers may result in improper fit, unstable mounting, or misalignment that compromises accuracy. For non-Spectra laser systems, consult your equipment manufacturer for compatible centering plates.

How does the automatic centering mechanism work, and does it require calibration?

The 1238 features a precision-machined self-centering design with symmetrical contact points that automatically position the plate at the geometric center when placed inside an 8-inch pipe. The mechanical centering system requires no calibration or adjustment—simply insert the plate into the pipe, and the geometry ensures proper centering. The design eliminates human error associated with manual positioning and provides consistent, repeatable alignment across multiple pipe sections throughout your project.

Can this centering plate be used in pipes with slight diameter variations or non-circular cross-sections?

The 1238 is designed for standard 8-inch nominal diameter pipes meeting industry specifications. Minor variations within manufacturing tolerances are accommodated, but pipes with significant diameter deviations, out-of-round conditions, or non-circular cross-sections may prevent proper centering. For damaged, deformed, or non-standard pipes, verify fit before relying on the centering plate for alignment. Concrete pipes with rough interiors or corrugated pipes may also affect centering performance.

What maintenance does the centering plate require for long-term accuracy and durability?

Maintain the 1238 by cleaning debris, mud, and concrete residue from contact surfaces after each use to prevent buildup that could affect centering accuracy. Inspect the plate regularly for damage, wear, or deformation that could compromise alignment. Store in a protected case or location to prevent impact damage during transport. Avoid exposing the plate to extreme impacts or using it as a striking surface. Periodic inspection of the centering mechanism ensures continued precision—replace the plate if you notice wear, cracks, or deformation affecting its self-centering capability.
