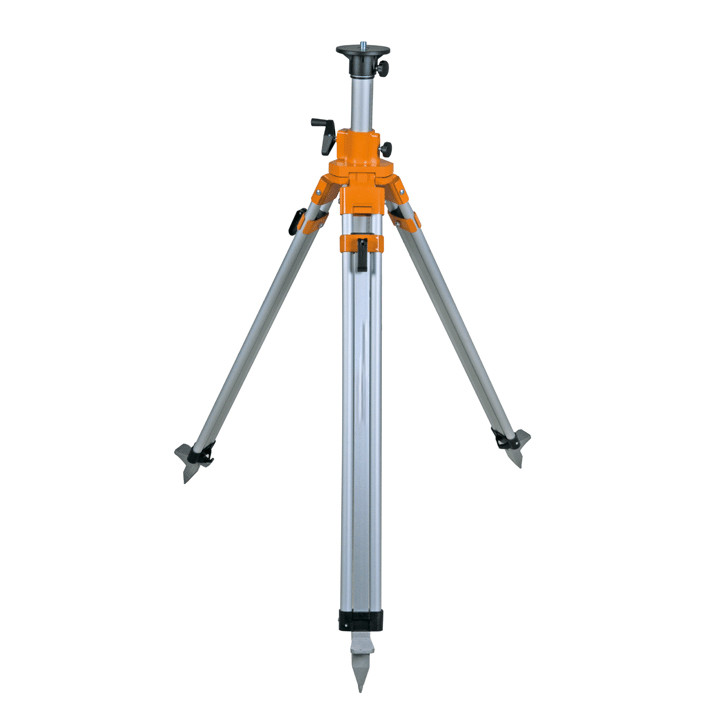

Topcon 809551 Heavy Duty Aluminum Elevating Tripod (34 to 112-inch)

Built for Contractors Who Can't Afford Downtime

The Topcon 809551 Heavy-Duty Aluminum Elevating Tripod is engineered for professionals who demand precision positioning across a full range of working heights. With a crank-operated elevation system and double-telescoping legs, this tripod adjusts from a low 34 inches up to a commanding 112 inches — all without moving the base footprint. Whether you're running grade checks across a slab, setting elevations in a concrete form, or positioning a rotating laser in a high-bay structure, the 809551 keeps your instrument stable and your workflow moving.

Overview and Jobsite Applications

The 809551 is a purpose-built support platform for rotating lasers, optical levels, and total stations used on active construction sites. The crank elevation mechanism lets operators raise or lower the instrument head smoothly and incrementally, eliminating the need to re-level after height adjustments. Heavy aluminum construction holds its shape under daily jobsite abuse, and the wide-stance leg design provides a stable base on uneven ground, compacted soil, concrete, and other common field surfaces. This tripod is compatible with standard 5/8"-11 threaded instrument mounts, making it a practical fit for most professional survey and laser equipment.

Key Specifications

• Model: Topcon 809551
• Material: Heavy-duty aluminum alloy
• Minimum Height: 34 inches
• Maximum Height: 112 inches
• Leg Design: Double-telescoping with individual leg locks
• Elevation System: Crank-operated center column
• Thread Mount: Standard 5/8"-11 instrument thread
• Leg Tips: Ground-penetrating steel tips
• Target Use: Rotating lasers, optical instruments, total stations

Key Features

• Crank Elevation Column: Raise or lower instrument height precisely without disturbing tripod base position or level — critical when working to established grade references
• 34–112" Height Range: One of the widest adjustment ranges available in a contractor-grade tripod, covering low-slab work through high interior structural applications
• Double-Telescoping Legs: Each leg collapses independently for compact transport and extends fully for maximum reach on tall setups
• Heavy Aluminum Construction: Resists bending and warping under load while keeping overall tripod weight manageable for solo operators
• Steel Ground Tips: Penetrate compacted soil and grip concrete surfaces to prevent base drift during extended setups
• Individual Leg Locks: Secure each leg section independently for confident height setting on slopes and rough terrain
• Universal 5/8"-11 Thread: Direct compatibility with Topcon rotating lasers, optical levels, and most third-party survey instruments

Job Applications

Concrete and Flatwork: Position a rotating laser at exact pour height and maintain that elevation while you walk the slab — no re-leveling between height tweaks.

Steel Framing and High-Bay Layout: Crank the instrument up to full 112-inch height to clear obstructions and project reference lines across large open bays.

Site Grading and Earthwork: Set the tripod in rough terrain using independent leg adjustments, then fine-tune instrument height with the crank column to match rod height requirements.

Interior Finish and MEP Layout: Use the low 34-inch minimum height to position instruments in tight mechanical rooms or below ceiling obstructions without compromising line-of-sight.

Compatible Accessories

• Topcon RL-H5A Rotating Laser Level
• Topcon AT-B4 Automatic Optical Level
• Topcon Aluminum Grade Rod
• Topcon Carrying Case for Elevating Tripods
• 5/8"-11 Tribrach Adapter

Related Guides

• How to Set Up an Elevating Tripod for Rotating Laser Work
• Choosing the Right Tripod for Your Laser or Optical Level
• Topcon Rotating Laser Buyers Guide
• Tripod Care and Field Maintenance Tips for Contractors

Frequently Asked Questions

What instruments is the Topcon 809551 compatible with?

The 809551 uses a standard 5/8"-11 threaded mount, which is compatible with the majority of rotating lasers, optical levels, and total stations from Topcon and most other professional brands. Always confirm your instrument's base thread before mounting.

Can this tripod be used on uneven or sloped ground?

Yes. The double-telescoping legs adjust independently, and each leg locks at its own extension, allowing you to compensate for sloped or uneven terrain while keeping the instrument head level. The wide stance further improves stability on soft or irregular surfaces.

Does adjusting the crank column disturb the instrument's level?

The crank elevation system is designed to raise and lower the center column vertically without introducing lateral movement, which minimizes level disturbance during height adjustments. However, on very sensitive setups, re-checking level after significant height changes is always recommended best practice.

How does the 809551 ship and what is the return policy at Express Tools?

The Topcon 809551 ships free via ground freight to the contiguous United States. Express Tools is an authorized Topcon dealer, and all products are covered by the manufacturer's warranty. Contact our team directly for return or exchange inquiries prior to shipping any item back.
