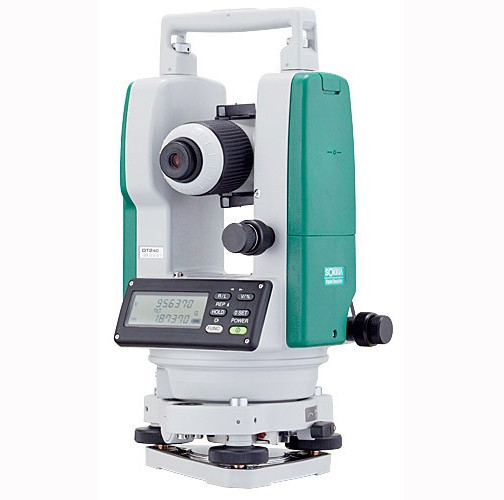

Sokkia DT740 Dual Display Digital Theodolite Kit with 7 Second Accuracy - Model

Sokkia DT740 Dual Display Digital Theodolite: 7 Second Precision for Construction Layout and Alignment

The Sokkia DT740 (Model 303226121) is a dual-display digital theodolite built for general contractors, mechanical installers, and structural crews who need accurate angle measurement for building layout, equipment alignment, and plumbing verification. With 7 arc second accuracy, this theodolite delivers the precision required for mid-rise construction, industrial equipment installation, tower plumbing, and structural monitoring—applications where angle accuracy matters but survey-grade 1-2 second instruments aren't cost-justified. The dual-sided display configuration allows simultaneous angle reading by both the instrument operator and a rod person, eliminating readback errors during layout and speeding field operations. At $3,295, the DT740 provides digital theodolite functionality at a contractor-grade price point, running on standard AA batteries with no proprietary power systems to maintain.

Key Specifications

• Angular Accuracy: 7 arc seconds (7") horizontal and vertical
• Display Configuration: Dual-sided LCD (both faces)
• Minimum Reading: 1 second / 10 seconds (selectable)
• Telescope Magnification: 30x
• Telescope Aperture: 45mm
• Shortest Sighting Distance: 3.3 feet (1.0m)
• Compensator Working Range: ±3 arcminutes
• Power Source: Four LR6/AA alkaline batteries
• Battery Life: Approximately 30 hours continuous use
• Operating Temperature: -4°F to +122°F (-20°C to +50°C)
• Instrument Weight: 10.8 lbs (4.9 kg) without case
• Environmental Rating: Dust and splash resistant (IPx4 equivalent)
• Model Number: 303226121

What's in the Kit

• Sokkia DT740 digital theodolite with dual displays
• Four LR6/AA alkaline batteries (installed)
• Lens cap for objective lens protection
• Plumb bob with release mechanism
• Adjustment tool kit for field calibration
• Operator's manual with setup and calibration procedures
• Hard-shell carrying case with foam instrument protection
• Sokkia manufacturer's warranty documentation

Job Applications

• Building Layout: Establish building corners, perpendicular lines, and right-angle verification during foundation work where 7" accuracy provides 0.03-foot precision at 1,000 feet—well within building tolerances.
• Steel Erection and Column Plumbing: Check vertical plumb on structural columns during mid-rise construction, with dual displays allowing the ironworker and instrument operator to monitor plumb readings simultaneously.
• Mechanical Equipment Alignment: Align HVAC shafts, conveyor systems, process piping, and industrial machinery where angular accuracy controls alignment over extended runs.
• Elevator and Shaft Alignment: Verify vertical plumb in elevator shafts, stair towers, and mechanical chases during construction, with repeatability for multi-floor monitoring.
• Bridge and Infrastructure Layout: Set pier locations, verify bearing alignments, and establish reference lines on bridge construction and retaining wall projects.
• Utility Installation: Align manholes, check pipeline grades, and plumb transmission towers where theodolite angles supplement level measurements.
• Structural Monitoring: Monitor angular movement in foundations, towers, and walls over time by re-occupying control points and comparing horizontal and vertical angles.

Compatible Accessories

Works with standard surveying accessories including:

• SECO 5200-20 Medium Aluminum Tripod — flat-head design for theodolite mounting
• CST/Berger Aluminum Grade Rod — for vertical angle measurements and stadia work
• Sokkia 716382 Tribrach Without Optical Plummet — replacement tribrach for DT740 base
• Dietzgen 5-Point Prism Pole Kit — for establishing sighting targets at layout points

Related Guides

• How to Use a Digital Theodolite for Building Layout
• Theodolite vs. Total Station: Which Instrument Do You Actually Need?
• Understanding Theodolite Accuracy: What 7 Arc Seconds Means in the Field
• Sokkia DT740 Error Codes & Troubleshooting →

Frequently Asked Questions

Is 7 second accuracy sufficient for commercial building layout, or should I invest in a 2 second theodolite?

For most building construction, 7 arc second accuracy is more than adequate. At 1,000 feet, 7 second accuracy translates to approximately 0.03 feet (3/8 inch) of angular error—well within tolerances for building layout, column plumbing on structures up to 10-12 stories, and mechanical equipment alignment. You need 2 second (or better) accuracy only for boundary surveying, control network establishment, or precision monitoring applications. For general contractors doing layout, steel erection, or equipment setting, the DT740's 7 second specification handles the work while saving $2,000-$4,000 compared to higher-precision instruments.

Can I record angle data electronically with the DT740, or is it display-only?

The DT740 is a display theodolite without built-in data recording capability. Angles are shown on the dual LCD displays but aren't stored in internal memory or transmitted to a data collector. Crews record measurements manually in field books or on layout sheets. If you need electronic data capture for survey work, consider a total station like the Sokkia CX or SET series instead. For construction layout where you're simply turning angles and setting points rather than collecting survey data, the DT740's display-only design keeps cost down while providing digital accuracy and the dual-display convenience.

How long do AA batteries last in field use, and can I use rechargeable batteries?

Sokkia rates battery life at approximately 30 hours of continuous operation on four alkaline AA batteries under normal temperature conditions. In typical field use (intermittent operation with the instrument powered off between setups), batteries last several days to a week. You can use rechargeable NiMH AA batteries, though runtime per charge will be slightly shorter than alkaline cells. The advantage of AA power is that you're never dependent on proprietary battery packs—any crew member can grab replacement batteries from a hardware store or gas station if needed on a job.

What's the difference between the DT740 and DT540 models?

The primary difference is accuracy specification and display configuration. The DT740 provides 7 arc second accuracy with dual displays (both faces of the instrument), while the DT540 offers 5 arc second accuracy with a single display. For contractors, the DT740's dual display provides more practical value than the marginal accuracy gain of the DT540—having both the instrument operator and the rod person able to see angles simultaneously speeds layout work and reduces communication errors. Unless you specifically need 5 second accuracy for monitoring or precision alignment applications, the DT740's dual-display configuration at 7 second accuracy is the better choice for general construction and installation work.
