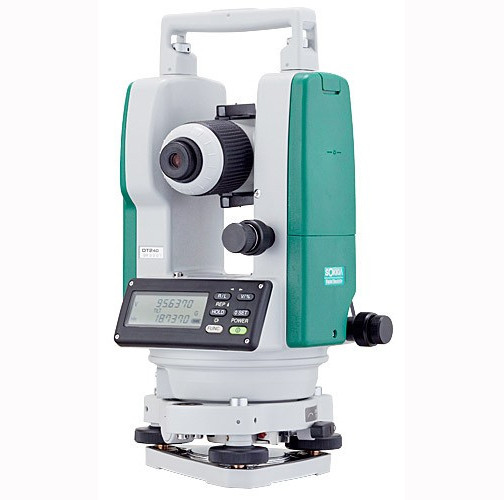

Sokkia DT540 Dual Display Digital Theodolite Kit with 5 Second Accuracy - Model

Overview

The Sokkia DT540 Digital Theodolite delivers 5 arc second accuracy—the precision sweet spot for contractors, structural engineers, and survey teams working on bridge construction, high-rise building alignment, tower plumbness verification, and light boundary surveys. This complete kit configuration includes carrying case, optical plummet, and dual-axis compensation, making it field-ready for crews who need reliable angular measurements without the premium cost of 2-second survey instruments. Construction managers choose the DT540 when layout tolerances exceed what 7-second instruments can reliably deliver, particularly for multi-story structures, pre-engineered metal buildings, and projects requiring tight vertical alignment control.

Key Specifications

• Angular Accuracy: 5 arc seconds (both horizontal and vertical)
• Display: Dual LCD panels (both faces) with LED backlight
• Magnification: 30x telescope with 45mm objective lens
• Minimum Focus: 3.3 ft (1.0 m)
• Compensator: Dual-axis liquid compensator, ±3 arc minutes working range
• Environmental Rating: IP66 (dust-tight, heavy rain protected)
• Battery: BDC46C rechargeable Li-ion, approximately 28 hours operation
• Weight: 10.8 lbs (4.9 kg) instrument only
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

What's in the Kit

• DT540 Theodolite Body: 5-second digital instrument with dual displays and absolute encoders
• BDC46C Rechargeable Battery: Long-life lithium-ion pack with 28-hour field runtime
• CDC68 Battery Charger: 110V AC charger with status indicator
• Optical Plummet: Built-in centering optical system
• Hard Carrying Case: Weather-resistant transport case with custom foam insert
• Lens Covers: Objective and eyepiece protective caps
• Adjustment Tools: Pin set for field calibration and maintenance
• Instruction Manual: Complete operational and maintenance documentation
• Calibration Certificate: Factory test certification with serial-specific data

Job Applications

• High-Rise Building Layout: 5-second accuracy maintains verticality tolerances across multiple floors where plumb-bob methods become impractical and cumulative error from 7-second instruments creates costly rework.
• Bridge Construction Alignment: Pier placement, bearing alignment, and girder positioning require angular precision that keeps structural elements within engineering specifications without over-investing in survey-grade equipment.
• Cell Tower and Monopole Plumbness: Vertical deviation checks during installation and periodic inspections demand accuracy that documents compliance with manufacturer specifications and building codes.
• Industrial Equipment Alignment: Conveyor systems, crane rails, and process equipment installation rely on precise angular measurements to prevent premature wear and operational inefficiency.
• Façade and Curtain Wall Installation: Multi-story glass and panel systems require vertical and horizontal control that prevents cumulative errors visible in finished construction.
• Light Boundary and Topographic Surveys: Property corners, right-of-way mapping, and site topography work where 5-second accuracy satisfies professional survey standards without the cost of higher-precision instruments.

Compatible Accessories

Expand the DT540's capabilities with these field-proven accessories:

• Sokkia BDC46C Spare Battery — Additional 28-hour pack for extended fieldwork
• SECO Heavy-Duty Aluminum Tripod — Stable platform with quick-clamp legs
• Sokkia Prism Pole System — Complete target setup for layout work
• Gammon Reel Fiberglass Tape — Precision tapes for distance measurement integration
• Thumb-Release Tribrach — Quick-setup mounting system for instrument exchanges
