What's the practical range where I can read leveling rods accurately with the 22X magnification?

The 22X magnification allows accurate rod readings from distances typically 200–400 feet, depending on rod clarity, lighting conditions, and operator experience. On bright days with good leveling rods marked in standard intervals, most crews read rods reliably at 250+ feet, which minimizes setup moves on large sites and speeds elevation data collection.

Does the L6-20 require power or batteries?

No—the L6-20 is purely optical and mechanical. It operates with no batteries, no electronics, and no power dependency, which means it runs reliably on any job site, in any weather, without dead-battery surprises or sensor drift. This simplicity is a key advantage over laser levels on long-duration projects.

How do I keep the optical sight clear and accurate in dusty or wet field conditions?

Keep the eyepiece lens clean using a soft cloth—avoid rubbing hard or using abrasive materials that scratch the lens. Establish a quick cleaning routine before critical sightings, and store the L6-20 in a protective case between job sites. The optical design is durable, but lens contamination directly affects reading clarity and measurement confidence.

Can I use the L6-20 Meridian with any standard surveying tripod?

Yes, the L6-20 mounts on standard surveying tripods with the appropriate connection hardware. Confirm your tripod is sturdy and capable of holding the optical level stable—tripod instability directly degrades measurement accuracy, so avoid lightweight or compromised tripods.

What's the setup procedure, and how long does it take to get the first reading?

Setup is straightforward: mount the level on a stable tripod, use the bubble level to level the instrument, focus the eyepiece for your vision, position your assistant with the leveling rod at the measurement point, sight through the 22X optic, and read the elevation at the crosshair. Experienced operators typically complete setup and take a first reading in 2–3 minutes. The simplicity keeps your crew focused on the job, not fumbling with complex electronics.

How is the L6-20 different from modern laser levels, and when should I choose the optical design?

The L6-20 is optical-only with no batteries or electronics, making it immune to dead batteries, sensor drift, and weather-related recalibration issues—ideal for long-duration projects or remote sites. Choose the optical level when you need proven reliability and repeatable accuracy without electronic dependency; choose laser levels when you need faster slope layout or one-person operation. Many contractors maintain both: optical for precision elevation verification and baseline setup, laser for daily layout efficiency.

SOKKIA B30A-25 Automatic Level 28 power 1009572-03

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The David White L6-20 Meridian is a professional-grade optical level featuring 22X magnification, built for surveyors and contractors requiring precise elevation measurements and leveling work. This classic optical level design delivers reliable performance for establishing grades, checking elevations, and conducting level surveys across job sites. The 22X magnification optical sight provides clear, detailed viewing of leveling rods and distant points, allowing operators to read precise elevation measurements from significant distances. This capability is essential for large-scale construction projects, site grading work, and topographic surveys where accuracy and efficiency directly impact project schedules and budgets. Civil engineers, construction contractors, and land surveyors rely on this instrument.
Type: Optical Level
Magnification: 22X
Model: L6-20 Meridian
Technology: Optical sighting
SKU: 44-D8824

SokkiaB30A-25SKU 44-D8824New

Accessories →

SOKKIA B30A-25 Automatic Level 28 power

$495.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Authorized Sokkia Dealer

Genuine, factory-fresh Sokkia equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Sokkia equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Sokkia B30A-25?

The SOKKIA B30A-25 Automatic Level 28 power is a Sokkia professional jobsite instrument. It's available from Express Tools as an authorized Sokkia dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this accessories for

Concrete Grade Establishment

Concrete crews use the L6-20 to establish and verify grade references before pouring slabs, foundations, and elevated decks. The 22X magnification allows accurate rod readings at distance, reducing setup moves and keeping the pour schedule on track.

Site Grading and Slope Verification

Grading contractors rely on the L6-20 to verify cut-and-fill accuracy and confirm drainage slopes meet design specs. Multiple benchmark readings ensure elevation control across the entire grading operation.

Foundation Elevation Control

Building contractors use the optical level to verify foundation elevations before concrete placement and to check that building layout meets elevation requirements. Precise readings prevent costly rework and ensure structural alignment.

Drainage Design Verification

The L6-20 allows contractors to confirm that drainage systems, swales, and retention areas follow designed slopes and elevations. Accurate slope verification prevents drainage failures and site water management problems.

Topographic and Elevation Surveys

Survey crews and civil engineers use the L6-20 to conduct elevation surveys and establish site topography for design reference. The classic optical design provides repeatable accuracy without electronic drift or battery dependency.

PRODUCT OVERVIEW

Product Description

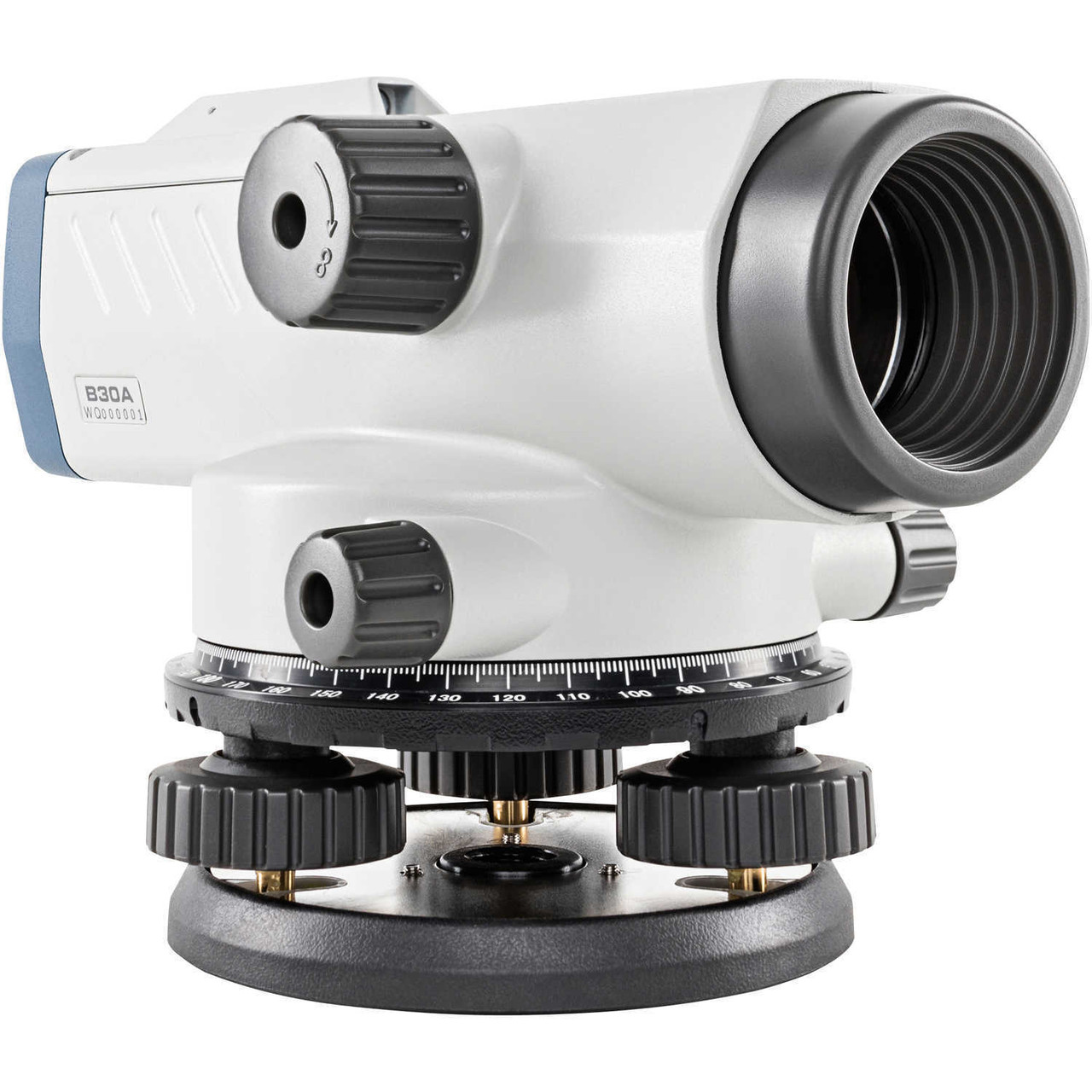

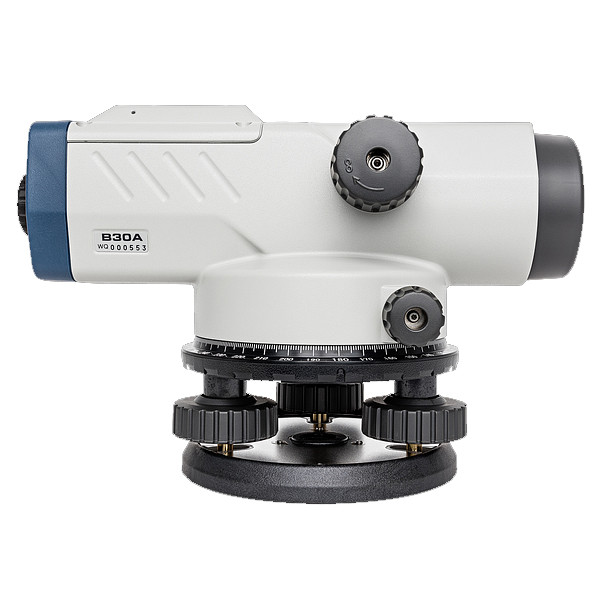

The SOKKIA B30A-25 Automatic Level is a professional-grade optical instrument purpose-built for surveyors, civil contractors, and construction crews who demand fast setup and reliable elevation data across demanding jobsite conditions. With 28-power magnification, a high-tensile wire compensator, and magnetic damping system, the B30A-25 delivers consistent accuracy in environments where vibration, wind, and rough terrain would compromise lesser instruments.

Overview & Jobsite Applications

The B30A-25 is designed for high-volume leveling work on construction sites, road grading projects, utility installations, and land surveying operations. Its automatic compensator self-levels within a ±15-arcminute range, eliminating tedious manual adjustments between shots and letting crews move efficiently through benchmarking runs. The wide field of view at 28x magnification means readable rod shots at extended distances — cutting the number of instrument setups required to cover large grading areas or long pipeline runs.

Key Specifications

Magnification: 28x
Objective Lens Diameter: 36mm
Minimum Focus Distance: 0.5m (1.6 ft)
Compensator Type: High-tensile wire suspension with magnetic damping
Compensator Range: ±15 arcminutes
Standard Deviation (per km double run): ±1.5mm
Horizontal Circle: 360° graduated circle
Stadia Ratio: 100:1
Instrument Weight: Approx. 1.8 kg (3.97 lbs)
Tripod Thread: 5/8" x 11 standard

Key Features

Magnetic damping compensator for rapid settling in vibration-prone environments
28x magnification with bright, high-contrast optics for clear rod readings at distance
Horizontal graduated circle for rough azimuth work and layout reference
Sealed optics resistant to dust and moisture ingress
Smooth-action horizontal tangent screw for precise aiming
Circular level vial for quick rough leveling before compensator takes over
Compact, lightweight body for easy transport between setups
Compatible with standard 5/8" x 11 tripods — works with equipment you already own

Job Applications

Site Grading & Earthwork: Establish and verify cut/fill elevations across large grading areas with fewer setups. The 28x optics let operators read a rod at distances that keep pace with dozer and scraper work without constantly repositioning the instrument.

Foundation Layout & Elevation Control: Transfer benchmark elevations to foundation forms, check footing elevations for level, and verify slab pour heights with confidence. The ±1.5mm/km accuracy rating meets the precision demands of structural concrete work.

Utility & Pipeline Gradient Control: Run pipe grades and verify invert elevations on sewer, storm drain, and water main installations. The stadia function allows quick distance checks to confirm rod placement without a separate measurement.

Road & Infrastructure Surveying: Profile road subgrades, check curb and gutter elevations, and run level loops for infrastructure projects. The compensator's wide range handles the uneven setups common on active roadway construction zones.

Compatible Accessories

Related Guides

Frequently Asked Questions

What does the magnetic damping compensator do on the SOKKIA B30A-25?: The magnetic damping compensator uses a pendulum suspended on high-tensile wires combined with a magnetic braking system to quickly stop oscillation after the instrument is disturbed. This means the compensator settles faster between shots — a significant productivity advantage on jobsites with ground vibration from equipment, traffic, or wind.
Is the B30A-25 accurate enough for structural or precision work?: Yes. With a standard deviation of ±1.5mm per kilometer of double-run leveling, the B30A-25 meets the accuracy requirements for most construction, grading, and general surveying applications. For extremely high-order geodetic surveys, a digital level with a bar-code rod would be the appropriate upgrade, but for the vast majority of contractor and survey crew work, the B30A-25 is more than sufficient.
What tripod does the SOKKIA B30A-25 use?: The B30A-25 accepts any standard 5/8" x 11 threaded tripod head — the most common size in the industry. If you already own a quality survey tripod from any major manufacturer, it will be compatible. A heavy-duty aluminum or wood-leg tripod is recommended for best stability.
Can the B30A-25 be used for distance measurement?: Yes, to a degree. The instrument has a stadia ratio of 100:1, which allows you to calculate approximate distances using the stadia hair intercept on a level rod. This is useful for rough distance checks in the field, though it does not replace a dedicated EDM or total station for precision distance work.

Why This Equipment

Authorized Dealer

Genuine, factory-fresh inventory with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2PM ship same day from our Texas warehouse.

Expert Support

Call or chat with a contractor equipment specialist before and after your purchase.

Free Shipping

Free ground shipping on orders $99+ to the continental US.

KIT CONTENTS

What's In The Box

David White L6-20 Meridian 22X Optical Level

Why Buy This?

Professional-grade equipment, authorized dealer pricing.

The tools contractors trust on municipal infrastructure, commercial projects, and high-tolerance earthwork aren't available at hardware stores — and they shouldn't be. This equipment is engineered for professionals, and buying it through an authorized dealer means you get full manufacturer support when it matters.

Express Tools carries only factory-fresh inventory from brands contractors specify by name. No gray-market product, no import-spec units, just authentic gear with legitimate firmware and calibration documentation.

Same-day shipping on in-stock items, expert support before and after the sale, and a 30-day return window on most products. If you have questions about specs, compatibility, or applications, call us — we know this equipment.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The David White L6-20 Meridian is a professional-grade optical level featuring 22X magnification, built for surveyors and contractors requiring precise elevation measurements and leveling work. This classic optical level design delivers reliable performance for establishing grades, checking elevations, and conducting level surveys across job sites. The 22X magnification optical sight provides clear, detailed viewing of leveling rods and distant points, allowing operators to read precise elevation measurements from significant distances. This capability is essential for large-scale construction projects, site grading work, and topographic surveys where accuracy and efficiency directly impact project schedules and budgets. Civil engineers, construction contractors, and land surveyors rely on this instrument.
Type	Optical Level
Magnification	22X
Model	L6-20 Meridian
Technology	Optical sighting
SKU	44-D8824
Key Feature 1	22X magnification optical sight
Key Feature 2	Professional-grade construction
Key Feature 3	Precise elevation measurement capability
Key Feature 4	Classic optical level design
Key Feature 5	Clear distant point viewing
Key Feature 6	Reliable leveling performance
Key Feature 7	Durable fieldwork instrument
Use Cases	Establishing grades for construction; Elevation checking and verification; Level surveys across job sites; Large-scale construction projects; Site grading and preparation work; Topographic surveys; Foundation elevation work; Long-distance measurement applications
Setup Steps	Mount optical level on tripod \| Position level on stable ground \| Level the instrument using bubble level \| Focus eyepiece for operator vision \| Position leveling rod at measurement point \| Look through 22X sight to rod \| Read elevation measurement at crosshair
Pro Tips	Keep eyepiece lens clean with soft cloth for optimal viewing \| Use in adequate daylight conditions for best sight clarity \| Establish multiple leveling benchmarks for accuracy verification \| Position tripod on solid, level ground to minimize measurement errors \| Have assistant hold leveling rod vertically at measurement points
Compatible Equipment	Surveying tripods; Leveling rods and staff; Measuring tapes; Leveling benchmarks
Common Issues	Difficulty focusing on distant leveling rods \| Eyepiece lens contamination reducing clarity \| Tripod instability affecting measurement accuracy
