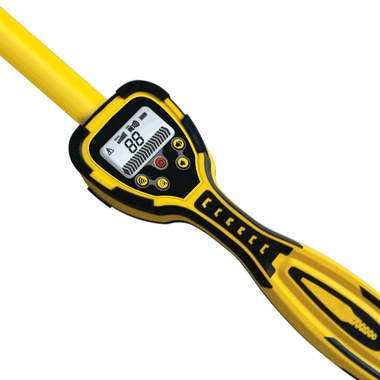

SmartTRAK ST101 Smart-TRAK Magnetic Locator 59-ST101

Overview

The SmartTRAK ST101 Magnetic Locator (Model 59-ST101) represents a practical, cost-effective solution for professionals who need reliable ferrous metal detection without the complexity of premium locating systems. Designed for utility contractors, survey crews, and site preparation teams, this magnetic locator excels at pinpointing buried cast iron pipes, steel valve boxes, manhole covers, property markers, and other ferromagnetic objects concealed beneath soil, asphalt, concrete, and other non-metallic surfaces.

Unlike sophisticated cable and pipe locators that require signal transmission, the ST101 operates by detecting the Earth's magnetic field distortions caused by ferrous metals—making it an essential complement to electromagnetic locators in any utility toolkit. This passive detection method means no batteries to die mid-job and no signal generators to configure, delivering dependable performance in all weather conditions and terrain types. The ST101's straightforward analog design eliminates learning curves, allowing crew members to achieve productive results immediately after unboxing.

Built for the demanding conditions of construction and survey work, the ST101 features rugged construction that withstands drops, vibration, and exposure to the elements. Its ergonomic design reduces operator fatigue during extended search operations, while the intuitive audio and visual indication system provides unmistakable alerts when ferrous objects are detected. For contractors managing projects where underground infrastructure must be accurately mapped before excavation, or surveyors recovering buried property monuments, the ST101 delivers professional-grade detection capabilities at a competitive $825 price point.

Key Specifications

• Detection Method: Passive magnetic field distortion sensing
• Target Materials: Ferrous metals (iron, steel, cast iron)
• Detection Depth: Up to 15 feet for large ferrous objects; typical performance 6-10 feet for standard utility infrastructure
• Indication System: Dual audio tone and analog meter display
• Power Source: No batteries required (passive magnetic operation)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Weight: 3.2 lbs (1.45 kg) with handle assembly
• Handle Configuration: Adjustable-length shaft with cushioned grip
• Calibration: Manual null adjustment for local magnetic conditions
• Durability Rating: Weather-resistant construction suitable for outdoor field use
• Warranty: 2-year manufacturer's warranty on defects in materials and workmanship
• Certification: CE compliant for commercial use

What's in the Kit

• SmartTRAK ST101 Magnetic Locator main unit with analog meter display
• Adjustable extension handle with ergonomic grip (extends 32" to 52")
• Protective carrying case with foam insert for secure transport
• Calibration adjustment tool for field zeroing
• Quick-start operation guide with detection best practices
• Comprehensive instruction manual with troubleshooting section
• Registration card for warranty activation

Job Applications

• Pre-Excavation Utility Mapping: Before breaking ground on any construction project, the ST101 identifies buried iron and steel infrastructure including water mains, gas valves, and manhole covers. This prevents costly damage to existing utilities and protects crew safety by revealing hidden hazards that electromagnetic locators might miss when tracing active lines.
• Property Boundary Survey Recovery: Land surveyors rely on the ST101 to relocate buried iron property pins, rebar markers, and survey monuments that have become obscured by soil accumulation, vegetation, or pavement. The passive detection method works regardless of ground moisture or conductivity conditions that challenge other technologies.
• Valve Box and Access Point Location: Municipal maintenance crews use the ST101 to quickly pinpoint the exact position of buried cast iron valve boxes, cleanout covers, and utility access points before excavation. This targeted detection reduces the area requiring excavation, minimizing pavement damage and restoration costs while accelerating service connections.
• Underground Storage Tank Detection: Environmental assessment teams employ the ST101 during Phase I and Phase II site investigations to detect buried steel fuel tanks, cisterns, and other ferrous storage vessels. The deep detection capability identifies tanks that lack complete documentation, preventing environmental surprises during property transactions or redevelopment.
• Horizontal Directional Drilling (HDD) Tool Recovery: When drill heads or steel boring tools become stuck during underground installations, the ST101 provides precise locating to guide retrieval operations. The magnetic detection works through the complex soil conditions and depths where standard electronic locators lose signal effectiveness.
• Archaeological and Historical Site Investigation: Researchers use the ST101 to non-invasively detect buried iron artifacts, structural remains, and historical infrastructure without disturbing sites. The passive detection leaves no environmental impact while revealing subsurface ferrous materials that indicate historical human activity.

Compatible Accessories

• Extended Handle Kit: 72-inch heavy-duty handle extension for detecting deep targets without bending or kneeling
• Replacement Foam Insert Set: Custom-cut protective foam for carrying case to accommodate additional field accessories
• All-Weather Equipment Cover: Water-resistant protective cover for operation during rain and snow conditions
• Reflective Safety Vest with Tool Loops: High-visibility workwear with integrated holders for locators and marking equipment
• Utility Marking Flag Set: Color-coded wire flags for marking detected target locations per APWA standards
• Field Notebook with Utility Grid Pages: Weather-resistant documentation system for recording detection results and site conditions

Related Guides

• Magnetic vs. Electromagnetic Locators: Choosing the Right Detection Technology
• Complete Guide to Pre-Excavation Utility Locating and Damage Prevention
• Recovering Buried Survey Monuments: Techniques and Equipment
• Underground Storage Tank Detection Methods for Environmental Site Assessments

FAQ

What's the difference between a magnetic locator and a cable/pipe locator?

Magnetic locators like the ST101 detect distortions in the Earth's natural magnetic field caused by ferrous (iron-containing) metals. They work passively without batteries or signal generators and excel at finding cast iron pipes, steel valve boxes, manhole covers, and survey markers. Cable and pipe locators use electromagnetic signals to trace active utilities and conductive lines. For comprehensive utility locating, most professionals use both technologies—electromagnetic locators for tracing lines and cables, and magnetic locators for finding ferrous infrastructure components and non-active metallic objects.

Can the ST101 detect non-ferrous metals like copper, aluminum, or PVC pipe?

No, the ST101 is specifically designed to detect ferrous (magnetic) metals containing iron or steel. It cannot detect non-ferrous metals such as copper water lines, aluminum conduit, or non-metallic materials like PVC, concrete, or fiber optic cable. For these materials, you would need an electromagnetic cable/pipe locator that uses active signal transmission. The ST101's specialized ferrous detection is precisely why it remains an essential tool—many critical utility components like valve boxes, manhole frames, and older water mains are ferrous and won't respond to standard electromagnetic locating.

How deep can the ST101 detect buried objects?

Detection depth varies based on the size, mass, and orientation of the ferrous object. Large targets like manhole covers or steel tanks can be detected up to 15 feet deep under ideal conditions. Standard utility infrastructure components such as valve box lids and survey markers typically produce reliable signals at 6-10 feet depth. Small objects like rebar sections or iron pins may only be detectable to 3-4 feet. Factors affecting depth performance include soil mineralization, electromagnetic interference from nearby power lines, and the angle of the buried object relative to Earth's magnetic field.

Does the ST101 require batteries or regular calibration?

The ST101 operates on passive magnetic principles and requires no batteries, which eliminates concerns about power failure during critical fieldwork. However, the unit does include a manual null adjustment (calibration control) that should be set when beginning work in a new location. This calibration accounts for local variations in Earth's magnetic field and nearby interference sources. The process takes less than a minute—simply adjust the control until the meter reads zero in an area known to be free of ferrous metals, then begin your search pattern. This calibration remains stable throughout the workday in most field conditions.
