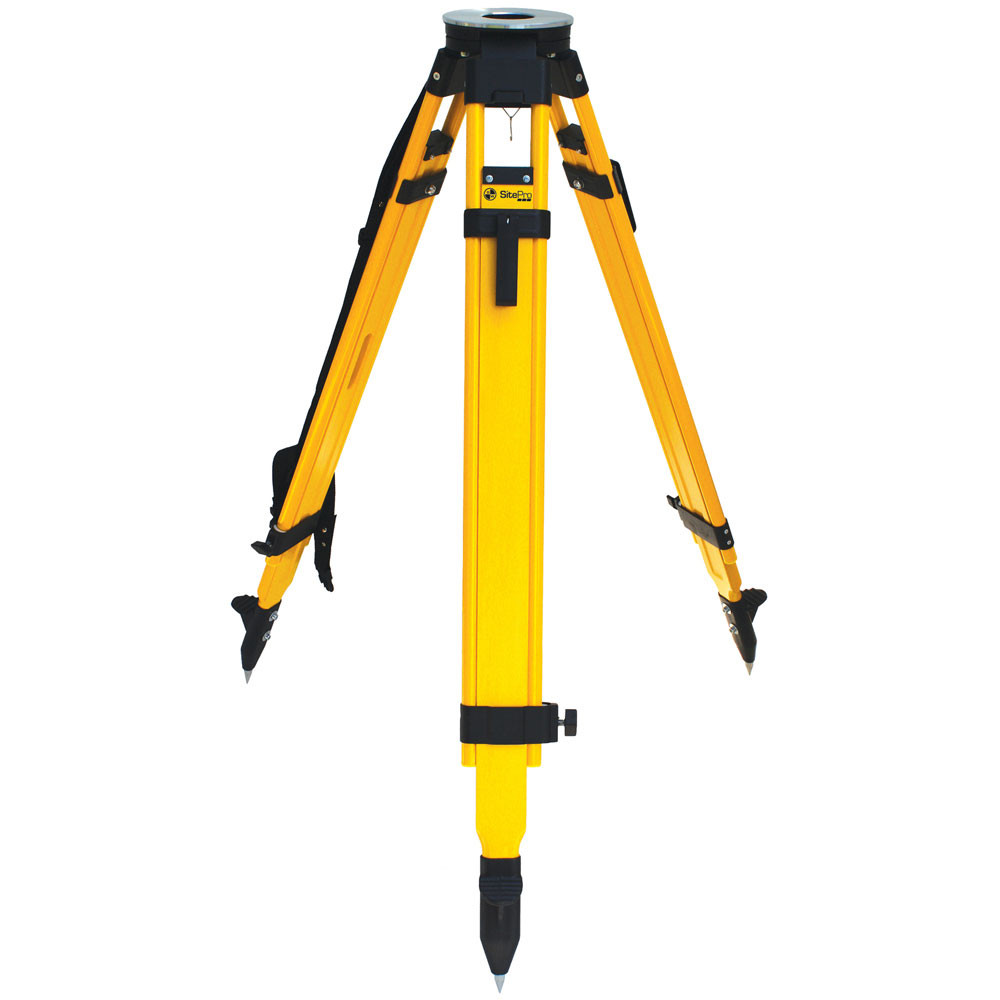

SitePro WDF20-DCB Wood and Fiberglass Tripod - Heavy Duty - Dual Clamp 42 to 72-inches Extended

Overview

The SitePro WDF20-DCB Wood and Fiberglass Tripod represents the gold standard in surveying stability, engineered for professionals who demand absolute precision in challenging field conditions. This heavy-duty tripod combines the natural vibration-dampening properties of wood with the weather-resistant durability of fiberglass reinforcement, creating a platform that excels where aluminum alternatives fall short. The innovative dual-clamp system—featuring both quick-release clamps and traditional wing screws on each leg—delivers unmatched security against instrument drift, making it the preferred choice for total stations, GPS receivers, laser levels, and optical instruments where even millimeter-level movement is unacceptable.

Extending from 42 to 72 inches, this tripod accommodates everything from ground-level site work to elevated observations, while the pointed hardwood feet bite securely into soil, asphalt, and soft terrain. The flat head design with standard 5/8 x 11 thread ensures universal compatibility with virtually all surveying equipment. At this professional grade, the WDF20-DCB doesn't just support your instruments—it becomes an extension of your precision measurement system, delivering the rock-solid stability that separates accurate data collection from costly do-overs.

Key Specifications

• Construction: Premium wood legs with fiberglass reinforcement for enhanced weather resistance
• Height Range: 42 inches (compressed) to 72 inches (fully extended)
• Leg Lock System: Dual-clamp design—quick-release clamps PLUS wing screws for redundant security
• Head Type: Flat head with standard 5/8 x 11 TPI mounting thread
• Feet: Replaceable pointed hardwood tips for superior ground penetration
• Weight Capacity: Heavy-duty rating suitable for total stations, robotic instruments, and GPS systems
• Leg Diameter: Oversized wood construction for maximum rigidity
• Finish: Weather-resistant coating protects against moisture, UV exposure, and temperature extremes
• Price: $215

What's in the Kit

• SitePro WDF20-DCB Wood/Fiberglass Tripod with dual-clamp leg locks
• Pointed hardwood feet (installed)
• Shoulder carrying strap
• Manufacturer's documentation and warranty information

Job Applications

• Land Surveying & Boundary Work: The dual-clamp system prevents leg slippage during extended observation sessions, ensuring your control points remain accurate throughout multi-hour setups. Wood construction dampens vibrations from nearby traffic and wind gusts that would compromise precise angle measurements.
• Construction Layout & Grade Control: When setting building corners, establishing elevations, or controlling machine guidance systems, the 72-inch maximum height puts your instrument at comfortable working level while maintaining stability on uneven ground. The pointed feet penetrate compacted fill and disturbed soil where flat-footed tripods slip.
• GPS/GNSS Base Station Operations: Static GPS sessions require absolute stillness over hours-long observation periods. The wood/fiberglass composite resists thermal expansion that causes metal tripods to drift during temperature changes, while the dual-lock system eliminates any possibility of leg creep during long-duration positioning.
• Laser Scanning & 3D Modeling: High-density point cloud collection demands a tripod that won't shift during scan head rotation. The heavy-duty construction absorbs scanner torque and wind loading, preventing the subtle movements that create registration errors when stitching multiple scan positions.
• Machine Control Calibration: When setting up total stations for excavator or dozer guidance, the redundant clamping system provides insurance against equipment bumps and cable snags. The stability translates directly to reduced calibration drift, meaning operators spend more time cutting grade and less time re-establishing control.
• Environmental & Monitoring Applications: For hydrographic surveys, deformation monitoring, and environmental studies requiring return-to-point accuracy, wood tripods outperform metal in temperature stability. The WDF20-DCB maintains its setup geometry across morning-to-afternoon temperature swings that would cause aluminum legs to expand and shift instrument position.

Compatible Accessories

• Tribrach Systems: Standard 5/8 x 11 thread accepts all optical plummets, laser plummets, and shifting tribrachs
• Replacement Feet: Interchangeable pointed tips, flat pads for concrete, and spiked feet for ice/frozen ground
• Instrument Platforms: Compatible with dome-head adapters, optical plummet tribrachs, and quick-release systems
• Carrying Solutions: Padded tripod bags and hard cases designed for wood tripod dimensions
• Leveling Accessories: Bull's-eye levels and circular vials for rapid setup
• Weather Protection: Instrument umbrellas and sun shades mount to standard tripod head

Related Guides

• Surveying Tripod Selection Guide: Wood vs. Aluminum vs. Fiberglass
• Professional Tripod Setup Techniques for Maximum Stability
• Wood Tripod Care & Maintenance: Extending Service Life
• Understanding Dual-Clamp Tripod Systems

FAQ

What advantage does the dual-clamp system provide over single quick-clamps?

The dual-clamp design combines the speed of quick-release levers with the fail-safe security of wing screws. During setup, use the quick-clamps for rapid leg positioning, then tighten the wing screws to lock everything down. This redundancy prevents the leg creep that sometimes occurs with quick-clamps alone, especially on slopes or when instruments are bumped. It's essentially insurance against the costly errors caused by tripod settlement during critical measurements.

Why choose wood/fiberglass over aluminum for surveying work?

Wood tripods offer superior vibration dampening, essential when working near traffic or in windy conditions. Unlike aluminum, wood doesn't conduct temperature extremes to your hands in hot or cold weather, and it exhibits minimal thermal expansion—critical for GPS base stations and long observation sessions. The fiberglass reinforcement adds weather resistance while preserving wood's stability advantages. Many surveyors reserve aluminum for rapid topo work and use wood for control work, boundary surveys, and any application where maximum precision matters.

Can this tripod handle robotic total stations and heavy GPS receivers?

Absolutely. The WDF20-DCB's heavy-duty construction and oversized leg diameter are specifically engineered for professional-grade instruments including robotic total stations, multi-constellation GNSS receivers, and laser scanning systems. The dual-clamp system provides extra security for expensive equipment, and the wood construction dampens the vibrations generated by motorized instruments better than lightweight alternatives.

How do I maintain the wood legs in wet or humid conditions?

The factory weather-resistant coating provides excellent protection, but periodic re-treatment extends service life. After exposure to rain or snow, wipe legs dry and store with legs extended in a ventilated area. Once or twice yearly, apply a wood preservative or exterior varnish, paying special attention to the leg ends and any exposed wood. Check wing screws and clamps for corrosion and lubricate moving parts. With basic care, quality wood tripods often outlast their aluminum counterparts, developing a seasoned stability that improves with age.
