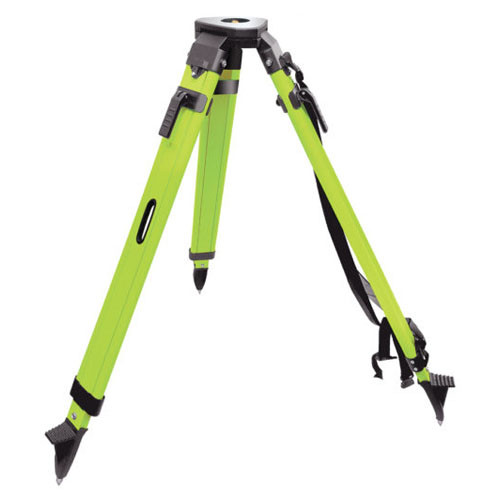

SitePro SHIVIZ20-B SiteMax Heavy-Duty Surveyor Composite Tripod - Salamander Series

Built for the Field, Engineered for Accuracy

The SitePro 01-SHIVIZ20B Salamander Series Composite Tripod sets a new standard for all-climate surveying. Constructed from high-grade composite materials, this tripod eliminates the thermal expansion and contraction issues that compromise aluminum tripods in extreme heat, cold, and moisture-heavy environments. Whether your crew is working a highway corridor in July or a winter utility layout, the SHIVIZ20B delivers the dimensional stability and repeatable platform your total station or optical level demands. The high-visibility orange composite body keeps your equipment visible on active jobsites—a critical safety advantage when working near traffic or heavy machinery.

Overview & Jobsite Applications

The Salamander SHIVIZ20B is purpose-built for survey crews who operate across variable terrain and seasonal conditions. Its composite leg construction resists warping, corrosion, and UV degradation without the weight penalty of fiberglass alternatives. The tripod is compatible with standard 5/8"-11 threaded instruments, making it a universal platform for total stations, optical levels, laser levels, and GPS/GNSS receivers. Ideal for DOT survey work, construction layout, boundary surveys, and utility corridor mapping where long-duration setups and instrument repeatability are non-negotiable.

Key Specifications

• Model: 01-SHIVIZ20B (Salamander Series)
• Material: High-visibility orange composite construction
• Thread Standard: 5/8"-11 universal instrument mount
• Head Type: Flat-top / dome compatible
• Leg Sections: Dual-clamp composite legs
• Climate Rating: All-season — rated for extreme heat and sub-zero conditions
• Leg Shoes: Hardened steel points for penetration on firm and soft ground
• Stability: Temperature-stable composite core — no thermal-induced drift
• Color: High-visibility safety orange
• Instrument Compatibility: Total stations, optical levels, theodolites, GNSS receivers, laser levels

Key Features

• Hi-Visibility Orange Composite Body — Stays visible in active traffic zones, low-light conditions, and dense vegetation
• All-Climate Dimensional Stability — Composite construction resists thermal expansion that causes instrument tilt on aluminum tripods
• Corrosion & UV Resistant — Composite legs will not rust, pit, or degrade under prolonged sun and moisture exposure
• Lightweight Design — Easier to carry across rough terrain without sacrificing rigidity or load capacity
• Universal 5/8"-11 Thread — Drop-in compatibility with all major instrument brands including Trimble, Leica, Topcon, Sokkia, and Nikon
• Hardened Steel Leg Shoes — Positive ground penetration on asphalt, turf, gravel, and frozen ground
• Secure Leg Clamps — Tool-free height adjustment with positive locking under load
• Salamander Series Build Quality — SitePro's professional-grade line engineered for daily contractor and survey crew use

Job Applications

Highway & DOT Survey Work: The hi-vis orange body meets high-visibility requirements for roadway and traffic control zones without the need for additional flagging on the tripod. Setup fast, stay safe, stay compliant.

Construction Layout & As-Built Surveys: Stable, repeatable instrument platform for total station layout across multi-season projects. No recalibration headaches caused by aluminum expansion between morning and afternoon setups.

Boundary & Topographic Surveys: Lightweight composite construction reduces fatigue on long traverses through rough terrain while maintaining the rigidity needed for precise angular and distance measurements.

GNSS & GPS Receiver Mounting: 5/8"-11 thread accepts all standard GNSS pole-to-tripod adapters, making the SHIVIZ20B a versatile base for both optical and satellite-based workflows on the same project.

Compatible Accessories

• SitePro Tribrach with Optical Plummet
• 5/8"-11 to 5/8"-11 Adapters & Extensions
• SitePro Instrument Carrying Cases
• Tripod Bags & Carrying Straps
• Hardened Replacement Leg Shoes
• Universal GNSS Tripod Adapters

Related Guides

• How to Choose the Right Survey Tripod for Your Instrument
• Composite vs. Aluminum vs. Fiberglass Tripods: Contractor's Comparison
• Setting Up a Total Station for Construction Layout
• Jobsite Safety Tips for Survey Crews Working Near Traffic

Frequently Asked Questions

Is the SitePro SHIVIZ20B compatible with Trimble, Leica, and Topcon total stations?

Yes. The SHIVIZ20B uses a standard 5/8"-11 threaded head, which is the universal mounting standard for professional survey instruments. It is compatible with total stations, theodolites, optical levels, and GNSS receivers from all major manufacturers including Trimble, Leica, Topcon, Sokkia, and Nikon.

How does composite construction improve accuracy compared to aluminum tripods?

Aluminum expands and contracts measurably with temperature changes, which can cause instrument tilt between a morning setup and an afternoon observation—especially on long days with significant temperature swings. Composite materials have a much lower coefficient of thermal expansion, so the tripod maintains its set position and height throughout the workday without requiring re-leveling.

Can this tripod be used in wet or muddy conditions?

Yes. The composite legs are fully corrosion-resistant and will not absorb moisture or warp when exposed to rain, mud, or standing water. The hardened steel leg shoes are designed to penetrate soft ground and can be cleaned easily after use in wet field conditions.

What is the difference between the Salamander Series and standard SitePro tripods?

The Salamander Series represents SitePro's professional contractor-grade line, featuring enhanced composite materials, higher load ratings, and safety-oriented hi-visibility coloring. Standard SitePro tripods are well-suited for light to moderate use, while the Salamander Series is engineered for daily use by survey crews and contractors working in demanding outdoor environments.
