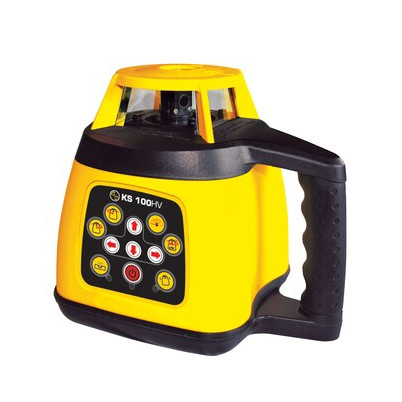

SitePro 27-KS100HV Horizontal / Vertical Rotary Laser Interior Kit

SitePro 27-KS100HV Horizontal / Vertical Rotary Laser Interior Kit

Overview

The SitePro 27-KS100HV serves framing contractors, drywall installers, HVAC technicians, and finish carpenters who need simultaneous horizontal and vertical reference planes for interior construction. This dual-plane rotary laser eliminates the repositioning delays inherent in single-plane instruments, establishing wall plumb and floor level simultaneously across commercial tenant improvements, residential remodels, and new construction interiors. The complete kit includes laser detector, mounting hardware, and protective case—everything required for immediate deployment on multi-room layouts where speed and accuracy determine schedule adherence. Interior-focused contractors choose this configuration because it addresses the specific dimensional challenges of enclosed spaces: establishing ceiling grid height while verifying wall plumb, setting door header elevation while checking partition alignment, and maintaining consistent reference geometry across rooms with varying floor conditions. The self-leveling mechanism compensates for subfloor irregularities automatically, maintaining calibration accuracy without manual adjustment during typical interior work cycles.

Key Specifications

• Self-Leveling Range: ±5° with electronic compensation and out-of-level alert
• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m) for both horizontal and vertical planes
• Working Diameter: 1,600 feet (500m) with detector; 200 feet (60m) visible beam range
• Rotation Speed: 0, 60, 120, 300, 600 RPM selectable for visibility and detector compatibility
• Plane Modes: Horizontal only, vertical only, or simultaneous H+V operation; vertical 360° sweep or single-line plumb
• Weight: 6.4 lbs (2.9 kg) with batteries installed; 14.2 lbs (6.4 kg) complete kit with case
• Power: Rechargeable Li-ion battery (included); alkaline D-cell backup capability; 20+ hour runtime at 600 RPM
• Environmental Rating: IP54 dust and splash resistance for interior construction environments

What's in the Kit

• SitePro 27-KS100HV horizontal/vertical rotary laser transmitter
• LD-8 laser detector/receiver with rod clamp bracket
• Rechargeable lithium-ion battery pack with AC charger
• Laser safety glasses (red enhancement for increased beam visibility)
• Magnetic wall/ceiling mount with 5/8"-11 thread adapter
• Horizontal fine-adjustment knob for precise plane positioning
• Hard-shell protective carrying case with custom foam insert
• Calibration certificate with serial number documentation
• Operator's manual with layout application examples

Job Applications

• Metal Stud Framing Layout: Simultaneous horizontal track elevation and vertical plumb reference eliminates the need to reposition between floor and ceiling measurements, accelerating partition layout across multi-room spaces.
• Drywall Installation Control: Establishes consistent ceiling height reference while verifying wall plumb during sheet installation, ensuring proper joint alignment before fastening commits material position.
• Door and Window Opening Verification: Vertical plane confirms jamb plumb while horizontal plane validates header height consistency across multiple openings in the same wall run.
• Suspended Ceiling Grid Installation: Horizontal reference maintains consistent ceiling height throughout large open areas while vertical plane verifies perimeter wall attachment is plumb and square.
• Cabinet and Millwork Installation: Provides level reference for base cabinet alignment while simultaneously establishing plumb for upper cabinet mounting, ensuring dimensional consistency in galley and L-shaped configurations.
• HVAC and Electrical Rough-In: Horizontal plane sets consistent elevation for ductwork hangers and conduit runs while vertical reference confirms plumb positioning of vertical chases and penetrations.
• Tile Layout and Wall Paneling: Establishes level course lines for tile installation while vertical plane confirms starter rows and edge trim are plumb, preventing cumulative error in large-format installations.

Compatible Accessories

Works with: SitePro LD-8 Laser Detector (included in kit), SitePro LD-9 Digital Detector with Remote Display, Heavy-Duty Laser Tripod with Elevator Column, Extension Pole Detector Mount, SitePro Adjustable Wall Mount Bracket, Wireless Remote Control for KS100HV

Related Guides

• Interior Framing Layout with a Rotary Laser
• Single-Plane vs. Dual-Plane Rotary Lasers: Which Configuration for Interior Work?
• SitePro KS100HV Error Codes & Troubleshooting
• Laser Detector Setup for Interior Construction Applications

Frequently Asked Questions

Can the KS100HV operate horizontal and vertical planes simultaneously, or must I select one mode at a time?

This laser generates both horizontal and vertical reference planes simultaneously in dual-plane mode—the primary advantage over single-plane instruments. You can also select horizontal-only or vertical-only operation when applications require maximum rotation speed or extended battery runtime. The mode selector on the control panel switches between H-only, V-only, and H+V combined operation without requiring instrument repositioning.

What's the functional difference between the included LD-8 detector and working with the visible beam alone?

The LD-8 detector extends effective working range from approximately 200 feet (visible beam limit in typical interior lighting) to 1,600 feet diameter, and provides precise center-point accuracy through audible tone and visual LCD indication. In bright conditions near windows or under high-output work lighting, the detector often provides the only reliable reference. The detector also enables single-operator layout—mount it on an extension pole and move along the wall while the laser remains stationary, versus requiring a second person to sight the beam.

Does the self-leveling function work when the laser is mounted on a wall or ceiling instead of a tripod?

Yes, the electronic self-leveling mechanism functions in any mounting orientation within the ±5° leveling range. When using the included magnetic wall mount, position the laser approximately level by eye—the self-leveling system engages automatically and compensates for mounting surface irregularities. The out-of-level alarm activates if the mounting surface exceeds the 5° compensation range, indicating you need to shim or reposition the mount. Ceiling mounting works identically; the pendulum system is orientation-independent within its specified range.

How does IP54 dust protection compare to requirements for drywall cutting and interior demolition environments?

IP54 rating provides protection against dust accumulation sufficient for typical interior construction including drywall installation, cutting, and sanding operations. The sealed optical chamber prevents dust infiltration that would degrade beam quality or damage the rotating mechanism. However, this is not a hermetically sealed IP6X instrument—in extremely dusty conditions like major demolition or concrete grinding, remove the laser from the immediate work area or provide temporary enclosure. For standard framing, drywall, and finish work, IP54 protection handles ambient dust without requiring special precautions beyond normal case storage between shifts.
