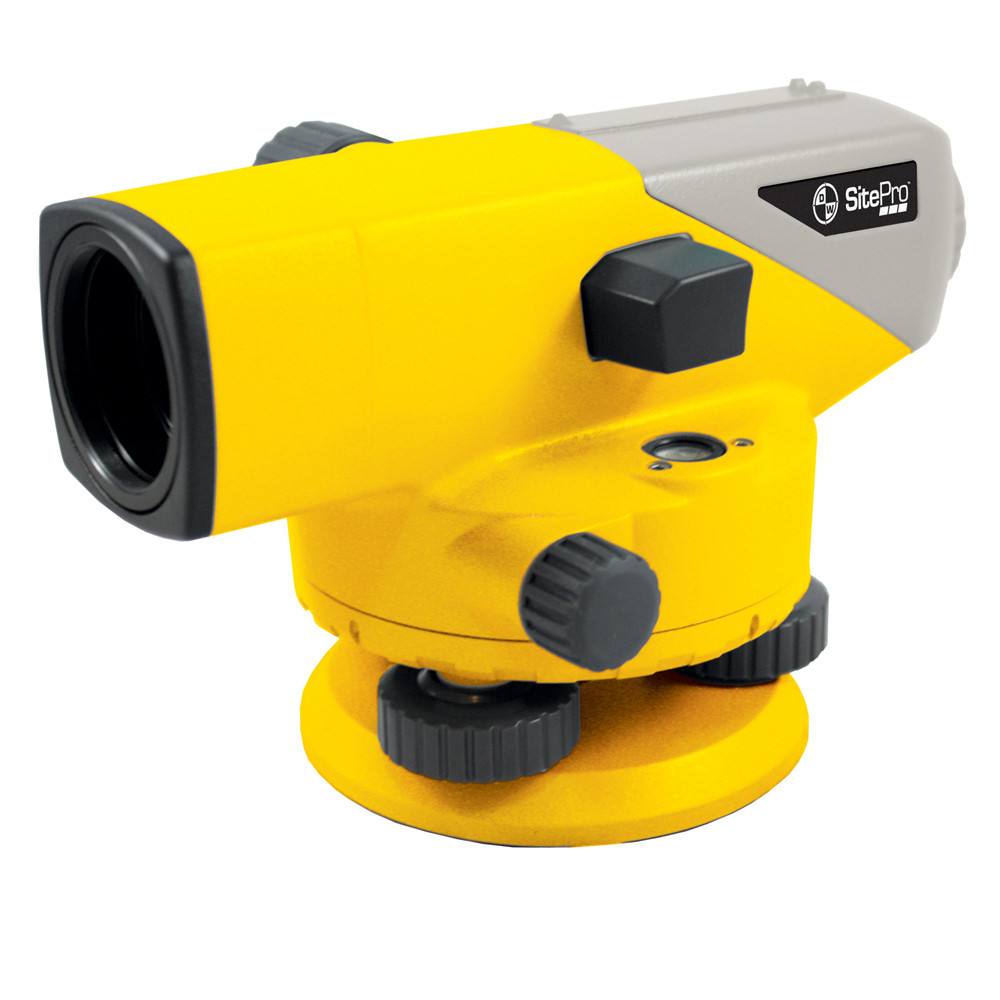

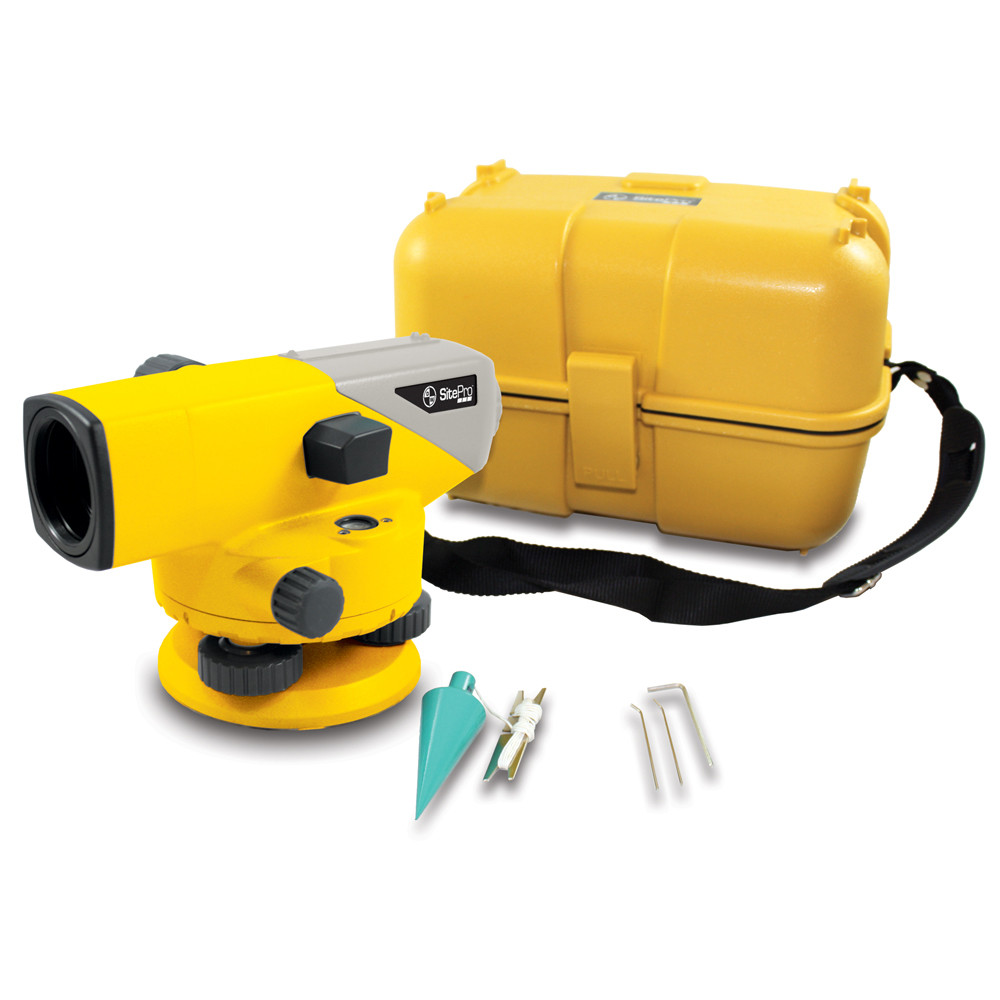

Site-Pro 25-SK32X PRO Automatic Level 32 Power

Optical Precision for Foundation & Grading Crews

The Site-Pro 25-SK32X Automatic Level gives contractors a reliable, no-fuss optical leveling solution built for the demands of daily fieldwork. With 32x magnification, a self-compensating pendulum compensator, and a rugged housing designed to withstand jobsite conditions, this level is the dependable choice for foundation layout, grade verification, and long-line drainage slope work. Skip the digital complexity — the 25-SK32X delivers sharp, accurate sightlines from first setup to last shot of the day.

Jobsite Overview & Applications

Automatic levels remain the backbone of ground-level surveying on residential and commercial sites alike. The Site-Pro 25-SK32X is well-suited for crews who need consistent elevation readings across large areas without the overhead of electronic instruments. Whether you are setting batter boards, checking finish grades, or shooting drainage inverts across a long run, the 32x objective lens brings distant rods into crisp focus. The magnetic dampening compensator self-levels within a ±15-arcminute range, meaning less fussing with fine adjustments and more time moving through your layout points.

Key Specifications

• Magnification: 32x
• Objective Lens Diameter: 36 mm
• Compensator Type: Magnetic dampening, self-leveling
• Compensator Range: ±15 arcminutes
• Accuracy: 1.5 mm per km double-run
• Minimum Focus Distance: Approximately 1.0 m (3.3 ft)
• Field of View at 100 m: Approximately 1°30'
• Stadia Ratio: 100:1
• Thread Mount: 5/8 x 11 standard tripod thread
• Weight: Approximately 1.5 kg (3.3 lbs)

Key Features

• Self-Compensating Optics: Magnetic dampening pendulum compensator reduces setup time and minimizes operator error
• 32x Magnification: Resolves fine rod gradations at extended distances for greater layout efficiency
• Hard Coated Optics: Multi-coated lenses deliver bright, high-contrast images even in low-light or overcast conditions
• Horizontal Circle: 360° graduated circle for quick angle references without a separate instrument
• Circular Bubble Vial: Large, easy-to-read vial for fast rough leveling before the compensator takes over
• Waterproof & Dustproof Housing: Sealed construction handles rain, dust, and jobsite grime
• Standard 5/8 x 11 Mount: Compatible with virtually all contractor tripods

Job Applications

Foundation Layout: Set batter boards and verify corner elevations to ensure a level foundation before concrete is poured. The 32x lens lets one person shoot rods from a central instrument position across the full footprint of most residential foundations.

Grade & Slope Verification: Confirm cut-and-fill grades on site prep and earthwork jobs. Shoot multiple rod readings quickly to check that subgrades meet spec before base material is placed.

Drainage & Utility Invert Work: Establish and verify pipe inverts, swale slopes, and drainage structures over long runs. The stadia capability lets crews calculate horizontal distances without a separate measuring tool.

Finished Floor & Slab Elevation: Check slab flatness and finished floor elevations on commercial concrete pours. The sub-2 mm per km accuracy keeps elevation control tight across large floor plates.

Compatible Accessories

• Aluminum Contractor Tripod — Heavy-Duty
• Fiberglass Grade Rod — 13 ft Telescoping
• Aluminum Grade Rod — 16 ft Direct Read
• Optical Level Carrying Case — Hard Shell
• Rod Level (Rod Bubble) for Plumb Rod Shots
• Site-Pro Lens Cleaning Kit

Related Guides

• How to Set Up and Use an Automatic Level on a Construction Site
• Optical Level vs. Laser Level: Which Is Right for Your Crew?
• Reading a Grade Rod: A Field Guide for Contractors
• Foundation Layout Best Practices Using an Optical Level

Frequently Asked Questions

Does the Site-Pro 25-SK32X require batteries?

No. The 25-SK32X is a fully optical instrument with a passive magnetic dampening compensator. It requires no batteries or power source, making it ready to use anywhere on the jobsite regardless of charge status.

What tripod does the 25-SK32X fit?

The level uses a standard 5/8 x 11 inch tripod thread, which is the industry-standard mounting found on virtually all contractor and surveying tripods. Any compatible aluminum or wood-leg tripod will work.

What is the maximum useful range for this level?

While the compensator and optics remain accurate at extended distances, practical working range is typically 100–200 feet for standard rod readings. The 32x magnification supports clear rod resolution at these distances under normal field conditions.

Is the 25-SK32X suitable for use in rain?

The instrument features a sealed, waterproof and dustproof housing suitable for typical outdoor construction conditions including light to moderate rain. Avoid submerging the instrument or directing a pressure washer at it. Wipe lenses dry before storage.
