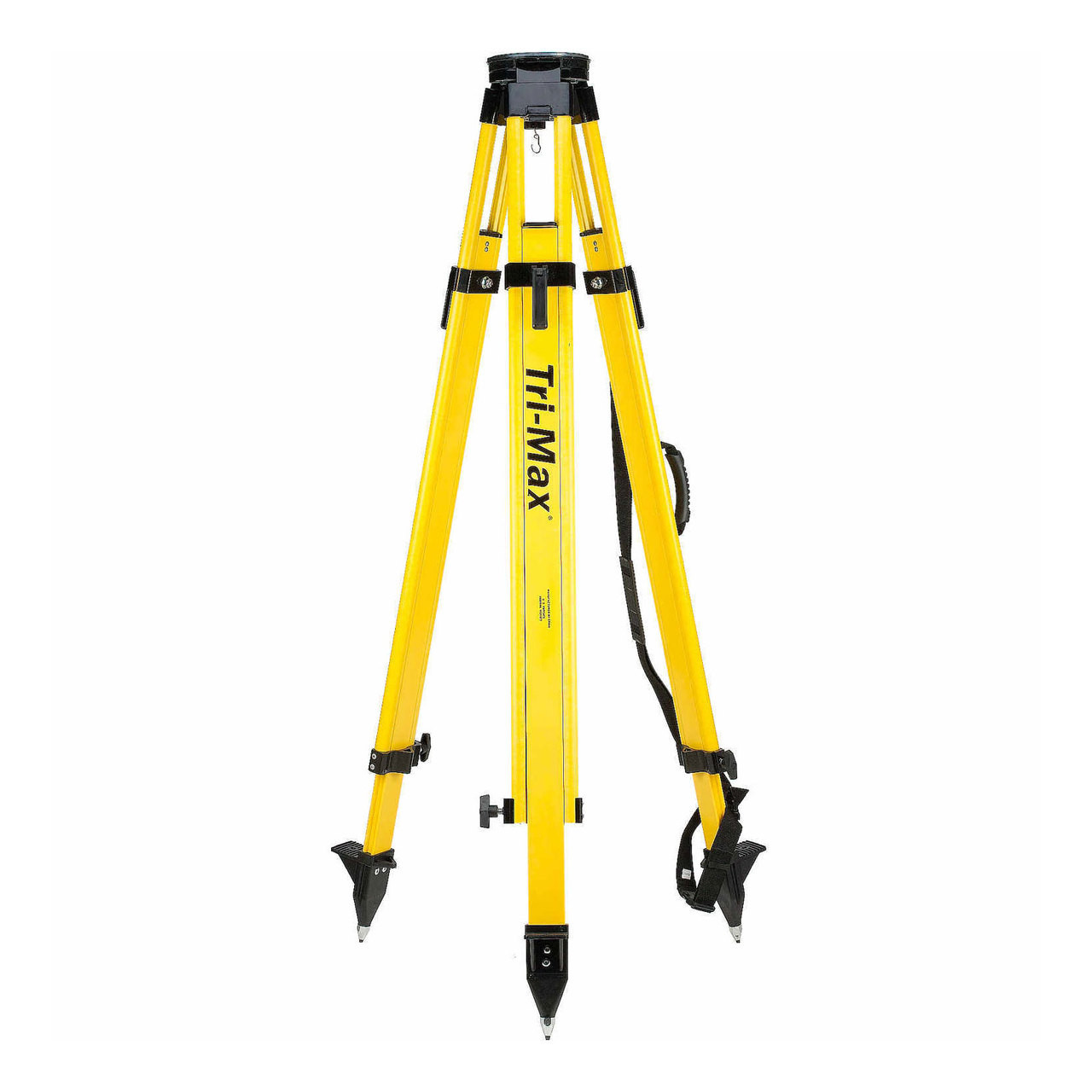

SECO 90560 Tri-Max Tall Quick Dual Clamp Fiberglass Instrument Tripod

Overview

The SECO 90560 Tri-Max Tall Quick Dual Clamp Fiberglass Instrument Tripod represents the pinnacle of professional surveying equipment engineering. As the only surveying-grade tripod with ISO 12858-2-H certification, this exceptional instrument support system delivers unmatched stability and precision for demanding fieldwork. Designed specifically for professional surveyors, robotic total station operators, and GPS/GNSS specialists, the Tri-Max combines advanced fiberglass construction with innovative dual clamp technology to provide superior performance in all conditions.

What sets the Tri-Max apart is its ability to maintain strict accuracy standards not just when new, but after years of intensive field use. The tall configuration extends from 42 to 72 inches, providing optimal working height for a wide range of applications while the quick dual clamp system enables rapid, secure setup without sacrificing stability. The premium fiberglass construction offers the perfect balance of lightweight portability and exceptional rigidity, outperforming both wood and aluminum alternatives in thermal stability and vibration damping.

Built for professionals who demand reliability in challenging environments, this tripod features weather-resistant components, replaceable parts for long-term serviceability, and thoughtful design details that streamline daily workflows. Whether you're conducting precision control surveys, operating automated monitoring systems, or performing high-accuracy GPS observations, the SECO 90560 Tri-Max delivers the rock-solid foundation your instruments require.

Key Specifications

• Height Range: 42 to 72 inches (107 to 183 cm) extended
• Head Type: Flat head with 5/8 x 11 thread
• Leg Material: High-strength fiberglass composite
• Leg Locking System: Quick dual clamp mechanism on each leg
• Weight: 12.5 lbs (5.7 kg)
• Point Type: Replaceable hardened steel points
• Certification: ISO 12858-2-H compliant
• Load Capacity: 40 lbs (18 kg) maximum instrument weight
• Leg Sections: Two-section design for stability
• Color: High-visibility orange with black hardware

What's in the Kit

• SECO Tri-Max Tall Quick Dual Clamp Fiberglass Tripod
• Hardened steel replaceable points (installed)
• Shoulder carrying strap
• Protective point covers
• User manual and certification documentation

Job Applications

• Robotic Total Station Operations: The dual clamp system provides exceptional stability for unmanned robotic stations, preventing drift during automated measurement cycles. The tall height range allows operators to position instruments at optimal elevations for maximum range and line-of-sight clearance, while the vibration-damping fiberglass construction minimizes atmospheric disturbance effects on precision angle measurements.
• Static GPS/GNSS Observations: Long-duration static sessions demand unwavering stability, and the Tri-Max's ISO-certified accuracy retention ensures your control points maintain positional integrity throughout multi-hour occupations. The non-conductive fiberglass legs eliminate electrical interference with GPS signals, while the thermal stability prevents height variations caused by temperature fluctuations during dawn-to-dusk sessions.
• Precision Construction Layout: Quick setup and takedown with the dual clamp system maximizes productivity when moving between layout points on active construction sites. The tall configuration keeps instruments above ground-level dust and debris, while the robust construction withstands the rigors of daily transport across rough terrain and staging areas.
• Monitoring and Deformation Surveys: When measuring structural movement or ground subsidence, repeatability is paramount. The Tri-Max's certified accuracy standards ensure consistent monument occupation geometry across measurement epochs, while the replaceable points allow precise repositioning on permanent setup markers without cumulative wear degradation.
• Boundary and Cadastral Surveys: Professional land surveyors require equipment that performs reliably in varied terrain from wetlands to rocky hillsides. The hardened steel points bite securely into challenging surfaces, the fiberglass construction resists moisture and temperature extremes, and the quick clamps allow rapid leveling adjustments on sloped ground without complete leg repositioning.
• Photogrammetric Control Surveys: Establishing ground control for aerial mapping and drone surveys requires stable instrument positioning during multi-station observations. The tall height elevates instruments above vegetation and ground clutter for clear sky visibility, while the certified stability ensures control point coordinates meet rigorous aerial triangulation accuracy requirements.

Compatible Accessories

• SECO Replacement Hardened Steel Tripod Points
• SECO Swivel Clamp Tribrach Adapters
• Heavy-Duty Padded Tripod Carrying Cases
• Tripod Bag with Weather-Resistant Coating
• Instrument Mounting Tribrachs (5/8 x 11 thread)
• Optical Plummet Tribrachs for Precision Centering
• Tripod Point Boots for Indoor/Finished Surface Use
• Replacement Dual Clamp Hardware Kits

Related Guides

• Professional Tripod Setup Best Practices for Survey Accuracy
• Fiberglass vs. Aluminum Tripods: Performance Comparison Guide
• Survey Tripod Maintenance and Longevity Tips
• Understanding ISO 12858 Certification for Survey Equipment

FAQ

What makes ISO 12858-2-H certification important for surveying tripods?

ISO 12858-2-H certification ensures the tripod meets strict international standards for dimensional stability, rigidity, and accuracy retention under load and environmental stress. This certification guarantees that the Tri-Max will maintain its geometric integrity and instrument positioning accuracy not just initially, but throughout years of field use, providing confidence in measurement reliability for professional survey applications.

How does the dual clamp system compare to traditional single-clamp tripods?

The dual clamp system provides significantly enhanced stability by distributing clamping force across two points on each leg section rather than one. This design virtually eliminates leg slippage under instrument weight or external forces, allows finer height adjustments with more secure locking, and enables faster setup since both clamps can be loosened and tightened simultaneously for rapid leg extension.

Can this tripod be used with both optical instruments and GPS receivers?

Yes, the SECO 90560 features a standard 5/8 x 11 threaded flat head that accommodates tribrachs for total stations, theodolites, levels, and GPS/GNSS receiver mounting systems. The fiberglass construction is particularly advantageous for GPS work because it's non-conductive and won't interfere with satellite signal reception, unlike some metallic tripods.

What maintenance does the Tri-Max require for long-term performance?

Routine maintenance is minimal but important: periodically clean dirt and debris from clamp mechanisms, inspect and tighten hardware, check leg extension smoothness, and replace tripod points when worn. The fiberglass legs should be wiped clean after use in muddy conditions, and the dual clamps should be checked for proper tension adjustment. SECO designs the Tri-Max with replaceable wear components to extend service life rather than requiring complete tripod replacement.
