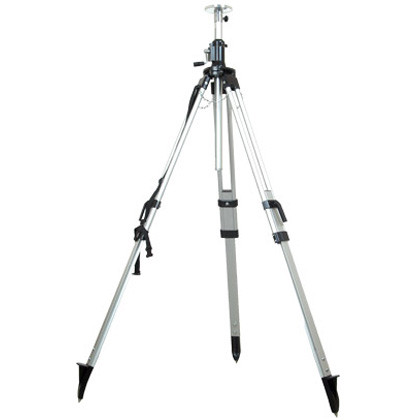

Seco 5321-16-BLK Heavy-Duty Aluminum Elevator Tripod

Overview

The Seco 5321-16-BLK Heavy-Duty Aluminum Elevator Tripod delivers professional-grade stability and precision for demanding surveying and construction applications. Built around a robust rack-and-pinion center column extension system, this tripod allows surveyors to achieve precise instrument heights from 4.6 feet to 8.0 feet without repositioning the legs—a critical advantage when working on uneven terrain, around obstacles, or in congested construction zones where tripod footprint must remain constant.

Manufactured from corrosion-resistant aluminum alloy, the 5321-16-BLK weighs just 16 pounds yet supports total station, laser level, and GPS receiver payloads up to 40 pounds. The dual-clamp leg locking system features quick-release levers at each leg section, enabling rapid setup while maintaining rock-solid stability even on slopes up to 20 degrees. Replaceable stainless steel points and optional flat feet ensure secure positioning on surfaces ranging from soft soil to asphalt and concrete.

The detachable flat head includes a precision-machined 5/8"-11 threaded mounting stud with integrated optical plummet hole, providing compatibility with virtually all professional surveying instruments and tribrach systems. Laser-etched measurement graduations on the center column allow repeatable height settings across multiple setups, improving workflow efficiency for benchmark transfers, control network establishment, and multi-day construction staking operations.

Key Specifications

• Model Number: 5321-16-BLK
• Construction: Anodized aluminum alloy with reinforced leg joints
• Weight: 16 lbs (7.3 kg)
• Height Range: 4.6 ft to 8.0 ft (1.4 m to 2.4 m) with center column extended
• Closed Length: 48 inches (122 cm)
• Maximum Load Capacity: 40 lbs (18 kg)
• Leg Sections: Two-section telescoping design with dual-clamp locks

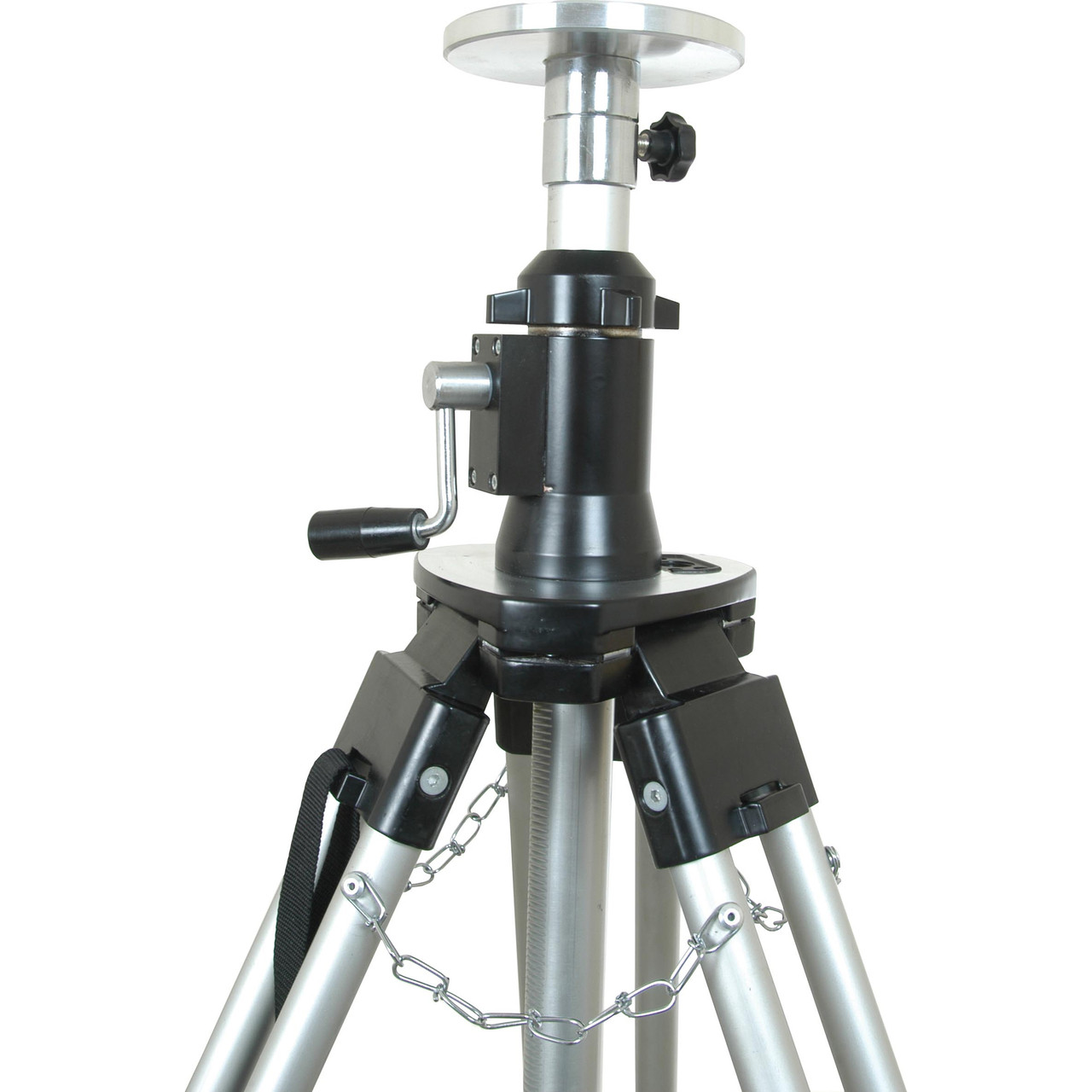

• Center Column System: Rack-and-pinion elevator mechanism with locking crank handle
• Head Type: Detachable flat head with 5/8"-11 thread
• Feet: Replaceable stainless steel points (flat feet available separately)
• Color: Black anodized finish
• Operating Temperature: -20°F to 140°F (-29°C to 60°C)
• Warranty: Two-year manufacturer defect coverage

What's in the Kit

• Seco 5321-16-BLK Heavy-Duty Aluminum Elevator Tripod
• Detachable flat head with 5/8"-11 mounting stud
• Stainless steel point feet (installed, set of 3)
• Adjustable shoulder carry strap
• Center column locking crank handle
• Manufacturer's documentation and warranty card

Job Applications

• Boundary and Topographic Surveys: The elevator tripod eliminates the need to reposition legs when achieving precise instrument heights over boundary markers, control points, or benchmarks. Surveyors can fine-tune vertical positioning within a 3.4-foot range using only the center column crank, maintaining exact horizontal position while accommodating terrain variations or achieving required line-of-sight clearances over vegetation and obstacles.
• Construction Layout and Grade Checking: On active construction sites where repeated setups are required throughout the day, the rack-and-pinion system allows operators to quickly match instrument heights to established reference elevations without time-consuming leg adjustments. The stable platform ensures consistent readings when checking formwork elevations, transferring grades to multiple floors, or monitoring settlement in foundation monitoring applications.
• Machine Control and GPS Base Stations: When establishing temporary or semi-permanent GPS base station setups, the elevator tripod provides the vertical adjustment needed to position antennas at optimal heights above ground obstructions while maintaining a compact footprint. The 40-pound load capacity accommodates GPS receivers with batteries and radio equipment, while the stable platform minimizes positional drift during extended observation sessions.
• Laser Level Operations in Multi-Story Buildings: Interior construction teams benefit from the tripod's ability to elevate rotating lasers to ceiling height without requiring extension poles or unstable stacking solutions. The elevator mechanism allows precise positioning of laser reference planes at specified elevations for suspended ceiling installation, mechanical and electrical rough-in, and finish carpentry applications across multiple floors.
• Photogrammetry and Monitoring Applications: For structural monitoring, deformation surveys, and photogrammetric control networks, the tripod's repeatable height settings—marked by laser-etched graduations on the center column—ensure consistent instrument positioning across multiple observation epochs. This repeatability is critical for detecting millimeter-level movements in bridge monitoring, dam safety programs, and landslide observation networks.
• Pipeline and Linear Infrastructure Projects: Survey crews working on pipeline, highway, and utility corridor projects require frequent instrument moves along extended alignments. The 16-pound weight provides an ideal balance between stability and portability, while the quick-release leg locks enable rapid setup-and-breakdown cycles that keep pace with construction progress without sacrificing measurement accuracy.

Compatible Accessories

• Seco 5196-00 Flat Foot Set: Rubber-cushioned flat feet for stable setup on asphalt, concrete, and finished flooring without surface damage
• Seco 5198-05 Replacement Point Set: Stainless steel replacement points for long-term field use in abrasive soil conditions
• Seco 8070 Heavy-Duty Tripod Bag: Padded carrying case with shoulder strap for transport and storage protection
• Seco 2153 Plumb Bob and Gammon Reel: Optical plummet verification and point positioning accessories
• Universal Tribrach Systems: Compatible with all standard tribrachs featuring 5/8"-11 mounting threads from manufacturers including Leica, Topcon, Trimble, and Sokkia

Related Guides

Professional Tripod Selection Guide: Matching Equipment to Application

Elevator Tripod Setup Best Practices for Survey Accuracy

Tripod Maintenance and Field Care for Extended Service Life

Survey Instrument Mounting Standards and Compatibility Reference

FAQ

What is the advantage of an elevator tripod versus a standard fixed-height tripod?

Elevator tripods feature a rack-and-pinion center column that provides vertical instrument adjustment without moving the tripod legs. This capability is essential when you need to match specific instrument heights, maintain exact horizontal position over a point while adjusting vertical position, or quickly adapt to terrain changes. Standard tripods require leg repositioning for height changes, which alters the horizontal footprint and requires re-centering over control points—adding significant time to setup procedures.

Can this tripod be used with laser levels and rotating lasers in addition to total stations?

Yes, the Seco 5321-16-BLK is compatible with all surveying and construction instruments featuring standard 5/8"-11 mounting threads or tribrach systems. This includes total stations, theodolites, levels, GPS receivers, rotating lasers, and machine control equipment. The 40-pound load capacity easily accommodates heavier rotating laser systems with their mounting hardware, and the stable platform prevents vibration-induced positioning errors during laser operation.

How does the rack-and-pinion system compare to friction-lock center columns in terms of stability?

Rack-and-pinion systems provide superior stability and load security compared to friction-lock designs. The mechanical gear engagement positively locks the center column at any height without relying on compression force, eliminating the gradual settling or slippage that can occur with friction locks under heavy loads or during temperature changes. The crank handle mechanism also allows fine height adjustments in small increments—critical for precision work—while maintaining constant locking pressure regardless of environmental conditions.

What is the minimum collapsed length for vehicle transport and storage?

The tripod collapses to 48 inches (122 cm) with legs fully retracted and center column lowered, allowing it to fit in most full-size pickup truck beds, work vans, and SUVs without extending into passenger areas. For crews using compact vehicles, the optional Seco 8070 tripod bag provides padding for diagonal placement in smaller cargo areas. The detachable head can be removed to reduce overall length by an additional 4 inches when necessary for confined storage situations.
