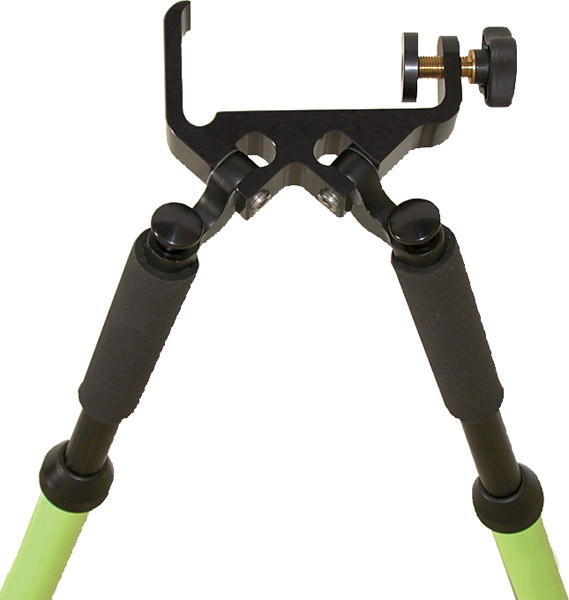

Seco 5217-20-FLY Invar Rod Bipod – Flo Yellow

The Seco 5217-20-FLY is a purpose-engineered bipod designed specifically for wide Invar leveling rods used in high-precision surveying, geodetic control, and first-order leveling work. Standard bipods fail on Invar rods because their heads are sized for narrow wooden or fiberglass grade rods. Seco solves this with a custom rectangular clamping head that securely grips rods measuring between 2.95 and 3.54 inches wide, giving you rock-solid, hands-free support exactly when your work demands it. The fluorescent yellow finish keeps it visible on busy jobsites and in low-light field conditions.

Overview & Jobsite Applications

Invar rods are precision instruments valued for their extremely low coefficient of thermal expansion, making them the go-to choice for first-order differential leveling, geodetic benchmarking, and any control survey where sub-millimeter accuracy is non-negotiable. Holding an Invar rod steady by hand introduces operator-induced movement that defeats the purpose of using a precision rod in the first place. The Seco 5217-20-FLY eliminates that variable by providing a stable bipod rest, freeing the rod person to maintain plumb and focus on bubble level while the instrument operator takes readings. It is equally at home on highway alignment control surveys, dam monitoring networks, utility infrastructure projects, and municipal benchmark loops.

Key Specifications

• Model: Seco 5217-20-FLY
• Compatible Rod Width: 2.95 – 3.54 inches (75 – 90 mm)
• Head Design: Rectangular clamping head engineered for wide Invar rods
• Color: Fluorescent Yellow for high jobsite visibility
• Application: First-order leveling, geodetic control, precision differential leveling
• Compatibility: Works with standard wide-format Invar leveling rods

Key Features

• Invar-Specific Rectangular Head: Grips wide Invar rods securely — a fit that standard bipod heads simply cannot provide
• Hands-Free Rod Support: Eliminates rod-person-induced movement for cleaner, more repeatable instrument readings
• Fluorescent Yellow Finish: Maximum visibility in the field, reducing trip hazards and making the bipod easy to locate in tall grass or low-light conditions
• Stable Leg Design: Spreads load evenly to minimize vibration transfer and rod movement during observation
• Durable Construction: Built to withstand the rigors of daily field use on professional survey crews
• Lightweight and Portable: Easy to carry between setups without adding significant weight to the rod kit

Job Applications

First-Order Differential Leveling: When running precise level loops for geodetic benchmarks or vertical control networks, every hundredth of a millimeter matters. The 5217-20-FLY holds your Invar rod motionless between observations, removing one of the most common sources of random error on long level runs.

Dam and Structure Deformation Monitoring: Repeat leveling surveys on critical infrastructure require consistency across measurement epochs. Using a bipod standardizes rod-holding technique across different crews and observation sessions, improving data integrity over the life of a monitoring program.

Highway and Rail Alignment Control: Establishing vertical control along transportation corridors involves long sight lines, traffic vibration, and crew fatigue. A stable bipod rest lets the rod person hold plumb longer and more reliably without physical strain.

Municipal and Utility Benchmark Loops: City survey crews running annual benchmark verification loops depend on efficient setups. The Seco 5217-20-FLY speeds up observations by keeping the rod steady without requiring a second hand on the staff.

Compatible Accessories

• Seco Invar Leveling Rods
• Seco Rod Carrying Cases
• Precision Level Rod Targets
• Rod Levels and Circular Vials
• Seco Tripods and Accessories

Related Guides

• How to Choose the Right Bipod for Your Leveling Rod
• First-Order Leveling Best Practices for Survey Crews
• Invar vs. Fiberglass Rods: When Precision Matters
• Reducing Error Sources in Differential Leveling

Frequently Asked Questions

Will the Seco 5217-20-FLY work with standard fiberglass or wooden grade rods?

No. This bipod is designed specifically for wide Invar leveling rods in the 2.95–3.54 inch (75–90 mm) width range. Standard grade rods are significantly narrower, and the rectangular head will not grip them securely. For fiberglass or wooden rods, Seco offers bipods with heads sized for those rod types.

Why does an Invar rod require a different bipod than a standard grade rod?

Invar rods are considerably wider than conventional wooden or fiberglass grade rods due to their construction. Standard bipod heads are dimensioned for narrow rods and cannot clamp a wide Invar rod without slipping or rocking. The 5217-20-FLY features a rectangular head profile matched to Invar rod geometry, ensuring a secure, stable grip.

Does using a bipod actually improve leveling accuracy?

Yes, measurably so. Rod movement during instrument observation is a known source of random error in differential leveling. A bipod eliminates most of that movement, particularly on long sight lines or in windy conditions. For first-order work where closures are measured in fractions of a millimeter per kilometer, hands-free rod support is considered standard practice.

Is the fluorescent yellow color purely cosmetic or does it serve a purpose?

It serves a real field purpose. Fluorescent yellow dramatically increases visibility on active construction and survey sites, reducing the risk of the bipod being a trip hazard when left on the ground between setups. It also makes it easy to locate the equipment in tall grass, brush, or at dusk — a practical benefit on long field days.
