Nikon NE-101 Construction Theodolite Kit - 7 Second

Overview

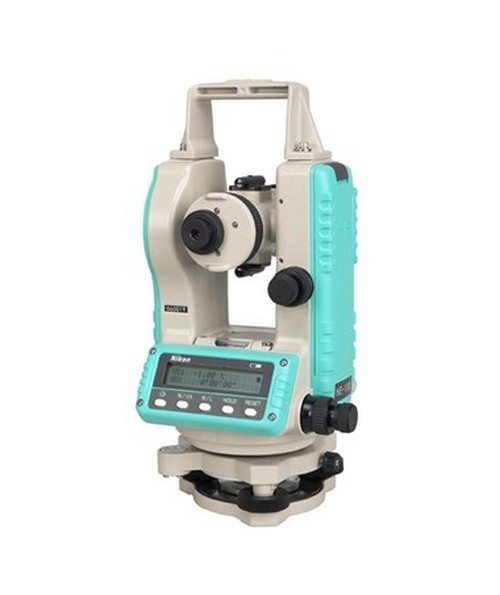

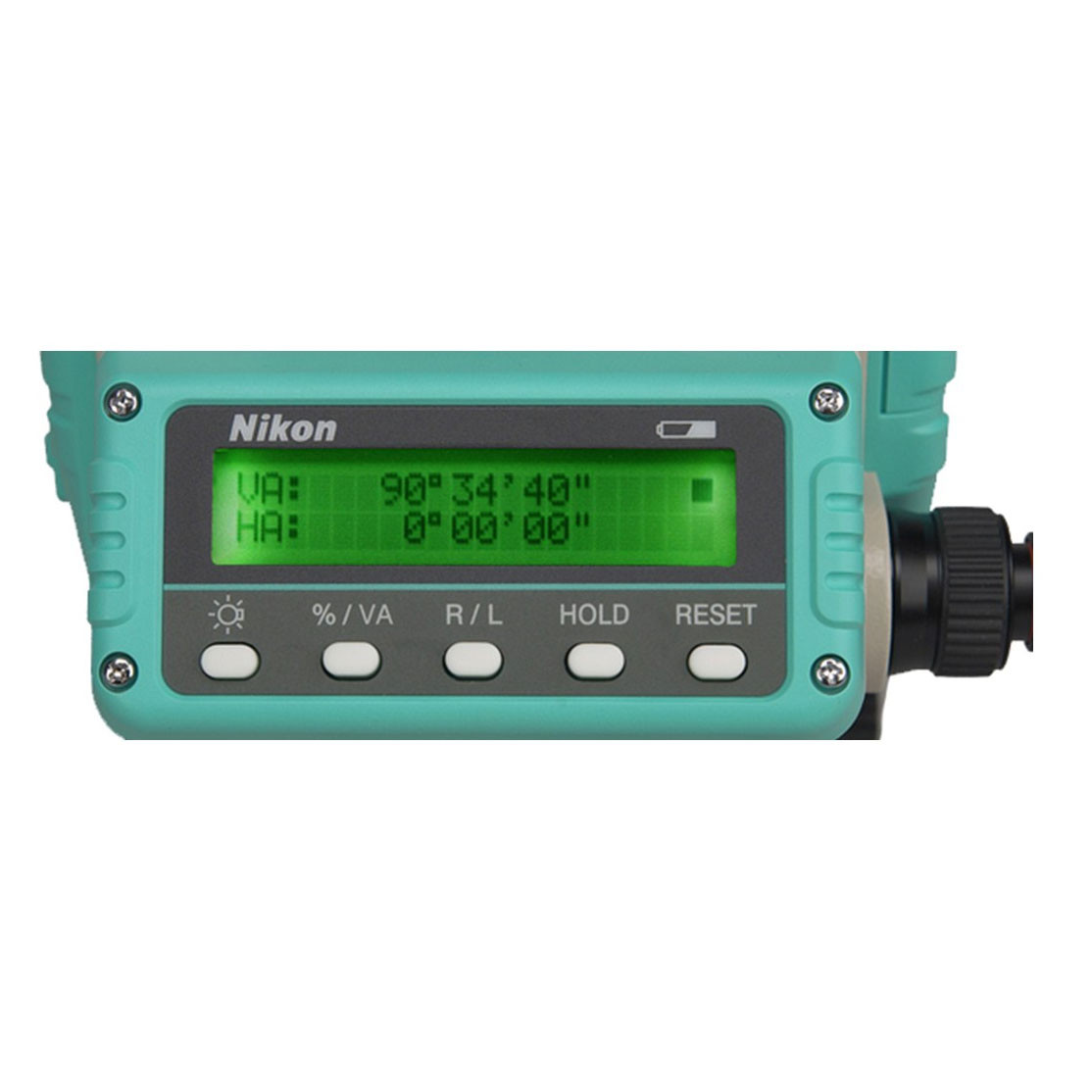

The Nikon NE-101 Construction Theodolite Kit delivers professional-grade 7-second accuracy for general construction and land surveying applications. Designed for contractors, construction crews, and land surveyors who demand reliable angle measurements without the premium cost of total stations, this theodolite excels in foundation layout, structural alignment, and slope verification projects. The NE-101 features Nikon's renowned optical engineering combined with modern conveniences like a large backlit LCD display and ergonomic one-touch keypad that streamlines fieldwork productivity. What sets this kit apart from basic builder's levels is its dual-axis compensator that automatically corrects for minor leveling errors, plus the ability to convert vertical angles directly to percent of grade—a feature that saves time on grading and drainage projects. Unlike digital theodolites with laser plummets that add unnecessary cost, the NE-101 focuses on core measurement capabilities that working contractors actually use daily, making it an intelligent investment for firms performing precise angle work across multiple job sites.

Key Specifications

What's in the Kit

• NE-101 Theodolite: The main instrument featuring precision optics, dual-axis compensator, and electronic angle measurement system for accurate horizontal and vertical angle readings on construction and survey projects.

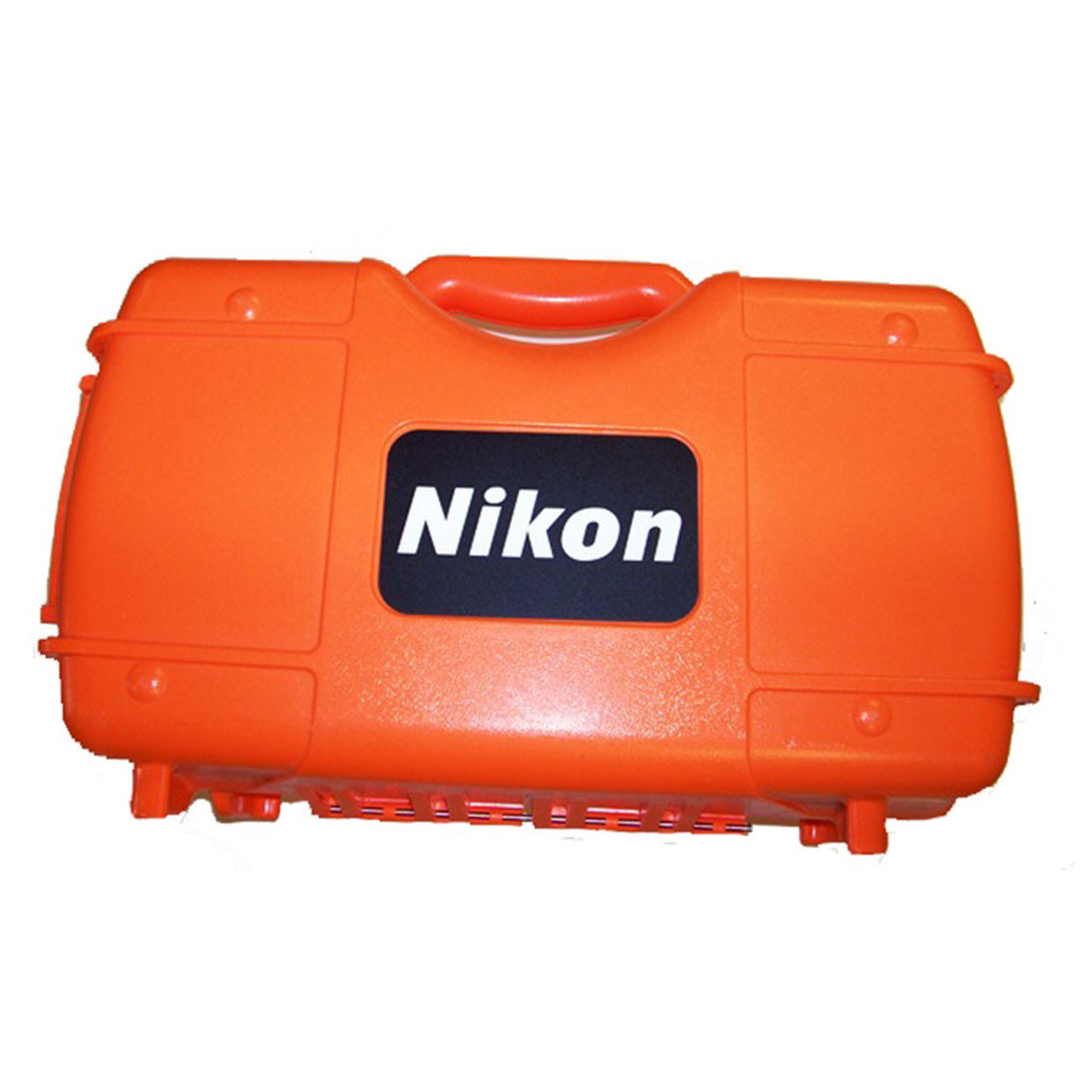

• Padded Carrying Case: Heavy-duty protective case with custom foam inserts that secure the theodolite during transport between job sites, protecting the sensitive optical components from shock and vibration.
• Rechargeable Battery Pack: Ni-MH battery providing approximately 20 hours of field operation, eliminating the ongoing cost of disposable batteries and ensuring reliable power throughout the workday.
• Operation Manual: Comprehensive user guide covering setup procedures, measurement techniques, compensator checks, and maintenance protocols to maximize instrument performance and longevity.

Job Applications

Foundation Layout and Verification: The NE-101's 7-second accuracy ensures building corners are positioned at exact right angles and foundation walls are plumb, preventing costly structural issues. The angle lock function allows rapid repetition of 90-degree layouts across large commercial foundations.

Slope Grading and Drainage Design: Convert vertical angles instantly to percent of grade using the built-in calculation function, making this theodolite ideal for establishing proper drainage slopes on parking lots, roadways, and site grading projects where water management is critical.

Structural Steel Erection: Verify that building columns, steel beams, and structural members are positioned at specified angles during construction. The 30x magnification telescope allows clear targeting of alignment points on tall structures from safe working distances.

Pipeline Installation: Establish and verify pipeline alignment angles for underground utilities, ensuring proper flow gradients for sanitary sewers, storm drains, and water mains. The horizontal angle lock allows consistent alignment checks along extended runs.

Concrete Formwork Alignment: Check that formwork for tilt-up panels, walls, and columns is positioned at correct angles before concrete placement. The dual-axis compensator maintains accuracy even when the tripod is set up on uneven ground typical of active construction sites.

Bridge and Overpass Construction: Measure and verify critical angles in bridge abutments, pier placement, and approach roadway alignments where precise angular relationships determine structural integrity and design compliance.

Property Boundary Surveys: Establish property corners and boundary line angles for land surveys, subdivision layout, and boundary verification projects where legal accuracy is required but total station capabilities exceed project requirements.

Compatible Accessories

• Heavy-Duty Aluminum Tripod - Professional-grade tripod with adjustable legs and center column for stable theodolite mounting on varied terrain
• Fiberglass Grade Rod (25ft) - Essential for establishing vertical measurements and height differences in conjunction with theodolite angle readings
• Optical Plumb Bob - Precision centering device for accurate theodolite setup over control points and property monuments
• Theodolite Target Set - High-visibility targets for improved sighting over long distances and in low-light conditions
• Nikon Replacement Battery Pack - Spare battery for extended field sessions and multi-day projects without access to charging facilities

Related Guides

• How to Set Up and Level a Theodolite for Accurate Measurements
• Theodolite vs Total Station: Which is Right for Your Construction Projects?
• Understanding Theodolite Accuracy Ratings and What They Mean for Your Work
• Theodolite Maintenance and Care Guide for Long-Term Performance

Frequently Asked Questions

Does the Nikon NE-101 have a laser plummet for setup?

No, the NE-101 does not include a laser plummet. It uses a traditional optical plummet for centering over control points, which provides reliable performance without the added cost and battery drain of laser systems. An external optical plumb bob accessory can be used for enhanced centering accuracy when required.

Can this theodolite measure distances or just angles?

The NE-101 is a digital theodolite that measures horizontal and vertical angles only—it does not have distance measurement (EDM) capabilities. For projects requiring both angle and distance measurements, consider a total station. However, for layout work, alignment verification, and slope measurements, the NE-101's angle-only functionality provides everything most contractors need at a significantly lower price point.

Is the NE-101 waterproof for use in rainy conditions?

The NE-101 is weather-resistant but not fully waterproof. It can withstand light rain and typical construction site dust, but should not be used in heavy rain or submersed in water. For wet weather protection, use an umbrella over the instrument or wait for precipitation to pass. Always store the theodolite in its carrying case when not in use to protect it from moisture.
