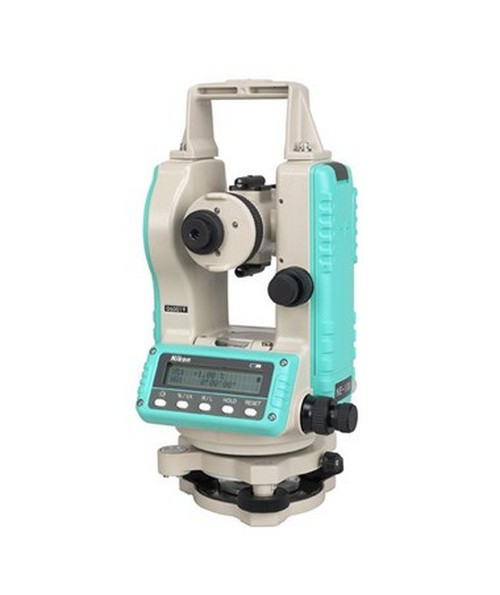

Nikon NE-100 Construction Theodolite - 10 Second

Overview

The Nikon NE-100 Electronic Construction Theodolite delivers professional-grade angle measurement in an accessible, entry-level package designed specifically for construction professionals and survey crews who demand accuracy without complexity. With 10-second angular accuracy and an intuitive digital interface, this instrument bridges the gap between basic optical theodolites and advanced total stations, providing the precision needed for critical layout work while remaining straightforward enough for operators at any skill level.

Built on Nikon's decades of optical engineering excellence, the NE-100 features a rugged construction-grade housing that withstands the demanding conditions of active job sites. The large, backlit LCD display ensures clear readings in any lighting condition, from dimly-lit basements to bright outdoor environments. Dual-axis compensators automatically correct for minor leveling errors, reducing setup time and minimizing operator error—essential features when you're working under tight deadlines or managing multiple layout points throughout the day.

Whether you're establishing building corners, setting formwork elevations, aligning structural steel, or conducting topographic surveys, the NE-100 provides the reliability and precision that keeps projects on schedule and within tolerance. Its balance of performance, durability, and value makes it an excellent choice for general contractors, civil construction firms, survey crews, and site layout specialists who need dependable angle measurement without the investment required for full-featured total stations.

Key Specifications

• Angular Accuracy: 10 seconds (10")
• Display Resolution: 1 second / 5 seconds selectable
• Telescope Magnification: 30x
• Objective Aperture: 45mm
• Minimum Focus Distance: 3.3 feet (1.0m)
• Compensator Type: Dual-axis liquid automatic
• Compensator Working Range: ±3 minutes

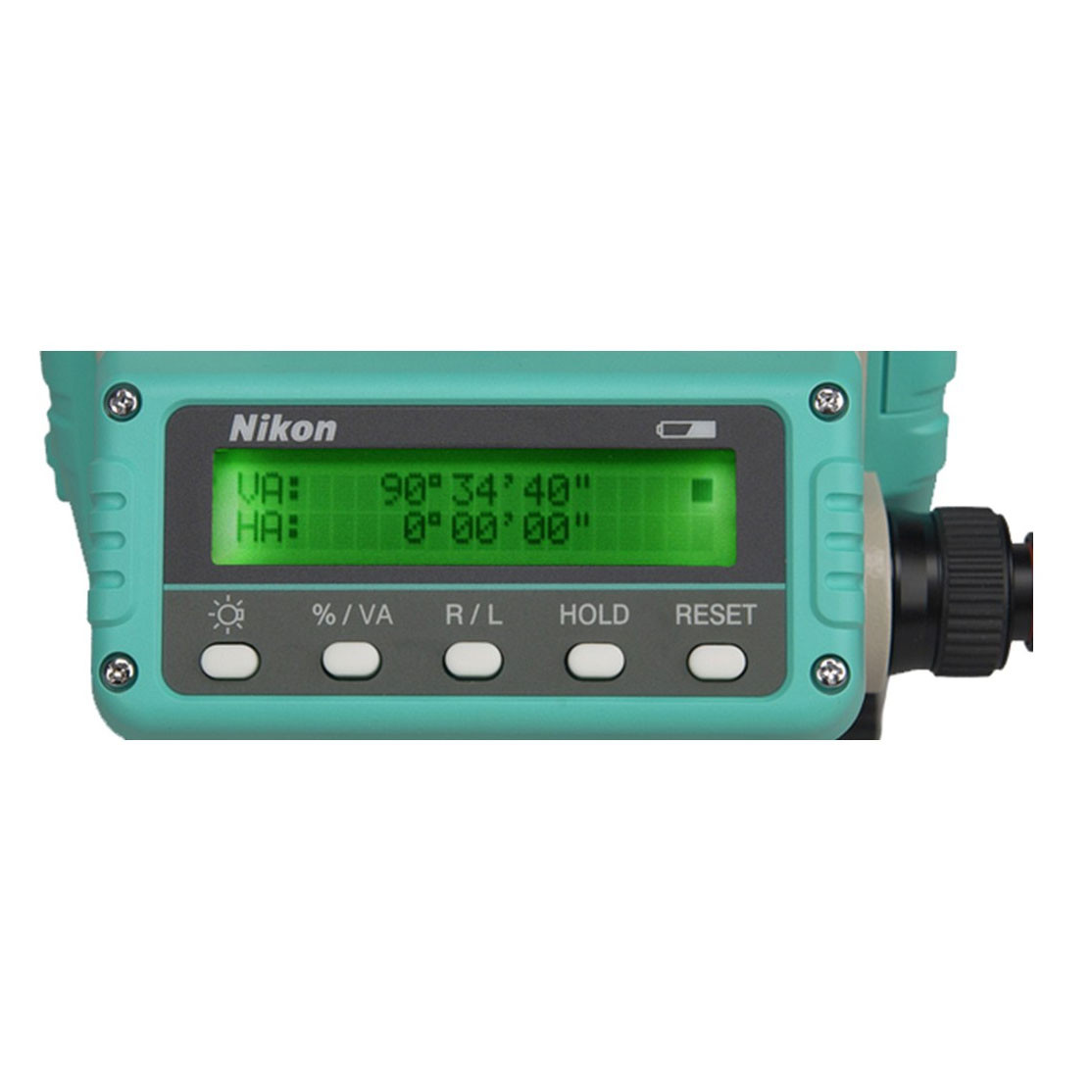

• Display: Dual-sided backlit LCD
• Angle Measurement: Absolute encoders (horizontal and vertical)
• Battery Life: Approximately 30 hours continuous operation
• Battery Type: Four AA alkaline or rechargeable NiMH
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Protection Rating: IP55 dust and water resistant
• Weight: 10.6 lbs (4.8 kg) with battery
• Optical Plummet: 3x magnification, ±1mm accuracy at 1.5m height

What's in the Kit

• Nikon NE-100 Electronic Theodolite

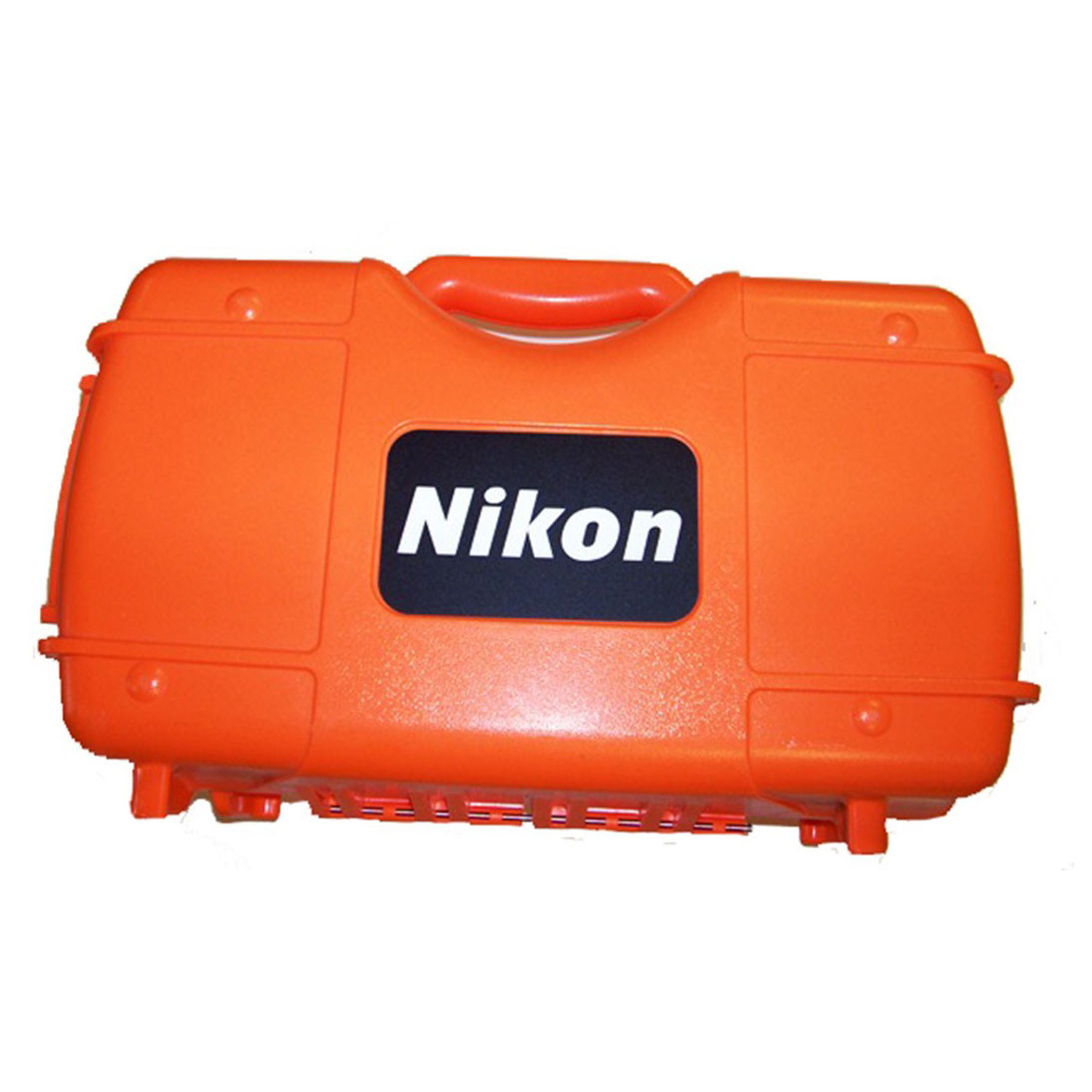

• Carrying case with custom foam inserts
• Lens covers (objective and eyepiece)
• Tool kit for adjustments
• Plumb bob with thread
• Four AA alkaline batteries
• Shoulder strap
• Instruction manual and quick reference guide
• Adjustment pin set
• Cleaning cloth

Job Applications

• Building Foundation Layout: Establish precise building corners and reference lines with 10-second accuracy, ensuring formwork is positioned correctly before concrete placement. The NE-100's dual-axis compensator maintains accuracy even on uneven ground, critical when setting up quickly around excavations and rough-graded sites.
• Structural Steel Alignment: Verify vertical plumb and angular relationships between steel columns and beams during erection. The 30x magnification telescope provides clear targeting of alignment marks at distance, while the absolute encoders eliminate the need to rezero after powering down between measurement sessions.
• Mechanical and Electrical Alignment: Position conveyor systems, pipe racks, and equipment foundations to specified angles and alignments. The instrument's ability to measure and set precise horizontal and vertical angles makes it invaluable for industrial construction where machinery alignment directly impacts operational efficiency.
• Site Grading and Slope Verification: Establish grade stakes and verify slope angles for drainage, roadways, and parking areas. The clear digital readout eliminates interpolation errors common with vernier scales, speeding up the grading process while ensuring compliance with civil engineering specifications.
• Topographic Surveying: Collect angle data for boundary surveys, topographic mapping, and as-built documentation. When paired with a distance measurement device, the NE-100 provides coordinate geometry capabilities suitable for smaller survey projects and site documentation at a fraction of the cost of a total station.
• Tunnel and Underground Construction: Transfer alignment through shafts and establish centerline control in tunnels and underground utilities. The backlit display ensures visibility in low-light conditions, while the rugged construction withstands the harsh, dusty environment typical of underground work.

Compatible Accessories

• Aluminum Tripods (standard 5/8" x 11 thread mount)
• Wooden Tripods for enhanced stability
• Tribrach adapters for instrument interchangeability
• Laser Distance Meters for electronic distance measurement integration
• Target Prisms and reflectors
• Optical Targets and range poles
• Rechargeable NiMH AA battery packs with charger
• External battery pack for extended operation
• Sunshade and rain cover
• Data output cable for external devices

Related Guides

• Theodolite vs Total Station: Choosing the Right Instrument
• Proper Theodolite Setup and Leveling Procedures
• Angular Measurement Best Practices for Construction
• Survey Instrument Care and Maintenance

FAQ

What's the difference between 5-second and 10-second accuracy, and is 10-second sufficient for construction work?

Angular accuracy refers to how precisely the instrument can measure angles. A 10-second theodolite can measure to within 10 arc seconds (1/360th of a degree). For most construction applications—including building layout, foundation work, and general site positioning—10-second accuracy is more than adequate and meets industry standards. You'd only need 5-second or better accuracy for specialized applications like precision industrial alignment, control surveying, or monitoring work where tolerances are exceptionally tight.

Can the NE-100 measure distances, or just angles?

The NE-100 is a digital theodolite that measures horizontal and vertical angles only—it does not have built-in electronic distance measurement (EDM). However, you can use traditional tape measurements or pair it with a handheld laser distance meter to obtain distances. For projects requiring integrated angle and distance measurement in a single instrument, consider upgrading to a total station, which combines both functions.

How does the dual-axis compensator work, and do I still need to level the instrument carefully?

The dual-axis compensator uses gravity-referenced sensors to automatically correct for small leveling errors (up to ±3 minutes) in both the horizontal and vertical axes. While this significantly improves accuracy and speeds setup, you should still level the instrument as carefully as possible using the circular and plate levels. The compensator handles minor imperfections and instrument settlement, but it's not a substitute for proper initial leveling procedure.

Is the NE-100 suitable for use in harsh weather conditions?

Yes, the NE-100 features IP55 environmental protection, meaning it's dust-protected and can withstand water jets from any direction (light rain). The operating temperature range of -4°F to 122°F covers most construction environments. However, in heavy rain or extreme conditions, we recommend using a protective rain cover and the included lens covers when not actively observing to extend instrument life and maintain optimal performance.
