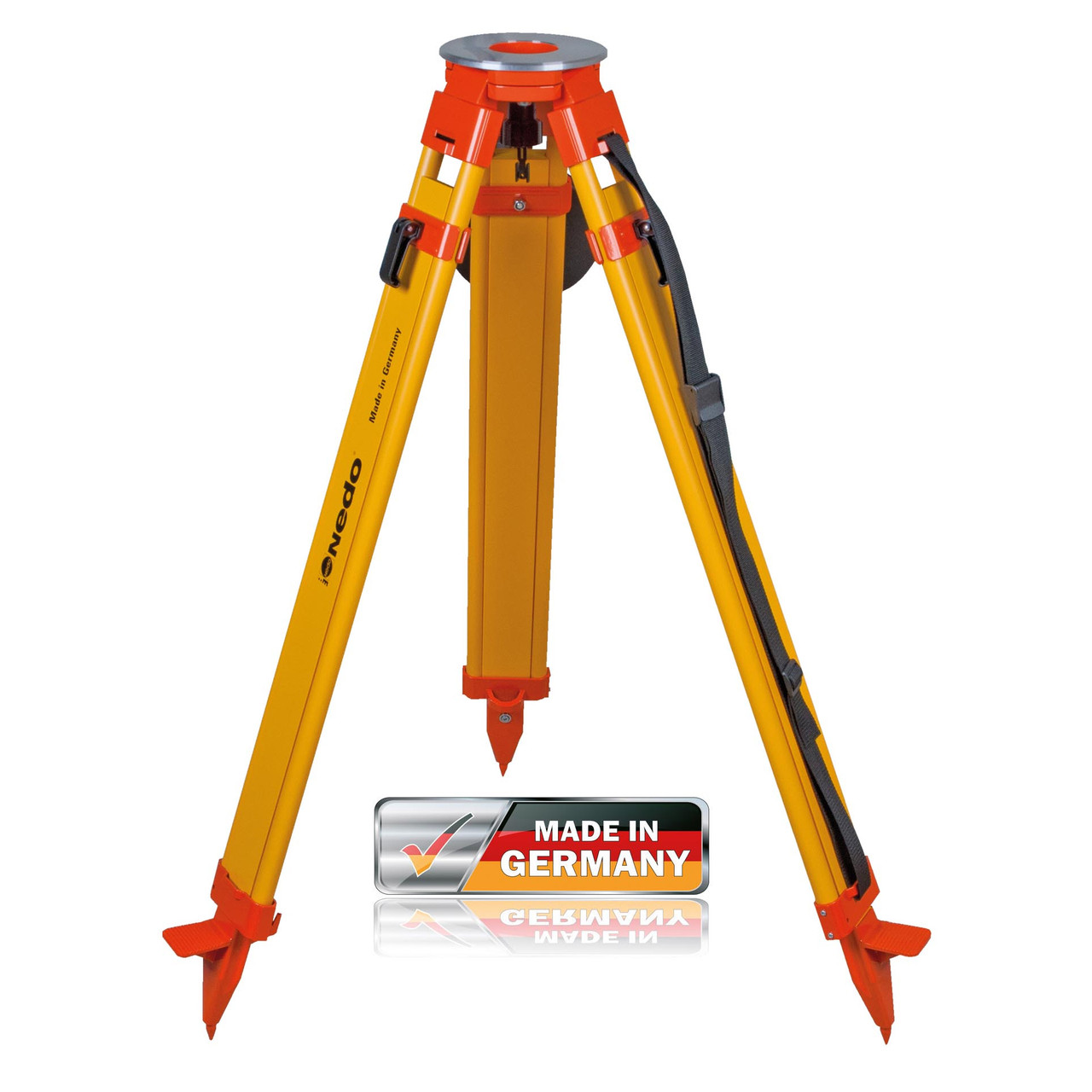

NEDO 200513-185 Heavy-Duty Wood Tripod with Quick Release Clamps

The NEDO 200513-185 is a professional-grade wood tripod engineered for contractors and surveyors who demand rock-solid instrument support without sacrificing setup speed. By pairing time-tested hardwood leg construction with precision aluminum quick-release clamps, this tripod delivers the vibration-dampening stability wood is known for alongside the fast leg-lock action modern jobsites require. Whether you're mounting a laser level on a concrete pour or setting up a total station for layout control, the 200513-185 gives you a dependable, stable platform from the first setup to the thousandth.

Overview & Jobsite Applications

Wood tripods have remained a staple on professional jobsites for decades, and the NEDO 200513-185 demonstrates exactly why. The natural density of the hardwood legs absorbs ground vibration and micro-movement that can throw sensitive optical and laser instruments off-target — a critical advantage on active construction sites where heavy equipment is running nearby. The aluminum quick-release clamps replace traditional wing-nut leg locks, letting crews extend, position, and lock each leg in seconds. This tripod is suited for use with rotating laser levels, automatic optical levels, theodolites, total stations, and dumpy levels that accept a standard 5/8"-11 tribrach or flat-head mount.

Key Specifications

• Model: NEDO 200513-185
• Leg Material: Seasoned hardwood with protective lacquer finish
• Clamp Material: Die-cast aluminum quick-release clamps
• Head Type: Flat head with standard 5/8"-11 threaded bolt
• Leg Adjustment: Telescoping with positive-lock quick-release clamps
• Leg Spread: Wide-stance adjustable for uneven terrain
• Compatibility: Laser levels, optical levels, theodolites, total stations
• Brand: NEDO (Germany)

Key Features

• Aluminum Quick-Release Clamps: Flip-lever clamps lock legs securely in one motion — no knob-spinning required under time pressure
• Hardwood Leg Construction: Natural wood density dampens vibration and thermal expansion for consistent instrument accuracy
• Flat Instrument Head: Universal flat-head platform with standard 5/8"-11 center bolt accepts a wide range of tribrachs and instrument adapters
• Telescoping Leg Design: Wide height range accommodates varying terrain and operator height preferences
• Steel Leg Points: Hardened steel shoe tips bite into soil, gravel, and rough concrete for anti-slip ground contact
• Durable Finish: Protective lacquer coating guards wood legs against moisture, jobsite grime, and UV exposure
• Lightweight Profile: Wood construction keeps overall weight manageable for carry-in applications

Job Applications

Foundation & Slab Layout: Set the 200513-185 on a concrete slab or compacted subgrade and mount your rotating laser or optical level. The wide-stance legs and steel tips hold firm while you shoot grades across an entire pour.

Structural Steel & Column Plumbing: When plumbing columns or checking vertical alignment with a theodolite, wood's inherent vibration absorption keeps your line-of-sight steady even when ironworkers are working the same deck.

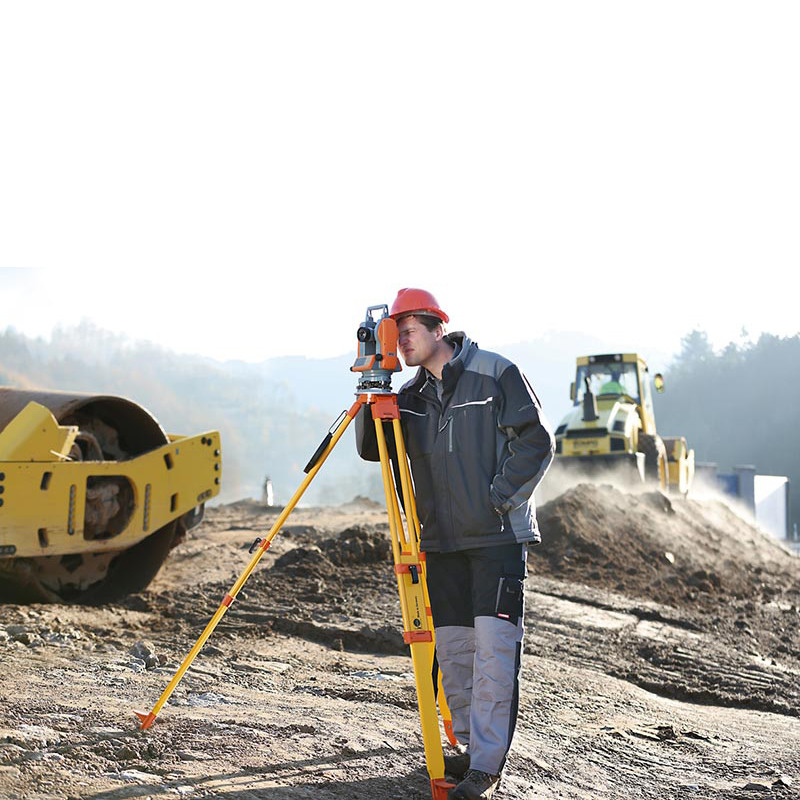

Site Surveying & Control Points: Total station operators appreciate a stable, shake-free platform when establishing horizontal and vertical control. The quick-release clamps mean faster moves between setups without sacrificing accuracy.

Interior Finish & MEP Layout: Mount a pipe laser or interior rotating level on the 200513-185 for partition layout, dropped ceiling grids, or mechanical system alignment where a stable, low-vibration tripod is essential to holding tolerance.

Compatible Accessories

• NEDO Tribrach Adapter for Total Stations
• 5/8"-11 Instrument Adapter Plate
• NEDO Tripod Carrying Bag
• Universal Laser Level Bracket Mount
• Replacement Steel Tripod Leg Tips

Related Guides

• Wood vs. Aluminum Tripods: Which Is Right for Your Instrument?
• How to Set Up a Tripod for Maximum Instrument Accuracy
• Choosing the Right Tripod for Laser Levels & Total Stations
• NEDO Tripod Maintenance: Keeping Wood Legs in Top Condition

Frequently Asked Questions

What instruments are compatible with the NEDO 200513-185?

The 200513-185 features a standard flat head with a 5/8"-11 threaded center bolt, making it compatible with the majority of rotating laser levels, automatic optical levels, theodolites, and total stations that use a tribrach or direct-mount adapter. Always verify your instrument's mounting specification before use.

Why choose a wood tripod over an aluminum tripod?

Wood tripods naturally dampen ground vibration and are less susceptible to thermal expansion and contraction in extreme temperatures. This makes them a preferred choice for precision optical and surveying instruments where micro-movement can affect readings. The trade-off is slightly more weight compared to aluminum, but many professionals consider the stability advantage worth it.

How do the aluminum quick-release clamps work?

Each leg features a flip-lever aluminum clamp that, when released, allows the lower leg section to slide freely for height adjustment. Once positioned, flipping the lever closed locks the leg securely. This replaces traditional wing-nut or screw-type clamps and significantly reduces setup and breakdown time on the jobsite.

How should I maintain the wood legs on this tripod?

Keep the lacquer finish intact by wiping down legs after exposure to moisture or concrete splatter. Avoid prolonged submersion in water. If the finish becomes worn, a light coat of wood sealant or lacquer can restore protection. Periodically inspect the quick-release clamp hardware and tighten any loose fasteners to maintain clamp integrity.
