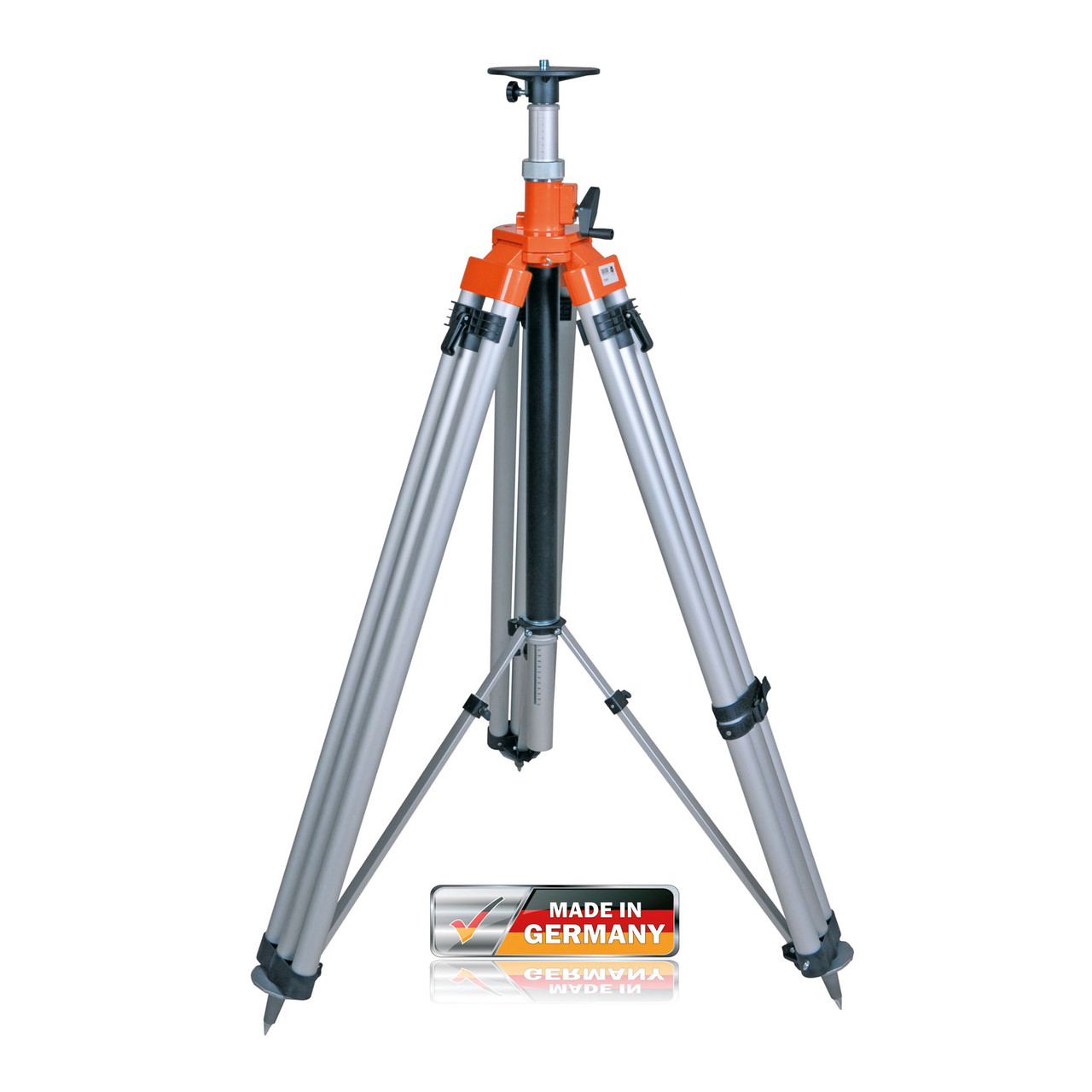

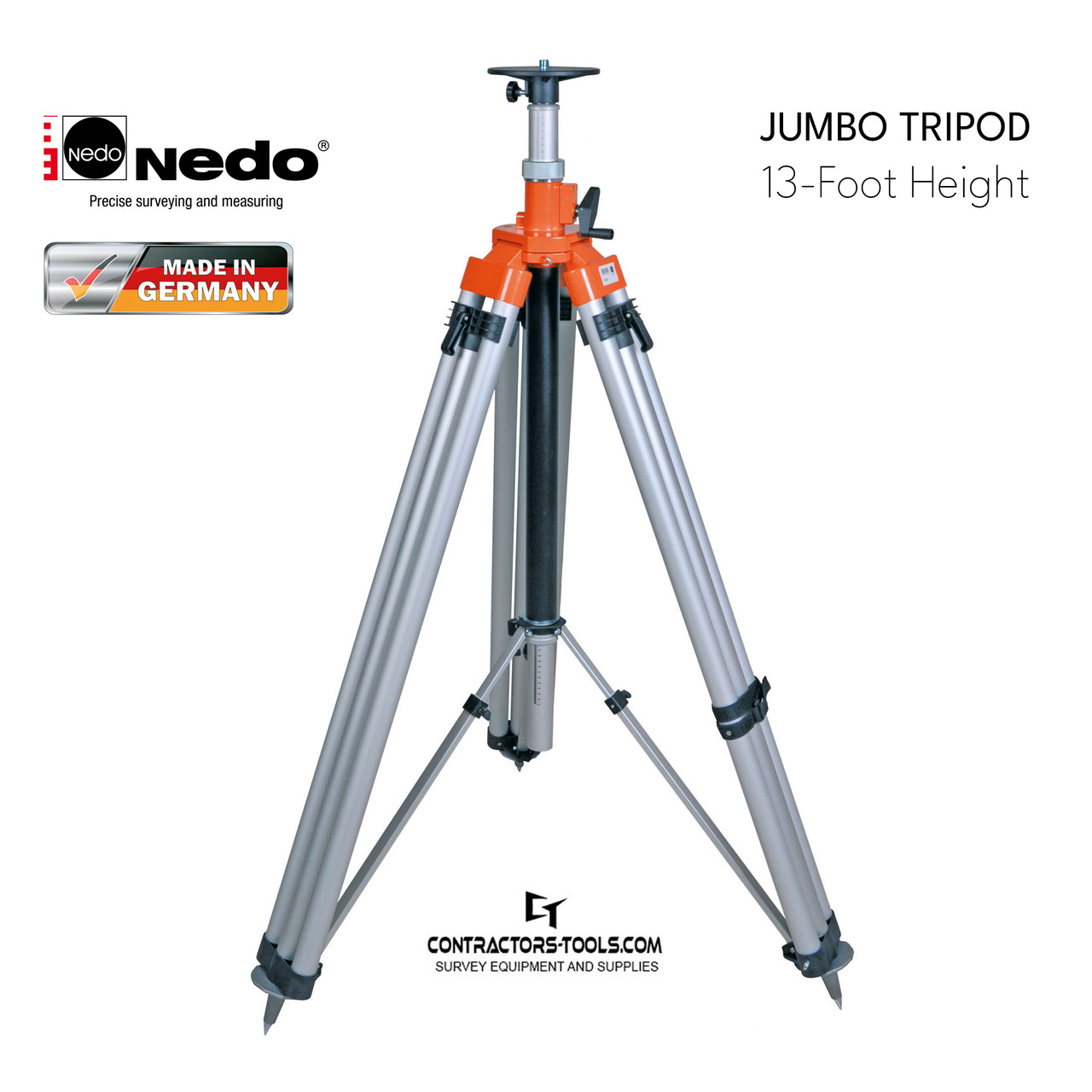

NEDO 210540-185 Extra Heavy-Duty Aluminum JUMBO 13-foot Elevating Tripod (69 to 160-inch)

When the job demands elevation that standard tripods simply cannot deliver, the NEDO 210540-185 Jumbo Elevating Tripod is the professional answer. Extending from 69 to 160 inches, this extra heavy-duty platform puts your laser level or optical instrument where it needs to be on the most demanding job sites in the industry. Built to NEDO's exacting German engineering standards, the Jumbo tripod is the top-tier choice for contractors, surveyors, and project managers who cannot afford compromise when it comes to height, stability, or instrument security.

Overview: Built for the Biggest Jobs

The NEDO Jumbo tripod is engineered for applications where standard or mid-range elevating tripods fall short. Its telescoping column and extra-wide leg spread combine to deliver exceptional stability at heights well above 10 feet, making it indispensable on bridge construction, industrial facility layout, warehouse racking installation, high-rise floor-to-floor elevation transfer, and infrastructure projects where grade or height references must be established far above ground level. The robust locking mechanisms hold instrument position under the vibration and movement common on active construction sites, keeping your readings accurate and your workflow moving.

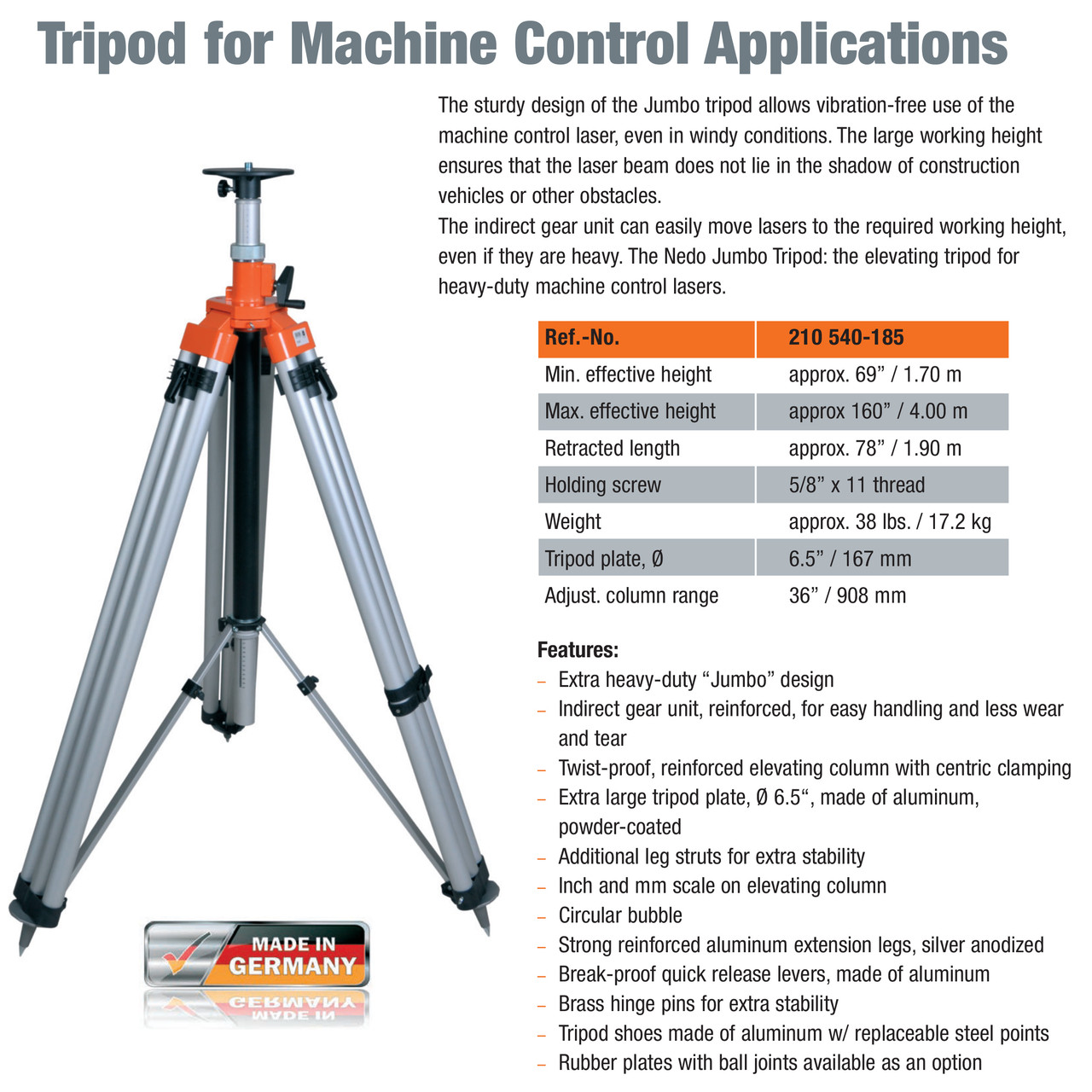

Key Specifications

• Model: NEDO 210540-185
• Series: Jumbo Elevating Tripod
• Minimum Height: 69 inches (approximately 5.75 feet)
• Maximum Height: 160 inches (approximately 13.3 feet)
• Thread Mount: Standard 5/8-inch x 11 universal instrument thread
• Construction: Extra heavy-duty aluminum and steel components
• Leg Style: Wide-spread, individually adjustable legs with ground spikes
• Column Lock: Secure clamp-style elevation lock system
• Compatibility: Laser levels, rotary lasers, optical levels, and surveying instruments with standard 5/8-inch thread

Key Features

• Top-of-range 160-inch maximum height for extreme elevation requirements
• Wide leg stance delivers a stable base even at full extension
• Smooth telescoping center column with precise height adjustability
• Heavy-duty column clamp lock prevents slippage under load or vibration
• Ground spike feet for firm purchase on soil, gravel, and soft surfaces
• Universal 5/8-inch x 11 thread fits virtually all professional laser and optical instruments
• Rugged construction rated for repeated heavy commercial and industrial use
• Designed and manufactured to NEDO's German quality standards

Job Site Applications

High-Rise and Multi-Story Construction: Transfer floor-to-floor elevations and establish control points across tall open floor plates without scaffolding or ladders. The Jumbo reaches heights that keep your instrument line-of-sight above obstructions common on active floors.

Bridge and Infrastructure Projects: Set grade and alignment references from below beam height on bridge decks, overpasses, and elevated structures where instrument height is critical to accuracy over long spans.

Industrial Facility and Warehouse Layout: Align overhead steel, racking systems, conveyors, and mechanical equipment in tall-bay industrial buildings where standard tripods cannot achieve the required instrument elevation.

Specialized Surveying and Elevation Transfer: Establish vertical control benchmarks in utility vaults, elevator shafts, and deep excavations where an instrument must be elevated above obstructions to maintain a clear sightline across the work area.

Compatible Accessories

• NEDO Rotary Laser Levels — pair with the Jumbo tripod for full-room and multi-floor layout
• NEDO Laser Level Adapters and Brackets — secure non-standard instruments to the 5/8-inch mount
• NEDO Tripod Carrying Cases and Transport Bags — protect the Jumbo during transport between job sites
• Replacement Ground Spike Feet — maintain secure footing on varied terrain

Related Guides

• How to Choose the Right Elevating Tripod for Your Job Site
• Setting Up a Laser Level on an Elevating Tripod: Best Practices
• NEDO Tripod Comparison: Standard vs. Mid-Range vs. Jumbo
• Elevation Transfer Techniques for High-Rise Construction

Frequently Asked Questions

What is the maximum height of the NEDO 210540-185 Jumbo tripod?

The NEDO 210540-185 Jumbo elevating tripod reaches a maximum height of 160 inches, or approximately 13.3 feet, making it the tallest option in the NEDO elevating tripod lineup and suitable for high-rise, bridge, and industrial applications.

What instrument thread size does this tripod use?

The Jumbo tripod uses the industry-standard 5/8-inch x 11 thread, which is compatible with the vast majority of professional rotary laser levels, optical levels, and surveying instruments from all major manufacturers.

Is this tripod stable enough to use at full extension on an active job site?

Yes. The NEDO Jumbo is built with extra heavy-duty components, a wide leg stance, and a robust column clamp lock specifically to maintain stability at maximum height under the vibration and activity typical of commercial and industrial construction environments. Always ensure legs are fully locked and feet are firmly set before use.

Can the NEDO 210540-185 be used on uneven or soft ground?

The Jumbo tripod features individually adjustable legs and ground spike feet that allow it to be leveled on uneven terrain and anchored securely in soil or gravel surfaces. For hard floors, rubber foot pads or floor protection accessories are recommended to prevent slippage and surface damage.
