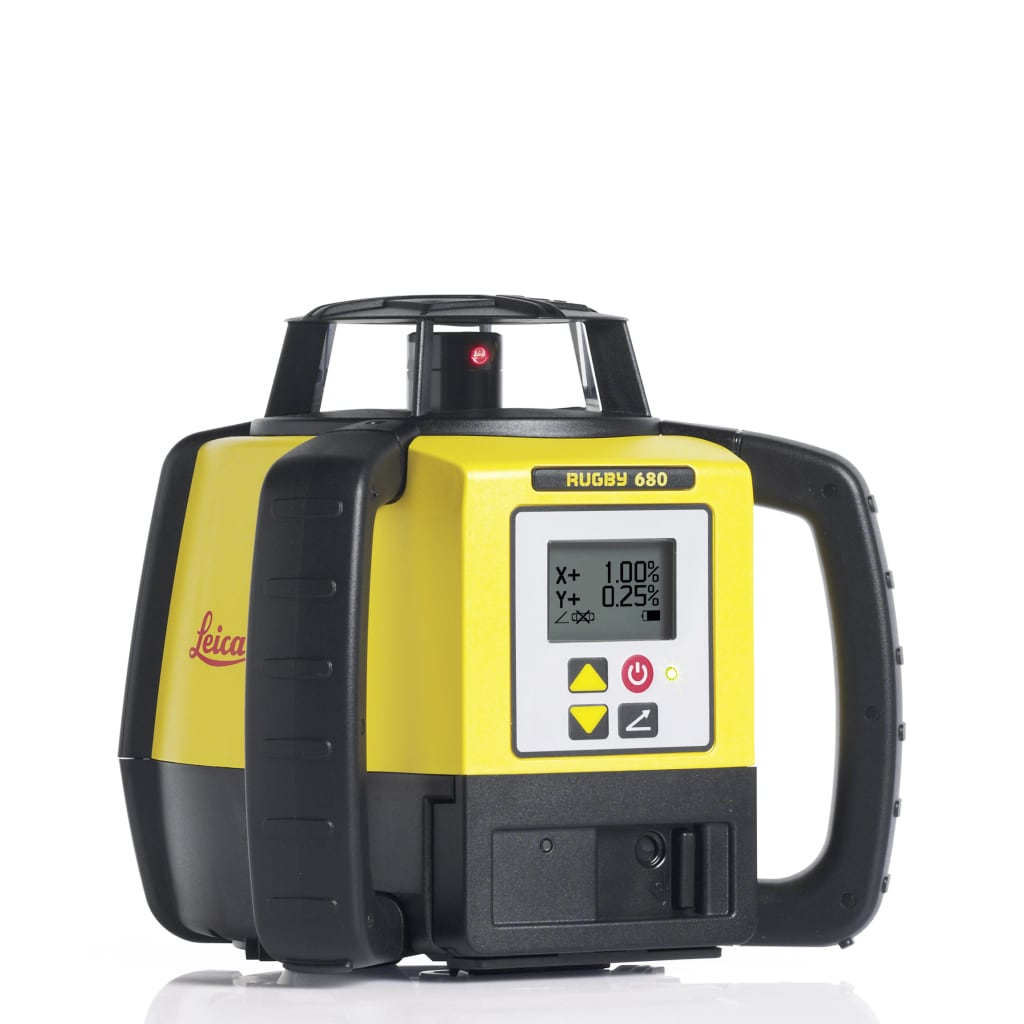

Leica Rugby 680 Automatic Dual Slope Laser Kit (6006010) with Deluxe RE160 Receiver - Rechargeable

The Leica Rugby 680 (SKU: 6006010) is a semi-automatic dual slope rotary laser engineered for contractors who need reliable grade control across two axes. Whether you're establishing cross-slopes on a parking lot, laying out drainage channels, or finishing concrete flatwork, the Rugby 680 delivers the grading precision and rugged durability that professional site work demands. Bundled with the RE160 digital receiver and rechargeable battery pack, this kit gives you everything to get on-grade fast.

Product Overview

The Rugby 680 operates in both single and dual slope modes, giving crews the flexibility to handle simple flat pours and complex cross-grade applications from the same instrument. Its semi-automatic dial-in system lets operators input X and Y axis grades directly at the control panel — a workflow familiar to experienced grade-setters who prefer hands-on confirmation of slope values before committing to a pour or cut. The self-leveling range compensates for minor setup variations, and the robust housing is built to survive the dust, moisture, and accidental knocks of active jobsites.

Key Specifications

• Model: Leica Rugby 680 — Part No. 6006010
• Slope Range (X-Axis): ±10%
• Slope Range (Y-Axis): ±10%
• Grade Setting: Semi-automatic dial-in on X and Y axes
• Self-Leveling Range: ±5°
• Working Range: Up to 800m diameter (with RE160 receiver)
• Rotation Speed: 300 / 600 / 1200 RPM
• Accuracy: ±1.5mm at 30m
• Power: Rechargeable NiMH battery pack — up to 35 hours runtime
• Protection Rating: IP67 waterproof and dustproof
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)

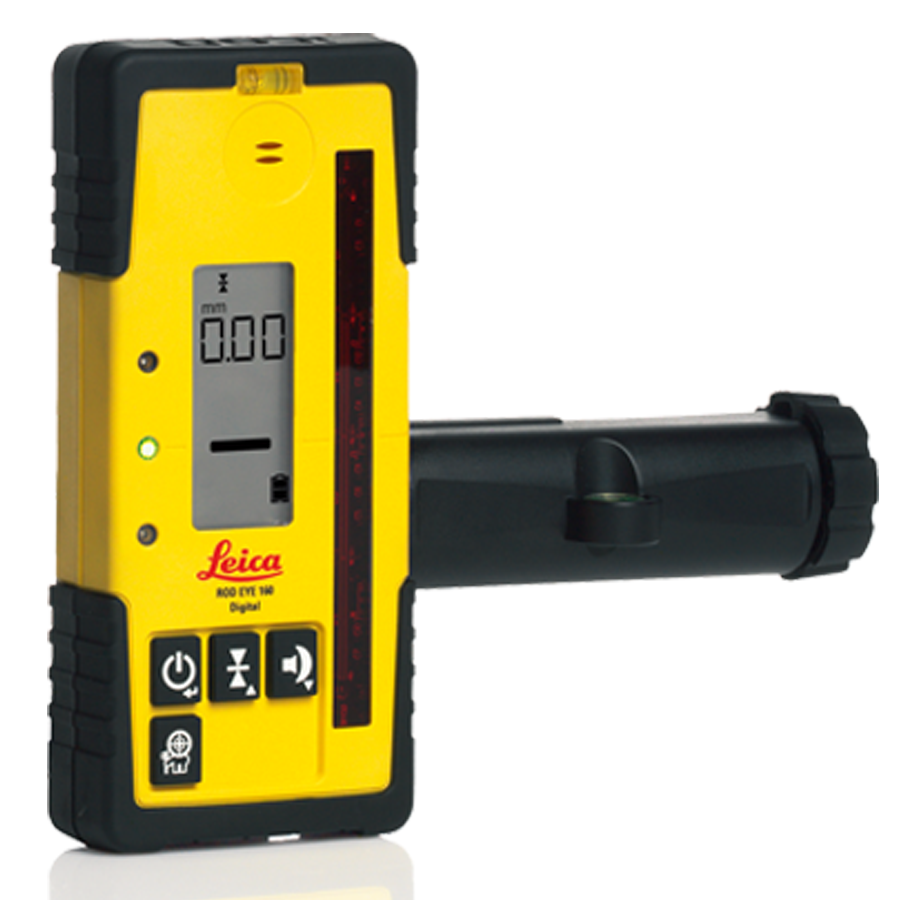

• Included Receiver: Leica RE160 digital grade receiver

What's in the Kit

• Leica Rugby 680 rotary laser unit
• Leica RE160 digital receiver with rod clamp
• Rechargeable NiMH battery pack
• AC battery charger
• Carrying case
• User documentation

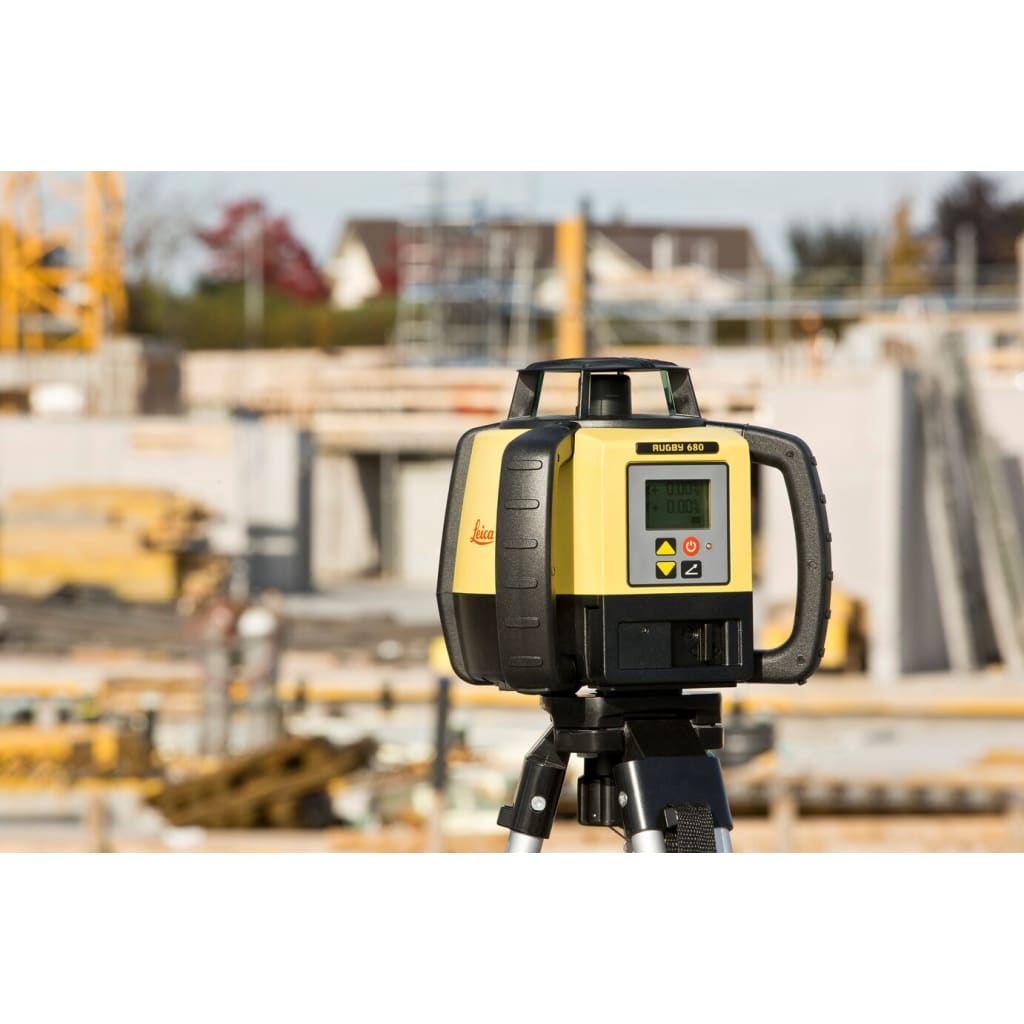

Job Site Applications

Parking Lot Construction: Dial in cross-slopes across both axes to ensure proper surface drainage away from structures — the dual grade capability means you don't need to re-instrument between X and Y passes.

Drainage Channels & Swales: Set consistent fall rates along drainage runs with confidence. The semi-automatic grade input lets foremen verify slope values before the crew begins grading, reducing costly re-work.

Concrete Flatwork: Use single-slope mode for straightforward slab pours or switch to dual slope for slabs requiring controlled run-off in two directions. The 800m working diameter keeps the instrument visible across large floor pours.

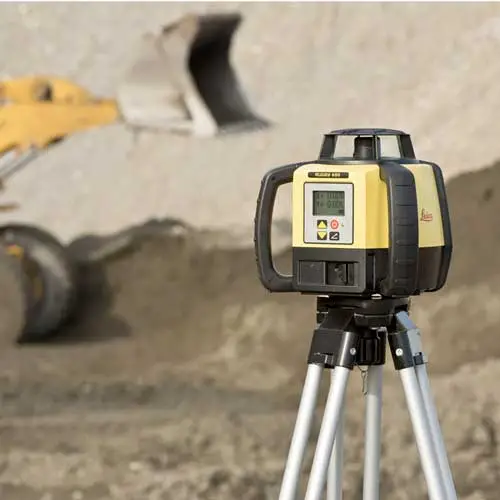

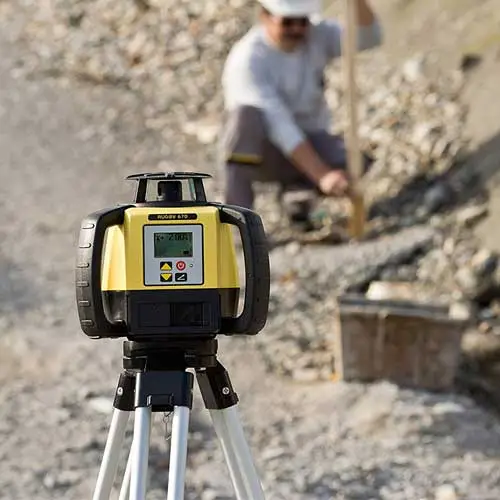

Site Grading & Excavation: Mount the RE160 receiver to a grade rod and use the Rugby 680 as a reliable elevation reference across cut-and-fill operations, keeping equipment operators on-grade without repeated instrument checks.

Compatible Accessories

• Leica RE160 Digital Receiver (replacement)
• Leica Rugby Receiver Rod Clamp
• Leica Rugby Heavy-Duty Tripod
• Leica NiMH Rechargeable Battery Pack
• Leica Rugby Laser Detector Target Plate

Related Guides

• How to Set Dual Slope with the Leica Rugby 680
• Rugby 680 vs Rugby 640: Which Dual Grade Laser Is Right for Your Crew?
• Setting Up a Rotary Laser for Parking Lot Drainage
• Rotary Laser Accuracy Guide for Concrete Flatwork

Frequently Asked Questions

What is the difference between semi-automatic and automatic dual slope on a rotary laser?

Automatic dual slope lasers use motorized heads to dial in slope values electronically via remote control, while semi-automatic models like the Rugby 680 require the operator to manually adjust the grade knobs on the instrument itself. Semi-automatic is preferred by many crews for its simplicity, lower cost, and direct tactile confirmation of grade settings before work begins.

Can the Rugby 680 be used with a grade rod and machine control systems?

The Rugby 680 is a manual-operation laser intended for rod-and-receiver workflows rather than machine control integration. For dozer or motor grader automation, Leica offers machine-control-compatible models in the Rugby and Roteo lines. The RE160 receiver works with standard grade rods for hand grading and fine grading operations.

Is the Leica Rugby 680 waterproof enough for outdoor use in rain?

Yes. The Rugby 680 carries an IP67 rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water up to 1 meter for 30 minutes. It is designed for continuous outdoor use in rain, mud, and dusty conditions common on active construction sites.

What receiver does the Rugby 680 come with, and can I use other Leica receivers?

The 6006010 kit includes the Leica RE160 digital receiver, which displays numeric grade readout and works at distances up to 800m diameter. Other Leica Rugby-compatible receivers such as the RE180 can also be used with the Rugby 680 for extended range or additional functionality.
