What's the weight capacity of the Salamander RHIV dual-clamp system?

Manufacturer specifications for weight capacity are not provided in the technical documentation. Contact Express Tools directly with your specific robotic instrument weight and mounting interface geometry, and our team can confirm whether the RHIV is rated for your equipment configuration.

Will the RHIV work with my robotic total station, or is it instrument-specific?

The RHIV is designed for any precision robotic surveying equipment with standard survey tripod interfaces—including Trimble, Leica, Topcon, and other major robotic total stations and 3D scanning systems. The large head accommodates typical robotic instrument mounting geometry, but verify your equipment's interface standard before purchase.

Does the fiberglass construction really prevent electromagnetic interference?

Yes. Fiberglass is non-conductive and non-ferrous, meaning it does not generate electromagnetic noise or interference that could disrupt communication between robotic instruments and base stations. This is particularly important for instruments operating on radio or cellular links over long distances.

How tight should I clamp the dual-clamp system on my robotic instrument?

Tighten both clamps evenly in alternating turns to distribute pressure across both securing points and prevent equipment tilt. Clamps should be snug enough to eliminate any play when you gently try to move the instrument, but do not over-tighten metal clamps on sensitive equipment interfaces—use protective pads if needed and verify clamp security multiple times before beginning survey operations.

Is the Flo-Lime color visible enough for large survey areas?

Flo-Lime (bright lime-yellow) is highly visible from 100+ feet away on typical surveying sites, making it faster to locate equipment across large survey areas. This reduces setup time, improves crew safety by preventing accidental strikes, and is especially valuable when working across 10–50+ acre sites with multiple tripod setups.

Can I use the RHIV on uneven or sloped terrain?

Position the tripod on the most stable, level ground available and verify stability before mounting equipment. On significant slopes or soft ground, use leveling bases or outrigger feet (if available) to improve stability and prevent settling during extended operations. Never rely solely on the tripod legs on soft soil without additional support.

Leica Rugby 620 Red Beam Rotary Laser Package (6011152) with Rod Eye 120 Receiver - Alkaline

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The Salamander RHIV Robotic Dual Clamp Fiberglass Tripod is cutting-edge support equipment specifically engineered for robotic survey instruments and advanced technological equipment. This specialized tripod accommodates the unique mounting requirements and weight distribution needs of robotic total stations and 3D scanning systems, protecting significant technology investments. The large head accommodates the interface geometry of robotic instruments, while dual-clamp redundant security prevents loss of valuable equipment. Fiberglass construction offers corrosion resistance and dimensional stability, with distinctive Flo-Lime color for visibility on job sites. Essential for professional surveying firms utilizing state-of-the-art robotic surveying technology.
Type: Robotic Dual Clamp Tripod
Material: Fiberglass
Head Size: Large
Clamp System: Dual Clamp
Color: Flo-Lime

Leica Geosystems620SKU 01-RHIVIZ20-BNew

Rotary Lasers →

Leica Rugby 620 Red Beam Rotary Laser Package (6011152) with Rod Eye 120 Receiver - Alkaline

$1049.95

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

1,100 m (3,600 ft) with Rod Eye 120 receiver Range

Cover large layout jobs with a 1,100 m (3,600 ft) with Rod Eye 120 receiver working reach.

±1.5 mm at 30 m (±1/16 in at 100 ft) Accuracy

Hold grade with a ±1.5 mm at 30 m (±1/16 in at 100 ft) accuracy rating.

Battery Type

Runs on 4 x AA alkaline for jobsite flexibility.

Authorized Leica Geosystems Dealer

Genuine, factory-fresh Leica Geosystems equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Leica Geosystems equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Eliminates the grade checker

Grade checkers cost $600-800/day. A rotary laser setup pays for itself in weeks and works indefinitely.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this rotary laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Leica Geosystems 620?

The Leica Rugby 620 Red Beam Rotary Laser Package (6011152) with Rod Eye 120 Receiver - Alkaline is a Leica Geosystems Rotary Laser with 1,100 m (3,600 ft) with Rod Eye 120 receiver working range, ±5° self-leveling range, and ±1.5 mm at 30 m (±1/16 in at 100 ft) leveling accuracy. It's available from Express Tools as an authorized Leica Geosystems dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this rotary lasers for

Robotic Total Station Deployment

Surveying crews mount robotic total stations on the RHIV for construction layout, topographic surveys, and as-built documentation across active job sites. The dual-clamp system ensures equipment remains stable during automated scanning and data collection sequences that can run 2–4 hours per setup.

3D Laser Scanning Operations

Firms conducting 3D point cloud capture for building information modeling (BIM) and site documentation secure terrestrial laser scanners to the RHIV's large head. The fiberglass construction prevents electromagnetic interference that could degrade scan data quality or scanner-to-base-station communication.

High-Value Equipment Protection

Surveying companies safeguard $50,000+ robotic instruments from loss or damage with the dual-clamp redundant security system that prevents accidental dislodging during setup, site movement, or equipment transport. The Flo-Lime color reduces strikes from construction equipment and personnel in busy areas.

Utility Location and Ground Penetrating Radar (GPR) Work

Utility contractors use the RHIV to mount precision locating instruments and GPR scanning systems for accurate subsurface mapping before excavation. The tripod's stability and large head accommodate specialized utility detection equipment interfaces.

Multi-Setup Precision Projects

On projects requiring 15+ tripod setups across varying terrain—such as corridor surveys, boundary work, or large construction sites—crews appreciate the Flo-Lime visibility for rapid equipment location and the engineered weight distribution that maintains calibration across all setups without adjustment.

PRODUCT OVERVIEW

Product Description

The Leica Rugby 620 (Model 6011152) is a purpose-built rotary laser engineered for concrete contractors and formwork specialists who demand dependable grade control on the toughest jobsites. Paired with the Rod Eye 120 receiver, this red beam rotating laser delivers a working diameter of 1,100 meters (3,600 ft) — more than enough range for commercial slab pours, parking structures, tilt-up construction, and large-scale flatwork. If you pour it, screed it, or form it, the Rugby 620 is built to keep up.

Overview & Jobsite Applications

The Rugby 620 operates on standard AA alkaline batteries, keeping operating costs low and eliminating the need to track specialty battery packs on a busy site. Its rugged housing meets IP67 ingress protection, meaning it survives full immersion in water up to 1 meter and shrugs off the concrete dust, mud, and debris that are part of everyday work. The self-leveling range of ±5° handles most uneven setups without manual adjustment, and the electronic level compensator locks out-of-level operation to protect your grade every time.

Key Specifications

Model Number: 6011152
Laser Class: Class 2 Red Beam (635 nm)
Working Diameter: 1,100 m (3,600 ft) with Rod Eye 120 receiver
Self-Leveling Range: ±5°
Leveling Accuracy: ±1.5 mm at 30 m (±1/16 in at 100 ft)
Rotation Speed: 100, 300, or 600 RPM
IP Rating: IP67 — dust-tight and waterproof to 1 m
IK Rating: IK08 impact resistant
Battery Type: 4 x AA alkaline
Battery Life: Up to 35 hours
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Weight: 2.1 kg (4.6 lbs) with batteries

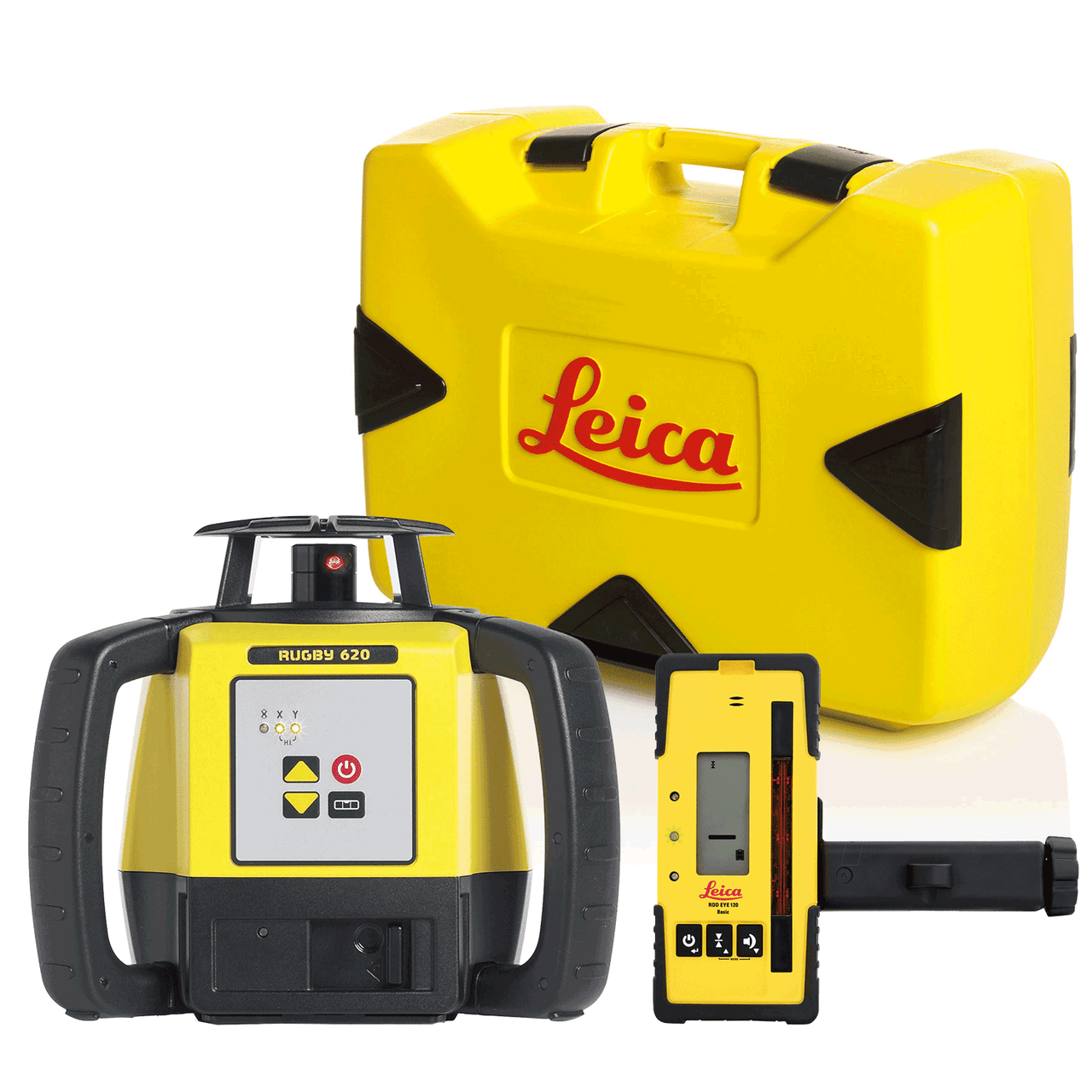

What's in the Kit

Leica Rugby 620 Red Beam Rotary Laser

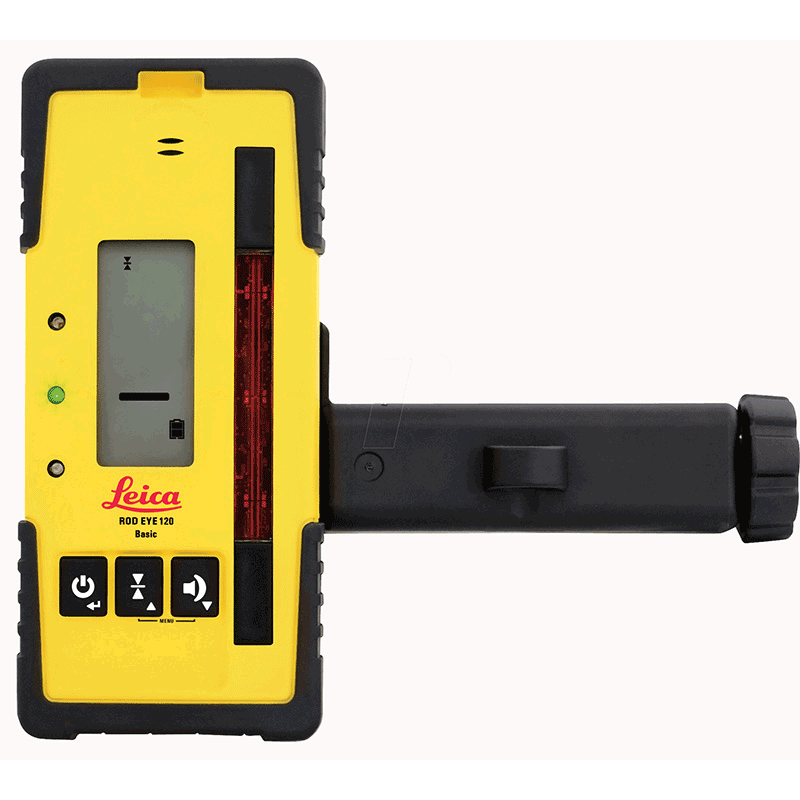

Rod Eye 120 Digital Receiver with clamp
Alkaline battery set (4 x AA)
Carry case
Operator's manual and calibration certificate

Job Applications

Concrete Flatwork & Slabs: Set grade stakes and guide screed rails across large pours with confidence. The 1,100 m range means a single setup covers even the largest commercial slab without repositioning.

Formwork & Tilt-Up Panels: The Rugby 620's accuracy of ±1.5 mm at 30 m keeps form heights consistent from one end of the panel to the other, reducing finishing labor and rework.

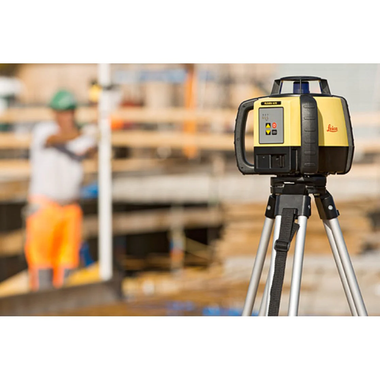

Foundations & Footings: Establish consistent benchmark elevations across a foundation layout quickly. The IP67 rating means the tool stays on the tripod when weather rolls in.

Site Grading & Drainage: At 600 RPM, the beam is bright and easy to catch with the Rod Eye 120, keeping grade checks fast during rough grading and drainage work.

Compatible Accessories

Related Guides

Frequently Asked Questions

Does the Leica Rugby 620 work outdoors in daylight?: Yes, but like all red beam rotary lasers the Rugby 620 is best used outdoors with a compatible receiver such as the Rod Eye 120. The receiver detects the beam at distances up to 1,100 m regardless of ambient light conditions, while naked-eye visibility of the red dot is limited to shaded or low-light environments.
What batteries does the Rugby 620 use, and how long do they last?: The Rugby 620 runs on four standard AA alkaline batteries with a rated runtime of up to 35 hours. Because it uses off-the-shelf batteries, you can stock spares at any hardware store — no proprietary packs or chargers required.
Is the Rugby 620 self-leveling, and what happens if it gets knocked out of level?: Yes, the Rugby 620 features an electronic self-leveling compensator with a ±5° range. If the instrument is tilted beyond that range, it stops rotating and alerts the operator — preventing you from accidentally shooting grade with an out-of-level instrument.
What is the difference between the Leica Rugby 620 and the Rugby 640?: The Rugby 640 adds dual-grade (X and Y axis simultaneous slope) capability, making it suitable for drainage swales, parking lot crowns, and sloped flatwork. The Rugby 620 is a single-grade instrument ideal for straightforward horizontal leveling applications such as concrete slabs and formwork where dual-axis slope is not required.

Why This Equipment

Auto Self-Leveling

Compensates for job site movement and setups — no manual leveling required.

Long Range

Reach 2,600+ ft with a receiver — covers large pads and site-wide grading without moving.

IP55+ Protection

Dust-tight and water jet resistant — built for outdoor construction in any weather.

Radio Remote

Change grade or elevation from the cab or anywhere on site without walking back.

KIT CONTENTS

What's In The Box

Salamander RHIV Robotic Dual Clamp Fiberglass Tripod with Large Head

Why Buy This?

The right rotary laser pays for itself in weeks.

A grade checker costs $600–800 per day. A quality rotary laser setup eliminates that cost indefinitely — and works faster. One operator with a good laser and receiver can cover ground that used to take a two-person crew.

The gap between a budget unit and a professional-grade one shows up in the field: self-leveling range on uneven pads, IP55+ protection through rain and dust, and radio remote control so you're not walking back to the instrument every time the job moves.

Express Tools is an authorized dealer with genuine, factory-fresh inventory and same-day shipping on in-stock units. We know this equipment and can answer spec questions before you order.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The Salamander RHIV Robotic Dual Clamp Fiberglass Tripod is cutting-edge support equipment specifically engineered for robotic survey instruments and advanced technological equipment. This specialized tripod accommodates the unique mounting requirements and weight distribution needs of robotic total stations and 3D scanning systems, protecting significant technology investments. The large head accommodates the interface geometry of robotic instruments, while dual-clamp redundant security prevents loss of valuable equipment. Fiberglass construction offers corrosion resistance and dimensional stability, with distinctive Flo-Lime color for visibility on job sites. Essential for professional surveying firms utilizing state-of-the-art robotic surveying technology.
Type	Robotic Dual Clamp Tripod
Material	Fiberglass
Head Size	Large
Clamp System	Dual Clamp
Color	Flo-Lime
SKU	01-RHIVIZ20-B
Key Feature 1	Specialized robotic instrument support
Key Feature 2	Large head for robotic equipment interfaces
Key Feature 3	Dual-clamp redundant security system
Key Feature 4	Fiberglass construction with corrosion resistance
Key Feature 5	Flo-Lime visibility color
Key Feature 6	Engineered weight distribution for robotic equipment
Use Cases	Robotic total station support; 3D scanning system mounting; Advanced surveying technology deployment; Professional surveying firm operations; High-value equipment protection; Precision surveying projects
Setup Steps	Position tripod on stable, level ground \| Extend legs to appropriate stance width \| Verify tripod stability before equipment attachment \| Mount robotic instrument to large head using both clamps \| Tighten dual-clamps securely around equipment interface \| Verify equipment orientation and leveling
Pro Tips	Tighten both clamps evenly to distribute weight across both securing points \| Use protective pads if equipment interface is sensitive to metal contact \| Verify clamp security multiple times before beginning survey operations
Compatible Equipment	Robotic total stations; 3D scanning systems; Precision robotic surveying equipment; Advanced technological survey instruments; Equipment with standard survey tripod interfaces
Common Issues	Equipment weight causing clamp stress \| Interface compatibility with different robotic instrument mounting systems \| Clamp slippage under heavy equipment weight
Laser Class	Class 2 Red Beam (635 nm)
Working Range	1,100 m (3,600 ft) with Rod Eye 120 receiver
Self-leveling Range	±5°
Leveling Accuracy	±1.5 mm at 30 m (±1/16 in at 100 ft)
Rotation Speed	100, 300, or 600 RPM
IP Rating	IP67 — dust-tight and waterproof to 1 m
Battery Type	4 x AA alkaline
Battery Life	Up to 35 hours
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Weight	2.1 kg (4.6 lbs) with batteries
