Leica Rugby 620 Red Beam Rotary Laser Package - Large Case (Leica 6019426) with Rod Eye 160 Digital Receiver - Rechargeable / Complete Kit with Rod/Inches, HD Tripod

The Leica Rugby 620 Complete Kit (6019426) delivers everything a contractor needs to hit grade accurately and efficiently on day one. Built around the field-proven Rugby 620 rotary laser, this K2 configuration pairs the instrument with Leica's Rod Eye 160 digital receiver, a 14-foot inch-graduated grade rod, a heavy-duty tripod, and a rechargeable lithium-ion battery system — all stored in a rugged transport case. Whether you're grading a pad, setting footings, or checking floor flatness, this kit eliminates guesswork and keeps your crew moving.

Rugby 620 Overview & Jobsite Applications

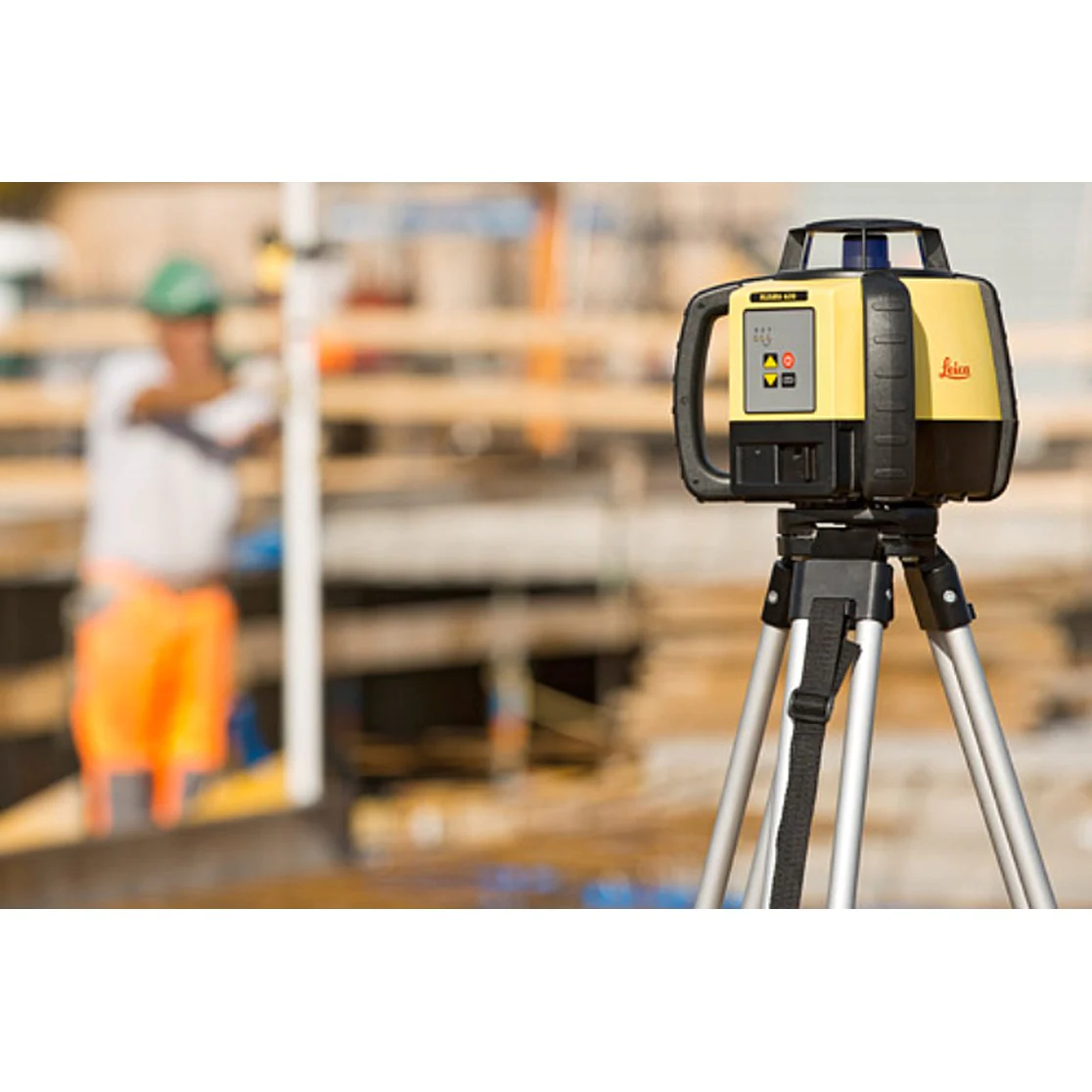

The Rugby 620 is Leica's workhorse single-grade rotary laser, engineered for contractors who need reliable accuracy across demanding outdoor environments. With an IP67-rated housing, the instrument withstands dust, rain, and the kind of rough handling common on active construction sites. Its 600-meter diameter working range (with receiver) covers large commercial pads, warehouse slabs, and site grading operations without repositioning. The self-leveling system settles quickly within ±5°, cutting setup time so your crew gets productive faster. The inch-graduated rod included in this kit is specifically configured for trades working in feet-and-inches rather than decimal feet — the dominant measurement standard in U.S. residential and light commercial construction.

Key Specifications

• Model: Leica Rugby 620 (SKU 6019426)
• Accuracy: ±1.5mm at 30m (±1/16" at 100')
• Self-Leveling Range: ±5°
• Working Range: Up to 600m diameter (with Rod Eye 160 receiver)
• Rotation Speed: 150, 300, 600 RPM selectable
• Grade Capability: Single-axis grade 0–25%
• IP Rating: IP67 dust and waterproof
• Power: Rechargeable lithium-ion battery (included)
• Battery Life: Up to 30 hours per charge
• Receiver: Rod Eye 160 digital, 160mm capture height

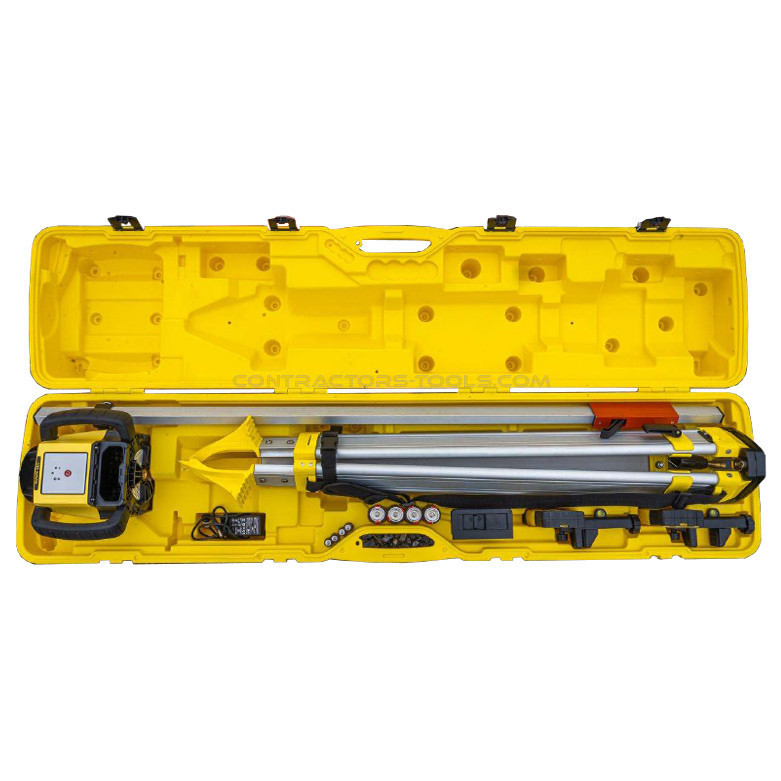

What's in the Kit

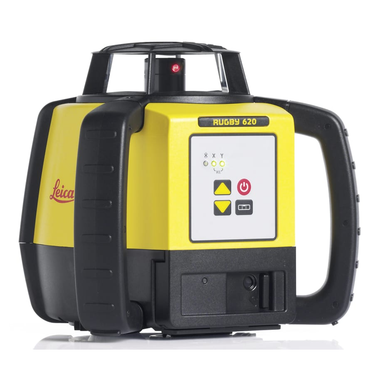

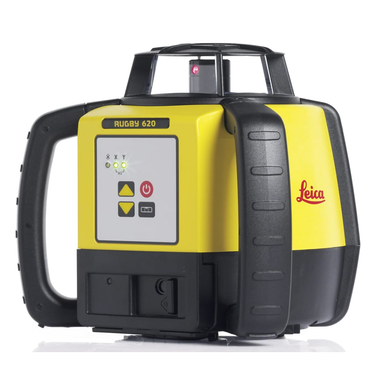

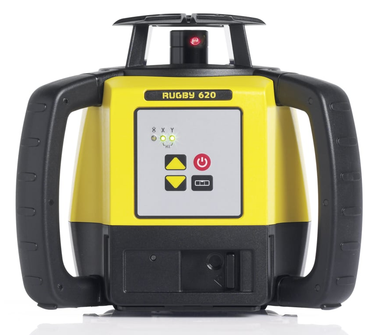

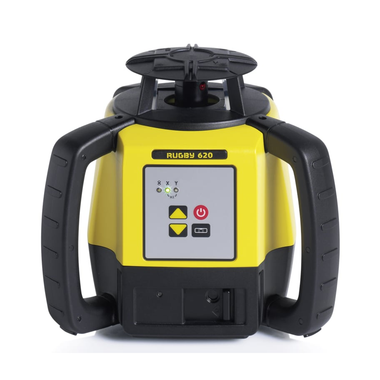

• Leica Rugby 620 single-grade rotary laser

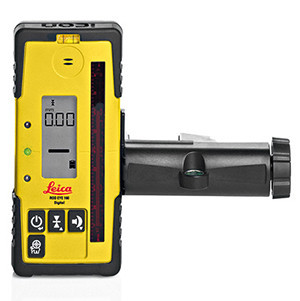

• Rod Eye 160 digital laser receiver with 160mm reception window

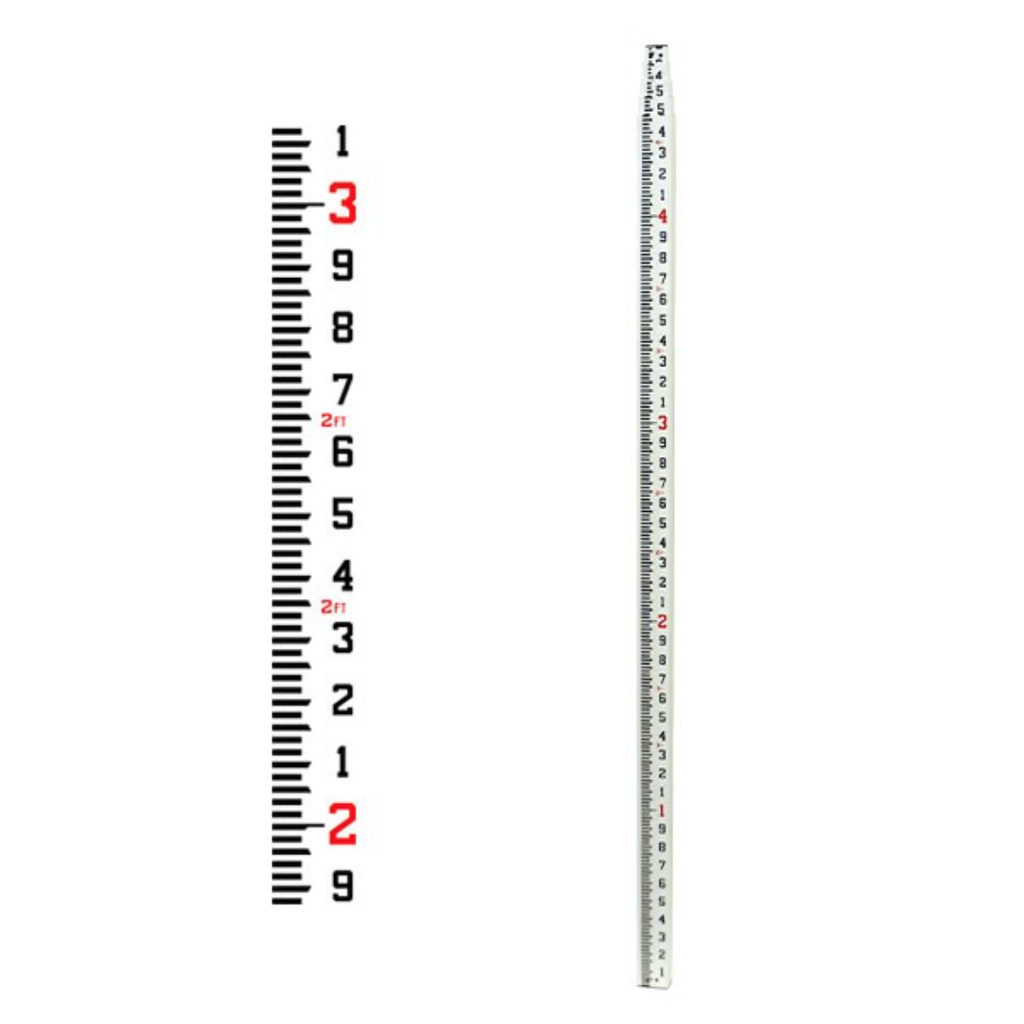

• 14-foot grade rod — inch/foot graduated for U.S. field use

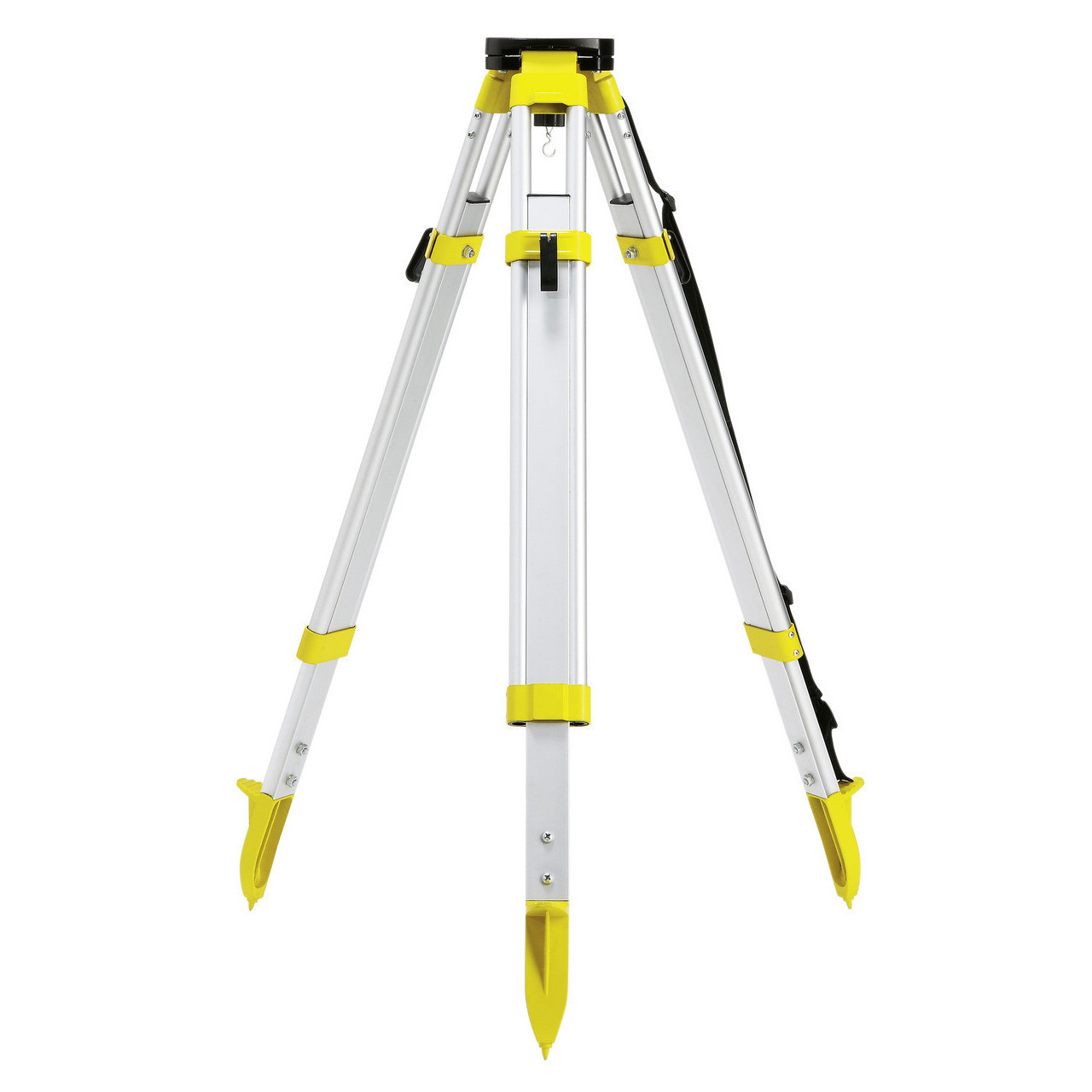

• Heavy-duty tripod — stable, adjustable aluminum construction
• Rechargeable lithium-ion battery with charger

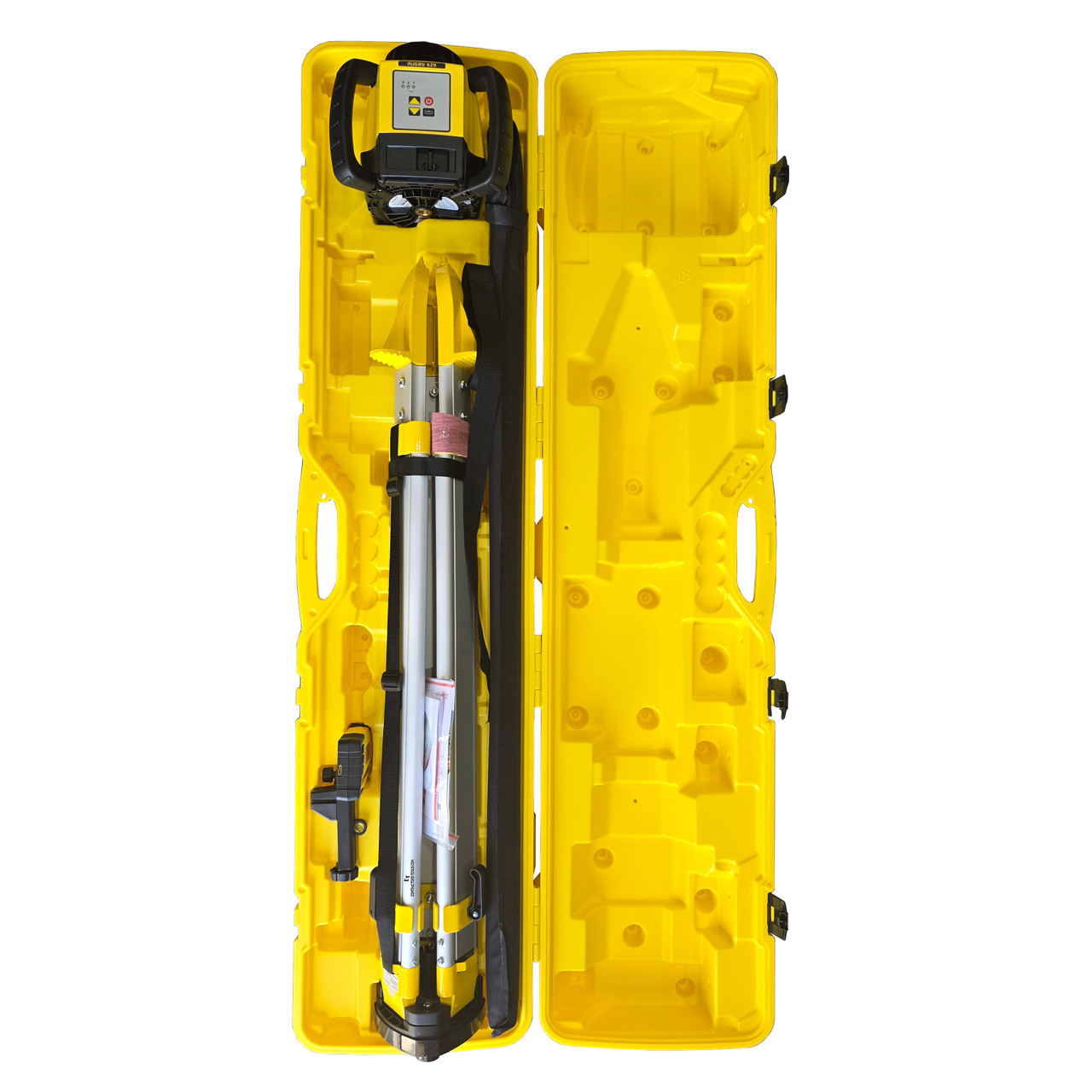

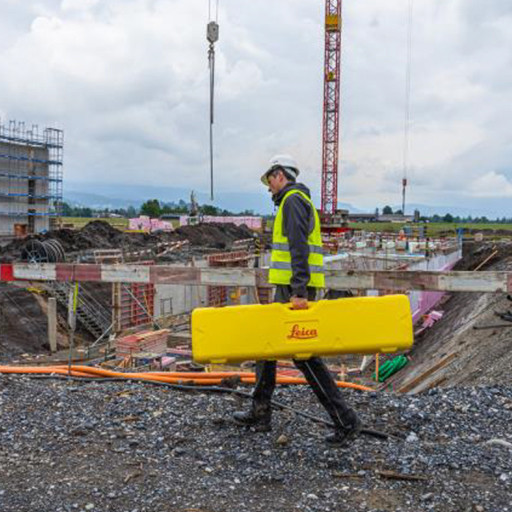

• Hard-shell transport and storage case
• Operator manual and calibration documentation

Job Applications

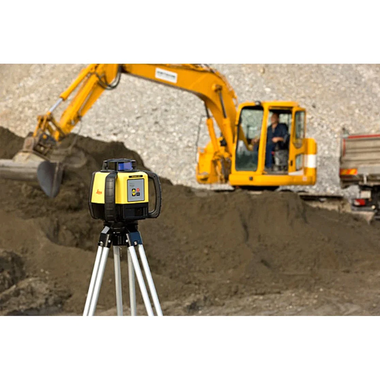

Site Grading & Earthwork: The Rugby 620's long working range and digital receiver make it ideal for controlling cut-and-fill operations across large footprints. Machine operators and rod men can work independently while maintaining accurate grade references.

Concrete Flatwork & Slab Pours: Set screed rails and verify slab elevation before and after pours. The Rod Eye 160's audible and visual grade indicators let finishers confirm height without interrupting workflow.

Foundation & Footing Layout: Establish consistent benchmark elevations around a building perimeter, ensuring footings are poured level and at the correct depth relative to finished grade.

Drainage & Utility Trenching: Apply single-axis grade mode to control pipe slope for storm drain, sanitary sewer, and utility installations requiring consistent fall over long runs.

Compatible Accessories

• Leica Rod Eye 180 Digital Receiver — extended capture window for machine control
• Leica GHT61 Heavy-Duty Tripod — additional stability for high-vibration environments
• Leica Rugby 620 Alkaline Battery Pack — backup power for remote sites without charging access
• Leica Remote Control for Rugby 620 — adjust rotation speed and grade remotely

Related Guides

• How to Set Up a Rotary Laser for Site Grading
• Digital vs. Analog Laser Receivers: Which Do You Need?
• Leica Rugby 620 vs. Rugby 640: Choosing the Right Model
• Maintaining Your Rotary Laser on the Jobsite

Frequently Asked Questions

Does the Rugby 620 work in outdoor daylight conditions?

Yes. When paired with the included Rod Eye 160 digital receiver, the Rugby 620 operates effectively in full daylight at ranges up to 600 meters in diameter. The receiver detects the laser beam even when it is invisible to the naked eye, so direct sunlight does not limit your working range.

What is the difference between the Rod Eye 160 and the standard Rod Eye receiver?

The Rod Eye 160 features a 160mm tall reception window — significantly larger than entry-level receivers — improving capture speed, especially when the rod is moving or the laser is sweeping at higher RPM. It also provides a digital readout and graduated audio tone indicating cut or fill direction, which speeds up rod work for a single operator.

Can the Rugby 620 be used for single-axis slope applications?

Yes. The Rugby 620 supports single-axis grade from 0% to 25%, making it well-suited for drainage slope, pipe trenching, and driveway grading. Grade is set manually on the instrument. For dual-axis grade capability, you would need to consider the Rugby 640 or higher model.

Is this kit covered under Leica's warranty?

Leica instruments purchased through authorized dealers like Express Tools are covered under Leica Geosystems' standard manufacturer warranty. The Rugby 620 carries a 3-year instrument warranty. Contact Express Tools for warranty registration assistance and to confirm current coverage terms for all kit components.
