Leica Rugby 620 Red Beam Rotary Laser Package - Large Case (Leica 6019257) with Rod Eye 160 Digital Receiver - Rechargeable / Complete Kit with Rod/Tenths, HD Tripod

Professional-Grade Rotary Laser Delivered Job-Site Ready

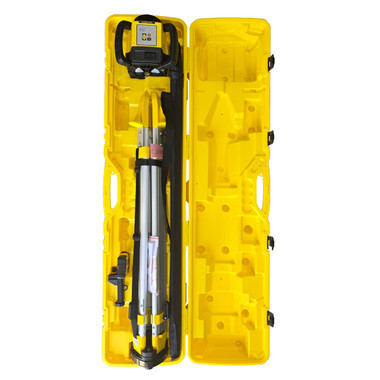

The Leica Rugby 620 Complete Kit (model 6019257) is the turnkey rotary laser solution built for contractors who can't afford downtime. Every component you need to start working arrives in a single large rigid case: the Rugby 620 dual-axis self-leveling rotary laser, Rod Eye 160 digital receiver, 14-foot grade rod graduated in tenths, heavy-duty adjustable tripod, rechargeable Li-Ion battery with charger, and a foam-fitted transport case. Sold by Express Tools, an authorized Leica dealer, this kit ships free and is backed by full factory warranty support.

Overview & Jobsite Applications

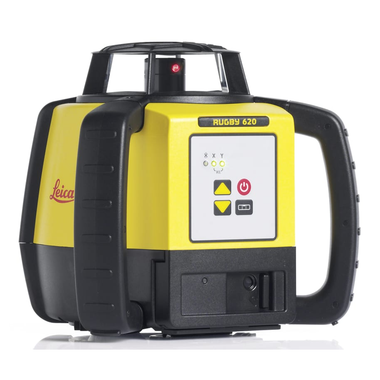

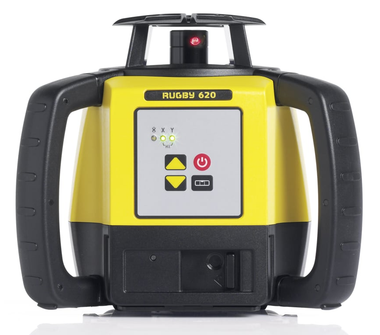

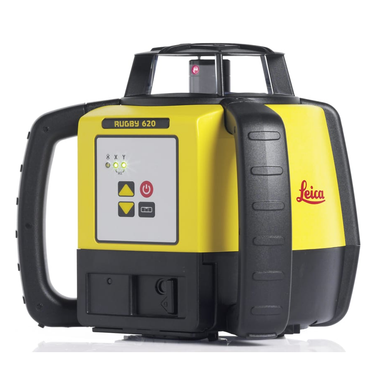

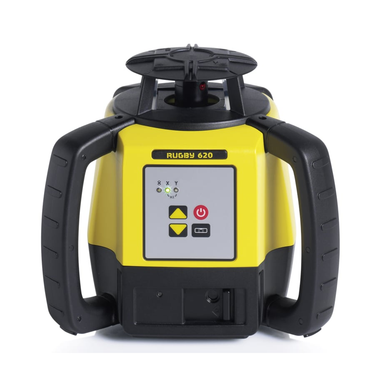

The Rugby 620 is engineered for demanding horizontal, vertical, and slope applications on commercial and residential job sites. Its dual-axis self-leveling compensator automatically levels within ±5° and alerts the operator if the instrument is knocked out of level — a critical safety feature when working around heavy equipment. The 600-meter diameter working range (with receiver) and 1,500 RPM rotation speed make it equally capable on open grading sites and tight interior layout work. Whether you're setting forms, checking floor flatness, or shooting grades across a large pad, the 620 delivers the precision and reliability Leica is known for.

Key Specifications

• Model / SKU: Rugby 620 — 6019257
• Accuracy: ±1.5mm at 30m (1/16" at 100')
• Self-Leveling Range: ±5° dual axis
• Working Range (with receiver): 600m diameter
• Rotation Speed: 150, 300, 600, or 1,500 RPM
• Slope Range: 0–25% on single axis
• Battery Life: Up to 35 hours (Li-Ion)
• IP Rating: IP67 — dust-tight and submersion-resistant
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Laser Class: Class 3R (635nm visible red)

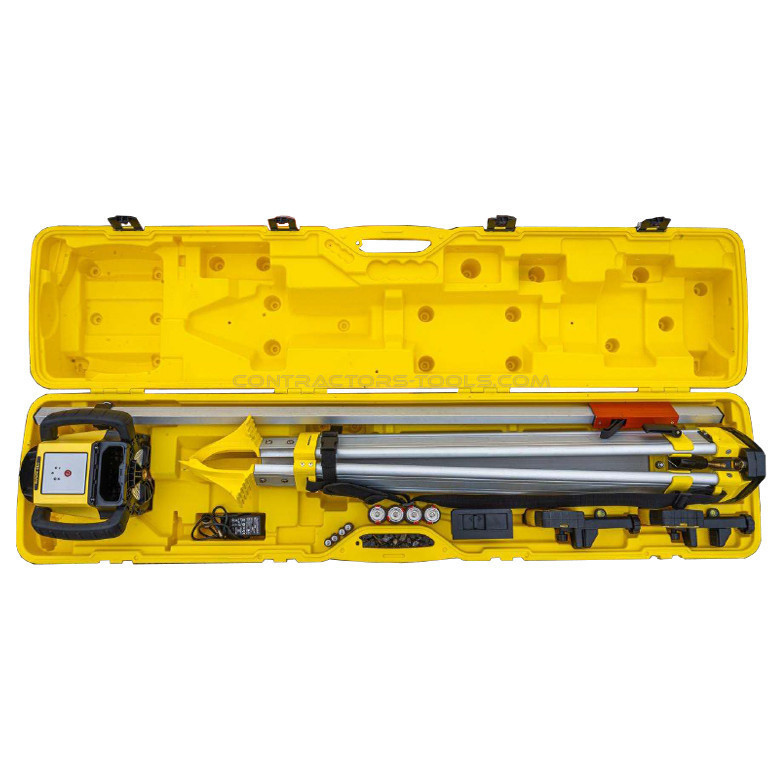

What's in the Kit

• Leica Rugby 620 dual-axis self-leveling rotary laser
• Rod Eye 160 digital laser receiver with enhanced detection window

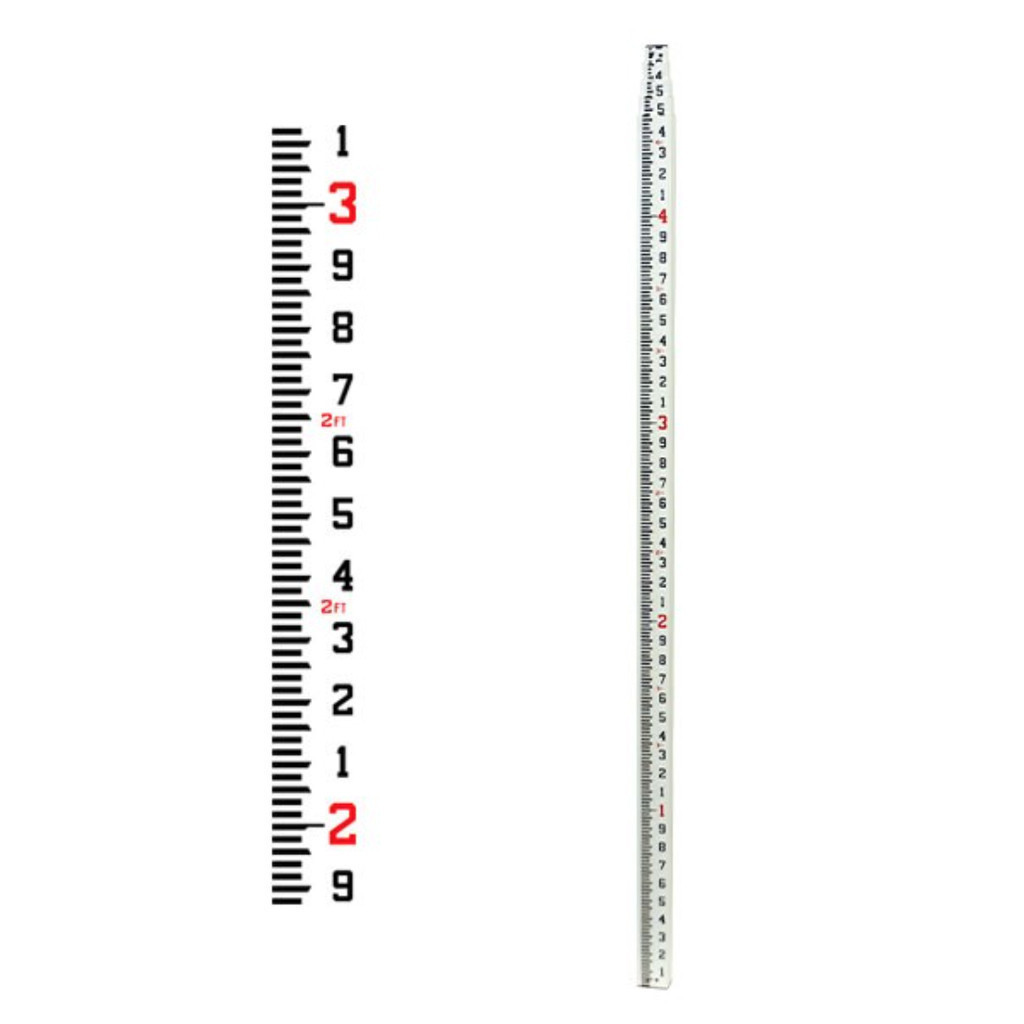

• 14-foot grade rod graduated in tenths of a foot

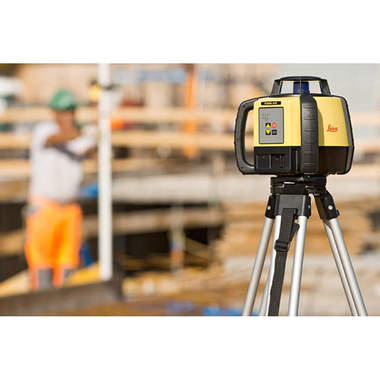

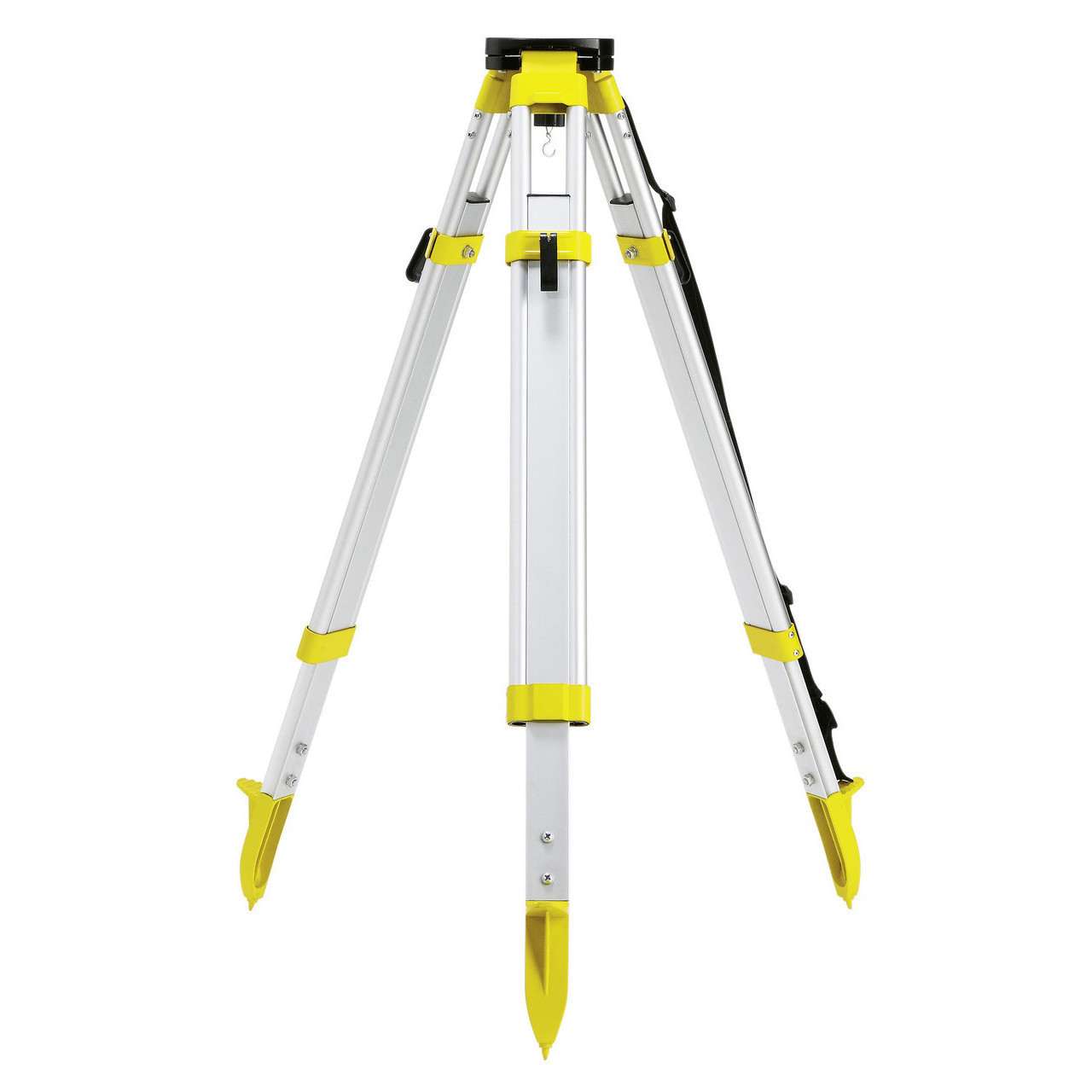

• Heavy-duty adjustable tripod for stable setup on any terrain
• Li-Ion rechargeable battery with wall charger

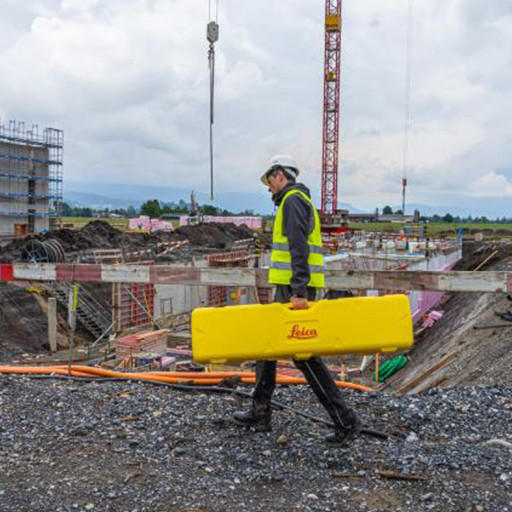

• Large rigid transport and storage case with foam-cut insert
• Quick-start guide and documentation package

Job Site Applications

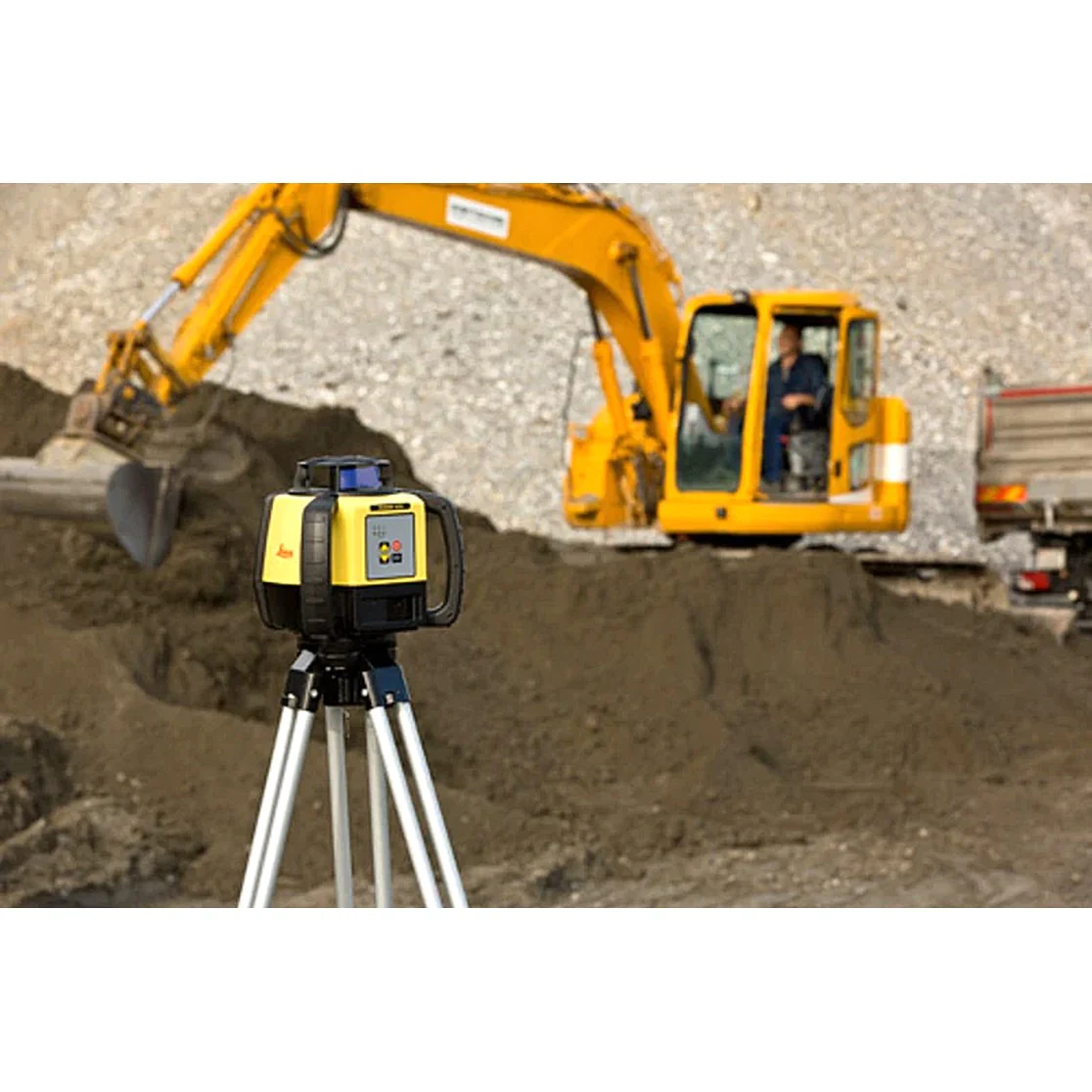

Site Grading & Earthwork: The 600m working diameter and slope mode let operators grade large pads and drainage swales accurately without constant instrument moves. Set a slope percentage and the 620 does the math.

Concrete Formwork & Flatwork: Use the Rod Eye 160's digital readout to set form heights with millimeter-level consistency. The high-speed 1,500 RPM mode provides near-continuous reference for screed guides and elevation checks.

Interior Layout & Ceiling Work: Switch to vertical plane mode for partition layout, door and window plumb lines, or dropped ceiling grid elevation. The compact form factor and magnetic mount options make it easy to reposition indoors.

Pipe & Utility Grade: Single-axis slope mode allows precise pipe gradient setting. Enter the required percent grade and stake or set invert elevations efficiently across long runs without repeated calculations.

Compatible Accessories

• Leica Rod Eye 140 Classic Receiver — budget-friendly backup receiver
• Leica RRC Remote Control — wireless instrument control from the rod
• Leica 5/8" x 11 Tripod Adapter — adapts to standard surveying tripods
• Alkaline Battery Tray for Rugby 620 — AA-battery field backup option
• Replacement Li-Ion Battery Pack — extended duty cycle for long shifts

Related Guides

• How to Set Slope Mode on the Leica Rugby 620
• Rotary Laser vs. Line Laser: Choosing the Right Tool for Your Project
• Setting Up a Rotary Laser for Concrete Flatwork
• Leica Rugby Series Comparison: 610 vs. 620 vs. 640

Frequently Asked Questions

Does the Rugby 620 work outdoors in bright sunlight?

Yes. When paired with the included Rod Eye 160 digital receiver, the Rugby 620 is fully functional in direct sunlight at ranges up to 300m radius (600m diameter). The receiver detects the laser beam electronically, so ambient light does not affect performance.

What is the difference between single-axis and dual-axis self-leveling?

Dual-axis self-leveling means the Rugby 620 compensates for out-of-level conditions on both the X and Y axes simultaneously. This provides a more accurate horizontal plane across all 360° of rotation compared to single-axis instruments that only compensate on one axis.

Is the Rugby 620 waterproof enough for rain?

The Rugby 620 carries an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 meter of water for 30 minutes. Light to moderate rain will not affect operation or damage the instrument.

Can I use the Rugby 620 for interior vertical layout work?

Yes. The Rugby 620 supports vertical plane projection, making it suitable for partition wall layout, plumbing alignment, and facade work. Simply rotate the instrument 90° on its side or use a wall bracket mount to project a vertical reference plane.
