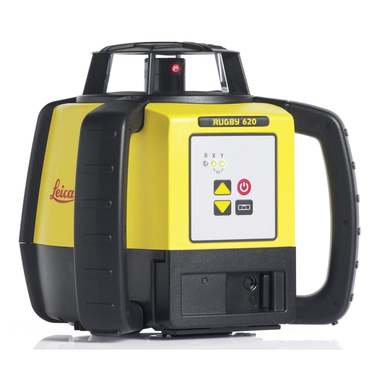

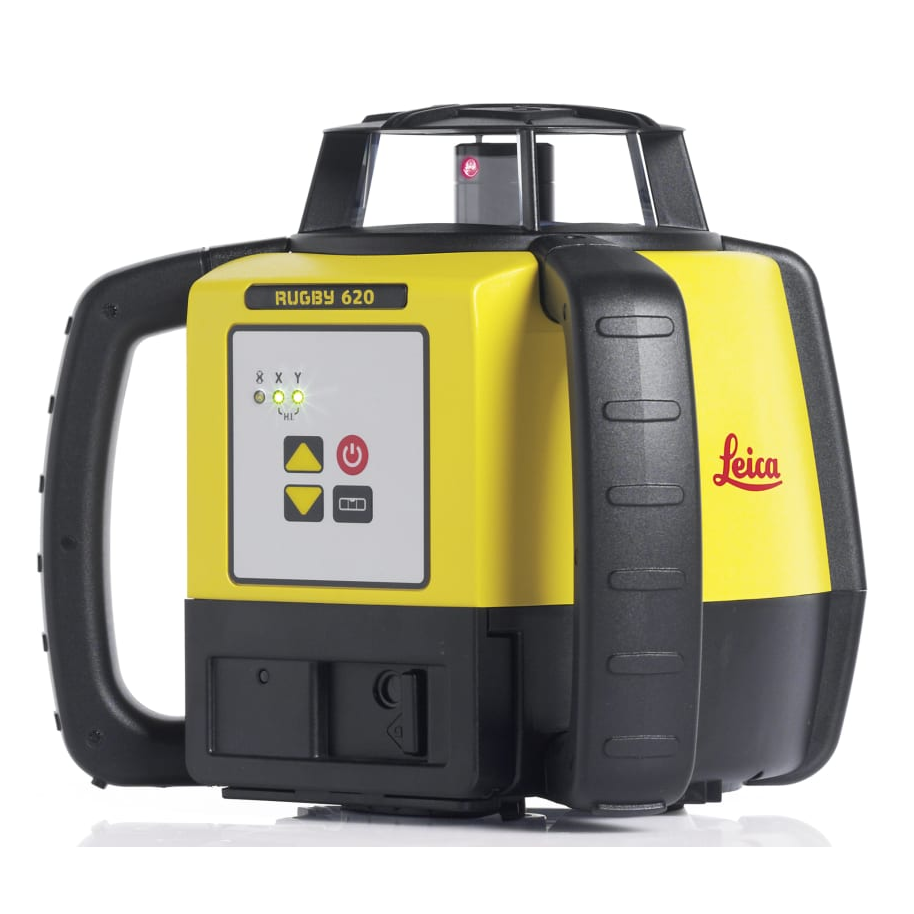

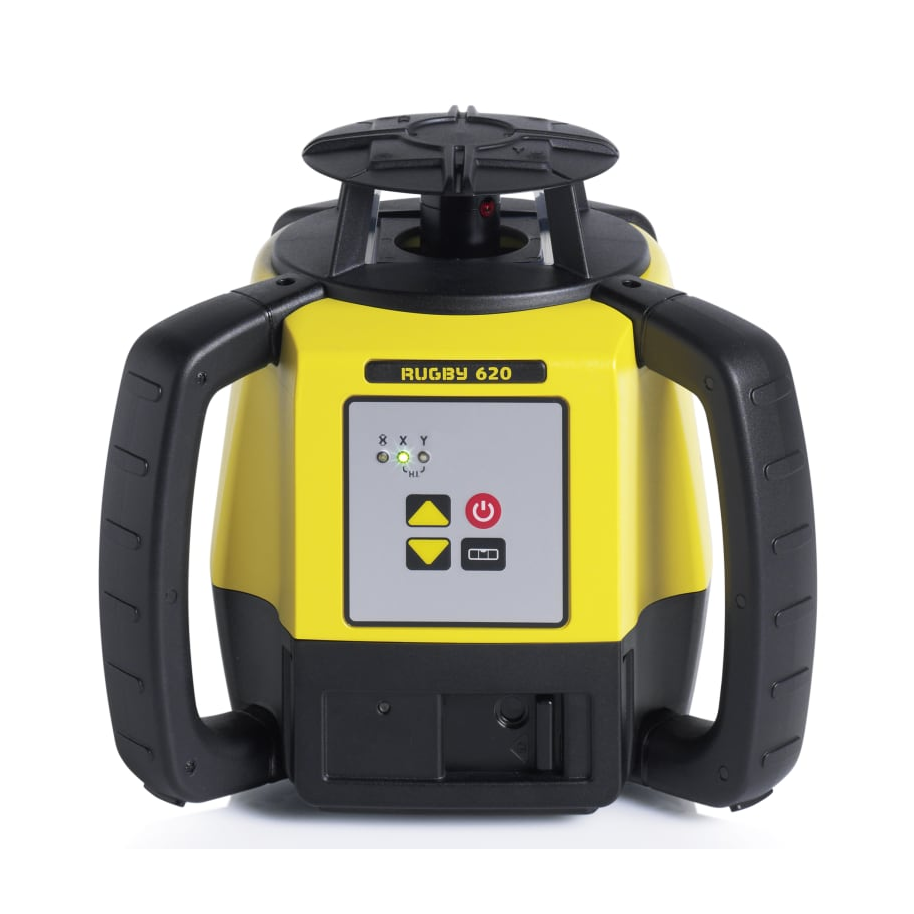

Leica Rugby 620 Red Beam Rotary Laser Package - Large Case (Leica 6019253) with Rod Eye 120 Digital Receiver - Alkaline / Complete Kit with Rod/Inches, HD Tripod

The Leica Rugby 620 Kit (model 6019253) is a field-ready rotary laser package built for contractors who need accurate, repeatable grade and elevation control on every job. This complete system combines the Rugby 620 red beam rotary laser with a Rod Eye 120 digital receiver, 14-foot grade rod, heavy-duty tripod, alkaline battery tray, and a large hard case — everything stored and protected in one place, ready to pull off the truck and get to work.

Overview & Jobsite Applications

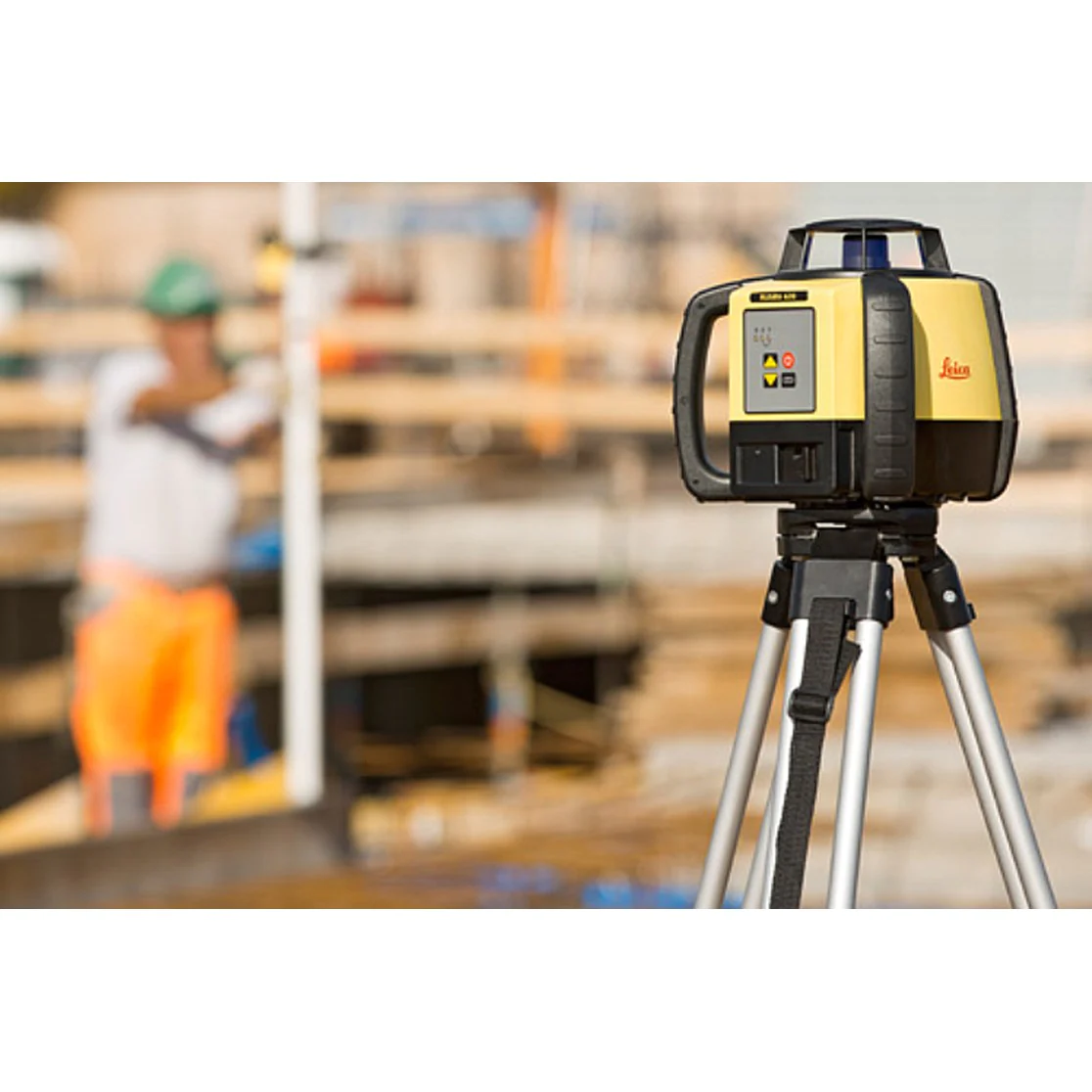

The Rugby 620 is engineered for demanding outdoor and indoor construction environments. Its self-leveling mechanism compensates automatically within a ±5° range, so setup time stays short even on uneven ground. The laser operates at selectable rotation speeds up to 1200 RPM and delivers a working range of up to 2,600 feet in diameter when paired with the included Rod Eye 120 receiver. Whether you're setting footing elevations, grading a pad, establishing finished floor heights, or controlling drainage slopes, the Rugby 620 gives you a dependable reference plane from the first power-on.

Key Specifications

• Model: Rugby 620 — SKU 6019253
• Laser Class: Red beam, Class 3R / IEC 60825-1
• Self-Leveling Range: ±5°
• Working Diameter: Up to 2,600 ft (800 m) with receiver
• Rotation Speed: Selectable — up to 1,200 RPM
• Grade Capability: Manual grade on single or dual axes
• IP Rating: IP67 — fully dust-tight and submersion protected
• Battery Life: Up to 55 hours on alkaline batteries
• Receiver: Rod Eye 120 digital display receiver

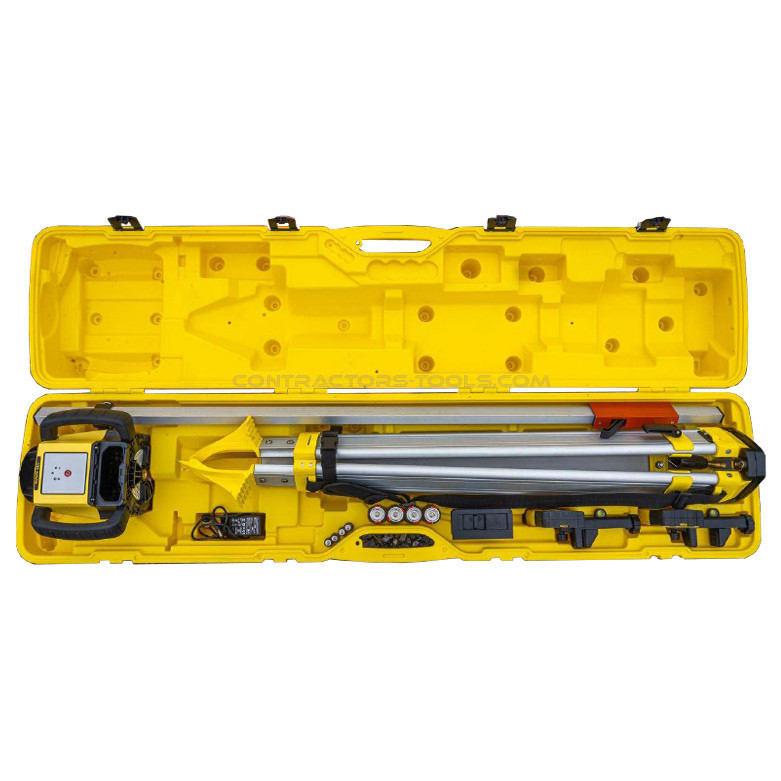

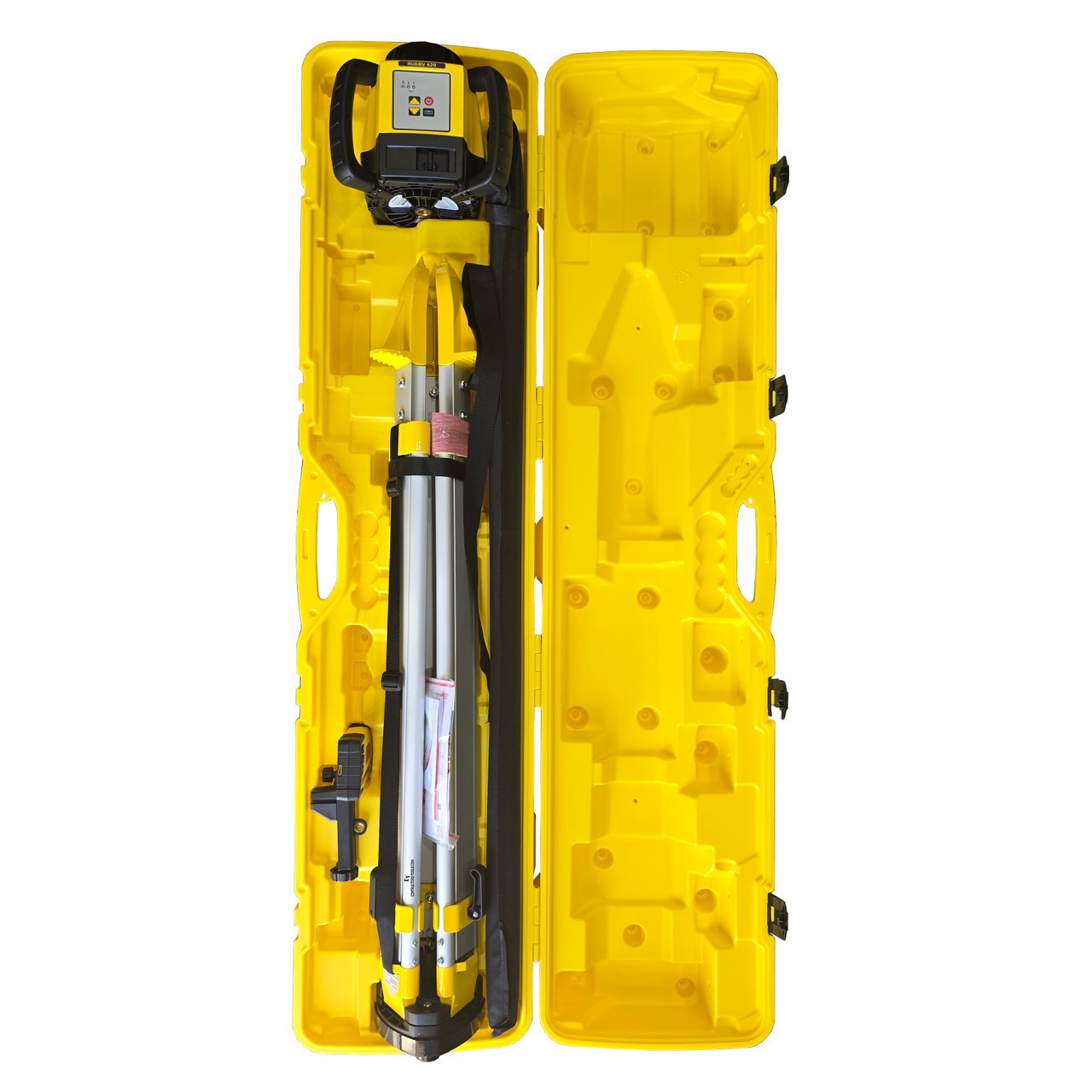

What's in the Kit

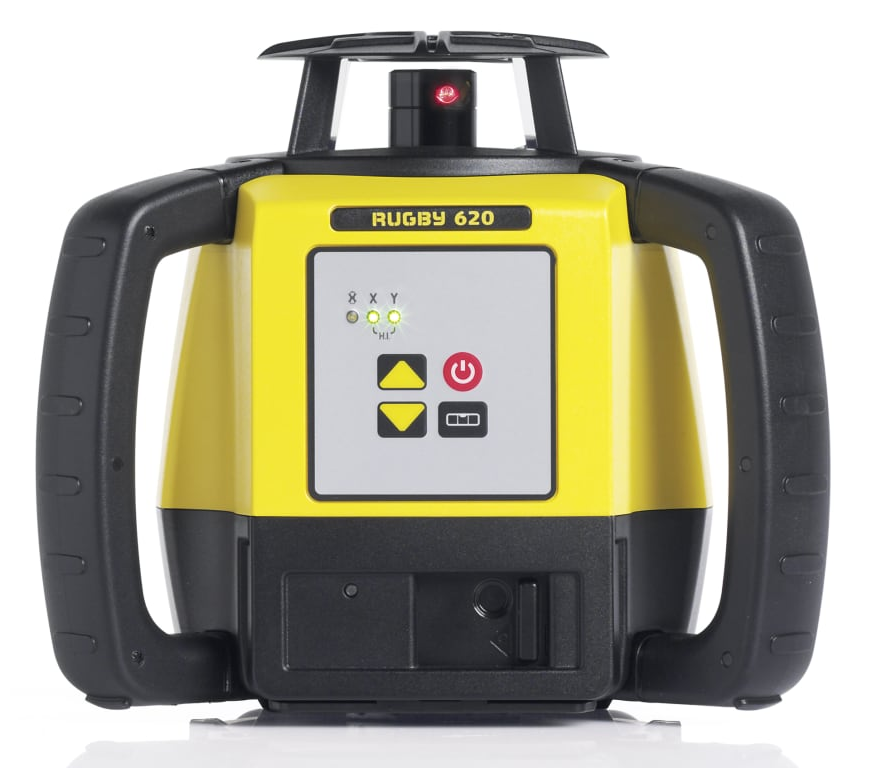

• Leica Rugby 620 rotary laser unit
• Rod Eye 120 digital receiver with display

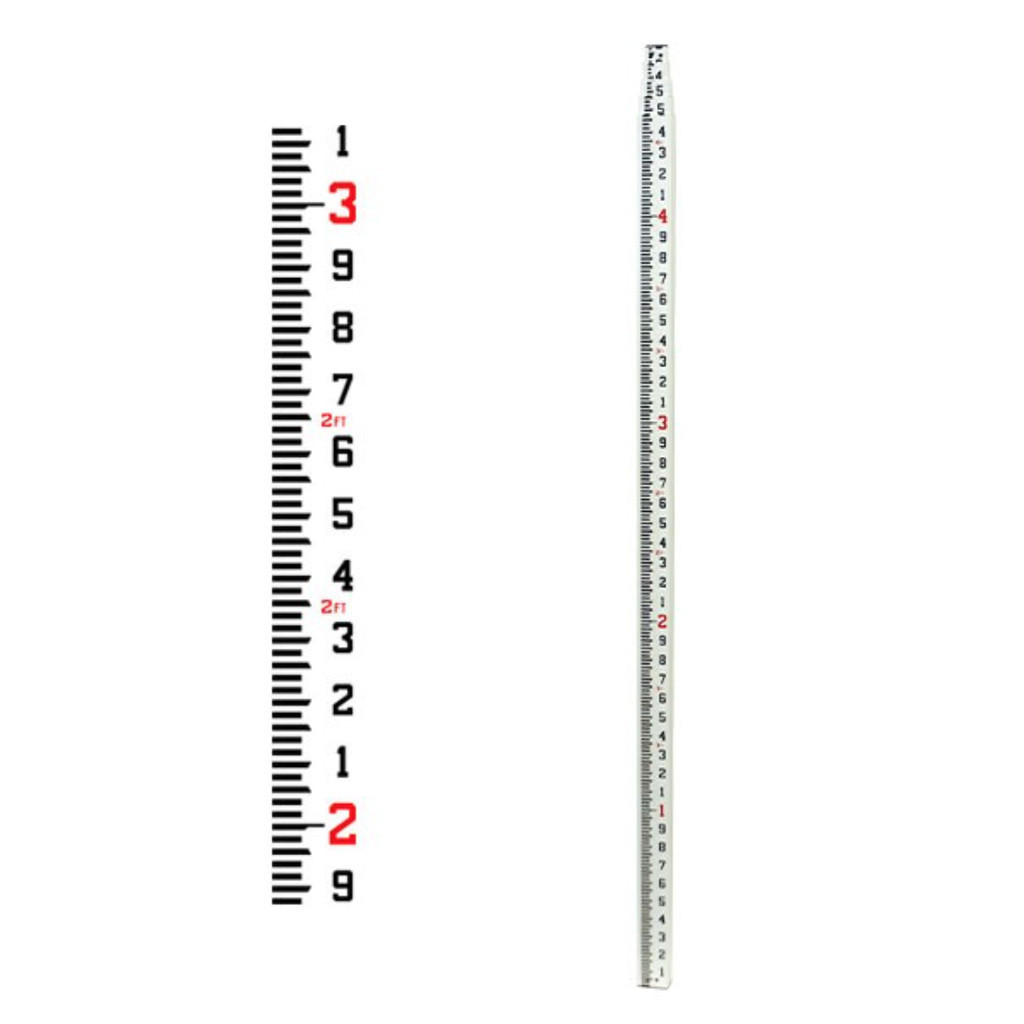

• 14-foot grade rod with tenths graduations

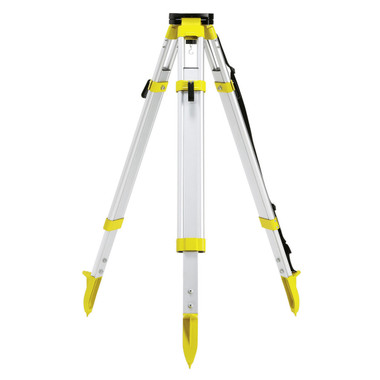

• Heavy-duty adjustable tripod
• Alkaline battery tray (AA)

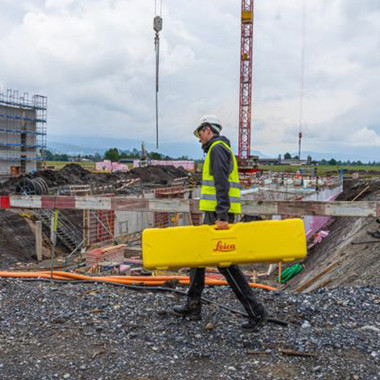

• Large hard carry case for full kit storage
• User documentation and warranty card

Job Applications

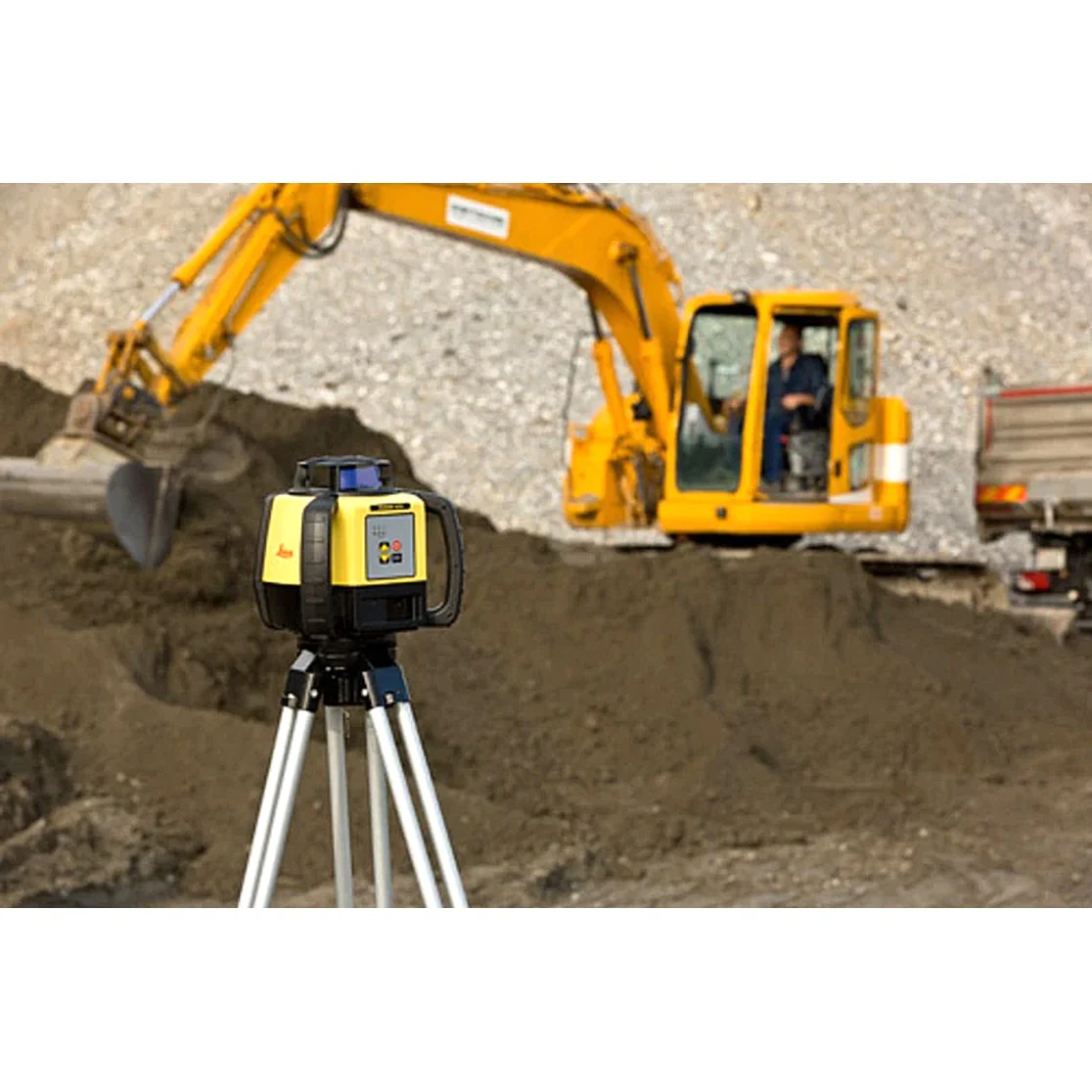

Site Grading & Earthwork: Establish and maintain consistent cut-and-fill elevations across large pads. The long working range and high-visibility receiver allow solo operators to work efficiently without a second crew member.

Concrete Flatwork & Footings: Set footing depths and slab elevations with confidence. The Rugby 620's stable reference plane holds tight tolerances from form layout through final pour verification.

Drainage & Utility Layout: Use manual grade mode to set precise single-axis slopes for storm drain lines, retention ponds, and utility trenches where consistent fall is critical.

Interior Finish & MEP Rough-In: Indoors, the rotating laser provides a consistent elevation reference for suspended ceilings, finished floor benchmarks, and mechanical equipment mounting heights across large open floor plates.

Compatible Accessories

• Leica Rod Eye 160 Digital Receiver — extended detection range for large sites
• Leica Rugby Remote Control — wireless laser control from the rod
• Leica Wall Mount Bracket — interior ceiling and wall reference work
• Replacement Alkaline Battery Tray — spare for extended shifts
• Leica Rugby Carrying Case (Large) — replacement or additional storage

Related Guides

• How to Set Up a Rotary Laser for Site Grading
• Rugby 620 vs Rugby 840 — Which Laser Is Right for Your Crew?
• Using the Rod Eye 120 Receiver: Tips for Faster Elevation Checks
• Rotary Laser Maintenance: Keeping Your Leica Accurate on the Job

Frequently Asked Questions

Does the Rugby 620 work in full sunlight?

The Rugby 620 uses a red beam laser, which performs best in low-light or shaded conditions. In direct sunlight at longer ranges, the included Rod Eye 120 digital receiver is required to detect the beam reliably. For full-sun outdoor use across the entire working range, the receiver is the primary targeting tool rather than direct visual sighting.

Can the Rugby 620 set grade and slope?

Yes. The Rugby 620 supports manual grade mode on a single axis, allowing you to dial in a specific slope percentage for applications like drainage, road crown, or ramp construction. Dual-axis grade is not available on this model — for dual-axis grade capability, consider the Leica Rugby 840.

What is included in kit model 6019253?

Kit 6019253 includes the Rugby 620 laser unit, Rod Eye 120 digital receiver, 14-foot grade rod with tenths graduations, heavy-duty tripod, alkaline battery tray, and a large hard case that holds the complete setup. No additional components are needed to begin work on a standard grading or elevation job.

Is the Rugby 620 protected against water and dust?

Yes. The Rugby 620 carries an IP67 rating, meaning it is fully dust-tight and rated for temporary submersion in water up to 1 meter for 30 minutes. This level of protection makes it suitable for use in rain, muddy jobsite conditions, and dusty environments without requiring special precautions during normal operation.
