Leica Rugby 610 Red Beam Rotary Laser Package (6011150) with Rod Eye 120 Receiver - Alkaline

The Leica Rugby 610 (6011150) delivers legitimate single-slope rotary performance at a price point that makes sense for concrete contractors, site work crews, and small grading operations. This is a self-leveling horizontal laser built on Leica's one-button philosophy — minimal setup, maximum uptime. Paired with the Rod Eye 120 receiver, the Rugby 610 package covers the widest range of daily layout and grade work without forcing operators through complex menu systems or multi-axis programming they don't need.

Overview & Jobsite Applications

The Rugby 610 is engineered for crews who need a reliable rotary laser that sets up fast, holds calibration in tough conditions, and doesn't demand a learning curve. Its automatic self-leveling compensator locks in horizontal grade within seconds of powering on. The single-slope function allows pitch settings from 0% to 25%, making it genuinely useful for drainage swales, slab pours with controlled fall, and road crown work — tasks where a basic horizontal-only laser falls short. Operating range extends to 800 meters in diameter with the included receiver, practical for medium-scale site work and large slab pours.

Key Specifications

• Model: Leica Rugby 610 — SKU 6011150
• Laser Class: Class 2, red beam (635 nm)
• Self-Leveling Range: ±5°
• Leveling Accuracy: ±1.5 mm at 30 m (1/16" at 100 ft)
• Slope Range: 0% to 25% single axis
• Working Range: Up to 400 m radius / 800 m diameter (with receiver)
• Rotation Speed: 300 / 600 / 1200 RPM selectable
• Battery Life: Up to 55 hours (4 x AA alkaline)
• IP Rating: IP67 — fully dustproof, submersible to 1 meter
• Drop Protection: 1-meter drop tested
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Included Receiver: Leica Rod Eye 120

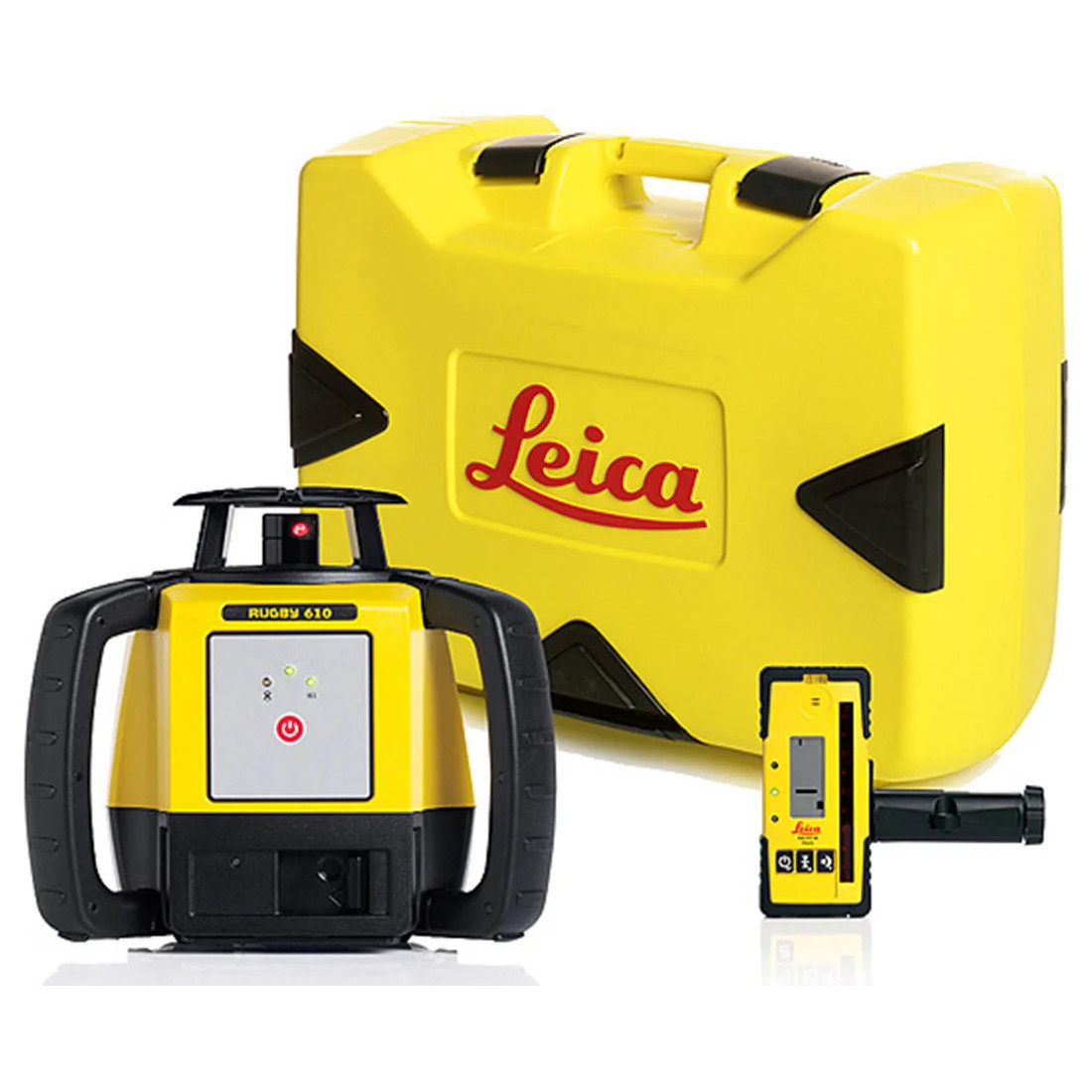

What's in the Kit

• Leica Rugby 610 rotary laser unit
• Leica Rod Eye 120 receiver with clamp
• 4 x AA batteries
• Carry case
• Quick-start guide and documentation

Job Applications

Slab-on-Grade & Foundation Layout: The Rugby 610's ±1.5 mm accuracy at 30 m keeps concrete pours on spec. Set it at slab center and the Rod Eye 120 gives rod readings across the entire pour area without repositioning the instrument.

Site Grading & Drainage: Single-slope mode handles drainage fall for parking lots, driveways, and detention basins. Dial in 1–2% fall, let the laser do the math, and grade to the receiver without constantly rechecking a level.

Underground Utility & Pipe Lay: Consistent grade references over long runs make the Rugby 610 a reliable choice for storm drain and sanitary sewer rough-in where slope consistency is critical.

Interior Concrete & Flooring: At slower RPM settings, the visible red beam supports interior control line transfer and elevation benchmarking on multi-level pours where GPS-based tools aren't practical.

Compatible Accessories

• Leica Rod Eye 160 Digital Receiver — extended range and digital grade readout
• Leica TRI 100 Tripod — heavy-duty aluminum tripod for instrument stability
• Leica GR2 Grade Rod — aluminum leveling rod compatible with Rod Eye 120
• Leica Rugby 610 Replacement Carrying Case

Related Guides

• How to Set Single Slope on the Leica Rugby 610
• Rugby 610 vs Rugby 620: Which Laser Do You Need?
• Rotary Laser Buyer's Guide for Contractors
• How to Calibrate a Rotary Laser on the Jobsite

Frequently Asked Questions

Does the Rugby 610 support dual-slope or two-axis grade?

No. The Rugby 610 is a single-slope laser, meaning it sets grade on one axis only. If your application requires simultaneous X and Y slope — such as a crowned road or complex drainage plane — you'll need to step up to the Leica Rugby 640 or 840 which support dual-axis grade programming.

What is the working range of the Rod Eye 120 receiver included in this package?

The Rod Eye 120 extends the Rugby 610's working range to approximately 400 meters radius (800 m diameter) outdoors. In bright sunlight conditions, always use the receiver rather than attempting to spot the beam visually — the red beam is not visible in direct sunlight at distance.

Is the Leica Rugby 610 covered under a warranty?

Yes. The Rugby 610 carries a 3-year manufacturer warranty from Leica Geosystems when purchased through an authorized dealer. Express Tools is an authorized Leica dealer, so your purchase is fully covered. Register your instrument with Leica after purchase to activate the warranty period.

Can the Rugby 610 be used indoors for concrete flooring work?

Absolutely. The Rugby 610 works well indoors for slab pours, floor flatness control, and elevation benchmarking. Use a lower rotation speed (300 RPM) to increase beam visibility indoors, and pair it with a laser detector or the Rod Eye 120 for precise staff readings in varying light conditions.
